BMW X5 DSP Integration by Sound in Motion

Contributed by: jmh





A number of people have askedhow the aftermarket amplifiers have been integrated with the DSP system and below I will illustrate some of the details. However it is important to understand that you really need to find an installer such as Sound in Motion who understand DSP and have integrated systems into it, many shops will claim they have done this many times but in most cases they have not even seen a DSP equipped BMW.


One of the issues with DSP is that the signal from the headunit is
amplified before it is passed into the DSP amp, therefore it is not
really possible to bypass the DSP amp and get to a low voltage
input. You have to use the high voltage output from the DSP amp and
use something like the Soundgate hi-voltage LOCs (low voltage
converters) to retrieve a full range semi linear pre-amp signal to
feed your aftermarket amps (in my case Phoenix Gold). The factory
equalization is very unlinear and requires a good amount of
fine-tuning to make it acceptable














Below are some pictures of


the actual integration

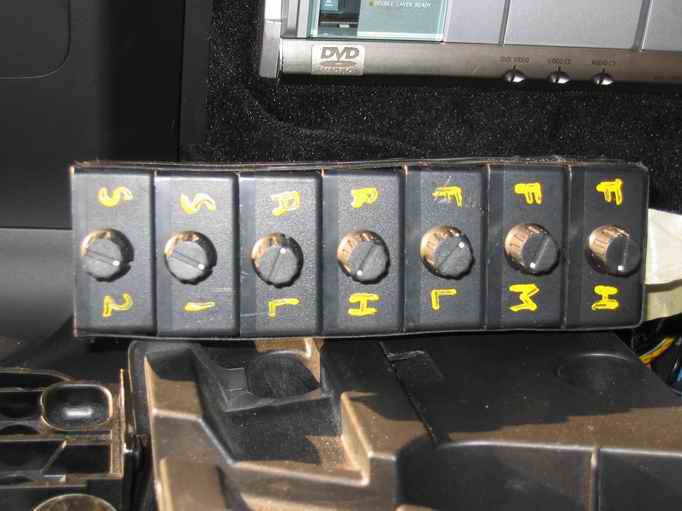

  • Soundgate hi-voltage LOCs
    • 2 x for the factory subwoofer

      outputs (labeled S1 and S2)
    • 2 x for the rear door outputs

      (labeled RL(ow) and RH(igh) )
    • 3 x for the front door

      outputs (labeled FL(ow) , FM(id) and FH(igh) )

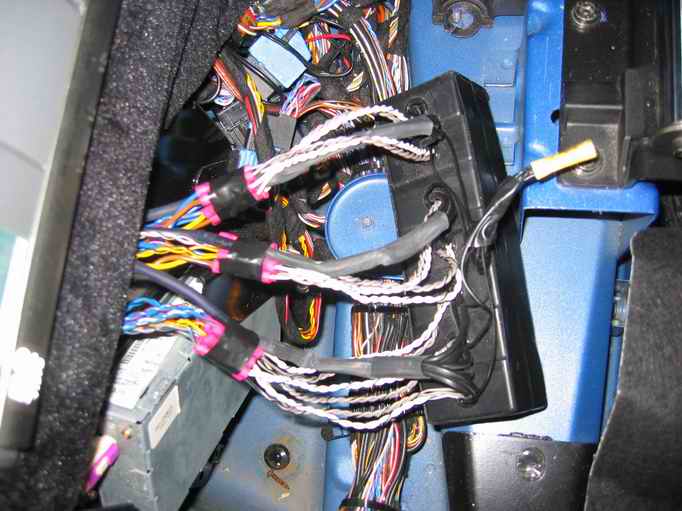

Cabling of the Soundgate LOCs

from the rear (input and outputs to the amps)







































As for the cabling coming

from the DSP amplifier into the Soundgate LOCs I've created the
following table







































































































































































Soundgate LOC Cable Color


(Input) 1

Cable Color (Input) 2
S(ubwoofer)1 Yellow/Brown Brown Blue Brown
S(ubwoofer)2 Blue/Red Blue/Brown Blue/White Blue/Brown
R(ear)H(igh) Yellow/Blue Yellow/Brown White/Blue White/Brown
R(ear)L(ow) Yellow/Blue Brown/Black Blue/Black Brown/Black
F(ront)H(igh) Blue/Black Blue/Brown Yellow/Red Yellow/Brown
F(ront)M(id) Grey/Blue Grey/Black Blue/Yellow Brown
F(ront)L(ow) Blue/White Blue/Brown Blue/Red Blue/Brown





References:


http://www.janixworld.com/x5/Stereo/DSP.html



http://www.janixworld.com/x5/Stereo/


http://forums.bimmerforums.com/forum/showthread.php?t=229220



http://forums.bimmerforums.com/forum/showthread.php?t=213379
