Three Questions into 1 Post: E53 Door Handle Carrier Weak Point, Name this part, &..

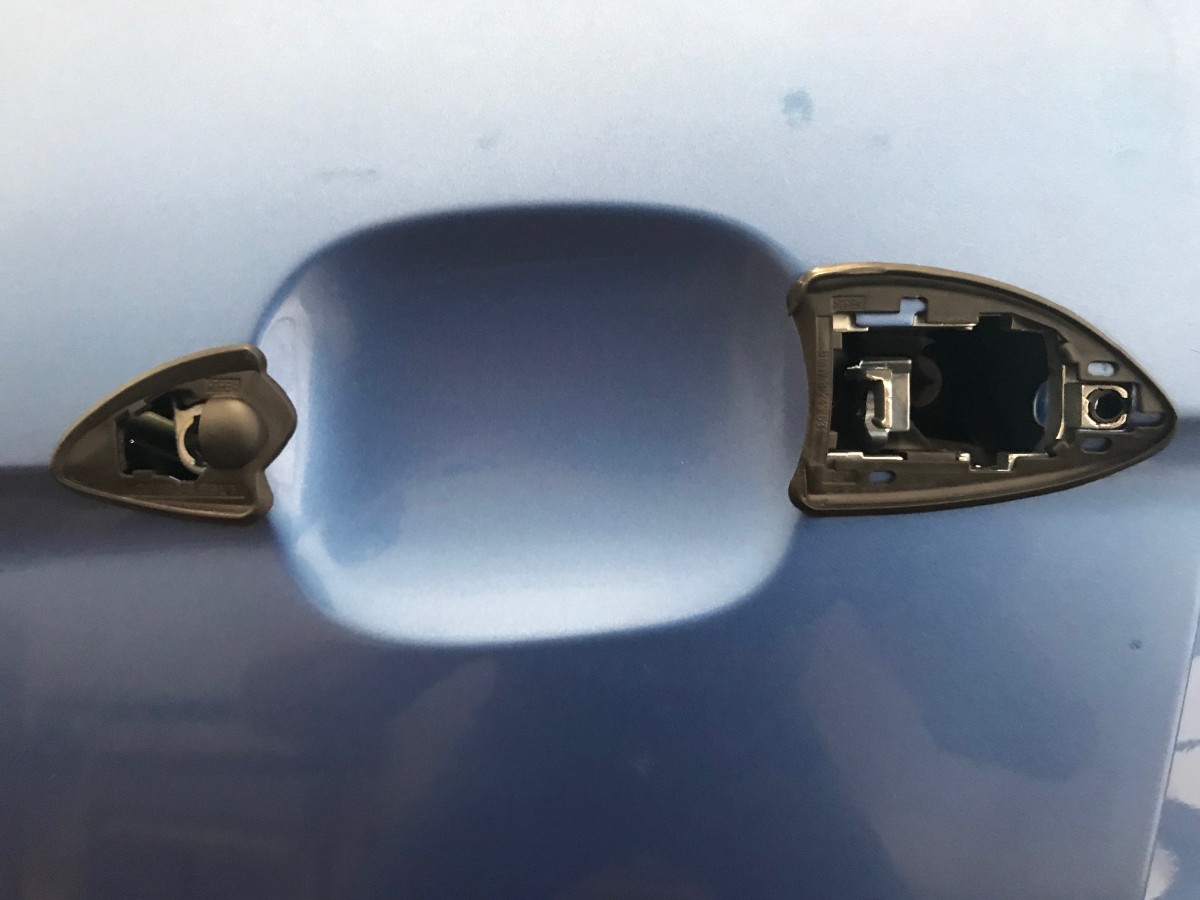

My driver door handle stopped opening the door for me. Every time I pull on the handle nothing happened. Studied up on youtube and found bavauto with a very detailed and well done diy for the carrier replacement.

Started to dissemble the whole thing today (please see pix).

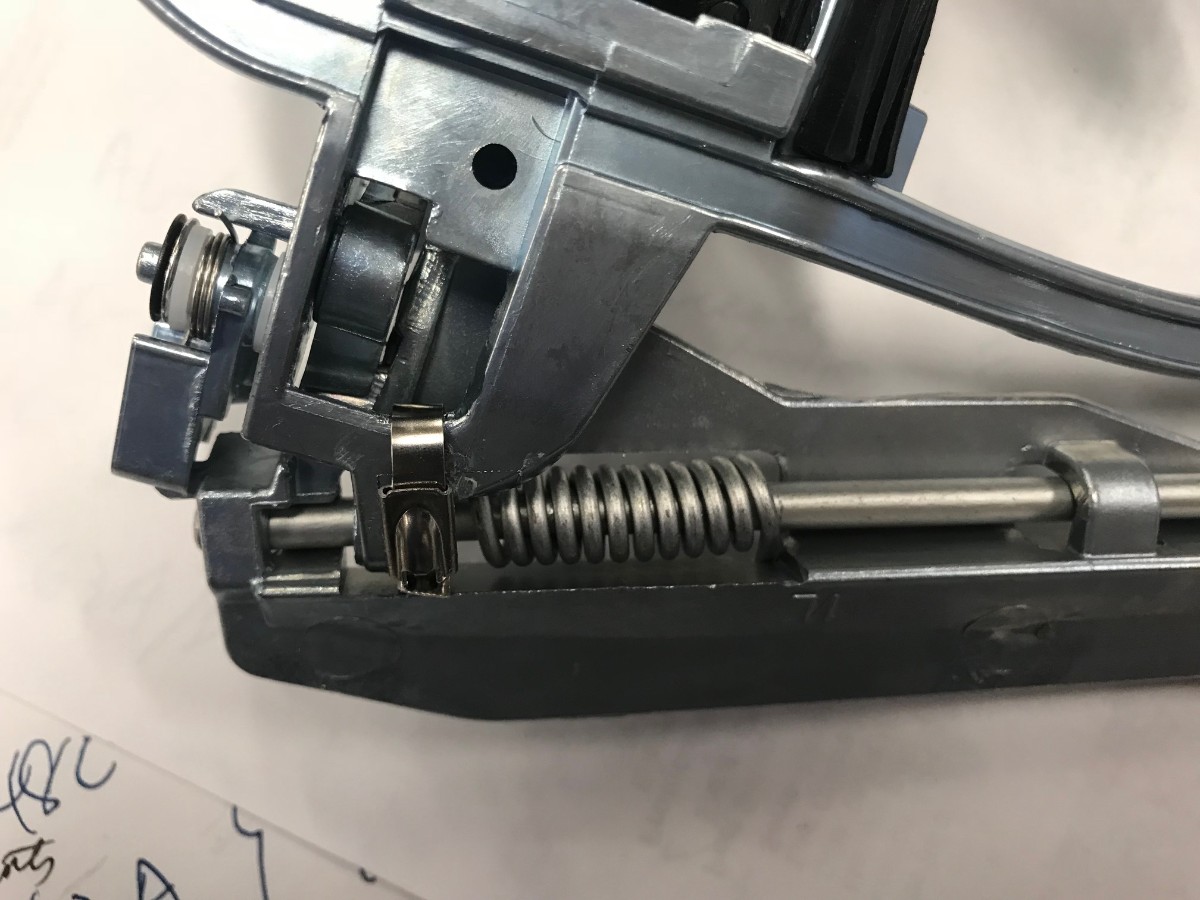

First question is, am I correct in assuming that the small metal that broke off (please see pix) is the stress point for the metal carrier? Does all that force that goes into pulling the handle stress at this specific point?

Is there a fix for this? I cannot find the broke off piece so I'm not even contemplating gluing it back or solder it back. Already purchased a new replacement and will install it later on this week.

Next question: I am in the process of upgrading the front door dsp speaker with a refurbished BAV unit (please see pix).

Out of the 4 contact points on the oem harness, where do I connect the + and - wires from the bav speaker?

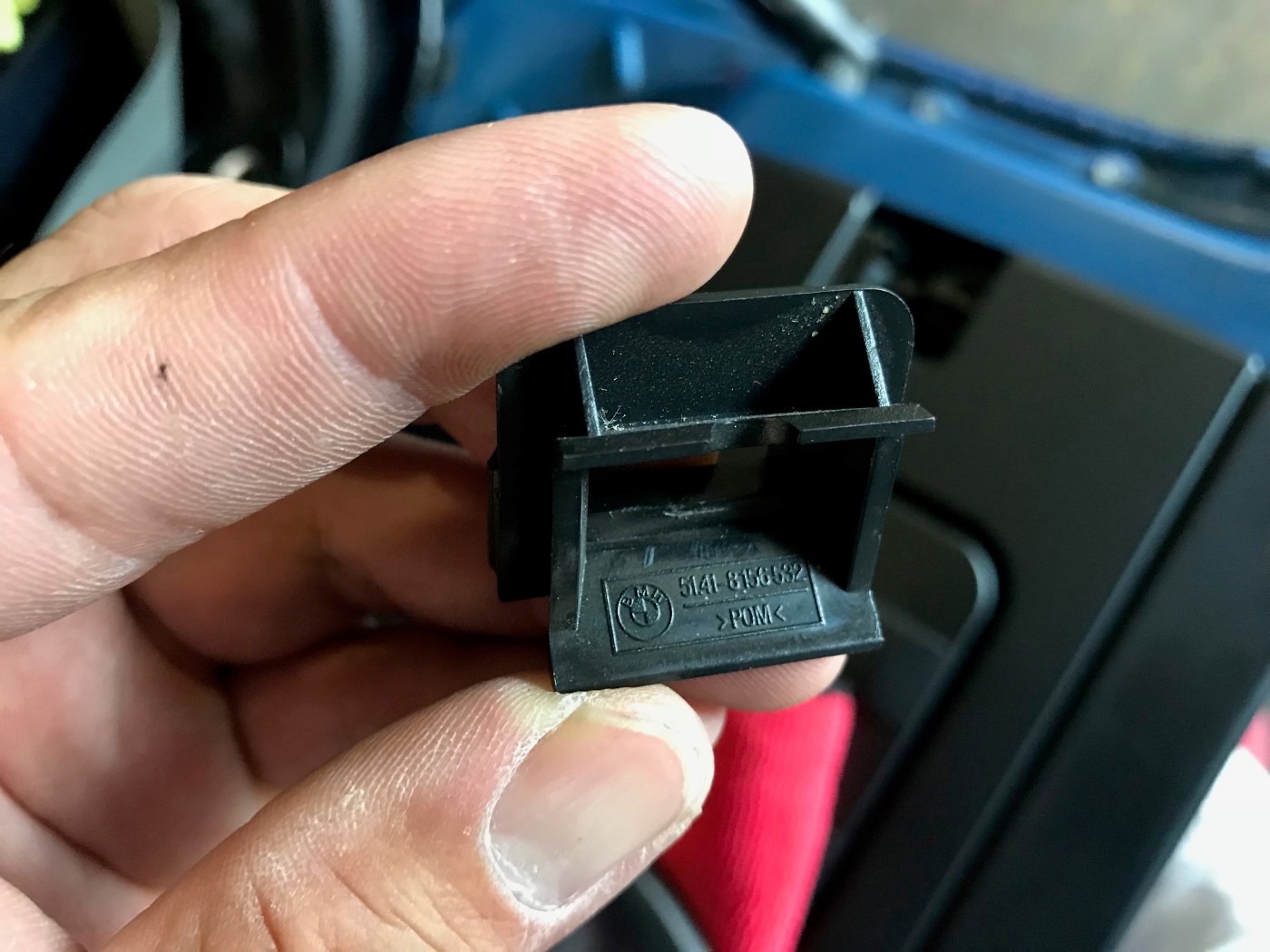

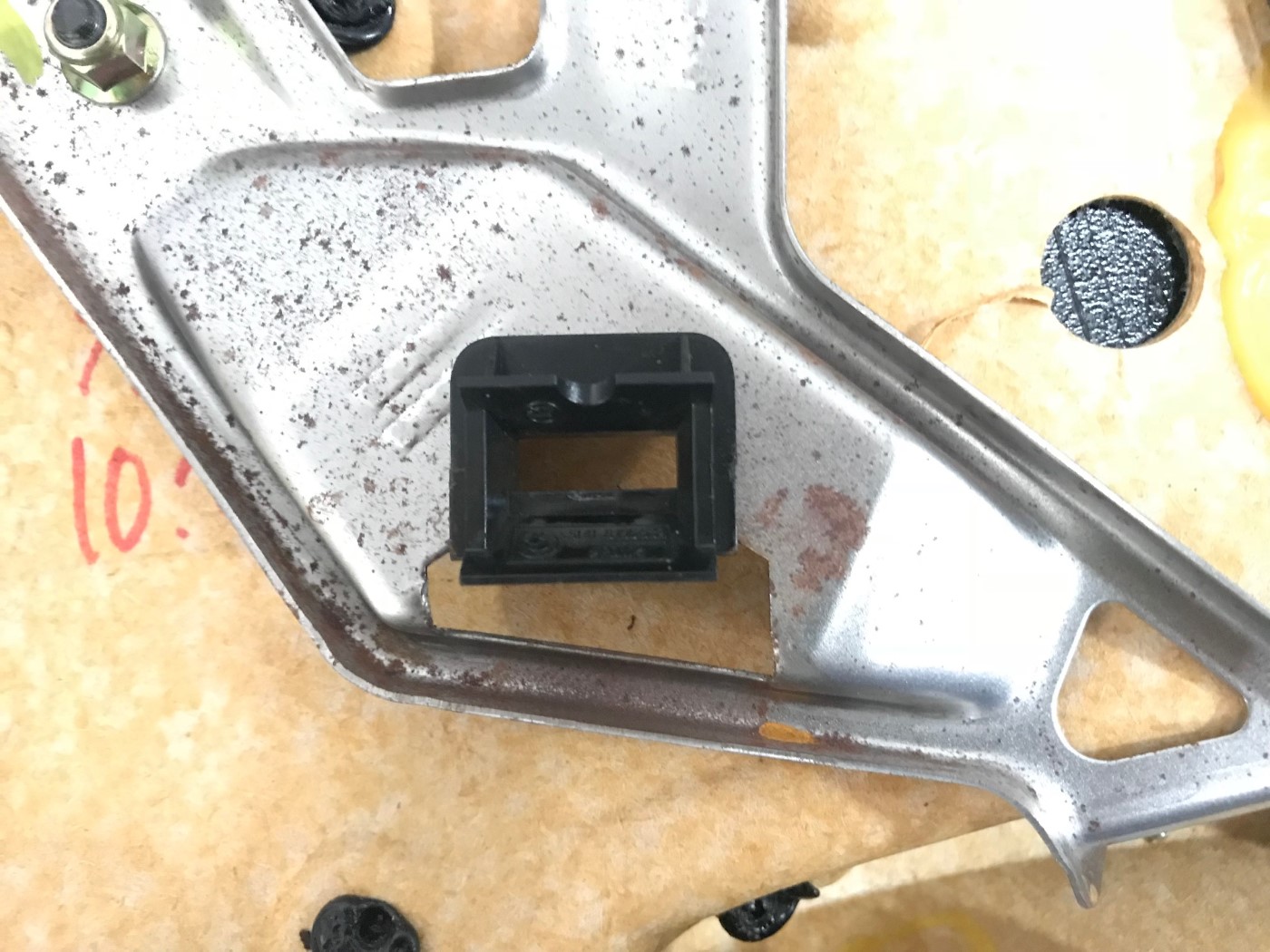

Third question, I finally identified this plastic part that fell out of the door when I removed the door card. Do I have it correctly installed? (please see pix)

Much obliged and Happy Motoring!
Attached Images

__________________
2003 X5 4.6is Estoril Blue, acquired March 2018
2013 128i M Sport 6 MT Space Grey daily driver
2010 535xi 6 MT Barbera Red
Reply With Quote

Sponsored Links

  #2
Old 09-24-2018, 09:37 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,818
andrewwynn will become famous soon enough
The door handle carrier breaks exactly there at least 90% of cases. It's repairable almost for free. You need a length of approximately 16ga steel wire.

Find my repair thread on DIY door handle carrier fix.


Sent from my iPhone using Tapatalk Pro
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
  #3
Old 09-24-2018, 10:25 PM
Member

Join Date: Jul 2016
Location: Menlo Park, CA
Posts: 2,311
Fifty150hs is on a distinguished road
Quote:
Originally Posted by andrewwynn View Post
The door handle carrier breaks exactly there at least 90% of cases. It's repairable almost for free. You need a length of approximately 16ga steel wire.

Find my repair thread on DIY door handle carrier fix.


Sent from my iPhone using Tapatalk Pro
Link please. My passenger door handle just crapped out. Thanks!
Reply With Quote
  #4
Old 09-25-2018, 01:28 AM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 4,660
wpoll will become famous soon enough
Quote:
Originally Posted by Maruzo View Post
... Third question, I finally identified this plastic part that fell out of the door when I removed the door card. Do I have it correctly installed? (please see pix)...
Yep, you have it correctly installed - it holds the centre of the door card in place. Make sure the metal prongs on the mating parts are opened up so they can lock into the black plastic socket when you put the door card back on.

I think my drivers door is missing this part (lost by a previous owner/mechanic/dealer??), as the centre of the door panel doesn't seem as stable as the other three doors. I haven't had a reason to open it up yet (but it has been off before me), but if I ever do so, I'll buy the clip before going in there.
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #5
Old 09-25-2018, 09:16 AM
Maruzo's Avatar
Member

Join Date: Mar 2017
Location: Los Angeles
Posts: 904
Maruzo is on a distinguished road
Quote:
Originally Posted by andrewwynn View Post
The door handle carrier breaks exactly there at least 90% of cases. It's repairable almost for free. You need a length of approximately 16ga steel wire.

Find my repair thread on DIY door handle carrier fix.


Sent from my iPhone using Tapatalk Pro
Hi andrewwynn,

Read over a few of ur repair threads but couldn’t find it.

Can you post a link please?
__________________
2003 X5 4.6is Estoril Blue, acquired March 2018
2013 128i M Sport 6 MT Space Grey daily driver
2010 535xi 6 MT Barbera Red
Reply With Quote
  #6
Old 09-25-2018, 09:24 AM
Maruzo's Avatar
Member

Join Date: Mar 2017
Location: Los Angeles
Posts: 904
Maruzo is on a distinguished road
Thumbs up

Quote:
Originally Posted by wpoll View Post
Yep, you have it correctly installed - it holds the centre of the door card in place. Make sure the metal prongs on the mating parts are opened up so they can lock into the black plastic socket when you put the door card back on.

I think my drivers door is missing this part (lost by a previous owner/mechanic/dealer??), as the centre of the door panel doesn't seem as stable as the other three doors. I haven't had a reason to open it up yet (but it has been off before me), but if I ever do so, I'll buy the clip before going in there.
Right on! By the way, any recommendation on how to wire the bav front speakers?
__________________
2003 X5 4.6is Estoril Blue, acquired March 2018
2013 128i M Sport 6 MT Space Grey daily driver
2010 535xi 6 MT Barbera Red
Reply With Quote
  #7
Old 09-25-2018, 10:12 AM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,818
andrewwynn will become famous soon enough
Door Handle Carrier Permanent Fix*
https://r.tapatalk.com/shareLink?sha...8&share_type=t

Hope that link works. Tapatalk not great at links.

In the page I used a nylon zip tie because I was just reenforcing a new DHC. I would (and will) use a piece of 16ga wire when I fix my rear door DHC probably this week.


Sent from my iPhone using Tapatalk Pro
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
  #8
Old 09-25-2018, 10:17 AM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,818
andrewwynn will become famous soon enough
Quote:
Originally Posted by Maruzo View Post
Right on! By the way, any recommendation on how to wire the bav front speakers?

Usually the wire has some identifying trace one side: like everything is red but one half has a thin black line.

Usually the "different" one is + but you could only be sure by finding a different speaker that is still wired.

You could more than likely determine the polarity by trial and error. With one speaker out of phase the bass will sound terrible.

It will not hurt the speaker to be wired backwards it will just make the sound out of phase with the other speakers (it will be pulling air away while the others are pushing air towards you). Out of phase bass will give me an instant headache so most people can probably hear the difference. Basically whichever polarity gives you more bass is likely the correct polarity.


Sent from my iPhone using Tapatalk Pro
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
  #9
Old 10-07-2018, 02:52 AM
Maruzo's Avatar
Member

Join Date: Mar 2017
Location: Los Angeles
Posts: 904
Maruzo is on a distinguished road
Quote:
Originally Posted by andrewwynn View Post
Door Handle Carrier Permanent Fix*
https://r.tapatalk.com/shareLink?sha...8&share_type=t

Hope that link works. Tapatalk not great at links.

In the page I used a nylon zip tie because I was just reenforcing a new DHC. I would (and will) use a piece of 16ga wire when I fix my rear door DHC probably this week.


Sent from my iPhone using Tapatalk Pro

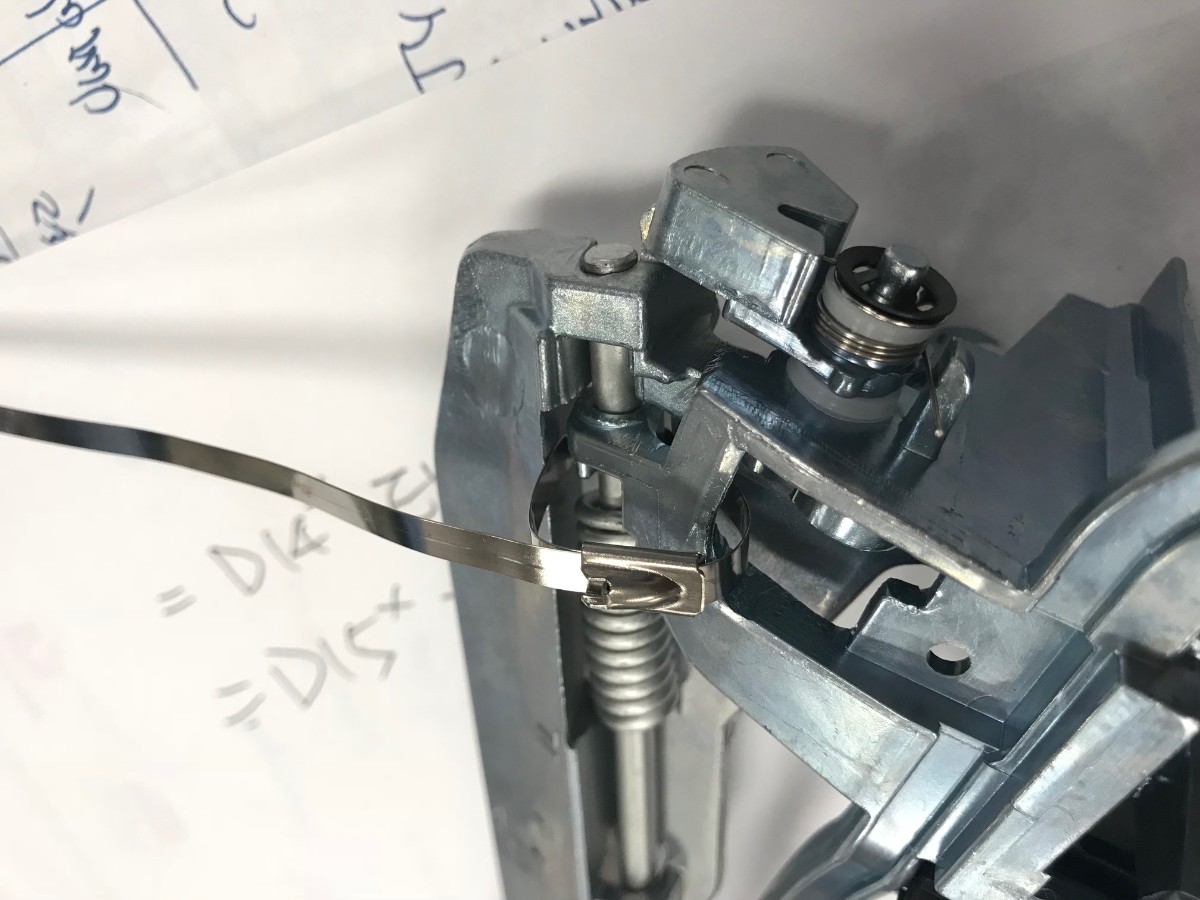

Thank you for the link, andrewwynn. I did the fix using a metal zip tie, but I didn't cut the little tab off. I figure if the reinforcement is strong enough, the weight-bearing link should stay intact for years to come!
