SERIOUS ELECTRICAL PROBLEM!? HELP!?!

HEY EVERYONE!

So, let me just preface by saying that this week has been EXTREMELY high energy and chaotic I think I might just need to go find a dark deep cave to go hide in for a bit lol. Cut my toe open in a NAPA Auto Parts store yesterday because their whole store was somehow unaware of a deadly 90 degree bent metal floor seam in one of their aisles, and my foot had to find it. OUCH. Taking that as a sign and NEVER buying from NAPA again. Might sue even ... ANYWAY lol down to my serious issue at hand with my 2001 BMW X5 E53 4.4i.

I think my baby was on the verge of bursting into flames today.

Today's temps were high, almost 100 degrees F. After an almost 2 hour journey returning home from my parents, I stopped at the gas station to fill up. After I left the gas station I didn't turn my AC on, because i'd been running it most of the trip back, without issue, and wanted to give it a break and feel the wind in my hair for the quick 10 minutes i had left to get home. Well, about halfway their I said screw it, i'm hot, so i click the AC button to turn it on, and all of a sudden I get a nasty white smoke plastic chemical burning smell coming from my vents. I immediately turn the AC off and turn the fan speed off until the climate control completely shuts down on the display, but the blower motor STILL WAS RUNNING! I frantically pull over immediately and shut the car off, but the BLOWER MOTOR STILL SOUNDS LIKE ITS ON, but the car is totally shutdown at this point. I rush her home in the next 3 minutes, and disconnect my battery. The fan has stopped. SO WHATS THE ISSH HERE GUYS. I'm pretty sure if I left the system on I would have had a fire. I'm extremely concerned, and need pointed in the right direction for finding the culprit. I've seen NUMEROUS stories of these things just bursting into flame due to random electrical issues. I'm tryin not to flip out as well because HOLY moly does that burning smell HORRIBLE.

I have checked all the usual places that I can check. Fuses in the glove box were good, no burnt fuses or melted wires. I have not done any aftermarket wiring besides my android headunit stereo. This definitely seems like a failed motor or melted wiring somewhere in the HVAC motor or the AC system. The smell is ACRID horrible chemical melted plastic smell.
__________________
2001 BMW X5 4.4i

Chase -

Last edited by chasers36; 07-30-2020 at 10:47 PM.
Reply With Quote

Sponsored Links

  #2
Old 07-30-2020, 10:58 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 3,365
wpoll will become famous soon enough
Have you checked the FSR? It is in the airflow for the vents... so if it smokes up, the smoke will go straight to the cabin....

And if it fuses itself, the fan motor won't stop.

https://youtu.be/7_D-Ki_Kk2k
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #3
Old 07-30-2020, 11:05 PM
Overboost's Avatar
//Binary is in my DNA

Join Date: Apr 2006
Location: Huntersville, NC
Posts: 2,629
Overboost is on a distinguished road
Sounds like the FSR for sure. Cheap fix, a lot of threads here on the procedure.
Reply With Quote
  #4
Old 07-30-2020, 11:28 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 6,841
upallnight is on a distinguished road
You sure it's the fan for the HVAC and not the aux fan? Aux fan is known to cause the X to burst into flame. When you turn on the AC it also signal to turn on the aux fan. If you have bmw scanning software scan the X and see if you have a fan fault code in the DME.

Smell around the aux fan and see if you smell that acrid smell of burning wires.
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #5
Old 07-31-2020, 01:13 AM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 3,365
wpoll will become famous soon enough
Quote:
Originally Posted by upallnight View Post
You sure it's the fan for the HVAC and not the aux fan? Aux fan is known to cause the X to burst into flame. When you turn on the AC it also signal to turn on the aux fan. If you have bmw scanning software scan the X and see if you have a fan fault code in the DME.

Smell around the aux fan and see if you smell that acrid smell of burning wires.
While I agree that the aux fan has to be another possiblity, the fact that the dash blower runs with the car turned off points to the FSR (initially anyway...).
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #6
Old 07-31-2020, 02:05 AM
Member

Join Date: Jun 2019
Location: Hamilton, MT USA
Posts: 58
chasers36 is on a distinguished road
Quote:
Originally Posted by Overboost View Post
Sounds like the FSR for sure. Cheap fix, a lot of threads here on the procedure.
You guys are live savers! I had bought this part awhile back when i first purchased my x5 because i noticed the fan speed fluctuating randomly and just being inconsistent in general and i read up on it and it said it was that. but i never got around to replacing it because it started acting normal again so i thought nothing more of it, and didnt know of its potential to go up i smoke like that! that was over a year ago! it must have finally hit its frying point with the heat today, and i guess the universe was telling me to put the new one in already!
__________________
2001 BMW X5 4.4i

Chase -
Reply With Quote
  #7
Old 07-31-2020, 04:47 AM
Member

Join Date: Jan 2013
Location: Finland
Posts: 498
Clavurion is on a distinguished road
While renewing FSR clean the connector pins and use some contact paste on them. Poor contact on those round pins is not uncommon and can also cause serious heat load on the connector.
__________________
E39 530dA -02 M-Sport Messing metallic
E53 X5 3.0dA -06 Sport Stratus grey
Reply With Quote
  #8
Old 07-31-2020, 09:03 AM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 6,841
upallnight is on a distinguished road
Quote:
Originally Posted by wpoll View Post
While I agree that the aux fan has to be another possiblity, the fact that the dash blower runs with the car turned off points to the FSR (initially anyway...).
The hvac fan is tied in wit the ignition key and with the ignition off, the fan should stop, however, the aux fan is wired directly to a 50 amp fuse circuit so the power is LIVE all the time. Even with the key off the fan will still have power to it. The fan control circuit in the fan might have shorted that a pwm signal is no longer required to maintain the power to the fan. I posted first hand what happens when the fan control circuit short out.
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #9
Old 07-31-2020, 04:10 PM
Member

Join Date: Jun 2019
Location: Hamilton, MT USA
Posts: 58
chasers36 is on a distinguished road

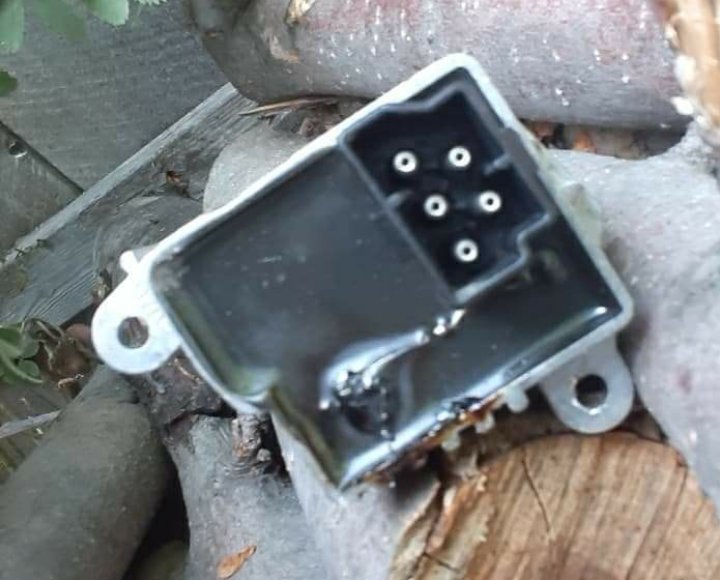

the remains...
Attached Images

__________________
2001 BMW X5 4.4i

Chase -
Reply With Quote
  #10
Old 07-31-2020, 08:10 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 3,365
wpoll will become famous soon enough
Smoking gun - literally!
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
