Power Steering Fluid Leak on a 2003 X5 4.6is

Did a quick search on this forum but didn't see any dedicated threads for it.

Has anyone experienced the fluid leak on their E53?

Mine is starting to leak faster and faster. I'm thinking about tracking down the leak with a uv liquid inspection kit, bought it a while ago and never got to use it.

Right now i'm suspecting the leak might come from the 2 hoses that leads out of the power steering pump. But i won't know for sure until examination next week. Just filled it up with Mobil 1 synthetic ATF and hope it'll last this weekend's driving.

Does anyone have a link to a full power steering hose replacement kit on fcpeuro?

I looked for it but only found a kit for an E46.
__________________
2003 X5 4.6is Estoril Blue, acquired March 2018
2013 128i M Sport 6 MT Space Grey daily driver
2010 535xi 6 MT Barbera Red
Reply With Quote

Sponsored Links

  #2
Old 01-09-2021, 11:25 AM
Member

Join Date: Mar 2017
Location: NWOhio
Posts: 158
absolutezero273c is on a distinguished road
I just bought parts for my daughter's 3.0 e53. In all the years I've owned and maintained BMWs the usual place is where the hoses connect to the reservoir.

On my daughter's 3.0 I bought the following:
3.0
32411095526 Intake manifold
32416767136 radiator return line
32416851217 reservoir

4.6
32416758958 Suction pipe
32416767138 radiator return line
32416851217 reservoir

Getting ready to replace these same parts on my 4.8
4.8
32416758958 Suction hose
32416767138 radiator return line
32416851217 reservoir

Of course you'll have to source the proper hose clamps.

I've always used Pentosin CHF11S on all my vehicles.

Funny enough I had to replace these on my other daughter's e83 and my e38.


Heck, while I'm here:

4.4 M62
32416758958 Suction hose
32416767138 radiator return line
32416851217 reservoir

4.4 N62
32416763977 Suction pipe
32416763978 radiator return line
32416851217 reservoir
__________________
2005 Titanium Silver X5 4.8is (DD winter) * 2001 Steel Blue 750iL (DD summer) * 2001 Ford Excursion 7.3 L <> 2005 X5 3.0 * 2003 X5 4.4i * 2009 X3 3.0 * 2009 X5 3.0 * 2007 Toyota Avalon Limited

Last edited by absolutezero273c; 01-10-2021 at 10:42 AM.
Reply With Quote
  #3
Old 01-09-2021, 12:43 PM
Member

Join Date: Jan 2011
Location: Huntington Beach California
Posts: 33
roadriderg is on a distinguished road
Just repaired mine I replaced the reservoir,return hose and suction hose. I bought all the parts at fcpeuro.com.
__________________
2006 e53 4.4i
Reply With Quote
  #4
Old 01-09-2021, 12:51 PM
Maruzo's Avatar
Member

Join Date: Mar 2017
Location: Los Angeles
Posts: 701
Maruzo is on a distinguished road
Quote:
Originally Posted by absolutezero273c View Post
I just bought parts for my daughter's 3.0 e53. In all the years I've owned and maintained BMWs the usual place is where the hoses connect to the reservoir.

On my daughter's 3.0 I bought the following:
3.0
32411095526 Intake manifold
32416767136 radiator return line
32416851217 reservoir

4.6
32416763977 Suction pipe
16121180242 radiator return line
32416851217 reservoir

Getting ready to replace these same parts on my 4.8
4.8
32416758958 Suction hose
32416767138 radiator return line
32416851217 reservoir

Of course you'll have to source the proper hose clamps.

I've always used Pentosin CHF11S on all my vehicles.

Funny enough I had to replace these on my other daughter's e83 and my e38.


Heck, while I'm here:

4.4 M62
32416758958 Suction hose
32416767138 radiator return line
32416851217 reservoir

4.4 N62
32416763977 Suction pipe
32416763978 radiator return line
32416851217 reservoir
Thatís awesome! Thanks absolutezero!

Isnít there a high pressure hose that is prune to leaking as well? I read one forum member had a loose nut on the power steering pump and tightening it took care of the leak for him.
__________________
2003 X5 4.6is Estoril Blue, acquired March 2018
2013 128i M Sport 6 MT Space Grey daily driver
2010 535xi 6 MT Barbera Red
Reply With Quote
  #5
Old 01-09-2021, 01:04 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 7,068
upallnight is on a distinguished road
I did the PS hose on my E53 3.0. Let me tell you it's a Bitch to do. The area you are working in is tight.
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #6
Old 01-09-2021, 01:09 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 7,068
upallnight is on a distinguished road
Quote:
Originally Posted by absolutezero273c View Post
I just bought parts for my daughter's 3.0 e53. In all the years I've owned and maintained BMWs the usual place is where the hoses connect to the reservoir.

On my daughter's 3.0 I bought the following:
3.0
32411095526 Intake manifold
32416767136 radiator return line
32416851217 reservoir

4.6
32416763977 Suction pipe
16121180242 radiator return line
32416851217 reservoir

Getting ready to replace these same parts on my 4.8
4.8
32416758958 Suction hose
32416767138 radiator return line
32416851217 reservoir

Of course you'll have to source the proper hose clamps.

I've always used Pentosin CHF11S on all my vehicles.

Funny enough I had to replace these on my other daughter's e83 and my e38.


Heck, while I'm here:

4.4 M62
32416758958 Suction hose
32416767138 radiator return line
32416851217 reservoir

4.4 N62
32416763977 Suction pipe
32416763978 radiator return line
32416851217 reservoir
Pentosin warns not to mix their fluid with ATF from other manufacturers. BMW stamp the cap on the reservoir with the type of fluid that is to be used in the PS system.

http://pentosin.net/pressreleases/cr...luid_guide.pdf
Attached Images

__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #7
Old 01-09-2021, 01:10 PM
Member

Join Date: Mar 2017
Location: NWOhio
Posts: 158
absolutezero273c is on a distinguished road
Yes. There can be other hoses that leak but on all the BMWs I've had to maintain in my family these are the only ones I've had to replace.
__________________
2005 Titanium Silver X5 4.8is (DD winter) * 2001 Steel Blue 750iL (DD summer) * 2001 Ford Excursion 7.3 L <> 2005 X5 3.0 * 2003 X5 4.4i * 2009 X3 3.0 * 2009 X5 3.0 * 2007 Toyota Avalon Limited
Reply With Quote
  #8
Old 01-09-2021, 01:28 PM
Member

Join Date: Mar 2017
Location: NWOhio
Posts: 158
absolutezero273c is on a distinguished road
Quote:
Originally Posted by upallnight View Post
Pentosin warns not to mix their fluid with ATF from other manufacturers. BMW stamp the cap on the reservoir with the type of fluid that is to be used in the PS system.

http://pentosin.net/pressreleases/cr...luid_guide.pdf

Unfortunately a number of my vehicles don't have the stamp/label. And I thought I had read somewhere, will have to go back and search, that this was the fluid that was able to supersede the other BMW ps fluid and retain compatibility without flushing the system.

Granted also this required draining all the previous fluid.
__________________
2005 Titanium Silver X5 4.8is (DD winter) * 2001 Steel Blue 750iL (DD summer) * 2001 Ford Excursion 7.3 L <> 2005 X5 3.0 * 2003 X5 4.4i * 2009 X3 3.0 * 2009 X5 3.0 * 2007 Toyota Avalon Limited
Reply With Quote
  #9
Old 01-10-2021, 12:12 AM
aureliusmax's Avatar
Premier Member

Join Date: Sep 2019
Location: abbotsford canada
Posts: 142
aureliusmax is on a distinguished road
I replaced all my rubber lines in the engine
__________________
2003 4.6, esotril blue, over 215,000KM. Every previous owner failed to keep up the vehicle maintenance. Restoration project.
Reply With Quote
  #10
Old 01-10-2021, 12:45 AM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 7,068
upallnight is on a distinguished road
On my 2001 build date was 10/2000 the cap for the PS Reservior had ATF stamped on it.

Only 4 more posts until I hit 7000 posts.

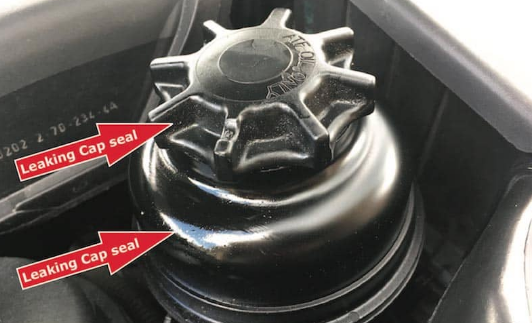

Cap with a Pentosin CHF label
Attached Images

__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD

Last edited by upallnight; 01-10-2021 at 12:58 AM.
Reply With Quote
