Washer Fluid Reservoir Leak

Car came up telling me I was low on washer fluid this morning. I had filled it up about a month ago and barely used any. I assume itís leaking, but I donít see any obvious signs of a leak like wet spots on the inside of the engine bay or puddles underneath. Apparently the prev. owner said that this was an issue before. Is this like a common issue or not really? And how would I figure out where itís coming from, and whatís the best solution? Thanks for the help!


Sent from my iPhone using Xoutpost.com
__________________
2005 X5 E53, 167k Miles: Kenwood DNX893S Head Unit, Mud Flaps (Rear Only) , Rim Shopping(WIP), Full Spectrum RGB Halos,
Reply With Quote

Sponsored Links

  #2
Old 01-13-2021, 03:57 PM
Member

Join Date: Mar 2016
Location: Saskatchewan Canada
Posts: 1,125
80stech is on a distinguished road
It's really common for the washer pump grommets to leak. If you dry things up nicely around and under the pumps it should become obvious if there isn't already traces of color.
__________________
1988 325is (purchased new)
2004 X5 3.0 (new to me) 2005 X3 2.5 (new to wife)
Reply With Quote
  #3
Old 01-13-2021, 03:59 PM
Member

Join Date: Feb 2019
Location: Caroline County, MD
Posts: 199
lkv0315 is on a distinguished road
Quote:
Originally Posted by 80stech View Post
It's really common for the washer pump grommets to leak. If you dry things up nicely around and under the pumps it should become obvious if there isn't already traces of color.
And that is attached directly to the bottom of the reservoir right? Iíll take a look in a little while
__________________
2005 X5 E53, 167k Miles: Kenwood DNX893S Head Unit, Mud Flaps (Rear Only) , Rim Shopping(WIP), Full Spectrum RGB Halos,
Reply With Quote
  #4
Old 01-13-2021, 04:15 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 7,246
andrewwynn is on a distinguished road
Mine recently failed and dumped over a gallon of fluid. I pulled the pump out of the grommet and it game out with virtually zero resistance. I wrapped the pump with Teflon and will fill the reservoir to see if it holds. I may re-do the fix with some heat shrink tubing if I don't buy a new grommet/filter. Since there are three I'm more likely to patch with Teflon vs. replace I've done that in a few places on the two e53 we own.
__________________
E53 / M54 2001 3.0i gas LHD (pair of them: his & her)
Reply With Quote
  #5
Old 01-13-2021, 04:21 PM
Member

Join Date: Jun 2013
Location: Virigina, USA
Posts: 2,397
StephenVA is on a distinguished road
This has to be the 32nd post on this easy to solve problem. See postinghttps://xoutpost.com/bmw-sav-forums/...s-leaking.html

Next Posting

This is one topic has been posted over and over again. Simple solutions posted before are: purchase two aftermarket pumps motors, get the rubber gaskets with screens for all three pumps, pull the bucket out of the car after disconnecting the pumps from the washer reservoir, this will give you the room to disconnect the electrical connectors and the hose lines. Take the bucket into your sink area and clean out all the junk in the bottom. Then replace all the seals, pumps and re install. Leave the headlamp pump alone and in the car.
The pumps are high failure items as they leak internally and as mentioned the seals dry out and leak. If you follow this path your repairs will be a one stop to solve all your issues.

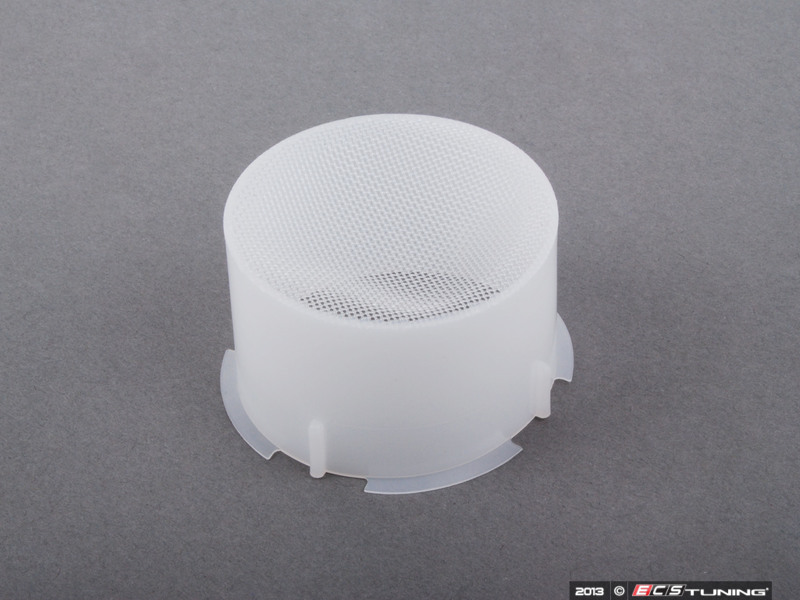

Note: if you are missing the filter screen little insert at the fill area of your reservoir, buy one now or you will have pressure leaks in the future now that you sealed all the other leaks. The fill screen allows the bucket to vent properly or you can drill a hole in the top of cap. Your car your choice.

Link to ECS to see all that are your choices on parts as you maybe missing a few items due to tech abuse and previous owner neglect.
https://www.ecstuning.com/BMW-E53-X5...Washer_System/
Attached Images

__________________

2005 X5 4.8IS
The Blue ones are always FASTER....

Current Garage:
2005 X5 4.8is
2002 M5 TiSilver
2003 525iT
1998 528i
Former Garage Stable Highlights
2004 325XiT Sport
1973 De Tomaso Pantera, L Model
1970 Dodge Challenger T/A 4 sp Alpine White
1970 Dodge Challenger T/A 4 sp GoManGo Green
1971 Dart Sport, ďDart LightĒ package
1969 Road Runner 383
1968 Ply Barracuda 340S FB Sea-foam Green

Last edited by StephenVA; 01-13-2021 at 04:30 PM.
Reply With Quote
  #6
Old 01-13-2021, 08:15 PM
Member

Join Date: Mar 2017
Location: NWOhio
Posts: 196
absolutezero273c is on a distinguished road
I also thought the pump and o-rings where the problem until I replaced the entire assembly (pump, seals and filter screen) and it still leaked out. After that I really watched it and found the leak turned out to be the small hose that connected to the pumps. It is a tight fit but had to trim off a few inches of the tube running into the firewall before the leak stopped.


But this is only 1 of our 3 e53s that have had that issue. So I don't know that I myself would call this a common problem. But it appears StephenVA has better numbers on that.
__________________
2005 Titanium Silver X5 4.8is (DD winter) * 2001 Steel Blue 750iL (DD summer) * 2001 Ford Excursion 7.3 L <> 2005 X5 3.0 * 2003 X5 4.4i * 2009 X3 3.0 * 2009 X5 3.0 * 2007 Toyota Avalon Limited
Reply With Quote
  #7
Old 01-14-2021, 08:01 PM
Member

Join Date: Feb 2019
Location: Caroline County, MD
Posts: 199
lkv0315 is on a distinguished road
So after pulling mine out the pump on the inside by itself appears to be blocked off. Why would this be/which set of washers does this connect to? It also has a wider shank than the other two pumps


Sent from my iPhone using Xoutpost.com
__________________
2005 X5 E53, 167k Miles: Kenwood DNX893S Head Unit, Mud Flaps (Rear Only) , Rim Shopping(WIP), Full Spectrum RGB Halos,
Reply With Quote
  #8
Old 01-14-2021, 08:13 PM
Happy's Avatar
Member

Join Date: Jan 2013
Location: Golden Coast/Lake Houston
Posts: 945
Happy is on a distinguished road
Quote:
Originally Posted by andrewwynn View Post
Mine recently failed and dumped over a gallon of fluid. I pulled the pump out of the grommet and it game out with virtually zero resistance. I wrapped the pump with Teflon and will fill the reservoir to see if it holds. I may re-do the fix with some heat shrink tubing if I don't buy a new grommet/filter. Since there are three I'm more likely to patch with Teflon vs. replace I've done that in a few places on the two e53 we own.

Aghh... Mine is used for chemical cooling. Itís modified, but it still functions as a window washing reservoir. I would not be happy if I dumped two gallons of boost juice.

Thanks for the info.
__________________
02 BMW 5 Speed Supercharged Ethanol Burnin Meth Injected E53

Reply With Quote
  #9
Old 01-14-2021, 08:21 PM
Member

Join Date: Mar 2016
Location: Saskatchewan Canada
Posts: 1,125
80stech is on a distinguished road
The larger pump is for the headlight washers.
__________________
1988 325is (purchased new)
2004 X5 3.0 (new to me) 2005 X3 2.5 (new to wife)
Reply With Quote
  #10
Old 01-15-2021, 12:58 PM
Member

Join Date: Jul 2016
Location: Menlo Park, CA
Posts: 1,633
Fifty150hs is on a distinguished road
Cheapest fix for the venting at the cap is to drill a hole. That's what I discovered I had to do after I replaced my reservoir cap and it fit tighter than the original. The air in the tank would heat up and expand and push the fluid out through the windshield nozzles. Annoying.
