Annoying BMW designs

Yup, ran into one while replacing rotors and pads.

Engineering marvels.
Attached Images

__________________
'06 X5 3.0i - bought @143,123 miles (12/26/20)
Reply With Quote

Sponsored Links

  #2
Old 10-16-2022, 11:35 AM
Member

Join Date: Apr 2011
Location: Pleasant Hill, CA
Posts: 466
jcp240z is on a distinguished road
It’s been awhile since I did mine, but if I remember correctly, I put a jack under the control arm and lifted it to allow for a straight shot at it.
__________________
A common mistake that people make when trying to design something completely foolproof is to underestimate the ingenuity of complete fools. -Douglas Adams

2003 X5 4.6is Estoril Blue
2005 Infiniti G35X
1972 Datsun 240Z
1991 Isuzu Impulse XS Sold
1972 Fiat 850 Spyder Donated
1972 Datsun 240Z Sold
1972 Datsun 510 Sold
Reply With Quote
  #3
Old 10-16-2022, 11:56 AM
Member

Join Date: Jan 2013
Location: Finland
Posts: 1,376
Clavurion is on a distinguished road

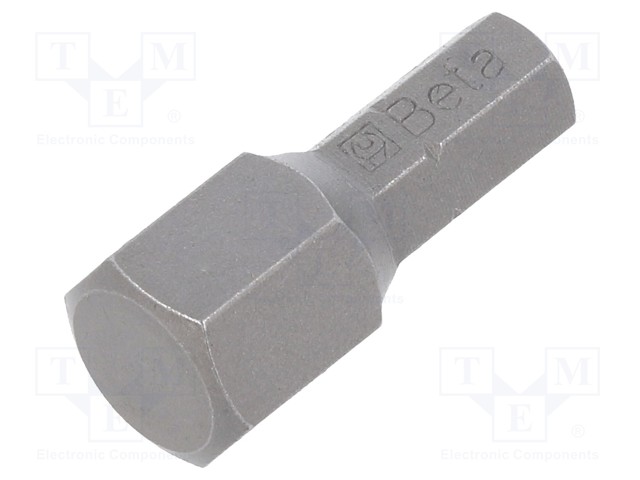

On that spot I've used 7 mm allen to 10 mm hex bit and 10 mm ratched wrench. No problems.




__________________
E39 530dA -02 M-Sport Messing metallic
E53 X5 3.0dA -06 Sport Stratus grey
Reply With Quote
  #4
Old 10-16-2022, 02:27 PM
Member

Join Date: Jun 2021
Location: Austin, TX
Posts: 1,422
X5chemist is on a distinguished road
Nice. I read the board weekly. I had not come across this engineering marvel. The rear was already safely positioned before I realized the access issue. Only a set of hex bits were available. The 3/8 drive set has enough length to use a wrench. An 8mm worked. I did have to tap one with a ratchet to loosen up the slide bolt.
__________________
'06 X5 3.0i - bought @143,123 miles (12/26/20)
Reply With Quote
  #5
Old 10-17-2022, 06:25 AM
Member

Join Date: Dec 2019
Location: The Netherlands
Posts: 320
guntherrex is on a distinguished road
their motorcycles are absolutely full of these lovely design features....
Reply With Quote
  #6
Old 10-17-2022, 09:31 AM
Member

Join Date: Mar 2006
Location: Washington, DC
Posts: 744
nick325xit 5spd is on a distinguished road
I have a set of these: https://www.amazon.com/CARBYNE-Piece.../dp/B08CM3B4JS
__________________
2011 M3
2006 Sierra 2500HD 4WD LBZ/Allison
2004 X5 3.0i 6MT
1995 M3 S50B32
1990 325is
1989 M3 S54B32

Hers:
1989 325iX
1996 911 Turbo


Reply With Quote
  #7
Old 10-17-2022, 03:32 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 4,660
wpoll will become famous soon enough
Quote:
Originally Posted by guntherrex View Post
their motorcycles are absolutely full of these lovely design features....


(F650GS water pump!!!)
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #8
Old 10-18-2022, 11:53 AM
Member

Join Date: Jun 2021
Location: Austin, TX
Posts: 1,422
X5chemist is on a distinguished road
Interesting. I wonder if it's the same engineer that decided to use 5/8" bolts and nuts. Or a tool kit missing 18mm and 21mm wrenches.
__________________
'06 X5 3.0i - bought @143,123 miles (12/26/20)
Reply With Quote
  #9
Old 10-18-2022, 12:17 PM
Member

Join Date: Mar 2006
Location: Washington, DC
Posts: 744
nick325xit 5spd is on a distinguished road
Quote:
Originally Posted by X5chemist View Post
Interesting. I wonder if it's the same engineer that decided to use 5/8" bolts and nuts. Or a tool kit missing 18mm and 21mm wrenches.
they're 16mm. i know that's nominally the same as 5/8, but the thread is metric. what's wrong with 16mm bolts, anyway?

as for the tool kit, it's only really for changing the battery and swapping the spare.
__________________
2011 M3
2006 Sierra 2500HD 4WD LBZ/Allison
2004 X5 3.0i 6MT
1995 M3 S50B32
1990 325is
1989 M3 S54B32

Hers:
1989 325iX
1996 911 Turbo


Reply With Quote
  #10
Old 10-18-2022, 04:51 PM
Member

Join Date: Jun 2021
Location: Austin, TX
Posts: 1,422
X5chemist is on a distinguished road
I mean socket and open wrench sets. Mine have neither sizes. I once had to buy a 20mm to use on someone's car. Now, I keep it on one of my large 1/2" ratchets so I don't lose it. Amazon overnight delivery saved the day when I ordered an offset wrench set. The special one being 21/23 mm. I wanted it mostly for their length and offset access. They work great on suspension bolts. No one in Austin had a 21 mm offset wrench! It would take days to get one from mostly local parts stores. Now, I have a nice shiny set to use.
__________________
'06 X5 3.0i - bought @143,123 miles (12/26/20)
Reply With Quote
