Parking brake - hold-down pin - rear brake shield

Hi there

I just did rear pads and rotors. on the right rear, I noticed the hold down pin
part # 34406794950, was bent, had fallen out and was loose inside the rotor.

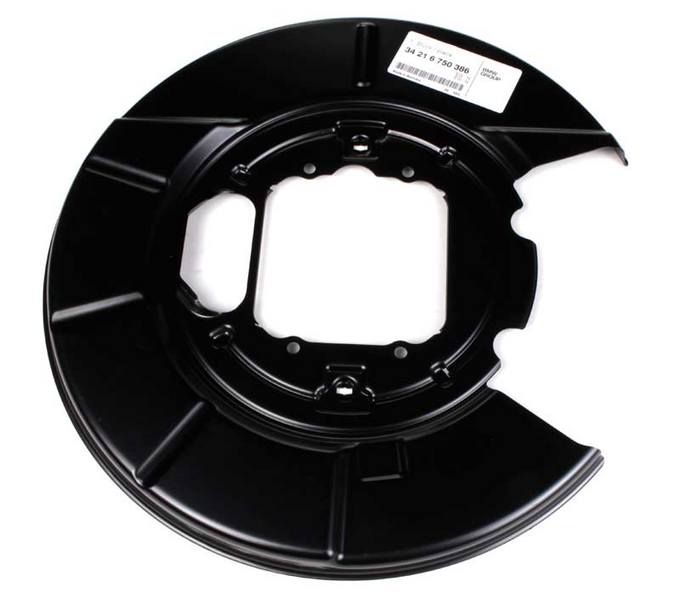

I tried to straighten it and reinsert it into the corresponding hole in the brake backing shield and it appears the hole has rusted and enlarged so it won't hold the hold-down pin.

I am thinking I'll get a new backing shield, cut it so I don't have to remove axle and hub and put it all back together...

Anybody have a better idea?



Reply With Quote

Sponsored Links

  #2
Old 05-24-2023, 11:24 PM
Member

Join Date: Mar 2016
Location: Saskatchewan Canada
Posts: 2,415
80stech is on a distinguished road
You could use a "hat" portion from another vehicle that has it or brake hardware kit on the backside. If you replace the backing plate what I did on the fronts is drill a 1/4" hole where you want to cut, then cut through the center of the hole and use a 1/4" bolt and washers to put it back together.

If the bearing needs to come off anyway then it's no use cutting the plate.
__________________
1988 325is (purchased new) sold
2004 X5 3.0 2005 X3 2.5
2008 X5 3.0 (new to me)
Reply With Quote
  #3
Old 05-24-2023, 11:45 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 4,818
wpoll will become famous soon enough
If you cut the dust shield directly through one of the narrowest sections at the caliper bolt clearance cut-outs, you can twist the shield slightly to get it over the hub flange.

No need to bolt or weld this cut back together again - simply twist it back to make the cut flush and bolt it down - it's not going anywhere.
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #4
Old 05-28-2023, 01:22 AM
Member

Join Date: Jun 2014
Location: Omaha, NE
Posts: 1,636
cn90 is on a distinguished road
This is from E46 but they showed you where to cut it...

https://www.pelicanparts.com/BMW/tec...eplacement.htm
__________________
1998 E39 528i 5sp MT
2006 E53 X5 3.0 6sp MT
Reply With Quote
  #5
Old 05-28-2023, 07:33 AM
Member

Join Date: Apr 2019
Location: Boston, MA
Posts: 870
Effduration is on a distinguished road
That's perfect...thanks for finding/sharing...
Reply With Quote
  #6
Old 05-28-2023, 11:55 AM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 11,471
andrewwynn will become famous soon enough
When I realized I goofed and put my hub back on the front before installing the dust shield, I cut and folded rather than cut out a piece liker they did in the step by step. Folded back in place and just had a slit rather than a window.
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
  #7
Old 05-28-2023, 12:07 PM
Member

Join Date: Apr 2019
Location: Boston, MA
Posts: 870
Effduration is on a distinguished road
Thanks I might try that..

In the pelican article, that came up in the comments . The worry is that a kink in the backing
Plate from bending it back will mess up the alignment of the parking brake shoes..
Reply With Quote
  #8
Old 05-28-2023, 06:40 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 11,471
andrewwynn will become famous soon enough
It's not a very critical alignment. You could also splice some tabs and re attach the cut part with some blind rivets.
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
