Tnk Venting issue, where to start?

Twice in the past month the X has triggered the SES light with only one meaningful code, and both times on an identical drive to the airport in hot weather. In fact, the car is so regular, it triggered at exactly the same point in the drive each time.

after a 20 min/ 14-mile drive in 90+ degree heat I drop my wife off at departures, only to get back in the car and see the SES light. My trusty, if outdated Foxwell 520 pulls two DME codes. The first is for the activation (or lack thereof, of the Inlet Flap that my 4.6 DME is looking for but my 4.4 intake track doesn't have. This code never resets and has been present since I did the motor swap. The second code is for "DME Function, tank venting system" and does reset, extinguishing the SES light with it each time. It doesn't seem to return until the next time I drop my wife off at the airport!

Clearly, I must have a vacuum or vent leak somewhere, or some other part of this system is failing under specific circumstances. Any advice on where and what to start troubleshooting? I also have gotten in the past, but not too recently a check fuel cap warning, so I bought a new cap about 6 months ago in response to this issue. It didn't stop this very, very occasional warning.

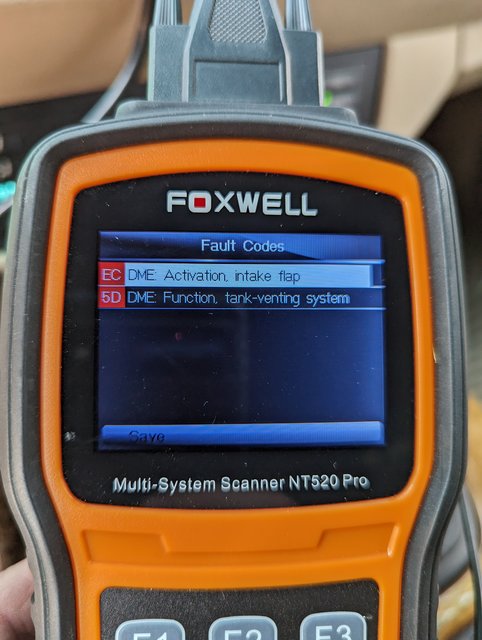

foxwell pic to follow...note the codes don't seem to be BMW codes, but the 520 isn't supported any longer so I can't update it.

__________________
Current
Original owner 2002 E53 X5 4.4i to 4.6i swap
1993 Mopar 318 Jeep Grand Cherokee - original owner
2015 V6 Jeep Grand Cherokee - the nice car for my wife
Former
1972 Audi Fox
1986 Saab 900S
1996 BMW Z3
1998 BMW E36 M3 Sedan
2004 BMW E46 M3
2006 Audi A3 Quatro
Reply With Quote

Sponsored Links

  #2
Old 06-22-2023, 01:27 PM
Member

Join Date: Mar 2016
Location: Saskatchewan Canada
Posts: 1,940
80stech is on a distinguished road
INPA and DIS have the ability to do some pretty good diagnostics in the evap/vent system. You could leave the fuel cap loose and see what kind of code that sets which might give some clues and you could check the purge valve but I think you are going to need to update your diagnostic tool.
__________________
1988 325is (purchased new) sold
2004 X5 3.0 2005 X3 2.5
2008 X5 3.0 (new to me)
Reply With Quote
  #3
Old 06-22-2023, 01:52 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,547
andrewwynn will become famous soon enough
Foxwell also has venting tests look in service/body I think.


Sent from my iPhone using Tapatalk Pro
__________________
2011 E70 N55 (me)
2012 E70 N63 (wife)
Reply With Quote
  #4
Old 06-22-2023, 02:05 PM
EODguy's Avatar
Member

Join Date: Jun 2018
Location: Saudi Arabia/Philippines/USA
Posts: 3,704
EODguy is on a distinguished road
Quote:
Originally Posted by andrewwynn View Post
Foxwell also has venting tests look in service/body I think.


Sent from my iPhone using Tapatalk Pro
+1

Sent from my SM-A528B using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
Reply With Quote
  #5
Old 06-22-2023, 06:07 PM
Henn28's Avatar
Member

Join Date: May 2021
Location: Louisiana
Posts: 621
Henn28 is on a distinguished road
Thanks Gents. I'll see what the Foxwell can do in terms of active testing the system. I haven't dug too much into the test functions, other than to run my aux fan once when I suspected it may have died.
