  #11
Old 11-13-2023, 12:20 PM
Member

Join Date: Jan 2011
Location: Blackburn UK
Posts: 408
RRPhil is on a distinguished road
Hmmm. Not wishing to be too pessimistic but, as a worst case scenario (& hopefully it will turn out that thereís a simpler and less costly electrical/electronic cause), you may have had an A-clutch drum failure. These were all the rage with the 5HP24 until the end of 2000, when a strengthened A-clutch drum was introduced, and clearly your 2002 vehicle should have the upgraded drum. However, the later drums do still occasionally fail.

The A-clutch is used in 1st, 2nd, 3rd and 4th gears so the control system immediately selects 5th gear (B-clutch & D-brake) if it detects unexpected slip across the A-clutch. Reverse uses the C-clutch & F-brake, so is unaffected by this failure.

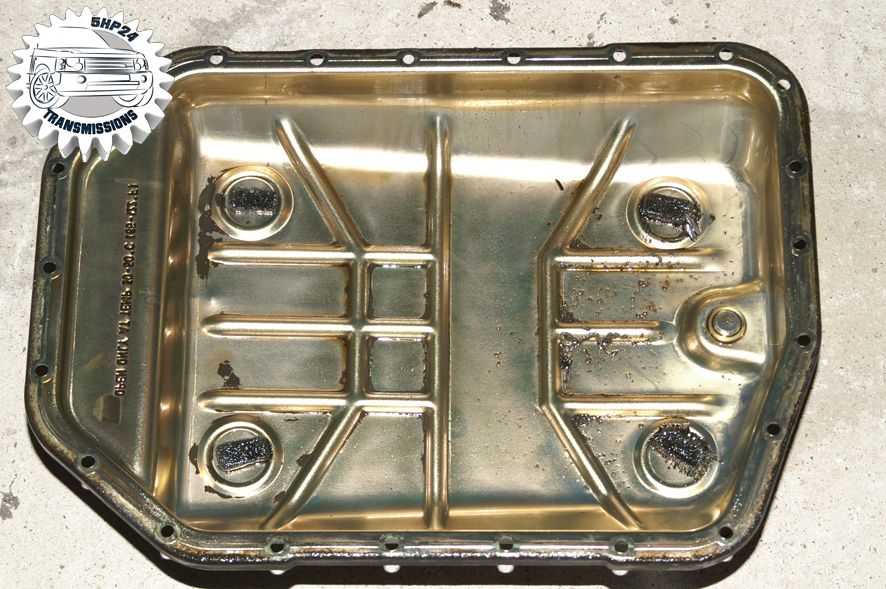

Small parts of the broken drum would most likely end up in the sump, stuck to the magnets, if this were the cause.







We really need to determine if your transmission is failing safe to 4th gear or to 5th gear.

Phil
Reply With Quote

Sponsored Links

  #12
Old 11-13-2023, 05:12 PM
Member

Join Date: Jan 2020
Location: Workington UK
Posts: 82
Henrym3 is on a distinguished road
Quote:
Originally Posted by RRPhil View Post
Hmmm. Not wishing to be too pessimistic but, as a worst case scenario (& hopefully it will turn out that thereís a simpler and less costly electrical/electronic cause), you may have had an A-clutch drum failure. These were all the rage with the 5HP24 until the end of 2000, when a strengthened A-clutch drum was introduced, and clearly your 2002 vehicle should have the upgraded drum. However, the later drums do still occasionally fail.



The A-clutch is used in 1st, 2nd, 3rd and 4th gears so the control system immediately selects 5th gear (B-clutch & D-brake) if it detects unexpected slip across the A-clutch. Reverse uses the C-clutch & F-brake, so is unaffected by this failure.



Small parts of the broken drum would most likely end up in the sump, stuck to the magnets, if this were the cause.















We really need to determine if your transmission is failing safe to 4th gear or to 5th gear.



Phil


Iíve had a look round on various sites and canít find the information on how to determine whether itís failed in 4th or 5th gear. Is it worth draining and removing the sump to check the magnets for debris. Selecting sport doesnít show what gear itís failed in and I assume this is because itís goes straight to failsafe.
Again I much appreciate your input.
My wife managed to pick me up of the floor after I asked for some quotes from a few shops.
I did check the connections in the e box, dry as a bone and no sign of any corrosion on pins.


Sent from my iPad using Xoutpost.com
Reply With Quote
  #13
Old 11-13-2023, 07:01 PM
Member

Join Date: Jan 2011
Location: Blackburn UK
Posts: 408
RRPhil is on a distinguished road
Based on 275/40 R20 front & 315/35 R20 rear tyres the rolling radius is around 361mm

Axle ratio for the 4.6iS is 3.9091 (i.e. 43/11)

The transfer box ratio is 1:1

4th gear ratio for the 5HP24 is 1.0000, and 5th is 0.8037

Hence, the driveline is geared at 21.6mph/1000rpm in 4th and 26.9mph/1000rpm in 5th

At 50mph, with no converter slip, thatís equivalent to 2310rpm engine speed in 4th and 1860rpm in 5th

At 60mph, with no converter slip, thatís equivalent to 2775rpm engine speed in 4th and 2230rpm in 5th

Clearly, in addition to the accuracy of the speedo which will be between 3% & 5% fast, the main problem is the fact that, in failsafe, the lock-up clutch is unlocked in the torque converter.

To get zero slip across the converter requires a fine balance between drive & overrun which isnít easy to achieve on the road when thereís traffic to think about as well as gradients, speed limits, etc. but maybe itís worth trying to drive at a steady 50mph or 60mph and reading off the engine speed to see which gear it corresponds with?

Phil
Reply With Quote
  #14
Old 11-14-2023, 10:53 AM
Member

Join Date: Jan 2020
Location: Workington UK
Posts: 82
Henrym3 is on a distinguished road
Quote:
Originally Posted by RRPhil View Post
Based on 275/40 R20 front & 315/35 R20 rear tyres the rolling radius is around 361mm



Axle ratio for the 4.6iS is 3.9091 (i.e. 43/11)



The transfer box ratio is 1:1



4th gear ratio for the 5HP24 is 1.0000, and 5th is 0.8037



Hence, the driveline is geared at 21.6mph/1000rpm in 4th and 26.9mph/1000rpm in 5th



At 50mph, with no converter slip, thatís equivalent to 2310rpm engine speed in 4th and 1860rpm in 5th



At 60mph, with no converter slip, thatís equivalent to 2775rpm engine speed in 4th and 2230rpm in 5th



Clearly, in addition to the accuracy of the speedo which will be between 3% & 5% fast, the main problem is the fact that, in failsafe, the lock-up clutch is unlocked in the torque converter.



To get zero slip across the converter requires a fine balance between drive & overrun which isnít easy to achieve on the road when thereís traffic to think about as well as gradients, speed limits, etc. but maybe itís worth trying to drive at a steady 50mph or 60mph and reading off the engine speed to see which gear it corresponds with?



Phil


My main concern with trying that is that itís at least 2 mile of stop/go lots of traffic lights and roundabouts to get to a busy dual carriageway. If the drum has gone how much additional damage might that cause as well as all the slippage to clutches. It is about the same distance of 2 mile to a transmission repair centre who have diagnostics, would the diagnostics they have be able to tell which gear itís in and do an accurate assessment of the problem. Iíd rather run the 2 mile and pay the roughly £100 fee than risk further damage potentially spreading all those bits of metal around.


Sent from my iPad using Xoutpost.com
Reply With Quote
  #15
Old 11-15-2023, 01:07 PM
Member

Join Date: Jan 2020
Location: Workington UK
Posts: 82
Henrym3 is on a distinguished road
Quote:
Originally Posted by Henrym3 View Post
My main concern with trying that is that itís at least 2 mile of stop/go lots of traffic lights and roundabouts to get to a busy dual carriageway. If the drum has gone how much additional damage might that cause as well as all the slippage to clutches. It is about the same distance of 2 mile to a transmission repair centre who have diagnostics, would the diagnostics they have be able to tell which gear itís in and do an accurate assessment of the problem. Iíd rather run the 2 mile and pay the roughly £100 fee than risk further damage potentially spreading all those bits of metal around.


Sent from my iPad using Xoutpost.com


Is the 4.4l gearbox internals the same as the 4.6l. Will the bell housings change over and the transfer case. There are plenty over here with warranty but the advertised 4.6 are like rocking horse sh@t.


Sent from my iPad using Xoutpost.com
Reply With Quote
  #16
Old 11-15-2023, 02:38 PM
Member

Join Date: Jan 2011
Location: Blackburn UK
Posts: 408
RRPhil is on a distinguished road
As well as the larger torque converter, the Ď034í version for the 4.6iS has an extra clutch plate in the D-brake (5 instead of 4) and the upper valve block has different KV-B and KV-E valves. Yes, you can swap the bellhousing over with the torque converter. The bellhousing casting is the same, it just has the radial webs machined to provide clearance: https://xoutpost.com/1137899-post2.html

Phil
Reply With Quote
  #17
Old 11-15-2023, 05:23 PM
aureliusmax's Avatar
Member

Join Date: Sep 2019
Location: abbotsford canada
Posts: 256
aureliusmax is on a distinguished road
Posting some of OP's photo attachment error codes into text for ease of searching for anyone needing in the future once issue is resolved.

IKE: Electronic Braking-force distribution
IKE: EGS signal line disturbed

Lucky to have Phil respond to your thread. He's an amazing resource and appreciated very much on the forum.
__________________
2003 4.6, esotril blue, over 215,000KM. Every previous owner failed to keep up the vehicle maintenance. Restoration project.
Reply With Quote
  #18
Old 11-15-2023, 08:52 PM
Henn28's Avatar
Member

Join Date: May 2021
Location: Louisiana
Posts: 622
Henn28 is on a distinguished road
Quote:
Originally Posted by RRPhil View Post
As well as the larger torque converter, the Ď034í version for the 4.6iS has an extra clutch plate in the D-brake (5 instead of 4) and the upper valve block has different KV-B and KV-E valves. Yes, you can swap the bellhousing over with the torque converter. The bellhousing casting is the same, it just has the radial webs machined to provide clearance: https://xoutpost.com/1137899-post2.html

Phil
The whole gearbox, including the bellhousing is a single casting, isnít it? Or does it come off of the actual transmission casting? Funny I didnít think to look at it when I took the motor out of my x5.

I worry that Iím going to roast my 4.4 TQ by having it bolted to the 4.6. So far so good though. At least parts will be easier to find if it does blow up. I have thought about finding a 4.6 TQ and machining the webs in the bellhousing if I ever do need a new TQ. I wonder how this combo would work in theory for HenryM3? I.e, OP could find a significantly cheaper 4.4 5hp24 and use his TQ and bellhousing. Anything to be gain or lost, aside from perhaps saving some money?
__________________
Current
Original owner 2002 E53 X5 4.4i to 4.6i swap
1993 Mopar 318 Jeep Grand Cherokee - original owner
2015 V6 Jeep Grand Cherokee - the nice car for my wife
Former
1972 Audi Fox
1986 Saab 900S
1996 BMW Z3
1998 BMW E36 M3 Sedan
2004 BMW E46 M3
2006 Audi A3 Quatro

Last edited by Henn28; 11-15-2023 at 09:04 PM.
Reply With Quote
  #19
Old 11-16-2023, 07:16 AM
Member

Join Date: Jan 2011
Location: Blackburn UK
Posts: 408
RRPhil is on a distinguished road
The 6-speed boxes have a single-piece casing, but the 5-speed is made up from four sections. The bellhousing, the oil pump housing, the main casing and the rear adaptor plate.



Clearly BMW & ZF thought it was worth the expense of developing a new version of the 5HP24 specifically for the 4.6l engine. The 280mm L51 torque converter will match the torque and power characteristics of the engine better. There must be some vulnerability in the D-brake, too, (engaged in 3rd & 5th gear) as they chose to increase its capacity by 25% for the 4.6l. Iím not sure why the B & E clutch valves were changed for the 4.6l but, again, car companies donít go to the expense of doing stuff like that for no reason. I assume that the transmission controller is programmed differently for the 4.6l too.

I hadnít heard any reports before of how the 4.4l version of the 5HP24 (1058 000 029) behaves in a 4.6l (1058 000 034) so Iím very interested to hear about your experience.





Phil
Reply With Quote
  #20
Old 11-16-2023, 11:13 AM
Henn28's Avatar
Member

Join Date: May 2021
Location: Louisiana
Posts: 622
Henn28 is on a distinguished road
Great info, thanks Phil. I never drove an OE 4.6is, so I can only compare my current set up to when the car was a 4.4i (we bought it new in 2002). The 4.6 is a great upgrade to it and makes it one of the most fun bimmers I've ever owned, second only to the E36 M3 sedan...I really wish I still had that car.

The power comes on like a freight train at around 3000 rpm. Before that its not as noticeable as I think it should be from 350ish hp and ft lbs. I wonder if this is due to the fact that most of the 4.6 extra power comes from top end changes or does the fact that its hooked up to the stock 4.4i 5HP24 and TQ have something to do with it. The final drive in the 4.6is was different as well and more geared towards acceleration I believe (4.4i is 3.64). I am glad I stuck with the 4.4i dffs though as the car gets atrocious MPG as it is now! I had read that the 4.6 was thirsty, but lifted and AT tires don't help at all.

I settled on using the 4.4 OE 5HP44 because it was fairly new to me. I bought a remanufactured piece and installed it in 2019 due to years of slipping at lower RPM. My kids were driving the car at the time, and it sport mode would reduce the slippage to an acceptable level, until it didn't and the gearbox finally crapped out on my daughter, fortunately not too far from home. She skipped failsafe mode and went right to paperweight mode.

I struggled to find a 4.6is 5HP24 when I did my motor swap, and using the OE gearbox seemed a little less complex from a computer mod standpoint. Kassel update my 4.4 DME with his 4.6 numbers and it fired right up and runs fine on with the motor/gearbox combo.

I suspect heat is perhaps what will cause problems first? I've been thinking of putting a standalone CSF Race universal cooler up front for the gearbox, with an inline 80 deg C thermostat. I'd do this as a standalone mod, or maybe with a CSF M5 radiator and cooler t-stat.

The fact that the bellhousing is separate makes me wonder what a 4.6is torque converter, on the 4.4i transmission would do for drivability and longevity?

Thanks, agian for the insight.
__________________
Current
Original owner 2002 E53 X5 4.4i to 4.6i swap
1993 Mopar 318 Jeep Grand Cherokee - original owner
2015 V6 Jeep Grand Cherokee - the nice car for my wife
Former
1972 Audi Fox
1986 Saab 900S
1996 BMW Z3
1998 BMW E36 M3 Sedan
2004 BMW E46 M3
2006 Audi A3 Quatro
