Wiring advice

Wiring isn’t my strong suit, so any advice guys might have would be greatly appreciated. Not too much posted about adding driving lights (Pella, KC, etc.) that gets into specifics.

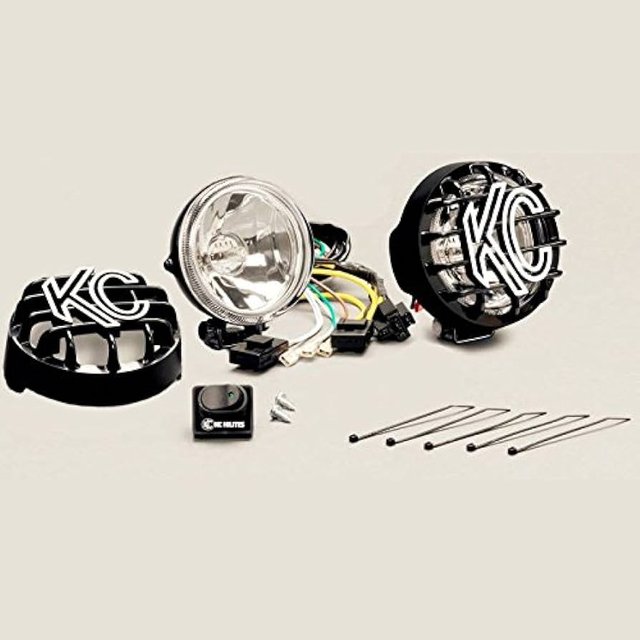

Since the ECS tuning light bar is now on and doing duty as an oil cooler mount, I decided to break down and add driving lights to the front. I hadn’t intended on going full, out of the closet overland, but the bar looks naked up there and I’m actually excited about the lights now that they are in my shop waiting to be installed. I went with 4” BC Ralley halogens because I think the size will be about right, and the kit came with a wiring harness.



That said, how and where to tap power for the switch side is my question. I think I’ll run the power for the actual lights from the jump post at the drivers side cowl. A fuse tap would be easiest for the switch power, but I don’t see anything logical to tap off of in the fuse box under the hood, or the box behind the glove box.

I do have the plug for the secondary air pump available since I yanked that system out. Am I right in thinking that the 12v side of that should be hot with the key on and the DME would control the pump by switching the negative, like so much else in the X5? If so, and assuming the recoding I had done didn’t kill the power all together to that system, I could just repurpose that 12v wire to run to my ashtray switch …maybe?

I have the ECS tuning ash tray switch box and a single switch on order.
https://www.ecstuning.com/b-ecs-part.../?pdk=AQEBAQEB

I also bought blank covers for the remaining holes. Since my 2 USB plugs for the kenwood are in the ashtray, ultimately I’d like to figure out a way to cleanly mount them into 2 of the remaining holes in the ECS switch box. This is when I wish I was a 3d printing guru!
__________________
Current
Original owner 2002 E53 X5 4.4i to 4.6i swap
1993 Mopar 318 Jeep Grand Cherokee - original owner
2015 V6 Jeep Grand Cherokee - the nice car for my wife
Former
1972 Audi Fox
1986 Saab 900S
1996 BMW Z3
1998 BMW E36 M3 Sedan
2004 BMW E46 M3
2006 Audi A3 Quatro

Last edited by Henn28; 04-17-2024 at 08:39 PM.
Reply With Quote

Sponsored Links

  #2
Old 04-17-2024, 10:10 PM
Member

Join Date: Mar 2016
Location: Saskatchewan Canada
Posts: 2,111
80stech is on a distinguished road
I am assuming/hoping that you are using relay?? You could switch ground for the relay then no need to find switch power.
__________________
1988 325is (purchased new) sold
2004 X5 3.0 2005 X3 2.5
2008 X5 3.0 (new to me)
Reply With Quote
  #3
Old 04-17-2024, 10:11 PM
EODguy's Avatar
Member

Join Date: Jun 2018
Location: Saudi Arabia/Philippines/USA
Posts: 3,894
EODguy is on a distinguished road
What about using the cigarette lighter plug in the passenger footwell?

Sent from Embassy network using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
Reply With Quote
  #4
Old 04-18-2024, 09:52 AM
Henn28's Avatar
Member

Join Date: May 2021
Location: Louisiana
Posts: 757
Henn28 is on a distinguished road
Hadn’t thought about switching the ground for the setup…did I mention electrical work isn’t my strong suit! I’ll also look at the cigarette lighter outlet. I always forget that is there! Thanks gents.
__________________
Current
Original owner 2002 E53 X5 4.4i to 4.6i swap
1993 Mopar 318 Jeep Grand Cherokee - original owner
2015 V6 Jeep Grand Cherokee - the nice car for my wife
Former
1972 Audi Fox
1986 Saab 900S
1996 BMW Z3
1998 BMW E36 M3 Sedan
2004 BMW E46 M3
2006 Audi A3 Quatro
Reply With Quote
  #5
Old 04-18-2024, 12:57 PM
workingonit's Avatar
Member

Join Date: May 2021
Location: DFW Texas
Posts: 756
workingonit is on a distinguished road
switched power might be inside nearby glovebox

Quote:
Originally Posted by Henn28 View Post
...That said, how and where to tap power for the switch side is my question. I think Iíll run the power for the actual lights from the jump post at the drivers side cowl. A fuse tap would be easiest for the switch power, but I donít see anything logical to tap off of in the fuse box under the hood, or the box behind the glove box....
Do you have the glovebox flashlight in your X5? I didn't, but I did have the charging socket in my glovebox, so I hard-wired that switched circuit to trigger terminal #85 on the fan relay (Derale 16738), so I could either use the thermostastic switch or manual override to power-on my aftermarket fan.

I couldn't find a switched circuit underhood, so since that's the only one inside that I wasn't using, it was a simple choice. I suppose you could use an auxiliary power adapter to plug into (so the flashlight could be charged overnight, if you have one), but it was easy to tap into. Then, you could run the power wires beside your console to the switch panel, all hidden under the carpet trim.

Name:  Derale 16738 basic wiring, switched power from glovebox.jpg
Views: 39
Size:  113.5 KB
__________________
01 BMW X5 E53,3.0i-5L40E, 7/13/01
topas-blau,Leder-grau,"resto-project car"

Here:
14 Lexus ES350,3.5L-U660E
09 HHR Panel,2.2L-4T45E
04 Chevy 2500HD,6.0L-4L80E
98 GMC Sierra 1500,5.7L-4L60E

Gone:
66 Chevelle Malibu 2dr ht.,327>441c.i.-TH350>PGlide/transbrake
08 Cobalt Coupe,2.2L-4T45E
69 & 75 C10s,350c.i.-TH350
86 S10,2.8L-700R4
73 Volvo 142,2.0L-MT4
72 & 73 VW SuperBeetles,1.6l-MT4
64 VW,1.2l-MT4
67 Dodge Monaco 500 2dr ht.,383c.i.-A727
56 Chevy 210 4dr,265c.i.-PGlide
Reply With Quote
  #6
Old 04-18-2024, 04:41 PM
Henn28's Avatar
Member

Join Date: May 2021
Location: Louisiana
Posts: 757
Henn28 is on a distinguished road
Great idea too. And already on the inside of the car as well. Thanks!
