  #15871
Old 06-03-2023, 03:16 AM
Member

Join Date: Dec 2019
Location: The Netherlands
Posts: 334
guntherrex is on a distinguished road
the X5 decided to drop a bunch of coolant right before I wanted to leve for a vacation... turned out the steering mechnism had ground away at a coolant hose. Mechanic rerouted it away from the moving parts to prevent it happening in the future.
Reply With Quote

Sponsored Links

  #15872
Old 06-03-2023, 05:55 AM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 11,280
andrewwynn will become famous soon enough
What did you do to / for your E53 today??

They are stupidly close. On the e70 just as bad. That's kind of best case scenario though
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)

Last edited by andrewwynn; 06-05-2023 at 10:53 AM.
Reply With Quote
  #15873
Old 06-05-2023, 05:19 AM
Member

Join Date: Dec 2019
Location: The Netherlands
Posts: 334
guntherrex is on a distinguished road
yeah this is the second hose that failed because of clearance issues, another was cut by the serpentine belt. Otherwise pleasantly surprised by the hose conditions; supply and not contaminated on the inside
Reply With Quote
  #15874
Old 06-07-2023, 09:11 AM
Henn28's Avatar
Premier Member

Join Date: May 2021
Location: Louisiana
Posts: 823
Henn28 is on a distinguished road
I spent a couple hours last night modifying some ebay speaker "cones" and installing Kicker speakers into them. My on and off again stereo upgrade had stalled for a while I attended to the trifecta, building a new shed, etc., but the boxes had been sitting in my dining room in the "X5 shipping and receiving area" for too long and I finally got to it last night.

Nothing groundbreaking here as I followed Chrystalwork's excellent posted instructions, advice and lessons learned closely. I don't plan on dragging new speaker wire around the car like he did though (will use OE speaker wires as much as possible) and already have a powered 10" sub in the left rear cubby that sounds fantastic (no OE sub in my car).

The rear speakers are 6.5" 2-way Kickers and the fronts are 6.5" component Kickers, with the tweeters going into either the pilar locations or the dash locations, whichever is easier to install and wire up. I realize I'm losing the small mid in the rear door, and one tweeter or mid up front, but I think the quality will be so much better than OE (and 20-year-old OE at that), that a non-audiophile like me will appreciate a bit easier install and much better sound and not notice the missing speakers.

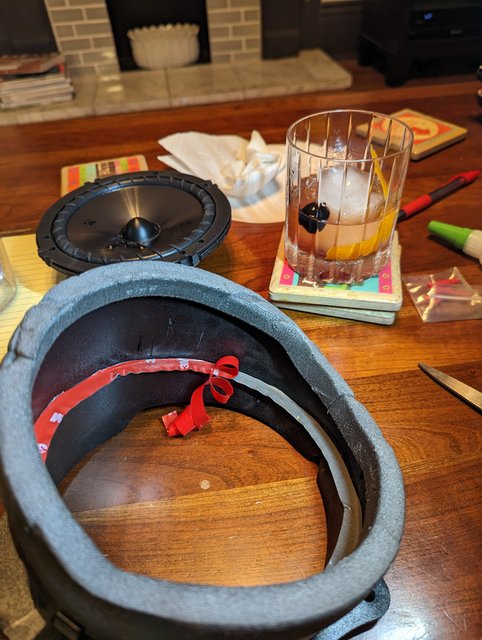

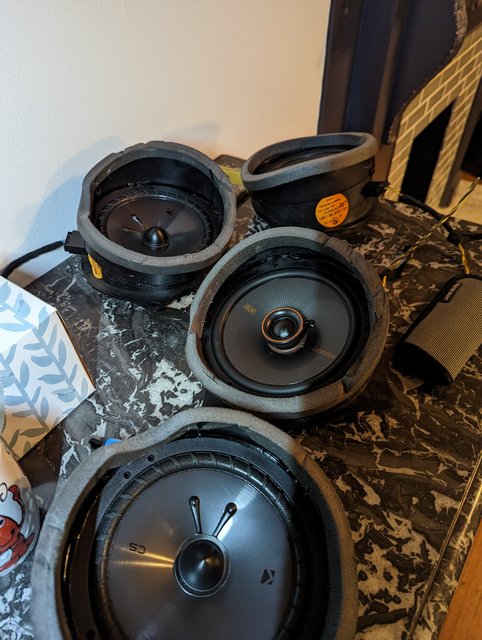

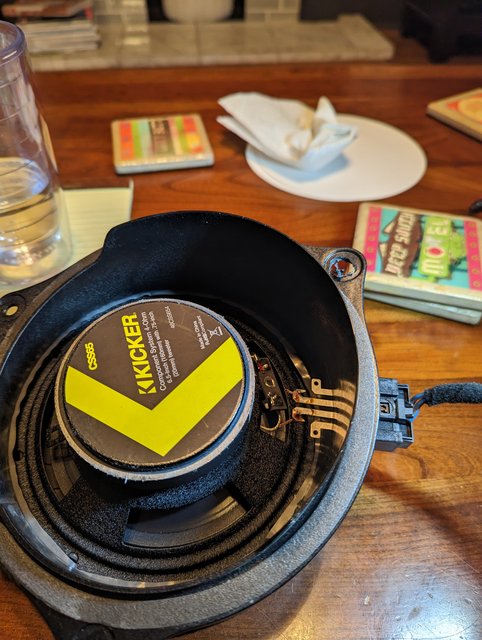

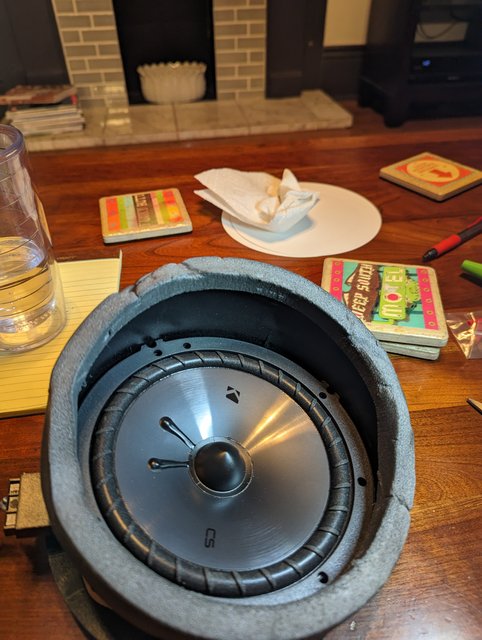

Speaker enclosures came from ebay and popping the OE speakers out was fairly easy with a mat-knife and some force. I ground the mounting ears off the Kickers with a belt sander, vacuumed up all the shavings that stuck to the magnetized parts of the speakers, and test fit each into the enclosures. Each door has a specific enclosure, but the PN stickers were still on each used piece. A qick reference to RealOEM made sure I was putting the correct speaker into the correct front/back enclosure. I plan on using the OE plugs/wiring so "clocked" the connection points relatively close to each other. I stupidly got a bit wrapped up worrying about OE wire colors, + and/or -, but then realized I can just make brown - and the other color +...which is probably what BMW did anyway.

Some 3m double sided tape around the enclosure lip went down to hold the speaker and cusion it, then a drop of Gorilla super glue gel at each of the ground-down attach points (which touch the sides of the enclosures) went on. After that dried a bead of 3M Black weatherstrip and gasket adhesive filled in the gap between the speakers and enclosures. This stuff flows very nicely into the gaps where the speaker edges don't fit exactly into the enclosures.

All in all not a bad job, especially with an old fashioned within reach. I need to buy the Kenwood amp I plan on using in the next month or so (a very compact 4 channel 4 ohm, 70 watt/channel amp and fashion a bracket, or modify the existing amp bracket in the left cubby. Then I can take a day or two and finish the installation once I have all the prep work done and parts on hand. I ran RCA cable overhead from the Kenwood receiver to each cubby last year when the headliner was out, so I'm hopeful I can avoid unwanted interference noise buy going overhead. The Kicker powered sub is plugged in and sounds very clean.

3M tape is the way to go. Forgot it on the first one and hope I don't have any plastic on plastic vibrations.






Kickers came with speaker wire and connectors on one end, and I'll trim the wires to length and solder the other end to the enclosure posts.

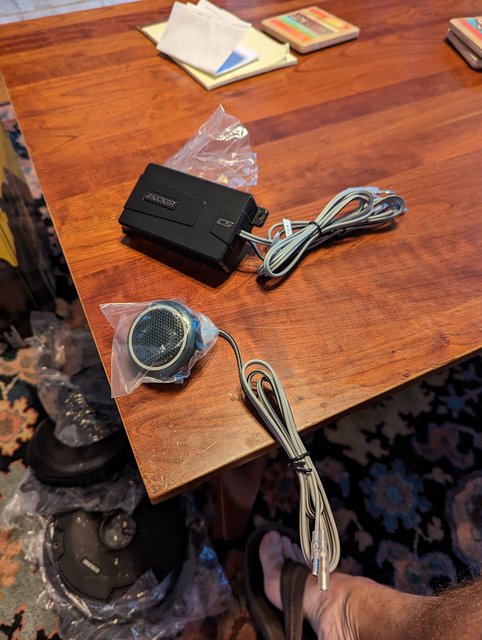

I think the component tweeters and these crossovers will be a challenge. The crossovers may need to go back by the amp, if I'm to use the existing speaker wires at the front tweeter locations.
__________________
Current
Original owner 2002 E53 X5 4.4i to 4.6i swap
2025 G06 X5 50e
Former
1972 Audi Fox
1986 Saab 900S
1996 BMW Z3
1998 BMW E36 M3 Sedan
2004 BMW E46 M3
2006 Audi A3 Quatro
1993 Mopar 318 Jeep Grand Cherokee
2015 V6 Jeep Grand Cherokee

Last edited by Henn28; 06-07-2023 at 09:18 AM.
Reply With Quote
  #15875
Old 06-07-2023, 09:25 AM
Henn28's Avatar
Premier Member

Join Date: May 2021
Location: Louisiana
Posts: 823
Henn28 is on a distinguished road
Quote:
Originally Posted by guntherrex View Post
yeah this is the second hose that failed because of clearance issues, another was cut by the serpentine belt. Otherwise pleasantly surprised by the hose conditions; supply and not contaminated on the inside
Was it "water hose" #12 below? It was the one I stupidly ran below the frame rail instead of on top of it and the steering shaft rubbed a hole in it. I don't know why I didn't see at the time that the metal section goes on top of the left frame rail. Rushing to get the job done I'm sure.

https://www.realoem.com/bmw/enUS/sho...diagId=64_1064
__________________
Current
Original owner 2002 E53 X5 4.4i to 4.6i swap
2025 G06 X5 50e
Former
1972 Audi Fox
1986 Saab 900S
1996 BMW Z3
1998 BMW E36 M3 Sedan
2004 BMW E46 M3
2006 Audi A3 Quatro
1993 Mopar 318 Jeep Grand Cherokee
2015 V6 Jeep Grand Cherokee
Reply With Quote
  #15876
Old 06-07-2023, 10:43 PM
EODguy's Avatar
Member

Join Date: Jun 2018
Location: Saudi Arabia/Philippines/USA
Posts: 4,032
EODguy is on a distinguished road
Just got all four o2 sensors through customs and now have my LF wheel speed sensor intermittently shitting the bed.

I had hoped to do o2 this Saturday but now I can only pray that I can get all five things done without something screwing up or needing an item that's impossible to find in one day....

Sent from my SM-A528B using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
Reply With Quote
  #15877
Old 06-07-2023, 10:47 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 11,280
andrewwynn will become famous soon enough
One of my WSS crapped out it was just rust. Cleaned and replaced. Bingo


Sent from my iPhone using Tapatalk Pro
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
  #15878
Old 06-07-2023, 10:54 PM
EODguy's Avatar
Member

Join Date: Jun 2018
Location: Saudi Arabia/Philippines/USA
Posts: 4,032
EODguy is on a distinguished road
Quote:
Originally Posted by andrewwynn View Post
One of my WSS crapped out it was just rust. Cleaned and replaced. Bingo


Sent from my iPhone using Tapatalk Pro
I hope so, because apparently my wife thinks that "parts waiting to be installed" don't belong anywhere she has to sweep, mop or dust...

Saturday afternoon is the only time I can use the lift at the Haji shop.

Sent from my SM-A528B using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
Reply With Quote
  #15879
Old 06-08-2023, 12:32 PM
Member

Join Date: May 2017
Location: Colorado
Posts: 434
Attacking Mid is on a distinguished road
Quote:
Originally Posted by Attacking Mid View Post


I actually have my floor jack under the transmission pan as redundancy in supporting the vehicle. I never trust just one thing to keep the vehicle from crushing me!

That oil pan is a monster! I did my wife's E83 (w/N52) gasket a couple years ago. One difference I discovered on this one.... the danged dipstick (N52 doesn't have one). I just assumed the pan would slip off that dipstick tube, but NOOOOOOOO! I fought it for awhile and finally got the dipstick out and the oil pan pretty much fell to the ground!

AM.
I finished this job up a few days ago (was in no hurry) and finally started it up and drove it yesterday. So nice to have that nasty vibration at idle gone. With the new engine mounts, it's smooth as can be.

AM.
__________________
E70 2010 3.0 M57 AT Titanium Silver with Black Leather
E53 2004 3.0 M54 AT Toledo Blue with Gray Leather
E83 2008 3.0 N52 AT Silver Gray Metallic with Black Vinyl
E46 1999 2.8 M52TU 5MT Black with Tan Leather 250K+ miles (Sold, but not forgotten)
Reply With Quote
  #15880
Old 06-08-2023, 03:32 PM
Member

Join Date: Jun 2021
Location: Austin, TX
Posts: 1,657
X5chemist is on a distinguished road
159869 miles. Its first oil change since fixing the oil pan leak. 6k miles with about 3 quarts within the miles. 255/60R17 tire rotation too. Running smooth and straight. Quick wash and driven into the garage. Rain and marble size hail reported. Up next, a few more parts for a coolant pipe and CCV installation.
__________________
'06 X5 3.0i - bought @143,123 miles (12/26/20)
Reply With Quote
