E39 Prewired for Navigation?


I have a E39 2001 525i Exec with the following:

1. Widescreen Display

2. TV Tuner

3. CD Changer

I was wondering if the car would be prewired for navigation? It seems stupid to sell a car with just a TV and no navigation drive.

If i look in the back i can see a random power plug that has not been used, but i'm not too sure what i'm looking for.

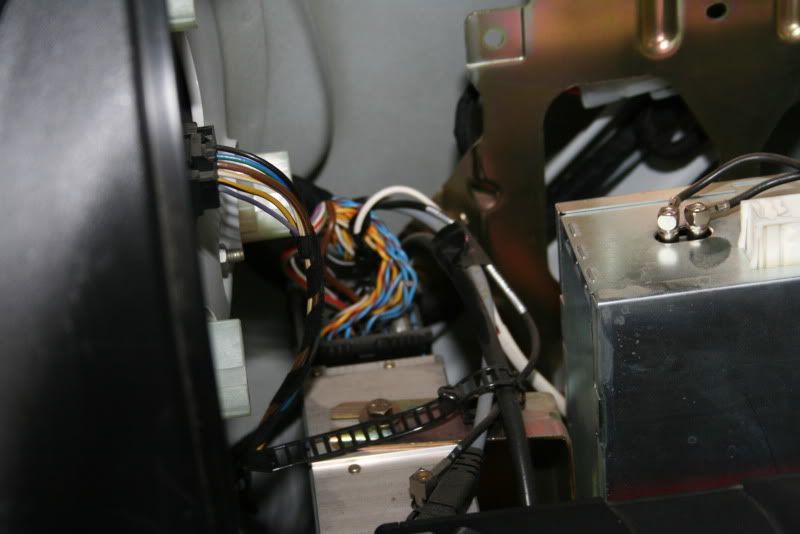

http://i29.photobucket.com/albums/c2...3/IMG_5060.jpg
http://i29.photobucket.com/albums/c2...3/IMG_5057.jpg

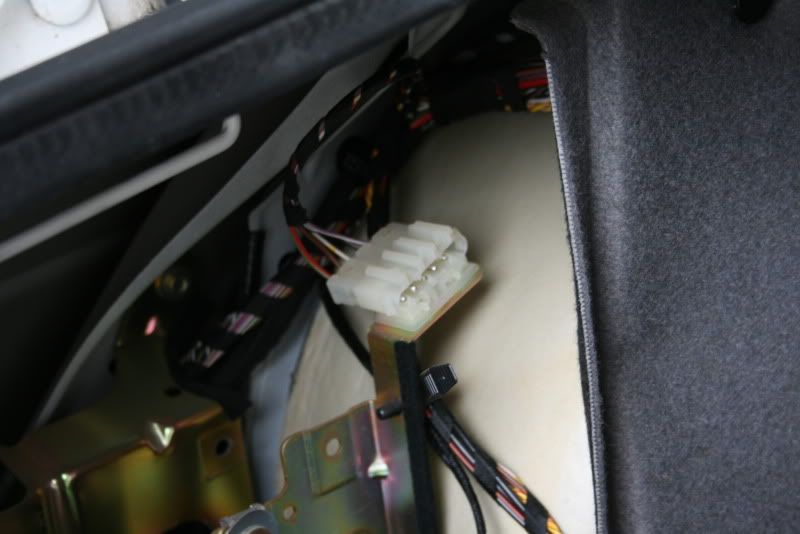

http://i29.photobucket.com/albums/c2...3/IMG_5056.jpg
http://i29.photobucket.com/albums/c2...3/IMG_5055.jpg
http://i29.photobucket.com/albums/c2...3/IMG_5072.jpg

No, you have a car that was spec'd by a skinflint so only has the TV option.

You can have the nav as well, but you loose the TV, if you get the TV jump up loom (£60 from dealer), then you can have both.

To have both;

Buy the jump up lead.
Disconnect the blue lead from the TV module,
plug the blue plug into the jump up lead, plug the white and blue in to the TV and the other blue plug into the nav unit.

Now, you will need a 26pin plug to plug into the purple socket on the back for the nav unit.

You will need +12v
Audio out and
a wire from the dash (wheel sensor)

I have the pin numbers somewhere.

Running without these will not effect the nav working (it will work), it will just have no sound from the nav and the pointer on screen will not be smooth.

Not really sure abut that, if you can find what they are for, then the could be for the nav part.

HTH

Is there a way i could tap into the sound through the Radio Tuner instead of running a new cable from the back to the front?

Also there seems to be an empty white plug on the top of the tv tuner, whats that for?

Where do i get the 26 pin purple plug from and what does it plug from- into?

I think i have the 12v plug in the back of the car already ( the random plug that has not been used )

Where does the audio out come from, like the front screen or the radio module?

I just took the back seat off to see if i could see anymore cables, heres some pics from what i found.

Not to sure if these are of any use, but will post them anyway.

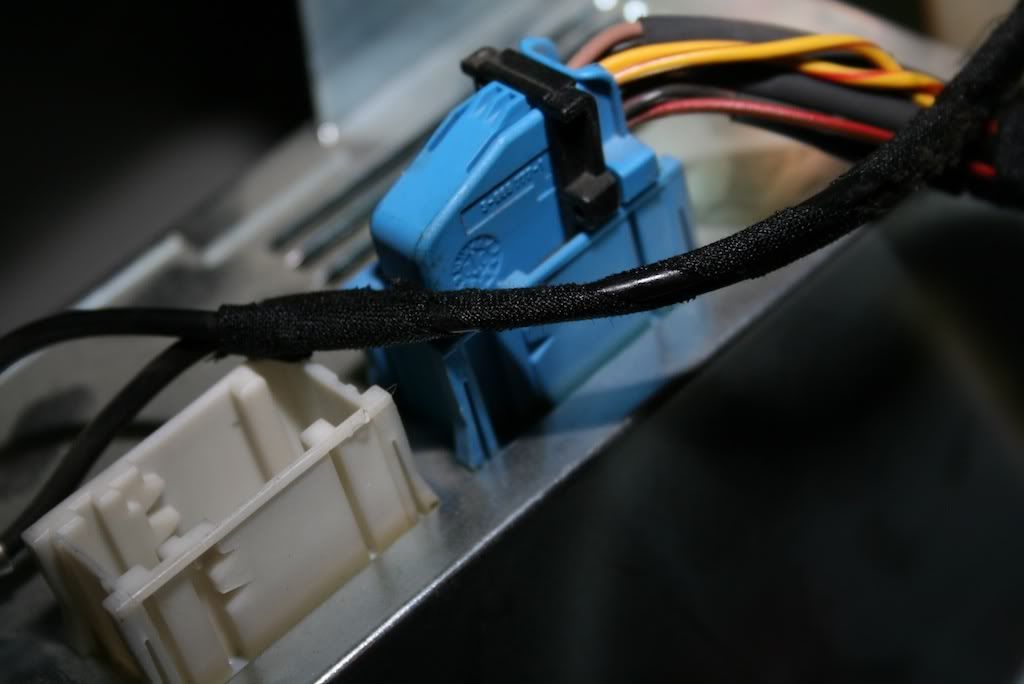

http://i29.photobucket.com/albums/c2...3/IMG_5079.jpg

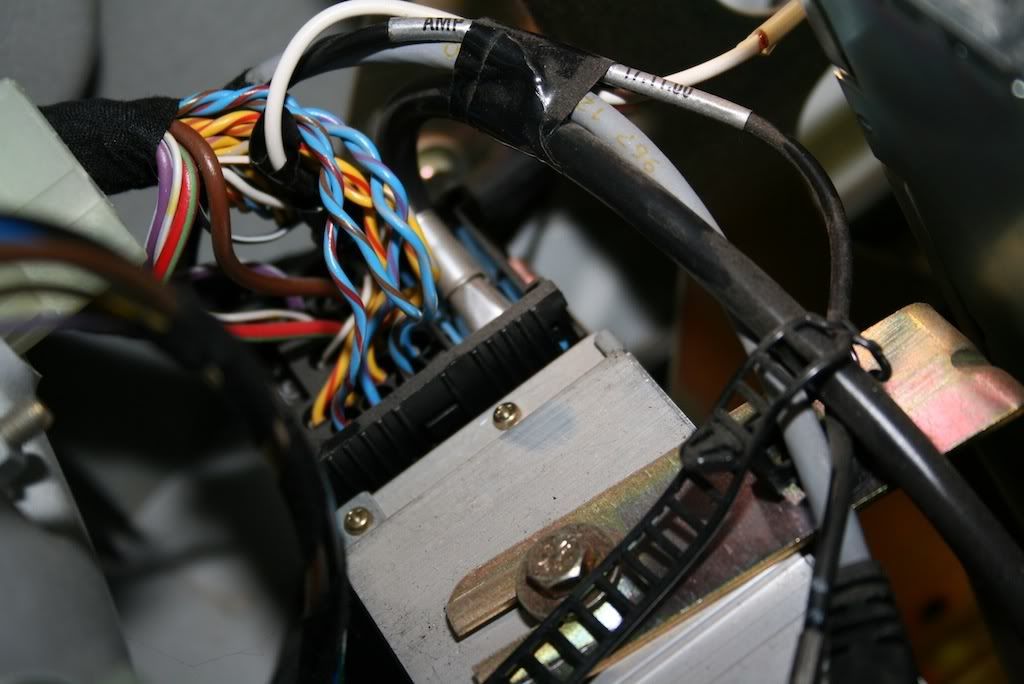

http://i29.photobucket.com/albums/c2...3/IMG_5078.jpg

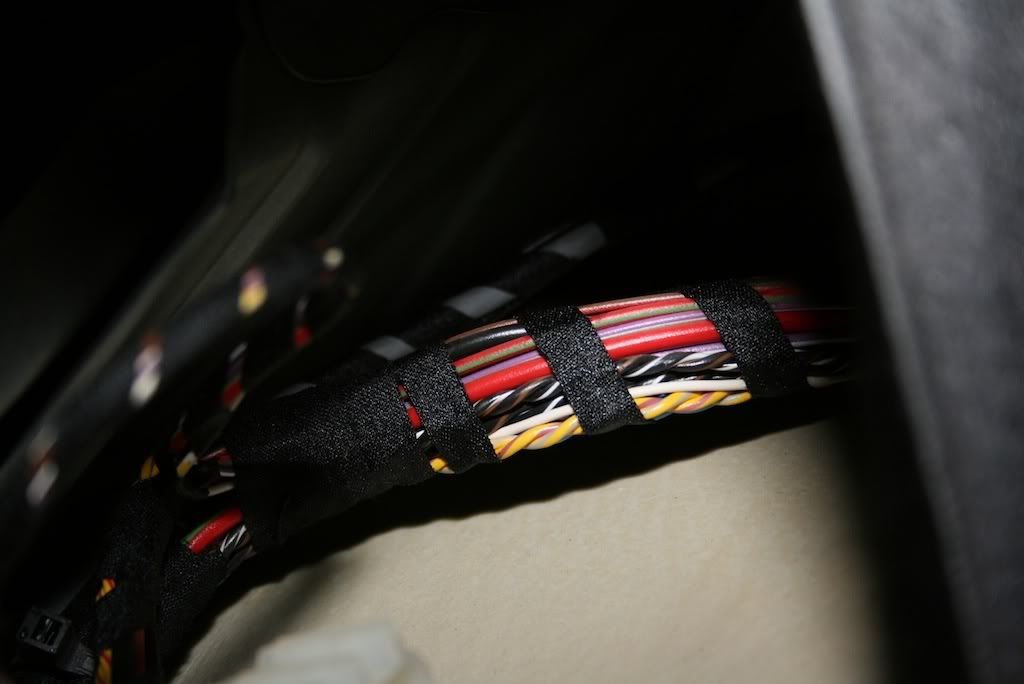

http://i29.photobucket.com/albums/c2...3/IMG_5080.jpg

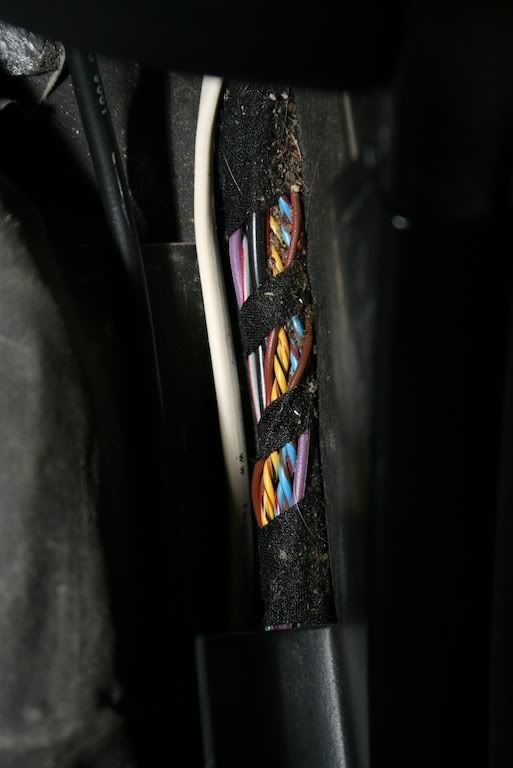

http://i29.photobucket.com/albums/c2...3/IMG_5077.jpg

The sound does go from the nav/tv to the radio module (in the boot), the only thing that comes from up front is the wheel sensor wire.

BTW the front display/monitor is just a dumb screen, all the gubbins are in the boot.

Audio in/out, mine has the AV AUX lead plugged in, the jump up lead has a white plug on it.

Get one of the 26 pin (I think) generic plugs and cap from the dealer, you will need to populate the wires (yourself) with +12v, nav audio out and the wheel sensor.

You will need a GPS antenna too btw.

OK, you could use that as one of the inputs.

Nav audio come out the nav unit and goes into the nav input on one of the small plug that plug into the bottom of the radio module.

Ok, thank you for helping me out on this, its fantastic,

Just three more questions, what does the wheel sensor cable plug into up at the front of the car?

Can i just mount the GPS antenna inside the rear compartment where all the gubbins are?

So i have to create my own purple plug using a PIN chart which will include the wheel sensor and a 12v? Do you have the PIN chart by chance?

Do you know of an online site that i can purchase the JUMP from? If i decide to get rid of the TV, i can just use the cable thats plugged into the TV tuner yes? And when im plugged straight into the MK3 it will use that as the brains of the unit... not the TV tuner that its using now?

No problem.

I think... its the white plug that plugs into the cluster and you need to tap pin 8 (black/green stripe).

yes, but it really needs to "see" the sky.

http://i169.photobucket.com/albums/u...BMW_MK3MK4.jpg

You need

1:= reverse signal
3: = +12v
10: = speed sensor (from pin 8 on cluster)

I got mine from ebay.de (it was cheaper than the dealer).

Yes, plug the blue into the blue, and it will see the nav and not the tv.

Correct.

Sorry, these questions keep popping up in my head,

Could i tap the speed sensor further down the cable which is easier to get to? like the speed sensor may run down past the rear wheel? could i just make a small cut in the shielding and jack the line with another cable?

I have been looking around onlike for the jump up loom can't seem to find it anywhere including ebay

Could i do the same for the 12v just tap into another 12v cable going to the the tuner or radio module? do you know what colour the 12v would be?

Would my 2001 X5 which came with factory fitted navigation have a JUMP that i could test out on my 525i?

And whats this Reverse signal?

thanks

You could, but thats he OEM tap in point.

I would take the +12v from the rear, as for colour you would need to use a meter to find one.

No, factory nav has the TV in an incorporated loom.
For when the car is in reverse, so that the nav "knows" you are going backwards.

What colours the reverse pin and where can i find that, do you know where the sensor is located so i can tap into it rather than the front dash.

Also you say a 26 PIN purple plug... but i only see 18 pins in the pinout

Tap the reverse light switch (gear knob).

No, sorry.

My mistake, 18pin plug and cap.
