eskirvin

02-20-2020 06:00 AM

Update Transmission Firmware

First time posting here. Nice to meet everyone. I'm an American living and working in Kuwait. I own two 2005 X5s, one 3.0i and one 4.4i, both of which I've made various upgrades and repairs to. I'm at a sticking point on upgrading my transmission.

The short version is I'm trying to use WinKFP to update the transmission. I have SP-Daten V65, but my transmission has apparently never been upgraded before since its creation in 2004. After asking WinKFP to update, I get an error 701 for determining compatible hardware types stating I need a new Sg D2 file. If you can help me with how to host pictures, I'll be happy to provide those. Any ideas? Thank you for any assistance.

EODguy

02-20-2020 08:10 AM

Use the Tapatalk app and you can post a picture of medium size or smaller unless you're a ViP then you can post multiple photos at once in original size.

Sent from my SM-A730F using Tapatalk

eskirvin

02-20-2020 08:19 AM

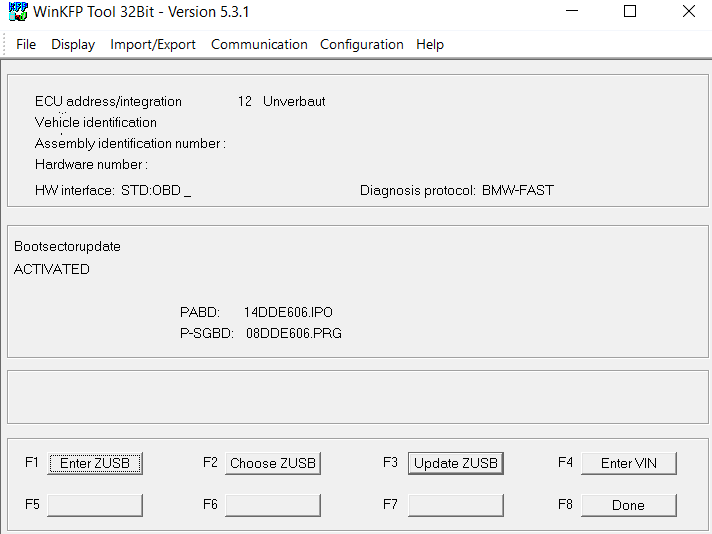

Pictures

6 Attachment(s)

Attachment 77372

Attachment 77373

Attachment 77374

Attachment 77375

Attachment 77376

Attachment 77377

wpoll

02-20-2020 01:58 PM

DDE is in diesels car only (Digital Diesel Electronics) - are you selecting a DDE module on your petrol cars?

Auto Parts Guy

02-20-2020 06:30 PM

Quote:

Originally Posted by wpoll (Post 1178227)

DDE is in diesels car only (Digital Diesel Electronics) - are you selecting a DDE module on your petrol cars?

That was my thought as well.
But I don't see the EGS in the list.

Mouse

02-20-2020 06:48 PM

Is there a sub menu for GKE194? Is that not for N62 6 speeds? I def need to get my software updated as well.

Clavurion

02-20-2020 06:53 PM

7541027A.0PA is found in GKE194 folder.

Code:

;Zusbauvorschrift vom 23.03.2010 14:18

;SG-TYP: GKE194

;ZB-NR  TYP-NR  HW-NR  IX SW-NR     AM          PIN S CS

7586028,1000000,7557063,A,7586029DA,0FFFFFFFFFD,016,1 Q

7616130,1000000,7557063,A,7616131DA,0FFFFFFFFFD,016,1 I

7541102,1000000,7541027,A,7541103DA,0FFFFFFFFFD,016,1 T

...

eskirvin

02-20-2020 11:47 PM

My car is certainly not a diesel. Does the diesel and 4.4i use the same transmission? When searching the part number, I do come up with about as many results for 3.0d as I do 4.4i. I'll see what I can find in realoem later.

Other than toying a bit with INPA to reset faults and using it to fix a VTG issue, I haven't successfully used any of the other software I have. This is my first foray into "coding" or updating any modules. Thanks for any assistance.

aureliusmax

02-21-2020 02:51 AM

what's the point of updating the firmware here

EODguy

02-21-2020 03:47 AM

If you've had some parts swapped out and coded (I'm using the term loosely) you can have the scanner pick up the other part when scanning in automatic (don't ask how I know..)[emoji850] and that's why the DDE shows up [emoji28]

Sent from my SM-A730F using Tapatalk
