$chlitz 05-09-2013 09:57 AM

Rotational scraping noise from front end

i've got a new noise coming from my front end, and i'm pretty sure it started two weeks ago after i had my wheels off. it is NOT the brakes--the noise comes and goes, speeds up/slows down with the vehicle, applying the brakes has no effect, steering/turning has no effect. it sounds like a light metal on metal scraping to me. i was reading up on replacing a torn CV boot and it seems that there is some kind of "dust bowl" on the hub that can come loose and then either needs to be tack welded back into place or just cut off and removed. my front wheels were VERY VERY stubborn to come off, so i was pounding around on the backside of the wheel with a rubber mallet quite a bit. possible i whacked this "dust bowl" and knocked it loose?

i guess i'll pull the wheels off again this weekend and see if i can track down the noise. just hoping someone might be able to chime in and let me know what else might be causing a noise like this so i can check all possibilities. thanks!

(i realize this is difficult to diagnose without actually hearing it, but just looking for possible causes.)

alecu 05-09-2013 10:30 AM

There should be a round metal plate behind the rotor. I can't think of the name now. Check to make sure that's not touching the rotor. It might have bent when you removed the wheels. Happened to me before.

alecu 05-09-2013 10:42 AM

Nevermind, you were talking about the same thing. I just forgot the name :D

xsx450 05-09-2013 01:13 PM

Ive had a noise like this for a while, its between 10-30mph, cant figure it out. Some have said carrier bearing, but when my car is on the lift it doesnt make the noise, and carrier bearing is silent. Frustrated.

bcredliner 05-09-2013 03:25 PM

I would say the hound has the fox in sight. The dust plate behind the rotor is most likely bent, doesn't have to be loose to rub. Likely at the top or bottom, may be able to see a shiny spot before you remove the wheel. It likely comes when the suspension is loaded on that side and goes when traveling strait. If you remove the wheels again wire brush the hubs and apply a little anti-seeze.

bcredliner 05-09-2013 03:46 PM

xsx450,

If carrier bearing you should feel vibration when de-accelerating and/or noise under your feet that doesn't go away. Check to see if it is in a particular gear or only when you at constant speed, when slowing down or speeding up. How many miles?

xsx450 05-10-2013 03:54 PM

Quote:

Originally Posted by bcredliner (Post 936022)
xsx450,

If carrier bearing you should feel vibration when de-accelerating and/or noise under your feet that doesn't go away. Check to see if it is in a particular gear or only when you at constant speed, when slowing down or speeding up. How many miles?

I can actually feel it very faintly through my left foot when placed on the plastic piece there in the foot well.

Its very faint and no vibration at all. only between 10-30mph. So faint the mechanics cannot even hear it. lol!

I would say its more of a stone grinding/sliding sounds, not metallic scrape...

really hard to describe... 73k, California Car.

bcredliner 05-10-2013 06:00 PM

Since it started just after you had the wheels off and you were using a hammer in the process, the cheapest, easiest and most likely cause is the metal behind the rotor is bent and is touching the rotor. That would be the first step I would take. We can go from there if that is not the cause. What did you do that you had to remove the wheels?

xsx450 05-10-2013 06:26 PM

Quote:

Originally Posted by bcredliner (Post 936172)
Since it started just after you had the wheels off and you were using a hammer in the process, the cheapest, easiest and most likely cause is the metal behind the rotor is bent and is touching the rotor. That would be the first step I would take. We can go from there if that is not the cause. What did you do that you had to remove the wheels?

Mines done it since ive owned it. I will check when i get a chance.

I have had them off for

1. Sway Bar Links
2. Control Arm Bushings/Ball Joints
3. Fuck with Height sensor bracket
4. Plasti Dipping Wheels

http://img.photobucket.com/albums/v2...ps95156d6f.jpg

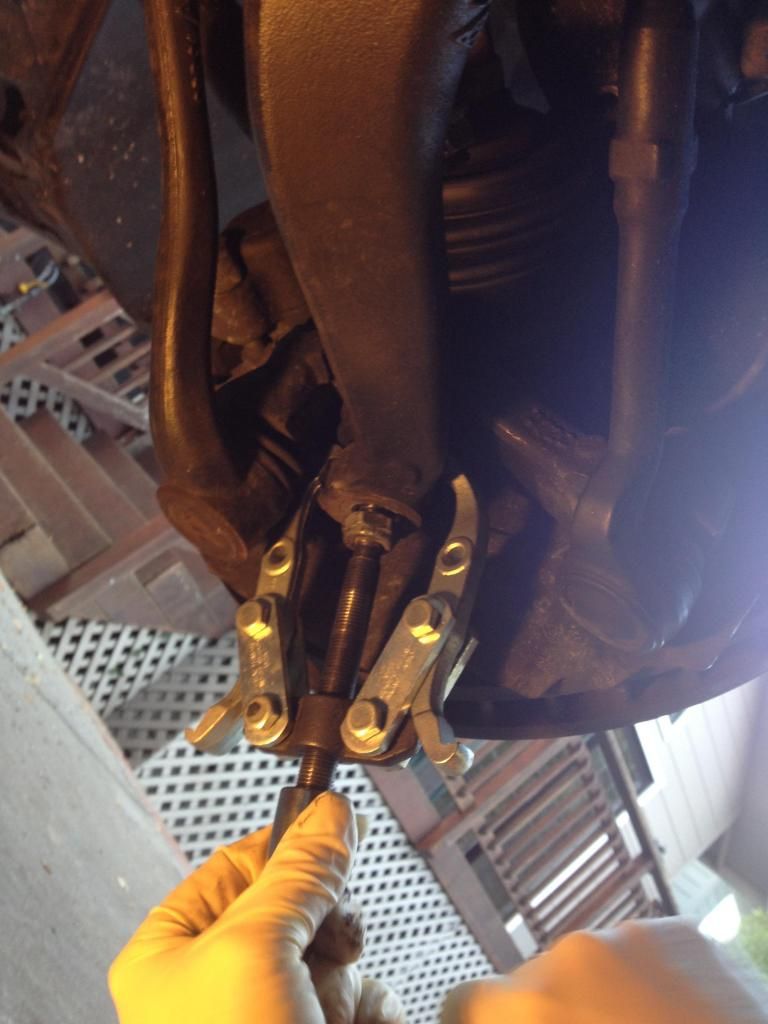

http://img.photobucket.com/albums/v2...ps8abe6c4d.jpg

Maybe i pushed it against it here. But it was doing it before!

bcredliner 05-10-2013 06:35 PM

xsx450,

How many miles did it have on it when you bought it? Has the sound changed or become louder? Any mods on the X at time of purchase?
