cn90 06-28-2014 11:46 AM

DIY: 2006 X5 3.0i Spark Plugs using NGK Iridium BKR6EIX

3 Attachment(s)
DIY: 2006 X5 3.0i Spark Plugs using NGK Iridium BKR6EIX

My "new" 2006 X5 3.0i with 113K still has factory spark plugs as the P.O. never replaced them. Since I have had good success with NGK Iridium BKR6EIX in my 1998 BMW 528i, I decided to use these NGK Iridium BKR6EIX spark plugs in my 2006 X5.

Car runs fine even with stock spark plugs with 113K on it. However, at 113K, it is past due, thus the spark plug change...

To read about the antiseize debate, torque values, and how much torque needed to destroy the spark plug in a junk engine test etc., see the BMW E39 threads below:

BMW E39 Spark Plugs thread (antiseize debate, torque values etc.):
Pictorial DIY for an M54 spark plug replacement on a 2002 BMW 525i E39 with 95K miles - Bimmerfest - BMW Forums

Antiseize debate thread:
The Truth About Spark Plug Torque and Anti- Seize - Bimmerfest - BMW Forums



Parts/Tools:

- Local O'Reilly auto parts store sells NGK Iridium BKR6EIX for $7/each.

- Antiseize, Torque Wrench, 10-mm socket etc.

- For spark plugs tool: I no longer use the socket with rubber insert (rubber falls off, spark plugs fall off etc. I got rid of this rubber-line socket): I use the magnetic spark plugs socket made by Gear Wrench: Advance Auto Parts sells it for $15: this tool is the ticket!

- I adjust the gap of all 6 spark plugs to 0.028" (factory is 0.030"). Just make sure you don’t touch the fine Iridium tip. Or you can leave it at 0.030".

- The Plastic Cover on top of the Valve Cover: once it is off, I recommend that you leave it off. Store the cosmetic cover (with the 10-mm nuts, round cover in Ziploc bag) in your garage. With the cosmetic cover off, it is much easier to change spark plugs, monitor oil leak into spark plug hole.

http://www.xoutpost.com/attachment.p...chmentid=63737



Procedure:

1. For antiseize, apply the equivalent of “one drop of water”. Excessive antiseize can cause problem later.


2. Once the cosmetic cover is off, you can see the setup.


http://www.xoutpost.com/attachment.p...chmentid=63738

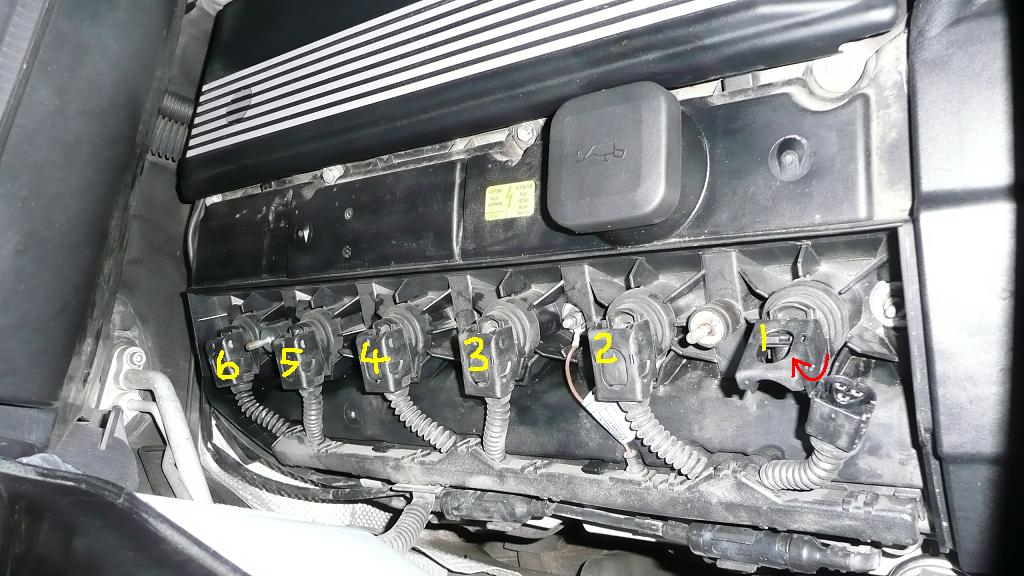

3. Label the ignition coils 1, 2, 3, 4, 5, 6 to avoid confusion (not necessary but I did it).

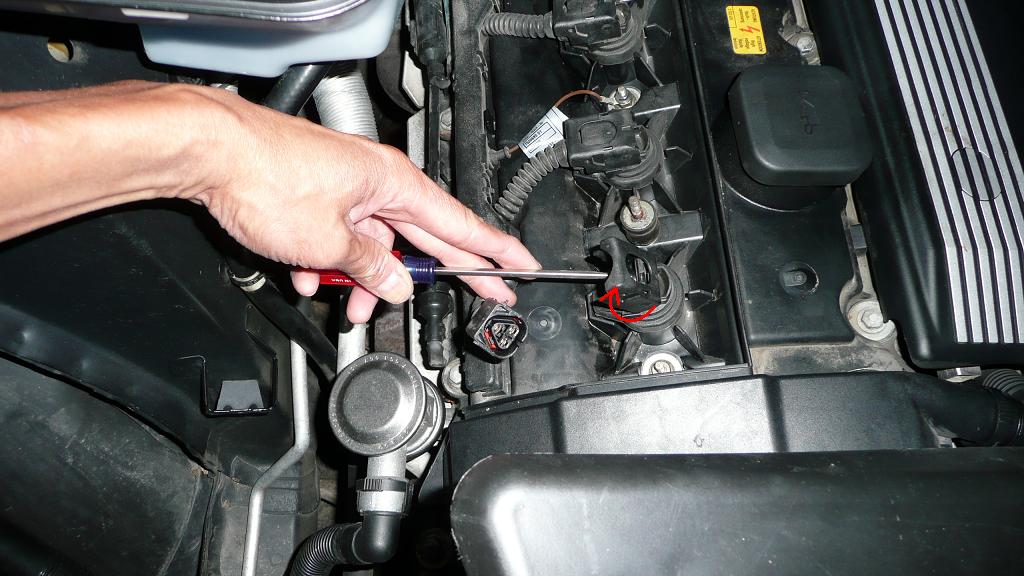

- Lift the plastic tab up as shown, then d/c the connector.
- Now lift the ignition coil upward, wear gloves to make it easier.
You may have to rotate the ignition coil a bit to break the bond with the spark plug.

http://www.xoutpost.com/attachment.p...chmentid=63739



4. During installation:

- Turn the socket by hand (no ratchet) Counter-clockwise first to prevent cross-threading. Then thread it in by hand (no ratchet) until it rotates nicely. There is a debate about torque. I use the torque between 18-20 ft*lb.

- Push the ignition coil firmly down until it is flushed with the valve cover.

- Then re-connect the connector, then snap the cover back down, it will lock the connector in place.

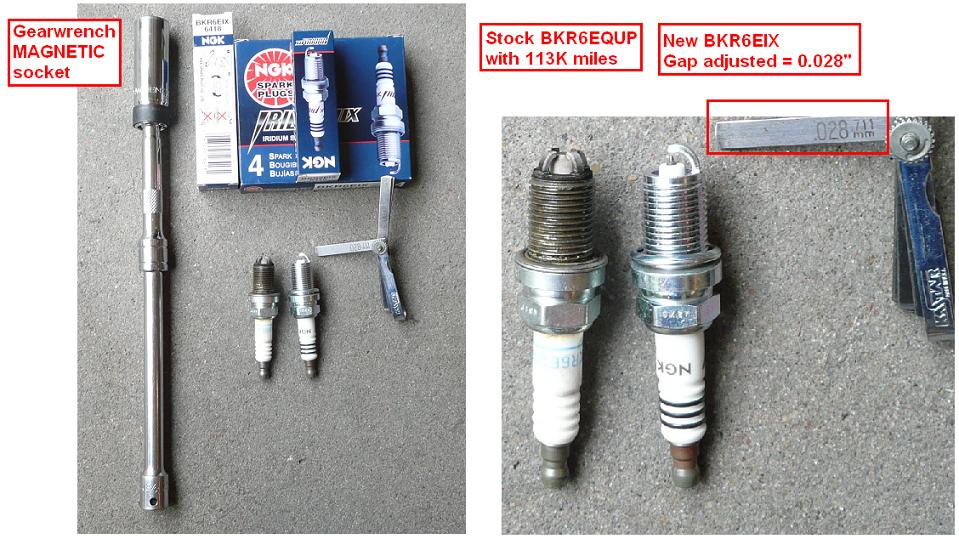

5. See the factory spark plug at 113K miles, it does not look too bad but it is time to go.

Car runs more smoothly with Iridium spark plugs. I will report on the fuel mileage later. Stay tuned.

pass427 06-30-2014 11:36 AM

Great write-up I am doing this job this week. Thank you

cn90 06-30-2014 11:48 AM

The factory spark plug was long gone @113K miles.
The new Iridium spark plugs make a big difference!
You will love the Iridium plugs.

ProfessorX5 05-01-2015 08:13 PM

Great write-up. Gonna do mine tomorrow!

ScottJ 05-04-2015 12:46 AM

I ordered these NGK Laser Platinum NGK OEM 3199 plugs, which checked out as OE compatible. These have the 4 prong electrode arms, so I feel they aren't to be re-gapped. Anyone using these plugs on a E53 3.0L?

--Scott

cn90 05-04-2015 09:07 AM

Search bimmerfest E39 for the 4-prong business.
Most of us have now switched to single-prong NGK Iridium as mentioned in this thread.
The engine idles very smooth with the single-prong NGK Iridium.

Riggodeaux 05-04-2015 09:51 AM

I thought the NGK BKR6EQUP was the plug for the M54 engine? That's what I installed around 8k miles ago. Continues to run smoothly, and I am seeing about +1 mpg since doing this and changing the 02 sensors.

Ricky Bobby 05-04-2015 09:59 AM

^^It is the OEM plug. I popped those in about 2 years ago. There is a Bosch equivalent which is the actual OE plug, but I like NGK's better.

IX just means the Iridium version of it.

cn90 05-04-2015 10:03 AM

Quote:

Originally Posted by Riggodeaux (Post 1036762)
I thought the NGK BKR6EQUP was the plug for the M54 engine? That's what I installed around 8k miles ago. Continues to run smoothly, and I am seeing about +1 mpg since doing this and changing the 02 sensors.

Correct, but during those 2004-2006 years, Iridium plugs didn't enter the market yet.

Now, Iridium is the standard plugs coming out of Honda, Toyota, etc. from factory as OEM equipment.

tonycajjo 09-15-2015 01:18 PM

so where did you come up with that gap? i was looking on champion website and they have the gap on our engine listed as .032
