howard8000 06-09-2014 01:47 AM

DIY:Dial replacement

11 Attachment(s)
I have been here for 4 years and had tons of help from the forum. I owned 01 Bmw X5 3.0 and have 08 X5 3.0. Now it's my turn to return the favor.

Long story short. I am living in Canada and bought a US X5 E70 car from dealer, so I had to replace the dial from mph to kph.

1. I bought the dial replacement from Moman for $80 canadian.....

BMW X5 E70 - Replacement dial - converted from MPH to Km/h

http://www.xoutpost.com/attachment.p...1&d=1402292677


2. Tools needs:
torx T20 and one small flat screw driver.


3. Steps:
-----Take out the instrument cluster:

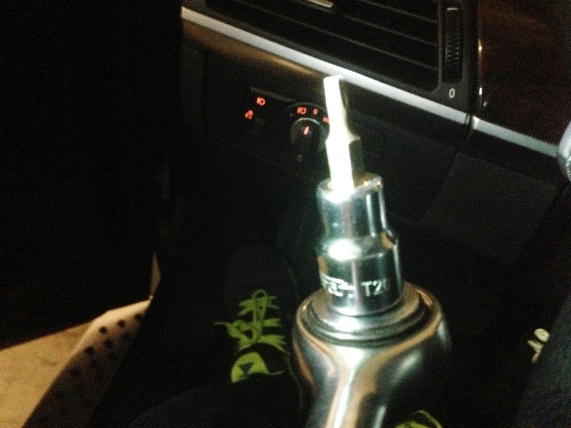

it's hold by two T20 screws. After taking out the screws, the cluster will just pop out by gentle pulling.
There's only one wire connected to the cluster. Just push the plastic and it will pop out.

http://www.xoutpost.com/attachment.p...1&d=1402291879

http://www.xoutpost.com/attachment.p...1&d=1402291879

http://www.xoutpost.com/attachment.p...1&d=1402291879


----------Open the instrument cluster:
1. Unscrewed the 4 T20 screws on the back of the cluster.

http://www.xoutpost.com/attachment.p...1&d=1402292076

http://www.xoutpost.com/attachment.p...1&d=1402292076

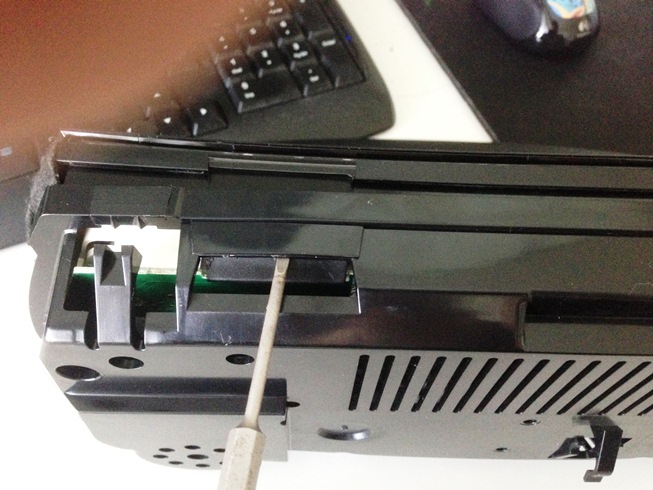

2. Use flat screw driver pop the clips from the lower right one first
http://www.xoutpost.com/attachment.p...1&d=1402292172

Then it will stay there and remove the clips on counterclock wise.

http://www.xoutpost.com/attachment.p...1&d=1402292248

http://www.xoutpost.com/attachment.p...1&d=1402292288


3. Take out the speedoneedle.

Slight pull the base off the needle and turn it counter clock wise. You will hear a pop and it means the needle is loosing.

http://www.xoutpost.com/attachment.p...1&d=1402292565


Then follow the instruction on youtube:

https://www.youtube.com/watch?v=HtPUXcQwLjo

4. Take out the old dial and glue the new one on!

http://www.xoutpost.com/attachment.p...1&d=1402292633
