Angel Eye Remote Kit Tip

Contributed by: imaznumkay

When i had my angel eyes i looked EVERYWHERE inside the hood to feed my remote wire to the footwell...well i found this long time ago but i just took some pics for yall and here it is

You should see a rubber grommet driver side under the hood


feed your remote wire into the grommet (use a pin to cut through and feed your wire in)



once you did that, open up the footwell in the driver's side. unscrew 4 screws and 2 turn thingys (i dont know what to call them lol).







one of the screws are hidden behind the a/c vent..





two turn thingys(?)



footwell removed

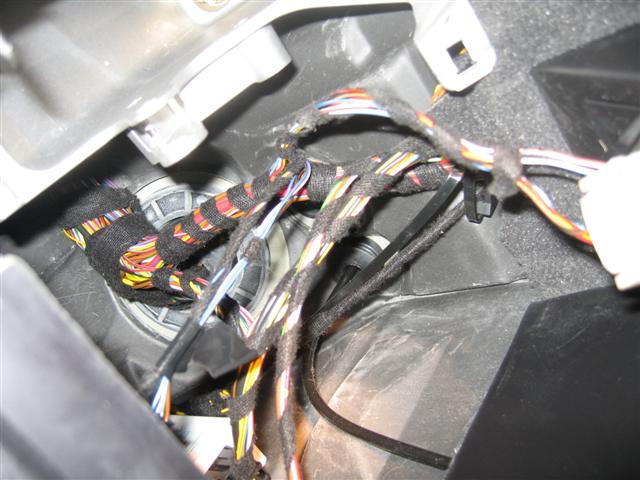

tap into the blue/red wire ONLY... DO NOT TAP BOTH

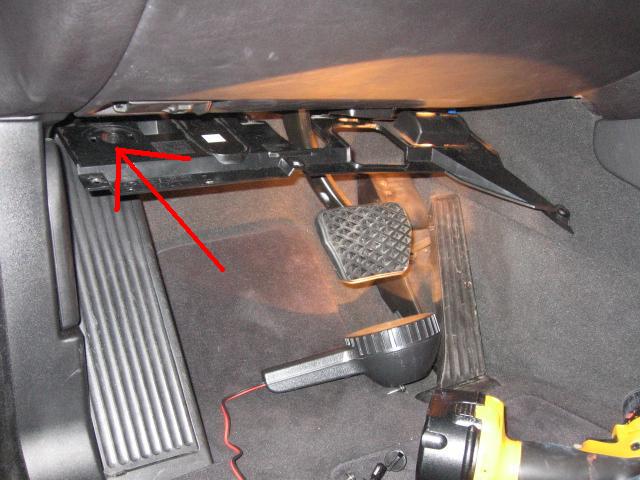

Now, look up into left side of the footwell, you should see the rubber grommet that you fed your wire into, now simply grab that and tap into the light!
