Angel Eyes Wiring for 2000-2003 X5's

ANGEL EYES WIRING DIY - 2000-2003 X5

The pic below is the wire/relay harness from the Predator chromiums and I numbered each connection with a corresponding description/where to connect info.



KEY:

1. Relay - to be mounted close to the power supply djbock's pic

2. Fuse-last item to be installed, so remove from socket first

3. Power Supply- connect to positive terminal of battery (engine bay)see pic

4. Ground - i mounted mine where the hood's ground connection is clik pic

5. Brown wire - goes through the fire wall into the footwell light, connect to the blue/red strip color wire of the light assembly connection, Just to elaborate, the footwell connection is so your new eyes illuminate when you hit the remote button open, lock or even to open the trunk. Related article

6. Connect to ballast#1 see pic there are different wire color sets for the ballasts/harness for this, so i just did trial and error!( ex. if A to A and B to B dont work, then it should work A to B and A to B) and success was achieved

7. pink wire- connect to ECU ( look for white/red strip color wire) so AE on when key position is "on" ..pic 1 .. pic 2 .....i just found out that the wiring will be different from the 3.0 and 4.4, ( the red/white strip wire is the third wire from the left on the black socket connector for the 4.4-see pic) ( for the 3.0, it is located differently-i think its on the 2nd row--so just look for it)

8. connect to ballast #2 ...see pic

For X5's with PDC: this article is for you: http://www.jlevisw.com/CWP.pdf
Write up by rayxi : http://www.xoutpost.com/x5-e53-forum/...uctions-2.html
Engine bay pics by djbock : http://www.xoutpost.com/x5-e53-forum/...uctions-3.html
__________________
...
thank you X5world!

Sponsored Links

  #2
Old 04-12-2006, 08:21 PM
iop9000's Avatar
Member

Join Date: Aug 2005
Location: Chicago
Posts: 1,111
iop9000 is on a distinguished road

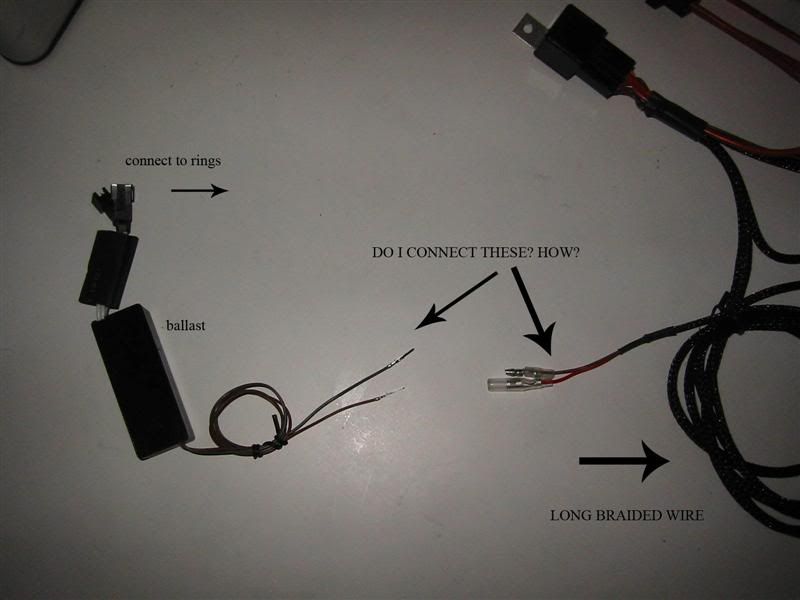

oh, and one more question, see pic,

update...PROBLEM SOLVED BY ME... there are different wire color sets for the ballasts/harness for this, so i just did trial and error!( ex. if A to A and B to B dont work, then it should work A to B and A to B) and success was achieved..
__________________
...
thank you X5world!
  #3
Old 04-12-2006, 08:31 PM
Member

Join Date: Mar 2006
Location: Bay Area California
Posts: 2,796
MrLabGuy is on a distinguished road
Looks like this if I'm correct.

#4 is a ground
#5 goes to the foot well
#7 goes to the ECU which is just a power on switch when the key is in the #2 position.

Yes you connect the ballast to the wire shown. You will need wire connectors (best to use a removable connector) and make sure Brown goes to Brown and Red to Red.

How is that...And I've not installed mine yet.
  #4
Old 04-12-2006, 08:37 PM
Member

Join Date: Mar 2006
Location: Bay Area California
Posts: 2,796
MrLabGuy is on a distinguished road
Quote:
Originally Posted by MrLabGuy
Looks like this if I'm correct.

#4 is a ground
#5 goes to the foot well
#7 goes to the ECU which is just a power on switch when the key is in the #2 position.

Yes you connect the ballast to the wire shown. You will need wire connectors (best to use a removable connector) and make sure Brown goes to Brown and Red to Red.

How is that...And I've not installed mine yet.
Just to elaborate. The footwell connection is so your new eyes illuminate when you hit the remote button upon entry. The ECU you will need to look for a 12V power on when the key is turned to the on position. Any 12V should do that is switched.

Hope that helps.

I've been doing my homework.
  #5
Old 04-12-2006, 08:50 PM
djbock's Avatar
Member

Join Date: Feb 2006
Location: I O WAY
Posts: 624
djbock is on a distinguished road
Quote:
Originally Posted by iop9000
Unfortunately, there is no book like this exists(yet).
I hope this thread will turn into an article to help dummies like me.
The pic below is the wire/relay harness from the Predator chromiums and i numbered each connection with a corresponding description/where to connect info. ( although there might be several configurations of the setup, please post on how you connected yours)
i will try to update the KEY as soon as i get new info from all of you.


KEY:
1. Relay - Where ever you can mount it.
2. Fuse-
3. Power Supply- To constant 12v, I used positive post where you would connect to jump start.
4. Ground ? Yes
5. Brown wire ? To interior lights if you want to turn on when you lock, unlock.
6. Connect to ballast#1
7. pink wire- connect to ECU? Yep, I connected to red/white strip wire.
8. connect to ballast #2
I put different connectors on the ballast wires to connect to the harness.
__________________
2011 X5 35i Space Gray/Black Nevada Leather w Dark Bamboo Trim
Convenience Pkg/Running Boards/Cold Weather Pkg/Comfort Access
3rd Row Seating/20% Tint/Style 215 wrapped with Toyo Proxes ST II/ LUX v4

2001 X5 4.4i TiAG/Grey Leather-Retired
djbock's Custom X Page!
  #6
Old 04-21-2006, 03:34 AM
iop9000's Avatar
Member

Join Date: Aug 2005
Location: Chicago
Posts: 1,111
iop9000 is on a distinguished road

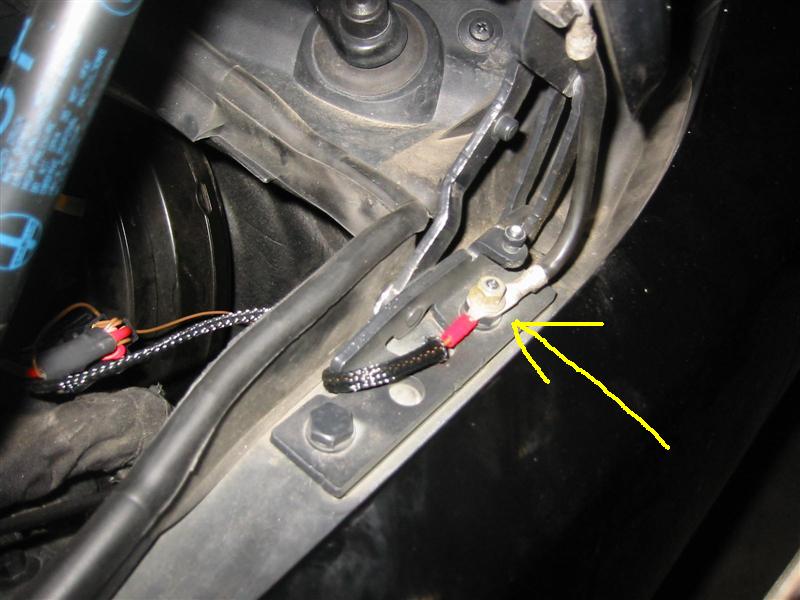

updated... pic added ( ground connection for hood )
Attached Images

__________________
...
thank you X5world!
  #7
Old 04-21-2006, 05:29 PM
imaznumkay's Avatar
Member

Join Date: Oct 2005
Location: Weston, FL
Posts: 205
imaznumkay is on a distinguished road
Quote:
Originally Posted by iop9000
oh, and one more question, see pic,
go to radioshack and buy some bullet connectors...weld those on to the wires
