Rear Strut Bolt HELP! Snapped or rattled out 2006 3.0
So I noticed a some slop in the rear of my X5 when driving over small bumps, potholes etc.. Low and behold the rear passenger strut is completely dangling!

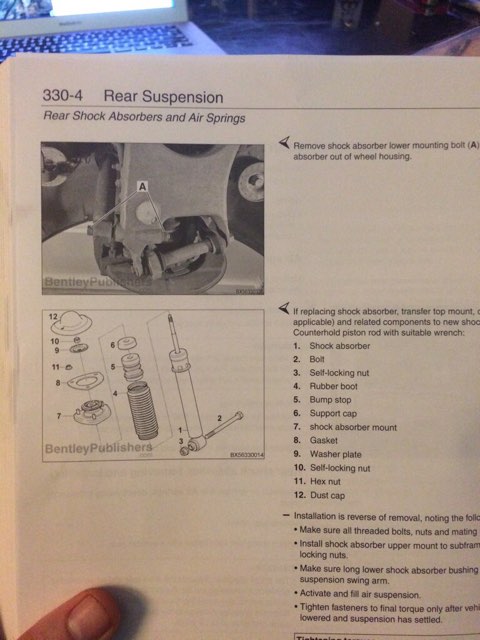

 Heres drivers side for comparison  Im not sure if the bolt snapped, or rattled out or what but what I do know is I referred to realoem.com specifically http://www.realoem.com/bmw/enUS/show...diagId=33_1029 to try and track down the bolt and locking nut.. I ordered 2 each of #21 Hex bolt (33321092870) & #22 Self-locking collar nut (33326760383) to go ahead and replace both sides..   To my dismay once the part arrived its a millimeter or 2 too thick to fit! I went back into my Bentley manual to cross reference and this diagram is the same as realoem  But looking at this diagram   Im starting to wonder if I ordered the lower bolt pictured on the swing arm assembly instead of the bolt and nut labeled #2 and #3 in assembly "A" where the strut attaches. Now referring back to realoem for part numbers I cant figure out exactly where this assembly "A" is located :/ Im not sure if Im looking at it upside down or backwards or what... I thought I was so smart there for a minute but now Im lost.. If anyone has had this problem or can read these diagrams better or has any idea what bolt and nut I need I will be forever greatful!!! Thanks in advance, Phil
|
|
#3
06-08-2015, 11:30 AM
|
||||
|
||||
|
Lol how does it drive with a hanging shock, haha, could be worse i guess
__________________
2018 Ram 2500 6.7L Cummins 68RFE 19k miles -Bright White/Black - Big Horn Sport - Crew Cab Short Bed 2013 X5 35D (CEO's) - Born on 5/17/2013 - 82k miles - Alpine White/Cinnamon Brown/Premium Pkg, Sport Activity/Premium Pkg and Sound/20" Style 214/Running Boards
|
|
#4
06-08-2015, 11:54 AM
|
||||
|
||||
|
Haha true..
On a smooth road its fine but once you hit a dip, crack, pothole it feels really weird and like the whole rear levitates to the side a bit, a little fishtail like :O definitely doesnt feel like a BMW! lol
|
|
#6
06-08-2015, 12:21 PM
|
||||
|
||||
|
BMW has always designed suspensions with significant camber & toe change thru the suspension stroke (aka, dynamic geometry). Without damping, that undulating (up/down) wheel will pull the rear end all over the place.
A loose shock would be hardly noticeable on a non-independent rear suspension SUV.
__________________
'03 X5 4.4 Sport, last of the M62s (8-03 build date) I believe in deadication to craftmanship in a world of mediocrity!
|
|
