  #1
Old 12-28-2015, 11:38 AM
Member

Join Date: Apr 2012
Location: SoCal
Posts: 1,845
g300d is on a distinguished road
It does vary quite a bit. With a brand new Valeo 140A alternator I would see 13.2-13.8.
__________________
04 X5 3.0i auto
03 X5 4.6is
Reply With Quote
  #2
Old 12-28-2015, 12:22 PM
Member

Join Date: Dec 2010
Location: Fairfax, VA
Posts: 758
jfoj is on a distinguished road
Quote:
Originally Posted by g300d View Post
It does vary quite a bit. With a brand new Valeo 140A alternator I would see 13.2-13.8.
OBC Voltage??

If so, the low end should be fine.
__________________
2008 4.8i Black with Tabacco. Black Y-spoke wheels and shadowline trim.
Reply With Quote
  #3
Old 12-28-2015, 11:22 PM
mam4.6's Avatar
Member

Join Date: Jul 2013
Location: Millersburg, OH
Posts: 796
mam4.6 is on a distinguished road
I monitor mine, usually sits at 13.5, but occasionally 13.3-13.5... That's with my cruise set @ about 85...
__________________
Current-

--2003 X5 4.6
Estoril Blue
Black Nappa leather
rear air bags
OEM nav
OEM hitch
OEM cargo liner
Black housing SPYDER headlights - Evo-XR projectors

2017 GMC Sierra, 7K miles...
2017 GMC Sierra, 60K miles...
2015 GMC Sierra 280K miles...
2011 GMC Sierra, 500K miles...

Previous wheels:

--First love~
1969 Chevy C10, 396BB bored, 3 on the tree, Black ~SOLD~

--2011 Chevy Silverado LT 2500HD CCSB, Black, 250K miles ~SOLD~
Reply With Quote
  #4
Old 12-29-2015, 12:36 AM
Member

Join Date: Apr 2012
Location: SoCal
Posts: 1,845
g300d is on a distinguished road
Quote:
Originally Posted by jfoj View Post
OBC Voltage??

If so, the low end should be fine.
Yup, from the OBC.
__________________
04 X5 3.0i auto
03 X5 4.6is
Reply With Quote
  #5
Old 12-29-2015, 03:38 AM
blackbeast's Avatar
Member

Join Date: Jul 2015
Location: Portland, OR
Posts: 268
blackbeast is on a distinguished road
From a quick 10 mile round trip tonight, mine fluctuated between 13.2-13.9 but stayed mostly right around 13.8

(via OBC)
__________________
____ 2005 X5 4.8is ____



Previous :

1998 M3, 1999 328is, 1996 328i, 1994 325i convertible, 1999 528i, 1998 740i, 1999 740iL
Reply With Quote
  #6
Old 12-29-2015, 10:34 AM
Member

Join Date: Jun 2013
Location: Virigina, USA
Posts: 2,574
StephenVA is on a distinguished road
I would mark that down as NORMAL. The demand from the electrical system and the Alt out put as the engine slows down and speeds up will account for the fluctuation. As long as it stays above 13.0 and below 15.0 Volts you are golden. Now that you are looking at it all the time you will see the drops when the demand is high (A/C on, Blower on high, wipers on, headlamps on, fogs on, etc, etc) and then you come to a light....

Most Alts will put out enough AMPS to hold the voltage in the 13.xx range. The V8's have the larger AMP output Alternators so you should be OK. As the Alt slowly dies, the total output will fluctuate as the brushes wear out and build up carbon tracking.

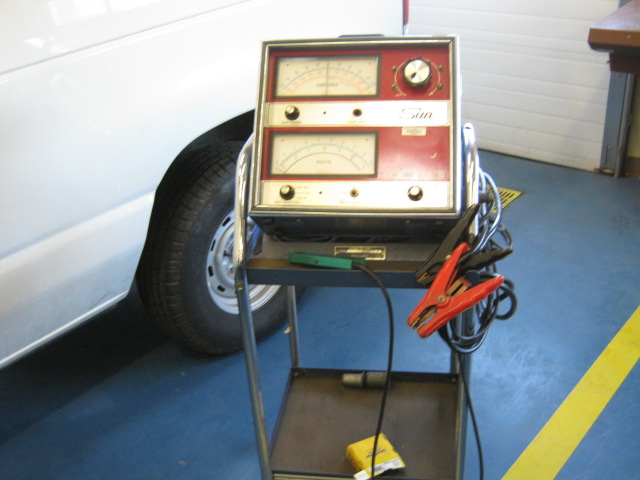

You can test an alternator's total Volt/AMP capability with a Carbon Pile Starting/Charging tester with just a few clamp test leads hooked up. Most shops have one like this.....
Attached Images

__________________

2005 X5 4.8IS
The Blue ones are always FASTER....

Current Garage:
2005 X5 4.8is
2002 M5 TiSilver
2003 525iT
1998 528i
Former Garage Stable Highlights
2004 325XiT Sport
1973 De Tomaso Pantera, L Model
1970 Dodge Challenger T/A 4 sp Alpine White
1970 Dodge Challenger T/A 4 sp GoManGo Green
1971 Dart Sport, “Dart Light” package
1969 Road Runner 383
1968 Ply Barracuda 340S FB Sea-foam Green
Reply With Quote
