Can't get lower bolt on alternator back on, doesn't fit.

Is there a trick to get the lower bolt on the alternator. It simply won't slip over the housing, no matter how neatly line it up. Tried giving it some heat, banged on it with a hammer a little still won't slip over. Now i noticed the threaded bolt holder on the back bracket sticks out a little is this normal? It appears to be part of the metal assembly. Having a dickens of a time.

Reply With Quote

Sponsored Links

  #2
Old 03-19-2016, 03:52 PM
Joshdub's Avatar
Member

Join Date: Jul 2014
Location: Seattle
Posts: 2,065
Joshdub is on a distinguished road
Have you mounted the alt and stuck a screw driver through the bolt hole? That should help line it all up.
__________________
03 3.0i mt
89 325is
Reply With Quote
  #3
Old 03-19-2016, 04:53 PM
Member

Join Date: Aug 2009
Location: Pennsylvania
Posts: 77
mendes9 is on a distinguished road
Joshdub, no that wasn't the issue the holes for both the alternator housing, and the engine housing were both fine. I'm telling you I don't know how this was in there.

I took my 4" whell grinder and grinded down the back piece a little, bingo went in smooth like butter. I'm not sure how you guys get this in.
Reply With Quote
  #4
Old 03-19-2016, 10:24 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 6,378
upallnight is on a distinguished road
Quote:
Originally Posted by mendes9 View Post
Joshdub, no that wasn't the issue the holes for both the alternator housing, and the engine housing were both fine. I'm telling you I don't know how this was in there.

I took my 4" whell grinder and grinded down the back piece a little, bingo went in smooth like butter. I'm not sure how you guys get this in.
Us guys knows that you need to get a c-clamp with a large socket to push that piece back out a little so you don't need to take a grinder to it. Goes in smooth like butter all the time.
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #5
Old 03-20-2016, 09:11 AM
Member

Join Date: Apr 2006
Location: PA
Posts: 460
Scott ZHP is on a distinguished road
+1. I usually just thread the bolt into the sleeved nut and give it a couple of thumps with the deadblow hammer. An 1/8inch is all you need to move it back.
__________________
12 E70 3.5i xDrive
03 E46 330i ZHP
01 E53 3.0i
98 E36 323is
12 Audi A4 Quattro
79 Triumph Spitfire
73 MGB
Reply With Quote
  #6
Old 03-20-2016, 11:04 AM
Member

Join Date: Aug 2009
Location: Pennsylvania
Posts: 77
mendes9 is on a distinguished road
Dam, you know that's what I thought, as it's impossible to fit as is. I looked at it carefully but it looked like it was part of the housing. I didn't try a c clamp but I did thread the bolt and gave it a couple taps to see if that was would go in as again it looked like it was part of the housing. When I taped it didn't budget (I didn't take it too hard as I was afraid to damage the threads), so again I thought it was just part of the housing. Oh well.. I got it to work anyway.
Reply With Quote
  #7
Old 03-20-2016, 02:29 PM
X5only's Avatar
Premier Member

Join Date: Feb 2008
Location: Bellevue, WA
Posts: 959
X5only is on a distinguished road

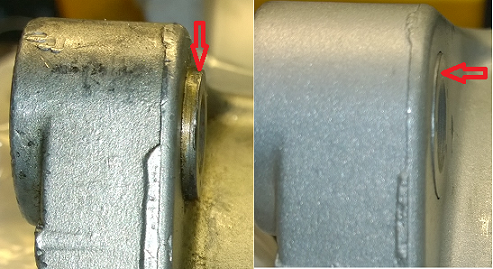

I have removed the alternator twice on my '05 4.4 (N62 engine). One trick I discovered that would turn a 2 hours install job to 20 minutes job is to knock in the bolt hole metal gasket flush with the alternator before install as shown in the picture. Even new alternators have the gasket sticking out. The alternator slips right in with no struggles when the gasket is flush. That gasket bites into the block when you tighten the alternator mounting bolt and is what makes alternator removal or install such a struggle.
Attached Images

__________________
'05 E53 X5 4.4i, '97 E39 528, '07 E92 335i, '16 F86 X6M.
Reply With Quote
  #8
Old 03-20-2016, 04:38 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 6,378
upallnight is on a distinguished road
Here a video on how to push that sleeved back out so that the alternator goes in easily. It's at 5:30 into the video. Like I said before I use a c-clamp and a socket to push that sleeve out.

https://www.youtube.com/watch?v=7Z959grnL7s
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #9
Old 10-14-2018, 08:18 AM
Member

Join Date: Feb 2018
Location: Bristol
Posts: 1
Boltondrew is on a distinguished road
Thank you - bottom bolt alternator N62 X5 E53 4.4i

Just to say you guys just saved me from hours of swearing and high blood pressure! And yes - this is a 2 year old thread but if I can save someone else from alternator misery then I feel that whatever happens my life has been worthwhile!
