Possible source of concern for BMW AG

Hello folks. I have not been on this forum for a very long time, and stopped by just to make this post. There are so many things going on at this time, that i simply don't have time to come here as much as I wish I could.

So, long story short - my wife (yeah, I know, I know!!!) is driving my car last Thursday, and the car shuts off on her. she tries to restart it, to no avail, calls me in panic, I am coming home from work, find her stranded a mile away from home on a shoulder (some strangers pushed the car to the shoulder) with kids sitting on the side of the shoulder, waiting for me. I tried to start the car, the auto starter is cranking strong, nothing else is happening. Sounds as if engine is flooded or if there is no fuel coming. I can't listen to the pump priming, so I have the car towed home.

As I listen to the pump, I do not hear it priming, so I check fuse 47 in glove compartment, it is good (tested good), I dig into the glove compartment for the relay, swap it with other same relays, still, no priming.

pull the rear seat, cut the sound barrier, test the voltage on the pump pins, good voltage. Look at the pump's connectors, one connector is darker than the rest, and seems to have oil residue around it... hmmm..

it is middle of night on Thursday, going on to Friday, so I get on line, order a new pump from BMW of Fairfax for about $330 with the tax. Early in the morning call them, confirm they have the part, pick it up in the afternoon, come home and replace the pump in the late evening (spill total about 10mL of fuel!). Car starts right up, after test drive around house, still starts right up. All good!

Total cost is

$330 for the pump
$1 for a hose clamp from Home Depot
$5 for rubber mallet (that I can use for my work later)
$20 for shop towels (that I will use for my work later)

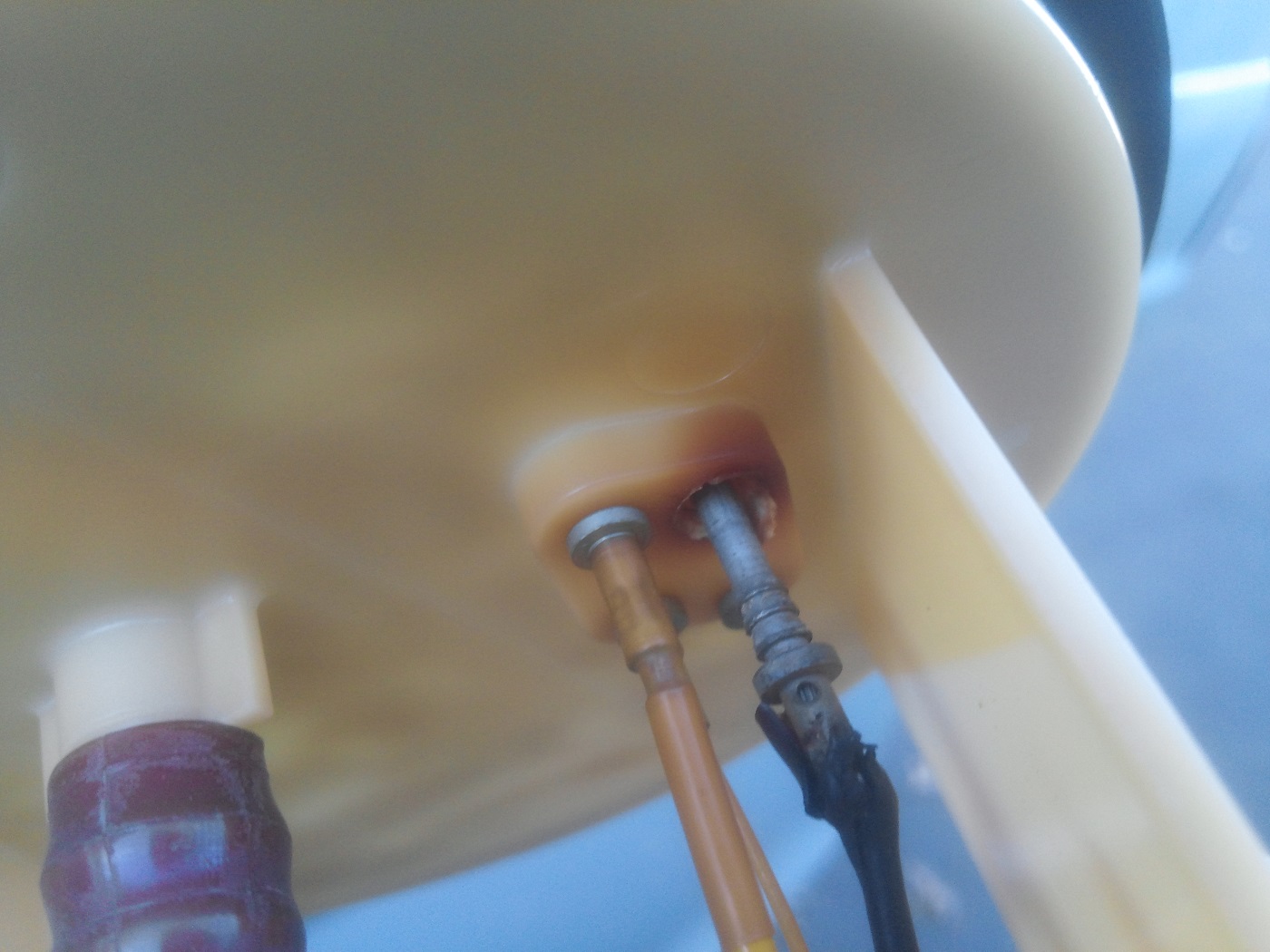

But the kicker is here... As I went to inspect the old pump, I see that one of the power pins has fallen into the opening of the plastic housing. What??!! Did not take a genius to realize, that the pin overheated and MELTED the plastic around itself and the pin fell through.

This is a serious reason for a concern - a HEAT source next to highly COMBUSTIBLE substance!!! I smelled gasoline inside the car for some time, and was "blaming" the fuel filter, but once the pump was replaced, there is no more gasoline smell. So, this plastic melting business was going on for some time.

Here are some pictures
Attached Images

__________________
E53 X5 4.6iS
147K mi - Sold May 2013
Tireprints left in:
USA, Nicaragua, Costa Rica, Panama, Russia

E53 X5 4.8iS built 2005-10-17
66200 mi - June 2012
96000 mi - June 2013
112000 mi - June 2014
OEM fire extinguisher
OE first aid kit
OE tow hitch
OE TV module
OE aspheric mirror
K&N air filter
black/white badges
rear camera
4-channel video recorder

Here is the list of things I have done to the X

Last edited by TerminatorX5; 03-20-2016 at 04:17 PM. Reason: spelling
Reply With Quote

Sponsored Links

  #2
Old 03-20-2016, 04:17 PM
TiAgX5's Avatar
Member

Join Date: Oct 2010
Location: Coppell,TX
Posts: 3,489
TiAgX5 is on a distinguished road
Has the X been operated in a low voltage state (battery below 12.2v or alternator charging below 13.5 v)?

Just pointing out that as volts drop, amps increase (lots of heat).
__________________
'03 X5 4.4 Sport, last of the M62s (8-03 build date)
I believe in deadication to craftmanship in a world of mediocrity!

Last edited by TiAgX5; 03-20-2016 at 04:29 PM.
Reply With Quote
  #3
Old 03-20-2016, 04:23 PM
TerminatorX5's Avatar
Member

Join Date: Jul 2006
Location: Stafford, VA & Harrisburg, PA - USA
Posts: 5,736
TerminatorX5 is on a distinguished road
OBC shows 13.2 - 13.8V during driving, with occasional 14.1V. Car is driven at highway speeds for 40 miles one way about 4-5 times a week. This battery was changed for an AGM on 10/30/13, was strong then, still shows no signs of weakness. Load tested the battery, in rest state under load showed 11.9V, which is within specs of a good battery.

Nevertheless, I will continue watching the battery, just in case it has some issues.
__________________
E53 X5 4.6iS
147K mi - Sold May 2013
Tireprints left in:
USA, Nicaragua, Costa Rica, Panama, Russia

E53 X5 4.8iS built 2005-10-17
66200 mi - June 2012
96000 mi - June 2013
112000 mi - June 2014
OEM fire extinguisher
OE first aid kit
OE tow hitch
OE TV module
OE aspheric mirror
K&N air filter
black/white badges
rear camera
4-channel video recorder

Here is the list of things I have done to the X
Reply With Quote
  #4
Old 03-20-2016, 04:32 PM
Member

Join Date: Nov 2013
Location: Maryland
Posts: 1,165
David.X5 is on a distinguished road
Please file a report with NHTSA. Every safety problem you have. I'm still dumbstruck my 01 was never recalled for the seat mat or ABS module.

https://www-odi.nhtsa.dot.gov/VehicleComplaint/
__________________
David.X5
2001 X5 4.4i Sport
SOLD! at 160k miles
Reply With Quote
  #5
Old 03-20-2016, 04:38 PM
jopecasa's Avatar
Member

Join Date: Mar 2015
Location: Sydney Australia
Posts: 566
jopecasa is on a distinguished road
I've not experience this issue in any of our cars.

But I would cut and re-splice and source out new connectors and pins.

For peace of mind.
__________________
01 E39 530i - SOLD !
05 E53 4.8is


Pics of Bianca (E39) and Betsy (E53)
Reply With Quote
  #6
Old 03-20-2016, 04:42 PM
TerminatorX5's Avatar
Member

Join Date: Jul 2006
Location: Stafford, VA & Harrisburg, PA - USA
Posts: 5,736
TerminatorX5 is on a distinguished road
I am not going to reuse this pump, so no need to fix connector. Main concern is, source of ignition inside a gas tank.

Sent from my LG-E980 using Tapatalk
__________________
E53 X5 4.6iS
147K mi - Sold May 2013
Tireprints left in:
USA, Nicaragua, Costa Rica, Panama, Russia

E53 X5 4.8iS built 2005-10-17
66200 mi - June 2012
96000 mi - June 2013
112000 mi - June 2014
OEM fire extinguisher
OE first aid kit
OE tow hitch
OE TV module
OE aspheric mirror
K&N air filter
black/white badges
rear camera
4-channel video recorder

Here is the list of things I have done to the X
Reply With Quote
  #7
Old 03-20-2016, 04:45 PM
itscoo2pyopants's Avatar
Member

Join Date: Jul 2007
Location: Kent, WA
Posts: 561
itscoo2pyopants is on a distinguished road
Wow that could have been really bad.. glad your family was ok. I've never seen that happen before.
__________________
2000 E53 4.4
2011 E70 35d
Reply With Quote
  #8
Old 03-21-2016, 01:07 AM
Member

Join Date: Aug 2013
Location: Abbotsford BC CANADA
Posts: 313
RFaber is on a distinguished road
WOW! I suppose the fuel wouldn't ignite unless there was some kind of spark (or the flash point of the fuel.) still scary stuff! definitely file a complaint with bmwna and send them a photo!!!!!
__________________
2003 X5 3.0i (02/2003) sport package, Sapphire black metallic / Black Dakota Sport seats. compass mirror retrofit, trailer hitch retrofit, Prodigy P2 trailer brake controller installed, PDC retrofit, Lumbar support retrofit. heated rear seats retrofitted. Running boards retrofitted and subwoofer install in progress. 4.8is Brakes installed front and back. Bluetooth TCU installed, Rear Fog lights installed. Retrofitted reclining rear seat backs.
Reply With Quote
  #9
Old 03-21-2016, 02:11 AM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 4,659
wpoll will become famous soon enough
That level of heat shouldn't (can't) ignite fuel but why take the risk!!

Fuel pumps worry me; electric motors immersed in fuel. Yikes... I've replaced a few but never seen your issue. My motorcycle (a BMW) is known for breaking the wire that got hot in your car. Double yikes..

What did the mating connector look like? As it has the female pin, the issue could be there, with a loose fitting socket. The replacement pump connector may suffer the same fate. It might be a good idea to check the mating connector, retention the contacts with a small (jewelers) screwdriver or the like, and use a good contact treatment.

*edit* just re-read this thread realised that jopecasa suggested replacing the mating connector - good idea!
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)

Last edited by wpoll; 03-21-2016 at 02:26 AM.
Reply With Quote
  #10
Old 03-21-2016, 09:46 AM
Member

Join Date: Sep 2015
Location: Northeast
Posts: 542
CapeX5 is on a distinguished road
+1 for immediately checking the mating connector. The one you took a picture of looked fine, I bet you have a bad connection on the female end. I had this issue on a coil for the ignition. And, gasoline as a liquid isn't as flammable as the fumes. ANd if you were smelling gas, that was the fumes. Think of that connector/heat like a welder. The pump was calling for amperage, and the connection was weak. And like a welder, it was arcing and sparking(maybe not literally)trying to get the connection to that bullet connector. Good luck.
__________________
Dave S.
Northeast
2003 4.6is
2005 E53 4.4
2003 E39 Msport(a REAL ONE!)
1959 Fiat 600
