09-18-2024, 11:48 AM
|
 |
Member
|
|
Join Date: Jun 2014
Location: SA, TX
Posts: 6,461
|
|
Quote:
Originally Posted by aureliusmax
thanks for the post ! for whatever reason, the ISTA database under my VIN didn't have info for the DSP version of the amp.
|

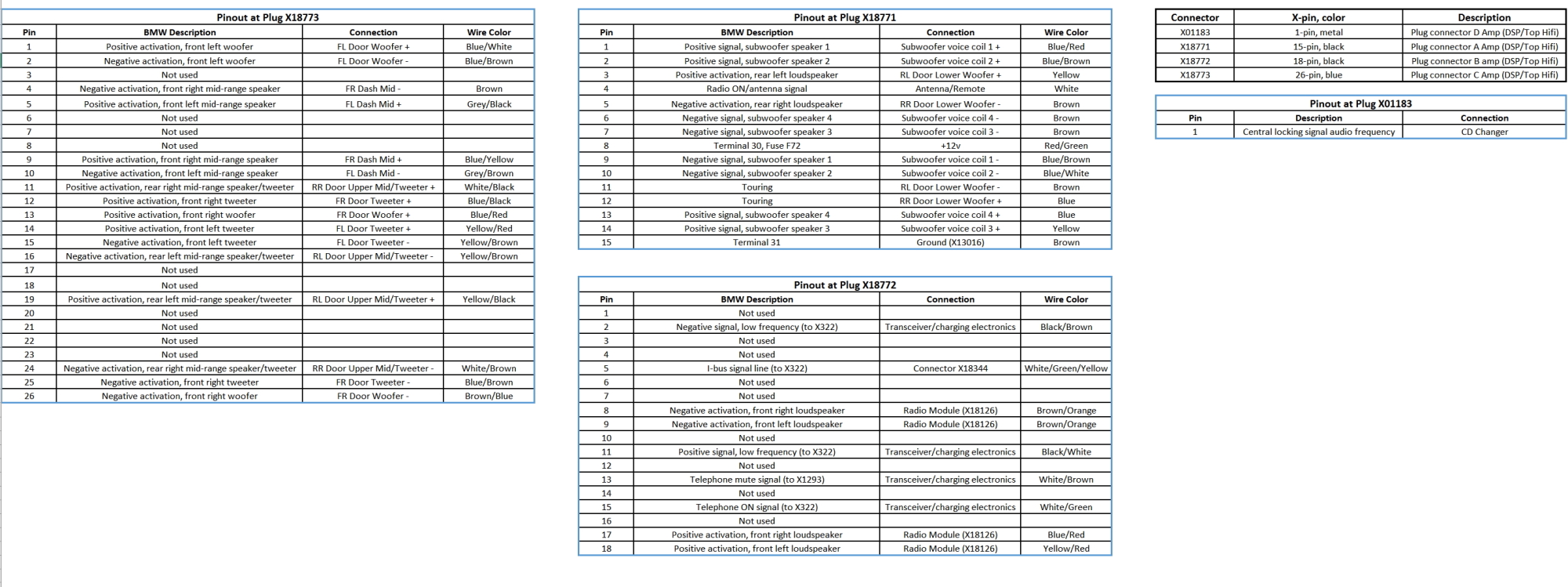

Here's pinouts I put together when I was making a DSP interface harness to add to the info from BMWx5e53.
I used BMWx5e53's info and Tis to build it. I don't remember if I found discrepancies for my 2006 4.8is w/ Nav and DSP.
