  #11
Old 02-04-2017, 03:06 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 4,659
wpoll will become famous soon enough
Quote:
Originally Posted by gee0393 View Post
Thanks wpoll. Yeah the lights worked fine until a few weeks ago and suddenly went very dull. I changed the bulbs and are still the same. Even the main beam lights don't seem as bright as they should be which would make sense if it has a grounded earth. I have checked the output at both headlights with a multi meter and the readings were Drivers dip beam 12'19 - 12'23 pass side dip beam 12'26 - 12'32. Not sure if this is a little low or not? Could the alternator be a factor?
If these readings are with the car off (engine not running) then they are pretty good and indicate a good battery in a good state of charge.

If they are with the engine running, then yeah, your charging system (alternator, regulator etc.) is a little suspect. I would expect to see voltage well above 13v with a good charging system, with 13.8-14.2 being the norm.

If your charging system has failed, you would likely have an orange battery icon lighting up on the cluster but as you haven't mentioned this, I assume it's not.

Have you unlocked the diagnostics readings on the cluster BC? You can check the system voltages there too - menu #9. It reads about 0.3-0.5v low but it's a good indication of what's going on.
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote

Sponsored Links

  #12
Old 02-04-2017, 03:06 PM
Member

Join Date: Jun 2012
Location: South Carolina
Posts: 568
williamx5 is on a distinguished road
Good day!

Did you swap the battery? Did it actually start? The voltage at the headlights is right, but the lack of sufficient amps will also make them dim... A dead cell in the battery (or a bad connection) will give you the 12 volts, but far less amps than needed...

Do you have a known good battery you can swap in the X just to verify that is or isn't the culprit?

Cheers!!
__________________
2001 E53 X5 4.4i (03-07-2001 build date) White exterior / hellbeige interior (6MT swap vehicle - Manny)
2002 E53 X5 4.6is (12-20-2001 build date) Imola Red exterior / M-texture interior (Red)
2003 E53 X5 4.4i (06-26-2003 build date) Silver exterior / Black interior (Silvester II)
2008 Mini Cooper S ragtop (04-17-2008 build date) Dark Silver exterior / Gray interior ( Topless)
BMWCCA member (#4745)
Reply With Quote
  #13
Old 02-04-2017, 03:12 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 4,659
wpoll will become famous soon enough
BTW, if your only symptom is dull headlights for a few weeks (until the battery went flat/died) then your alternator is most likely ok, as a dead alternator and/or regulator would have left you stranded long ago.

Do you have halogen or xenon (HID) headlights?

I'll have a look over the wiring diagrams and see if I can identify a common earth or supply source that could be the source of your problem...
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #14
Old 02-04-2017, 03:44 PM
Member

Join Date: Jan 2017
Location: Bathgate, Scotland
Posts: 10
gee0393 is on a distinguished road
Do I need to remove the full headlight to check the lense?
Reply With Quote
  #15
Old 02-04-2017, 03:44 PM
Member

Join Date: Jan 2017
Location: Bathgate, Scotland
Posts: 10
gee0393 is on a distinguished road
That would be great! I have xenon headlights
Reply With Quote
  #16
Old 02-04-2017, 03:46 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 4,659
wpoll will become famous soon enough
Quote:
Originally Posted by gee0393 View Post
Do I need to remove the full headlight to check the lense?
I wasn't referring to the projector lens inside the headlight assembly - I meant the out plastic cover. The internal projector is well protected.
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #17
Old 02-04-2017, 05:10 PM
Member

Join Date: Jan 2017
Location: Bathgate, Scotland
Posts: 10
gee0393 is on a distinguished road
Ah my mistake. I'm not sure if it looks dirty as I have a mesh over the headlights. This mesh is not the cause as the lights were pretty bright until a few weeks ago but I'm not sure how I would clean them without removing it. And as both headlights went dull at the same time it tells me it could be an electrical issue?
Reply With Quote
  #18
Old 02-04-2017, 09:05 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 4,659
wpoll will become famous soon enough
If you measured the headlight voltages at the headlights themselves (both power and ground wires) then the ground path question isn't relevant but if you measured from the lamp power wire to somewhere on the chassis (a bolt etc.) then it's very relevant.

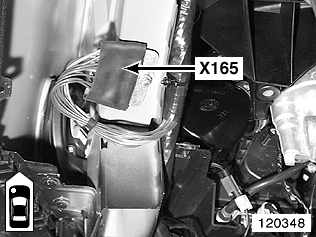

The left xenon headlight is connected to ground (earth, chassis, -ve, etc.) at earth junction X165.



in front left wheelhouse

The right xenon headlight is connected to ground (earth, chassis, -ve, etc.) at earth junction X166 and X1106.



wheel well, front right

If you have fully adaptive xenon lighting (turn left and right as well as up and down) there is an additional ground point for both lights at X10012.



footwell, passenger's side LH A-pillar

Check all the brown wires are secure and that the ground terminal is well connected to the bodywork. You might even want to do a resistance test from each ground junction back to the large ground terminal on the inside of the left front fender (the used for jump starting). Should be a very low resistance.

HTH...
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #19
Old 02-05-2017, 04:45 AM
Member

Join Date: Jan 2017
Location: Bathgate, Scotland
Posts: 10
gee0393 is on a distinguished road
Thanks again wpoll. I will do a resistance test and check all grounds are clean and secure.ill post results once completed.
Thanks again
Reply With Quote
  #20
Old 08-31-2020, 08:24 AM
Member

Join Date: Aug 2020
Location: NC
Posts: 2
runteldat is on a distinguished road
Exclamation Trans Fail Safe

I got a Trans Fail Safe while car was idling in park. Turned ignition off, car would not start. Started acting as battery was dead. Let sit for an hour, car started and drove fine for 3wks. Started car and Trans fail Safe came on again, then put car in gear and pulled off and car was sluggish. Parked car for that day and came back with lights on and would not turn over. Then battery died. Had battery tested and tested good. Recharged battery and install, Trans fail safe again. IDK what to try. Also, 4X4 light is on.
Reply With Quote
