Okay, here's what he said. His situation is different and doesn't help you much. He retained his HiFi amp so it is driving all of his speakers (aftermarket). He had to disconnect his component tweeter in the front from the crossovers and run them off BMW's stock tweeter input from the HiFi amp.

So, what I think is happening in your case is that the aftermarket head unit is trying to drive 8 pairs of speakers... which is not good, obviously. Unless they were 9ohm speakers for the fronts.

Can you take a picture of the OE amp harness in the left side compartment of the truck? And another of the radio harness plugged in under the spare tire. We need to figure out how all these speakers are wired.
__________________
2005 X5 4.4i Build 04/05 Maintenance/Build Log
Nav, Pano, Sport (Purchased 06/14 w/ 109,000 miles) (Sold 8/15 w/121,000 miles)


2006 X5 4.8is Build 11/05 Maintenance/Build Log
Nav, DSP, Pano, Running Boards, OEM Tow Hitch, Cold Weather Pckg (Purchased 08/15 w/ 90,500 miles)

2010 X5 35d Build 02/10
Nav, HiFi, 6 DVD, Sports Pckg, Cold Weather Pckg, HUD, CAS, Running Boards, Leather Dash, PDC, Pano (Purchased 03/17 w/ 136,120 miles)
Reply With Quote

Sponsored Links

  #12
Old 11-12-2020, 09:56 PM
Member

Join Date: Mar 2018
Location: Quincy, IL
Posts: 45
trhaverstock is on a distinguished road
Thank you so much for these tips. I learned some interesting things and took good pictures.

As a BMW noob (2 years with my E53) I mistakenly thought 100% of the radio system was in the battery compartment. I found the amp connected and sitting loose by the left compartment. There is a silver box with the purple plug in Photo 2 just outside the left compartment - what is that/is it related to the audio system?

At this point, I am thinking it may not be practical to disconnect the amp without major surgery and that it has the crossover in it? Or there are other remnants I didn't understand I have?

There are tons of plugs plugged into nothing in the photos.




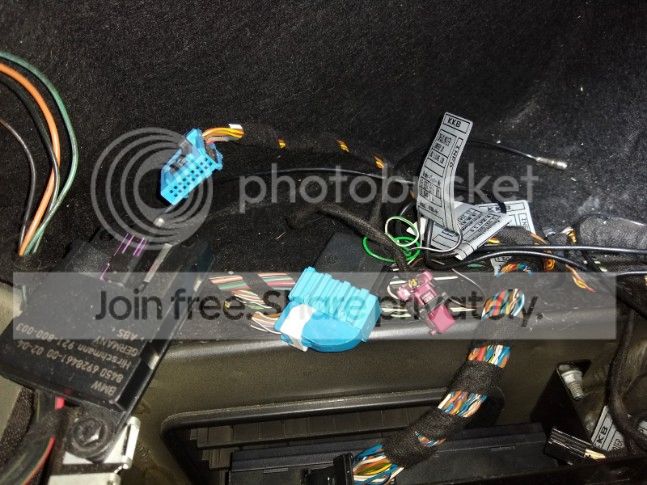

1) Inside of the Left Compartment


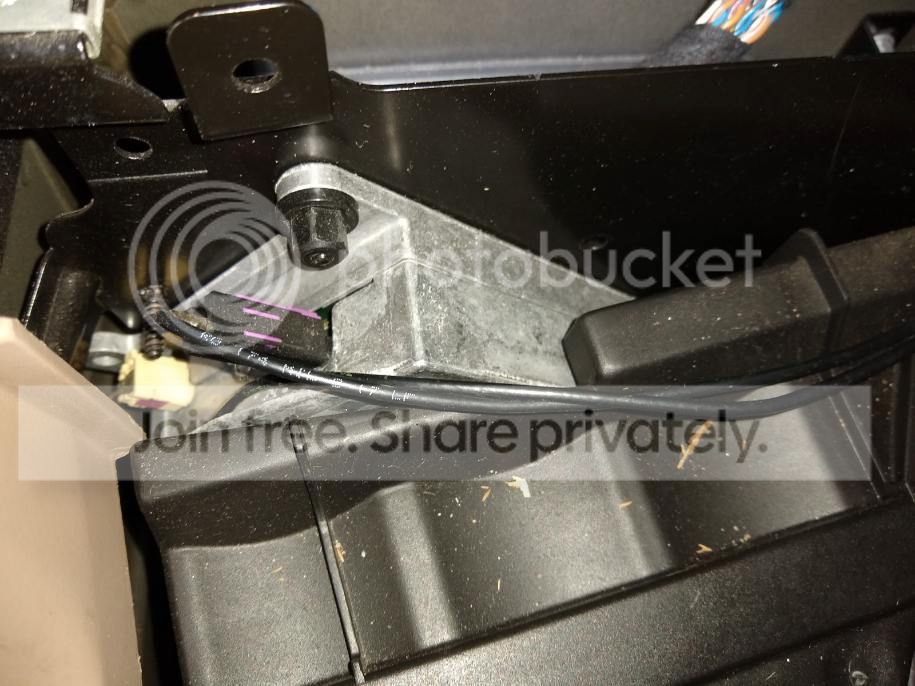

2) Just Outside of the Left Compartment


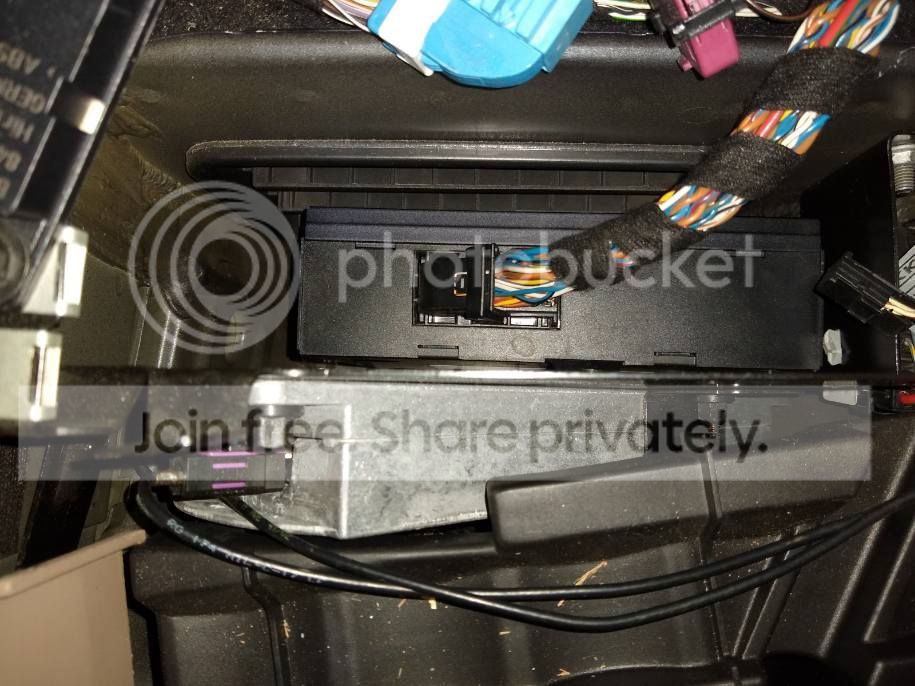

3) Amp Sitting Loose Inside Left Compartment


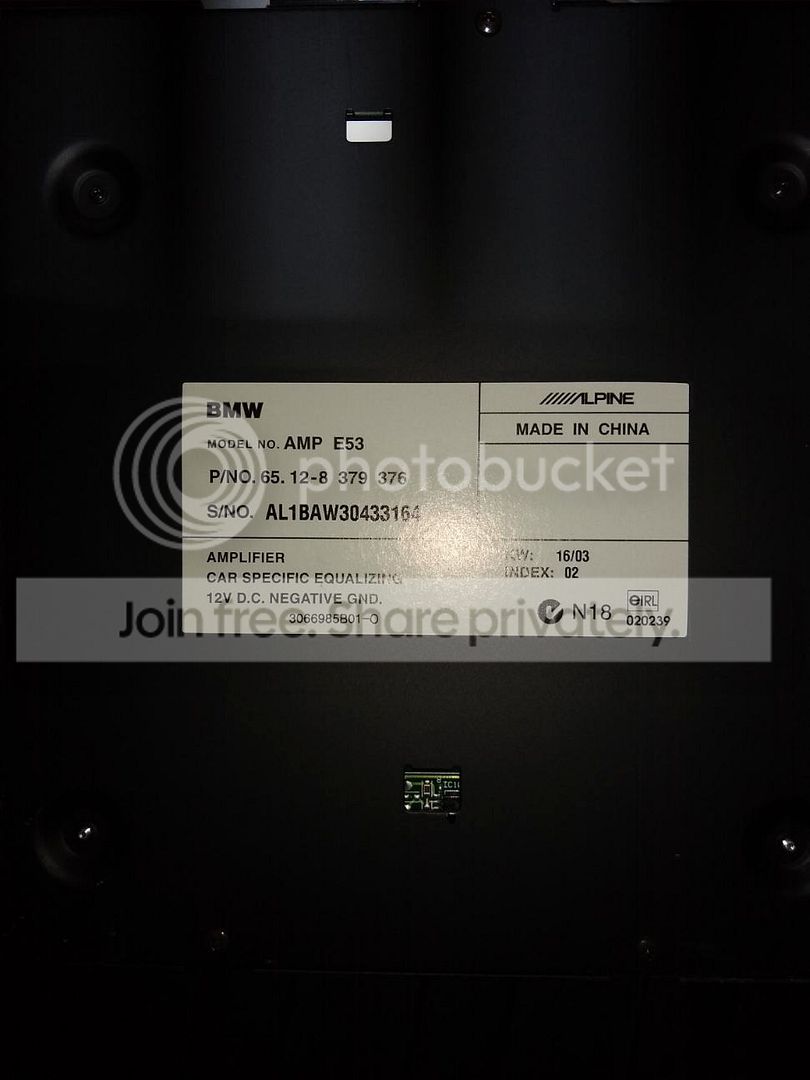

4) Amp


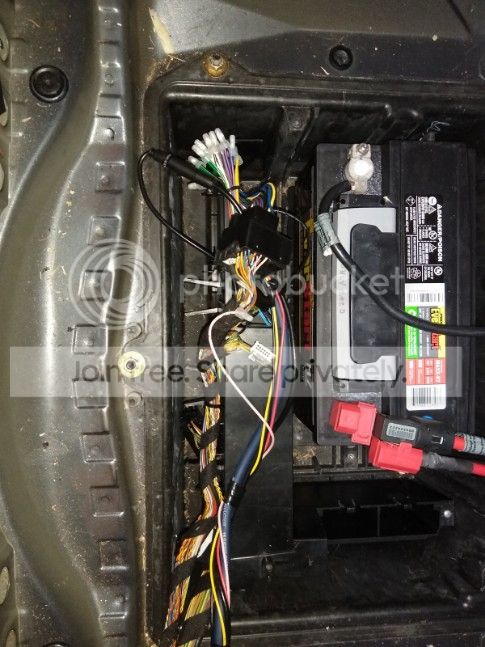

5) Battery Compartment High Level Shot


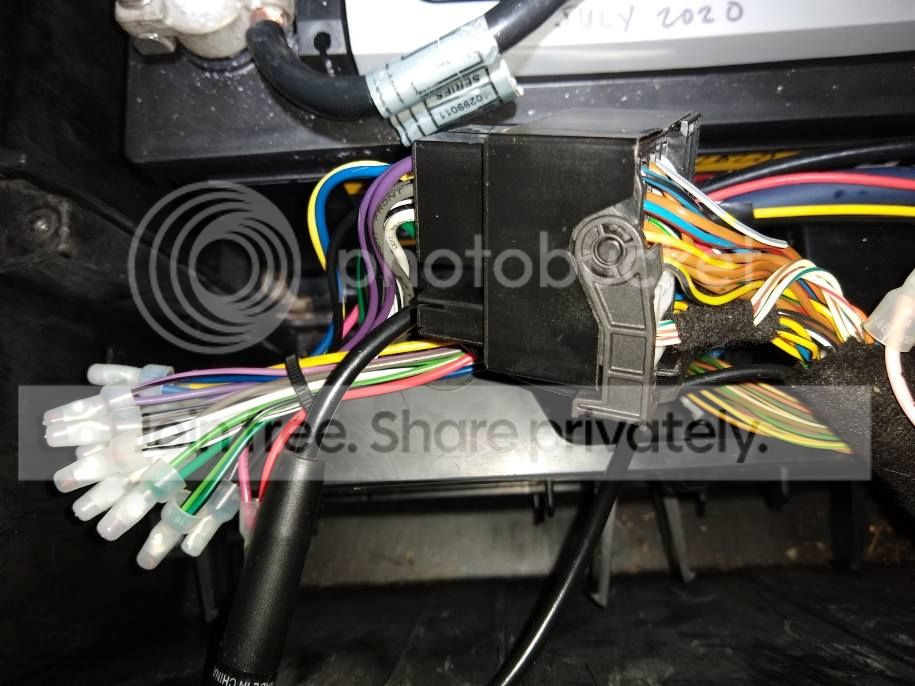

6) Head Unit Harness


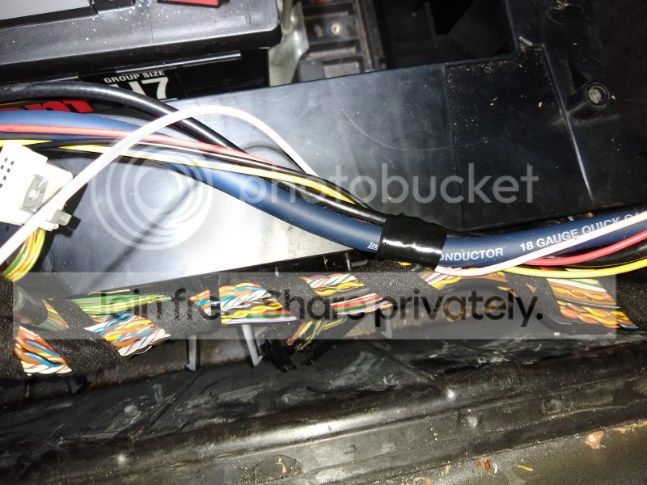

7) The Blue Cable Was Added By The Previous Owner and Goes To The Head Unit With Speaker Wires, Power, Ground, Etc.


8) Manual Trans Cluster At Night (someone asked :-))


9) Put The Hammer Down!

Last edited by trhaverstock; 11-12-2020 at 10:20 PM.
