Damaged wires in engine compartment, still runs

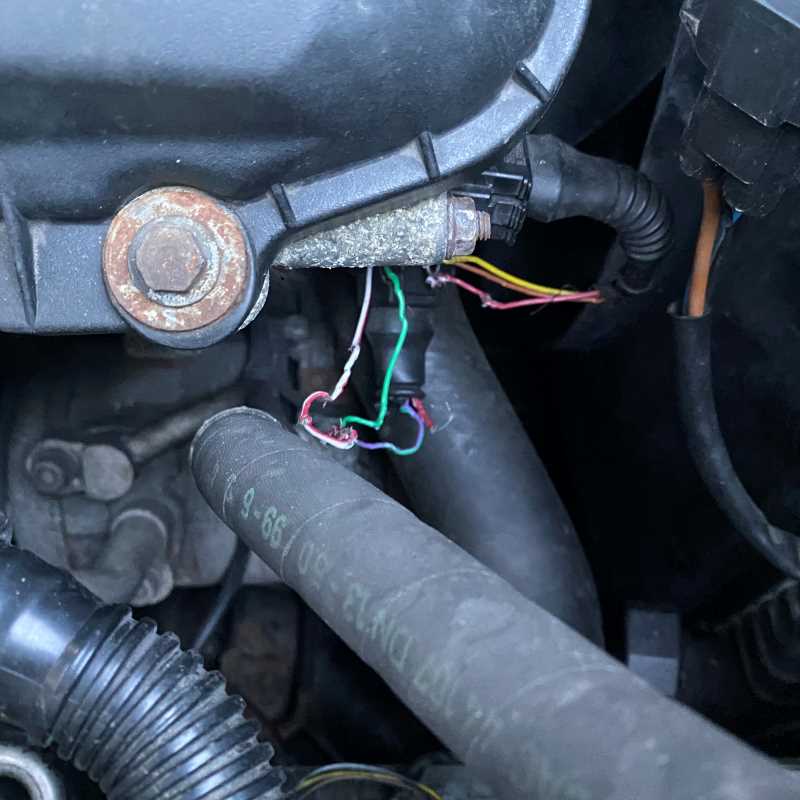

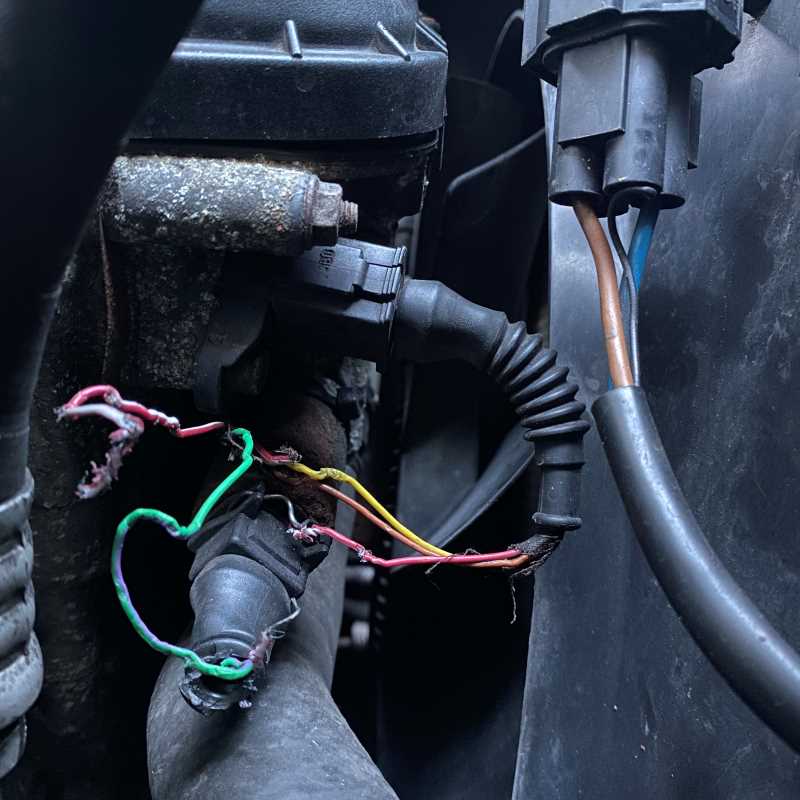

The mighty X5 sits around a lot these days, I generally use it in poor weather and for other undignified tasks. Itís a 2001 3.0 thatís never had a problem I couldnít figure out browsing this forum. The last few times out it seemed low on power. It was also making a faint whirring type noise. Having no idea if the two were related, I finally opened up the hood for look and found this looking down at the front of the engine passenger side. Looks possibly like a varmint chewed on the wiring going to whatever these connectors are. It starts fine and runs, you wouldnít even know there is a problem except the power is reduced. What are these two connectors connecting? I canít imagine they are just wired to each other so what is going on here? Is there a piece missing? Did something get caught in the fan? Iím really stumped and would appreciate any advice. Thanks.
Attached Images

Reply With Quote

Sponsored Links

  #2
Old 09-08-2021, 12:01 AM
Member

Join Date: Jun 2021
Location: Tampa, FL
Posts: 20
vbelsky is on a distinguished road
Quote:
Originally Posted by i_m_jon View Post
It starts fine and runs, you wouldnít even know there is a problem except the power is reduced. What are these two connectors connecting?
Top one is camshaft position sensor.
Bottom one is exhaust VANOS solenoid (variable camshaft timing solenoid for the exhaust camshaft). Your car is low on power because your variable camshaft timing is currently inoperable.
__________________
2006 X5 6-speed manual sport package 3.0i

M57N diesel swap with ZF GS6X-53DZ 6-speed manual coming this fall
Reply With Quote
  #3
Old 09-08-2021, 06:19 AM
Member

Join Date: Nov 2014
Location: PA
Posts: 4
i_m_jon is on a distinguished road
Thank you for the info. Where are these supposed to attach? I didn’t see anything obvious.
Reply With Quote
  #4
Old 09-08-2021, 07:59 AM
Member

Join Date: Nov 2014
Location: PA
Posts: 4
i_m_jon is on a distinguished road

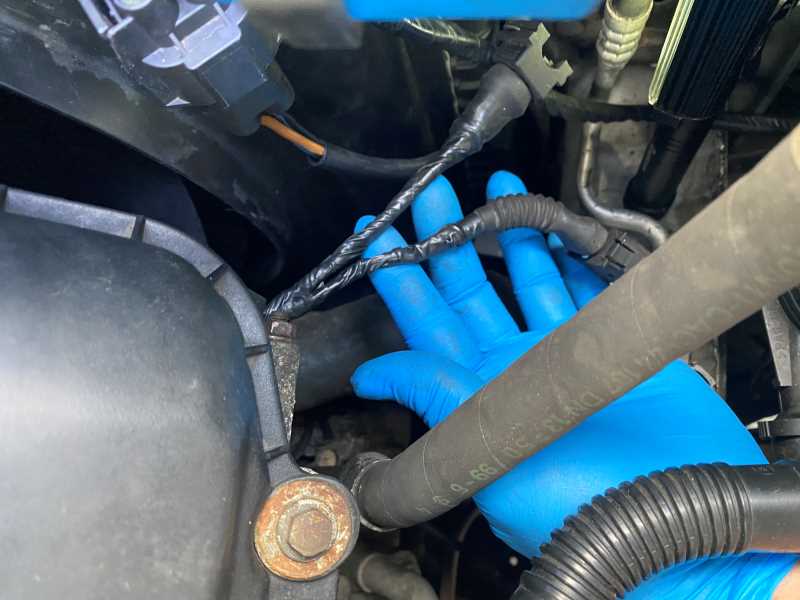

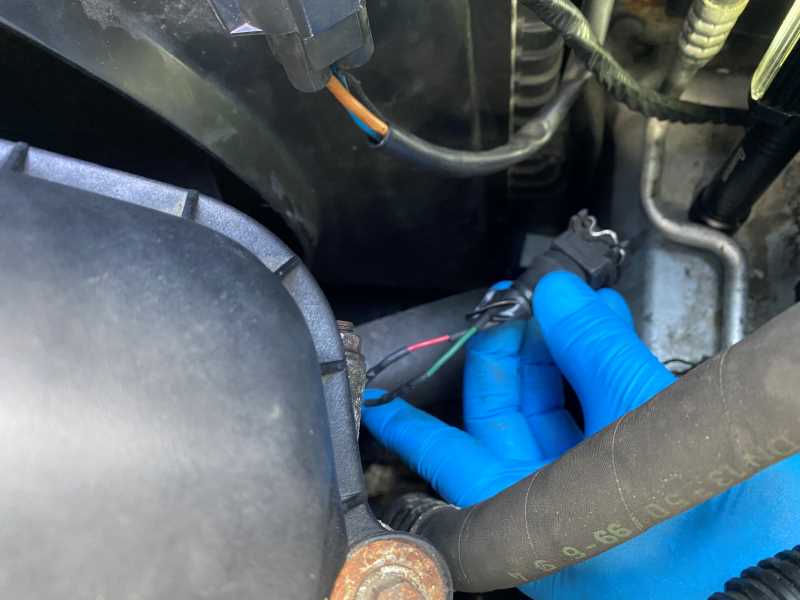

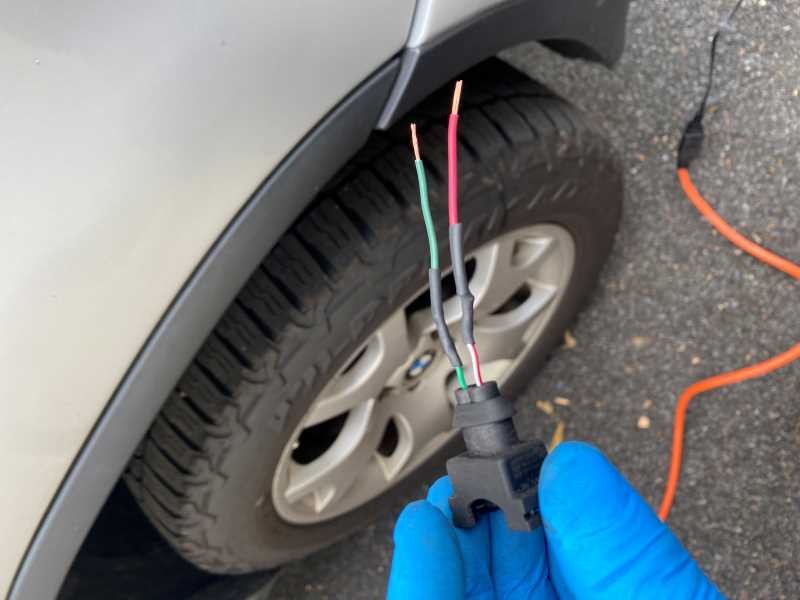

Well this is not going to be an easy fix. Not much to work with.
Attached Images

Reply With Quote
  #5
Old 09-08-2021, 09:45 AM
Member

Join Date: Nov 2014
Location: PA
Posts: 4
i_m_jon is on a distinguished road

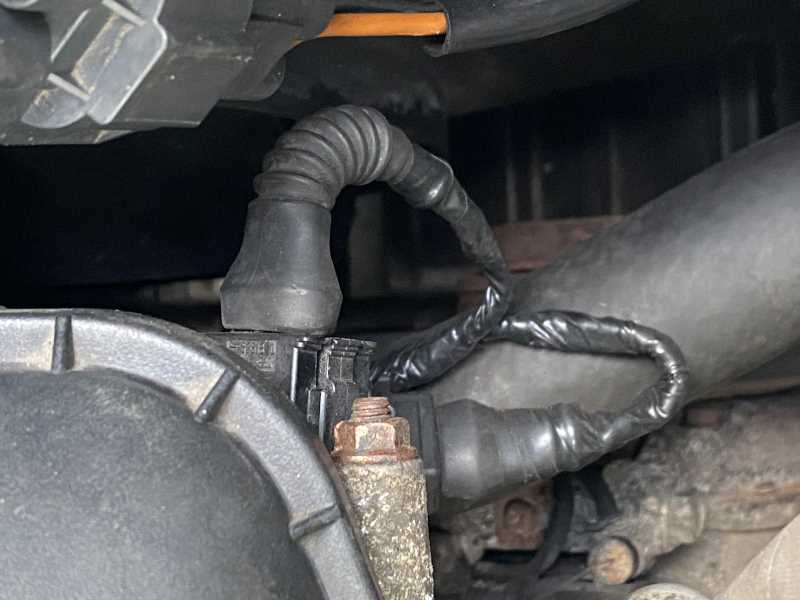

Figured I may as well follow up. She lives to fight another day.
Attached Images

Reply With Quote
  #6
Old 09-08-2021, 10:34 AM
Member

Join Date: Mar 2006
Location: Washington, DC
Posts: 36
nick325xit 5spd is on a distinguished road
Nice work.

I keep a couple of cut up engine harnesses around to scavenge for connectors and wiring as needed.
__________________
2011 M3
2006 Sierra 2500HD 4WD LBZ/Allison
2004 X5 3.0i 6MT
1995 M3 S50B32
1990 325is
1989 M3 S54B32

Hers:
1989 325iX
1996 911 Turbo


Reply With Quote
  #7
Old 09-11-2021, 09:06 AM
Member

Join Date: Aug 2021
Location: Ooltewah, TN
Posts: 17
TheFixer is on a distinguished road
Where I lived a couple years ago, squirrels would occasionally be chewing up wires. Damn critters.
Reply With Quote
  #8
Old 09-11-2021, 10:03 AM
Member

Join Date: Jun 2014
Location: Omaha, NE
Posts: 1,506
cn90 is on a distinguished road
- Cover the repair with corrugated tubing and zip tie it. The corrugated tubing is a few $ at local autoparts stores.
- Then google "Mighty Mint Rodent" or sth like that. Rodents hate mint...
__________________
1998 E39 528i 5sp MT
2006 E53 X5 3.0 6sp MT
