Need Help: Front axle mystery spring

I'm reinstalling a new passenger side front axle (output shaft) and having difficulty getting the shaft to seat correctly in the differential, past the lock spring/ring (half circle spring clip) point. To verify that it is the lock ring and not the splines, I removed the lock ring and the axle slid easily into the correct position with after a slight hang-up that required a twist of the axle.


The problem is that when I removed the axle to reinstall the lock ring, a mystery spring came out with it. It's a tiny silver coiled spring that looks like an O-ring and is ~1.75 inches across. 36mm axle lock-nut in pic for size reference. This mystery spring is not listed in RealOEM.

  • So, where did it come from?
  • Is it an essential component of the differential?
  • Do I need to pull the differential apart?
  • What else is now floating around free in the differential?
  • How hosed am I?
Thank all for your assistance with this mystery!













Attached Images

__________________
2005 X5 4.4i SterlingGrau, Sport Package, DSP
Build 3/12/2005




Last edited by stiubhartach; 05-01-2022 at 06:48 PM. Reason: New image links
Reply With Quote

Sponsored Links

  #2
Old 05-01-2022, 06:48 PM
Member

Join Date: Jan 2013
Location: Finland
Posts: 1,376
Clavurion is on a distinguished road
Looks like a spring on the shaft seal.

__________________
E39 530dA -02 M-Sport Messing metallic
E53 X5 3.0dA -06 Sport Stratus grey
Reply With Quote
  #3
Old 05-01-2022, 06:50 PM
Member

Join Date: Apr 2015
Location: Sacramento
Posts: 193
stiubhartach is on a distinguished road
Ah! Perfect. Thanks!
__________________
2005 X5 4.4i SterlingGrau, Sport Package, DSP
Build 3/12/2005



Reply With Quote
  #4
Old 05-01-2022, 07:51 PM
Member

Join Date: Apr 2015
Location: Sacramento
Posts: 193
stiubhartach is on a distinguished road

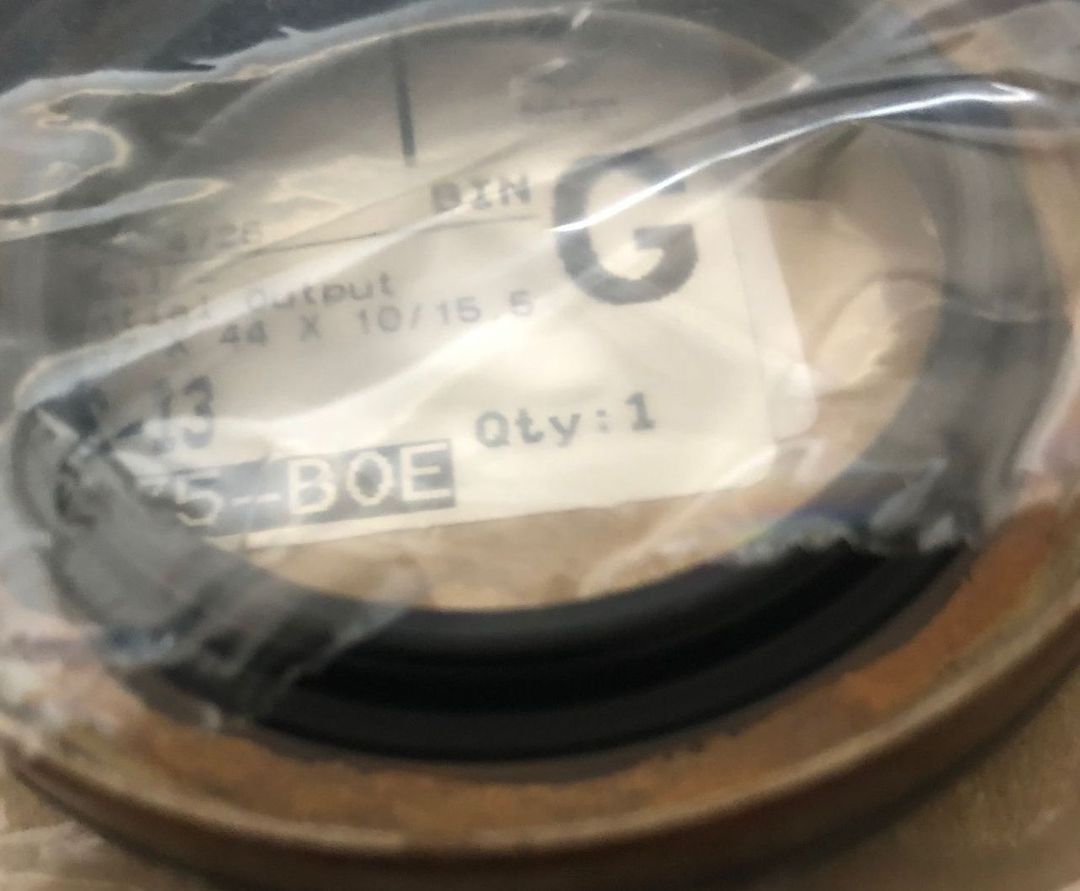

My personal mystery deepens. I pulled the new seal that I installed and it was missing the spring, as predicted.



But, when I pulled out a new spare seal (still sealed in plastic) to install, it was completely missing the spring. Then, examining another new seal also still in the plastic, I found that it had two springs. One on the outside and one on the inside. All seals are BMW brand and from a reputable BMW parts house. (sorry for the poor image quality)
  • Why is there two on one and none on the other?
  • What is the purpose of the springs?
  • Do they just keep the seal in shape during storage?
  • Should they be removed before install?
Attached Images

__________________
2005 X5 4.4i SterlingGrau, Sport Package, DSP
Build 3/12/2005



Reply With Quote
  #5
Old 05-01-2022, 08:13 PM
Member

Join Date: Mar 2016
Location: Saskatchewan Canada
Posts: 2,053
80stech is on a distinguished road
It looks like you have 2 different style of seals?? The spring is there to keep the seal tight on the shaft especially when there is some movement like there is with the front axle shaft. If you put some heavy grease on the spring it will stay in place better when you install the new seal.
__________________
1988 325is (purchased new) sold
2004 X5 3.0 2005 X3 2.5
2008 X5 3.0 (new to me)
Reply With Quote
  #6
Old 05-02-2022, 11:30 AM
Member

Join Date: Apr 2015
Location: Sacramento
Posts: 193
stiubhartach is on a distinguished road
No. The seals are exactly the same with the same part number. The only difference is the spring.

Good idea on the grease to hold the spring in place!
__________________
2005 X5 4.4i SterlingGrau, Sport Package, DSP
Build 3/12/2005



Reply With Quote
  #7
Old 05-02-2022, 11:32 AM
Henn28's Avatar
Member

Join Date: May 2021
Location: Louisiana
Posts: 714
Henn28 is on a distinguished road
Front axles are my kryptoite on my E53. Not sure if you got them in yet, but the best advice I found (on this site) after endless pounding, and other persuasion, was if the axle wasn’t going in with moderate pressure/persuasion was to pull it out slightly, turn it 90 deg and try again. Had them both in after a couple of turns.
__________________
Current
Original owner 2002 E53 X5 4.4i to 4.6i swap
1993 Mopar 318 Jeep Grand Cherokee - original owner
2015 V6 Jeep Grand Cherokee - the nice car for my wife
Former
1972 Audi Fox
1986 Saab 900S
1996 BMW Z3
1998 BMW E36 M3 Sedan
2004 BMW E46 M3
2006 Audi A3 Quatro
Reply With Quote
  #8
Old 05-04-2022, 05:04 PM
Member

Join Date: Jun 2014
Location: Omaha, NE
Posts: 1,609
cn90 is on a distinguished road
It is called "garter spring"...
