#1
10-15-2023, 08:55 AM
|
|||
|
|||
|
Dissected some control arms….

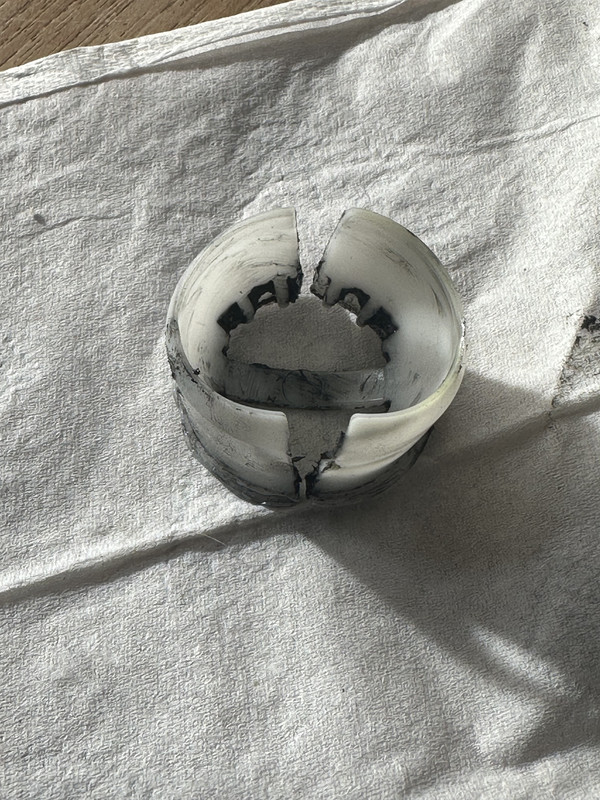

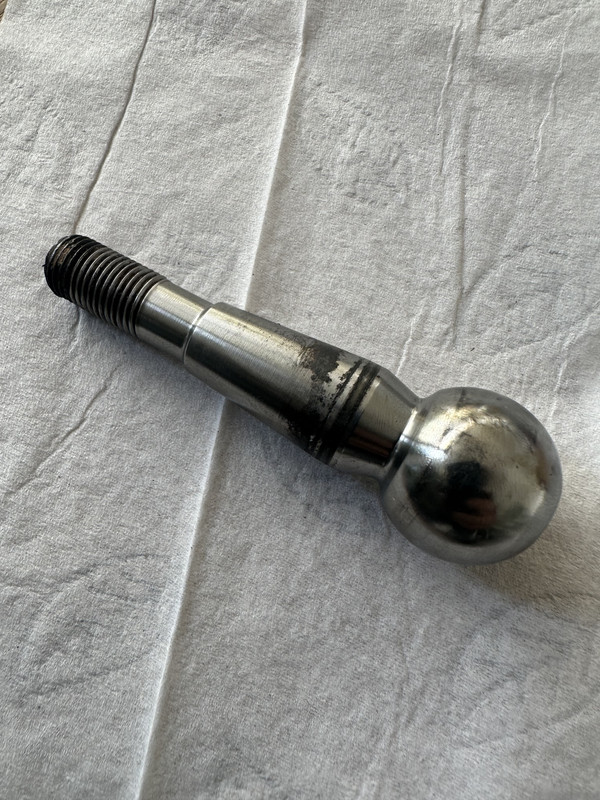

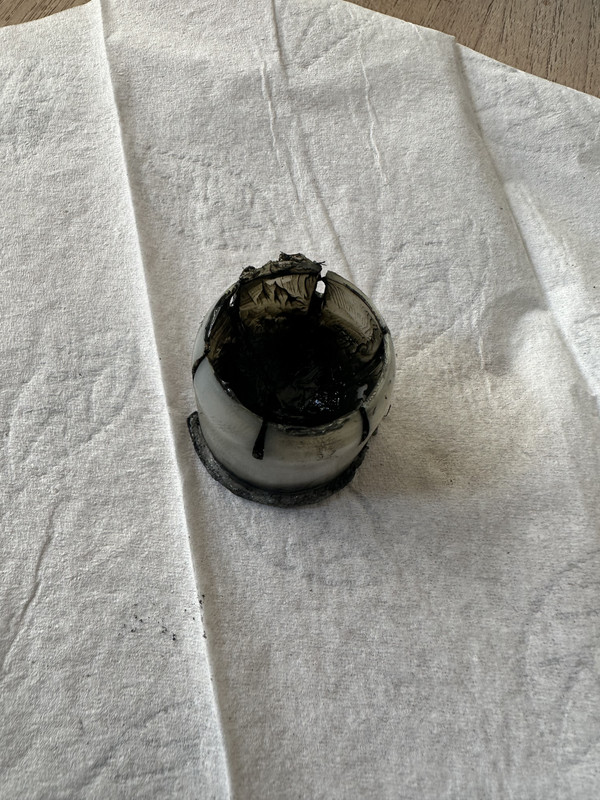

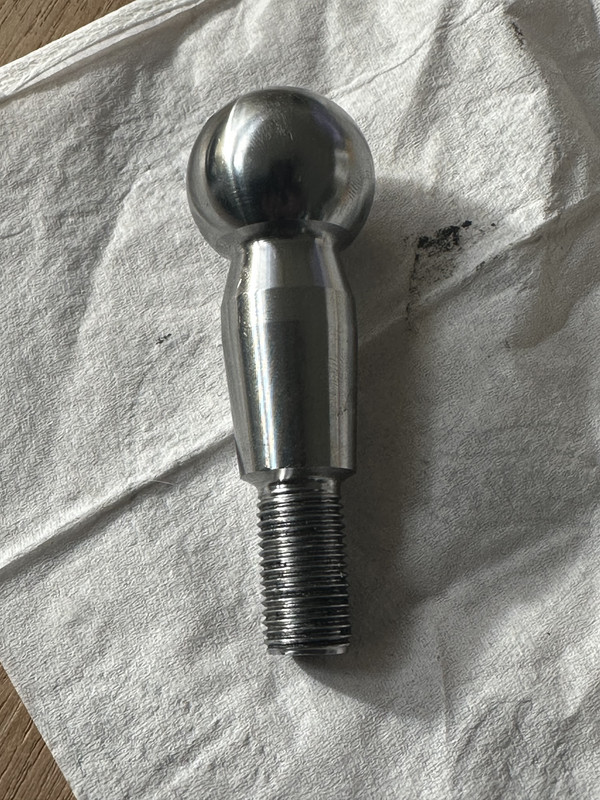

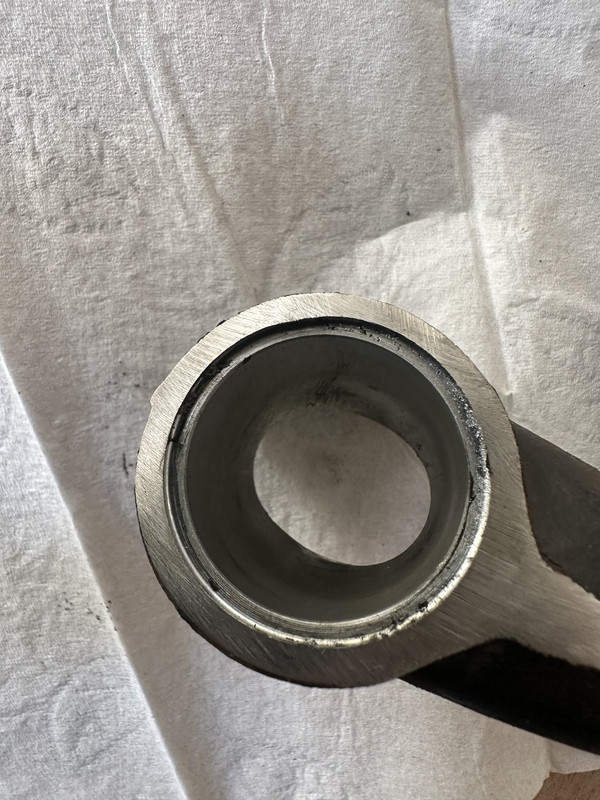

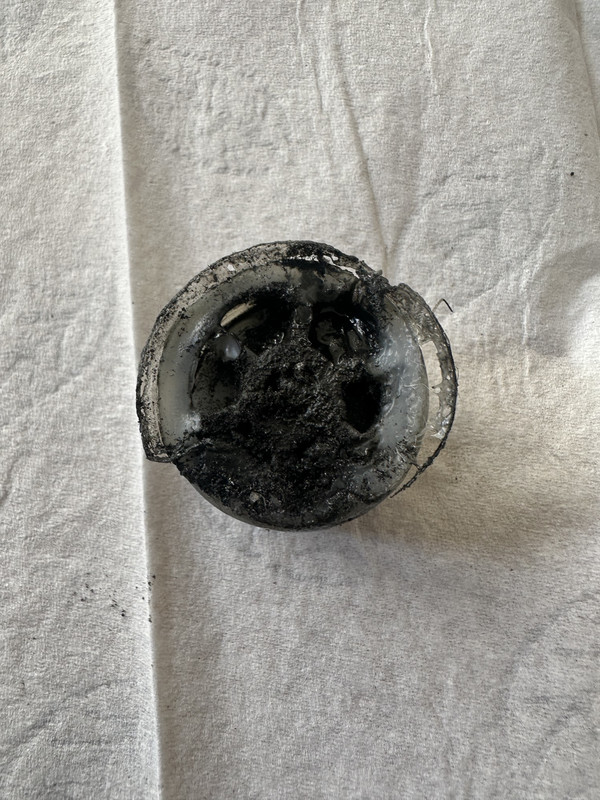

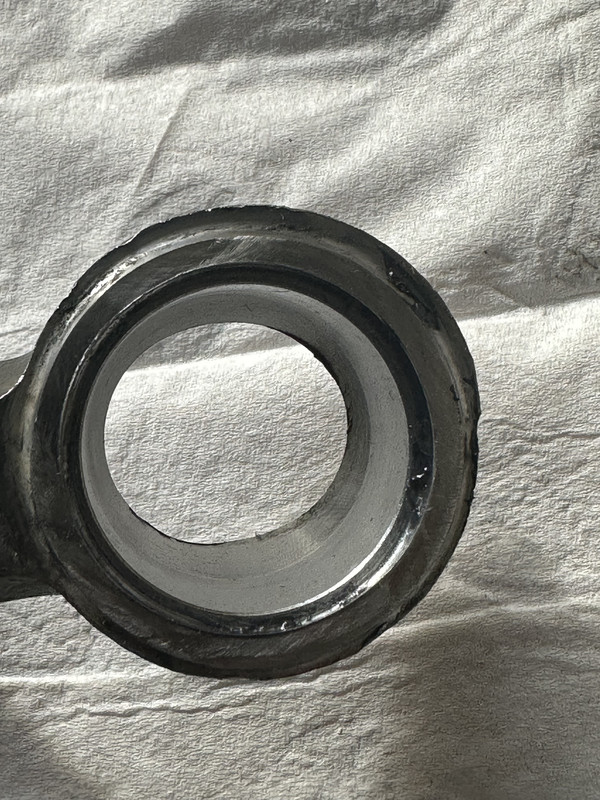

Took one apart cause I wanted to mix and match some parts. Took an old moog control arm apart to figure out the best way to take some new ones apart without totally destroying them. Lo and behold….. The moog guts     I did damage the plastic a little while cutting the back off You’d be amazed with how much fource they have to push in these almost 2mil thick cover plates! The hardness of the arm itself in this area isn’t all that you’d expect or see on like a lemforder arm. Which I also am taking apart right now. That plastic cup having to take on all of those forces for such a long time. I know they have to make money but this is just annoying. Also putting all that effort into machining and tooling for the cap only to put a plastic cup on the back is almost an insult to the engineers of the cap. Well hope you guys see what I mean and also can see why buying quality parts is so important. Another one Lemforder this time… With a heavy heart I announce to you all. The plastic inside a brand new lemforder joint    Sad to see them go downhill. Still lasting longer then others but not what it used to be unfortunately You can see that the grease itself can move around more in this design and the tolerances are tighter then a moog but still… Last edited by Lucas.ua; 10-15-2023 at 09:37 AM.
|
| Sponsored Links | |
|
|
|
|
#2
10-15-2023, 09:00 AM
|
||||
|
||||
|
Holy Shit!!
Wish I had disassembled my Middle Eastern ones, because I bet they had some cheaper piece in them than plastic "space fixers" in yours. Sent from my SM-A528B using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
|
|
#3
10-15-2023, 09:04 AM
|
|||
|
|||
|
Quote:
I mean on the one end as a “spacer” I’d be fine with the plastic piece since it puts zero force on the bottom of the arm. But the rotating parts….. like come on….. We don’t mind fixing the x5 but sh…… if we don’t have to right?
|
|
#4
10-15-2023, 09:09 AM
|
||||
|
||||
|
Quote:
With the typical roads here being similar to the lunar landscape with the added benefit of the sun being 6ft away every repair is just that much more fun... Sent from my SM-A528B using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
|
|
#7
10-15-2023, 09:35 AM
|
|||
|
|||
|
Keep up the good work. Though what part of the structure surprised you on these?
__________________
E39 530dA -02 M-Sport Messing metallic E53 X5 3.0dA -06 Sport Stratus grey E70 X5 40d -12 M-Sport Space grey
|
|
#8
10-15-2023, 10:09 AM
|
|||
|
|||
|
Quote:
Just the fact that they switched from a brass or other pliable metals to a thermosetting plastic. I enjoy rebuilding the old old balljoints where you can just replace a brass cup after 20 years of used. I’m considering turning a shaft with a bigger ball and a brass insert with a weld on back plate. Then when it wears out a smidge you can tighten it up again after cleaning and greasing. I abuse the suspension a lot. That’s why I go through parts like these more often then most.
|
|
