  #11
Old 12-19-2023, 09:48 AM
Member

Join Date: May 2021
Location: MB, Canada
Posts: 68
Aidzer0 is on a distinguished road
Quote:
Originally Posted by EODguy View Post
Fiber-optic cam could check valves.

Sent from Embassy network using Tapatalk

Any Endoscope will do? - there are tons on amazon and the like. I am not sure how to get it to turn 180 degrees to see the valves. I have never needed to use one.



Or would it need to be something like this: https://www.amazon.ca/Articulating-B...%2C114&sr=8-16



Thanks!
__________________
Current Garage:
BMW 2001 325i 5spd manual
BMW 2006 X5 4.4l N62
Reply With Quote

Sponsored Links

  #12
Old 12-19-2023, 09:56 AM
Member

Join Date: Jun 2021
Location: Austin, TX
Posts: 1,389
X5chemist is on a distinguished road
Most cameras come with adapters. Adapters will allow use for side, downward, or upward views. Both of my cameras have adapters.
__________________
'06 X5 3.0i - bought @143,123 miles (12/26/20)
Reply With Quote
  #13
Old 12-19-2023, 09:58 AM
Member

Join Date: May 2021
Location: MB, Canada
Posts: 68
Aidzer0 is on a distinguished road
Quote:
Originally Posted by X5chemist View Post
Most cameras come with adapters. Adapters will allow use for side, downward, or upward views. Both of my cameras have adapters.



Gotcha, thanks! I will order one in the mean time.
__________________
Current Garage:
BMW 2001 325i 5spd manual
BMW 2006 X5 4.4l N62
Reply With Quote
  #14
Old 12-19-2023, 04:26 PM
EODguy's Avatar
Member

Join Date: Jun 2018
Location: Saudi Arabia/Philippines/USA
Posts: 3,788
EODguy is on a distinguished road
Some of them have a turn adjustable end also...

Sent from Embassy network using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
Reply With Quote
  #15
Old 12-23-2023, 03:50 PM
Member

Join Date: May 2021
Location: MB, Canada
Posts: 68
Aidzer0 is on a distinguished road

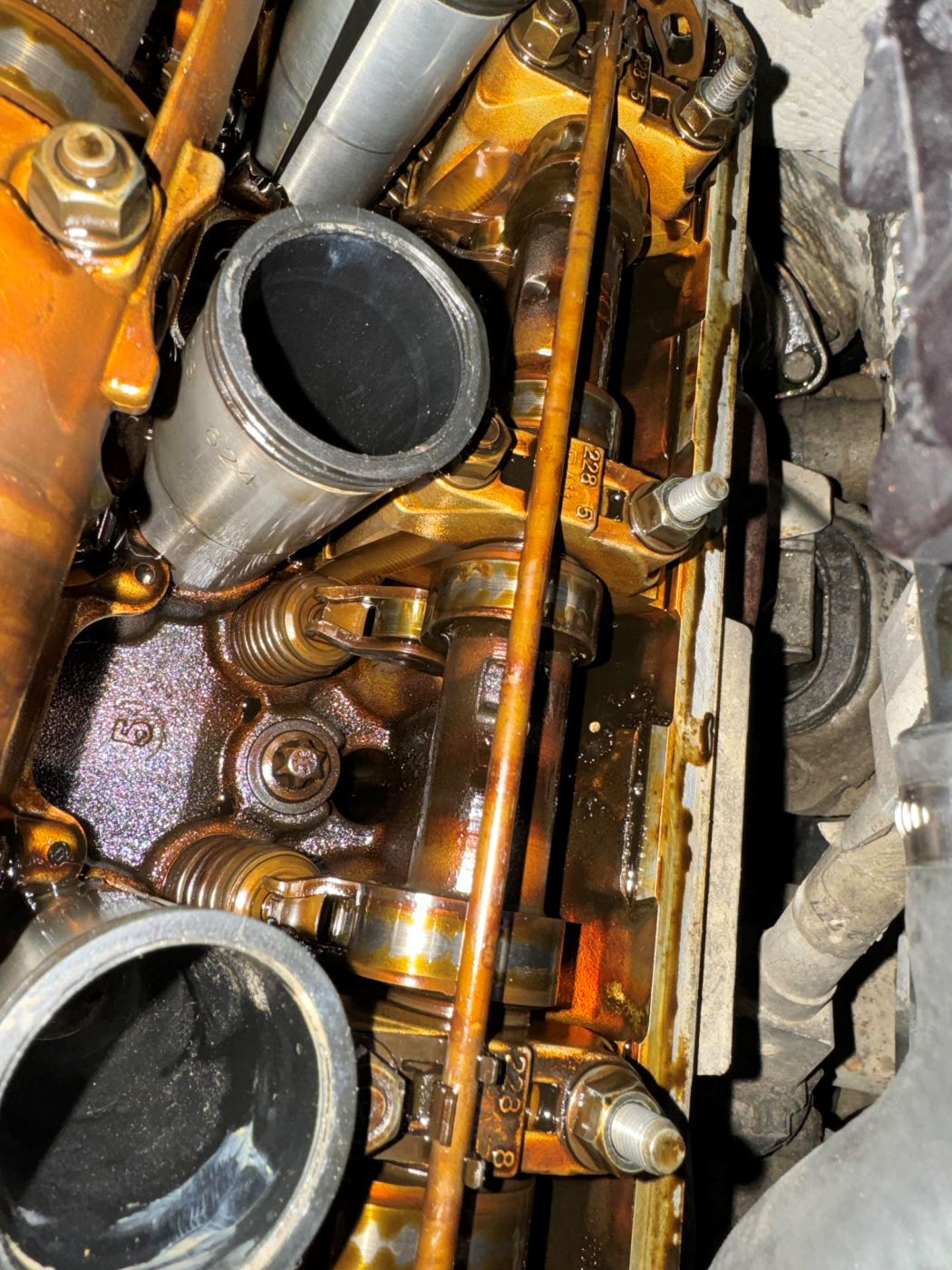

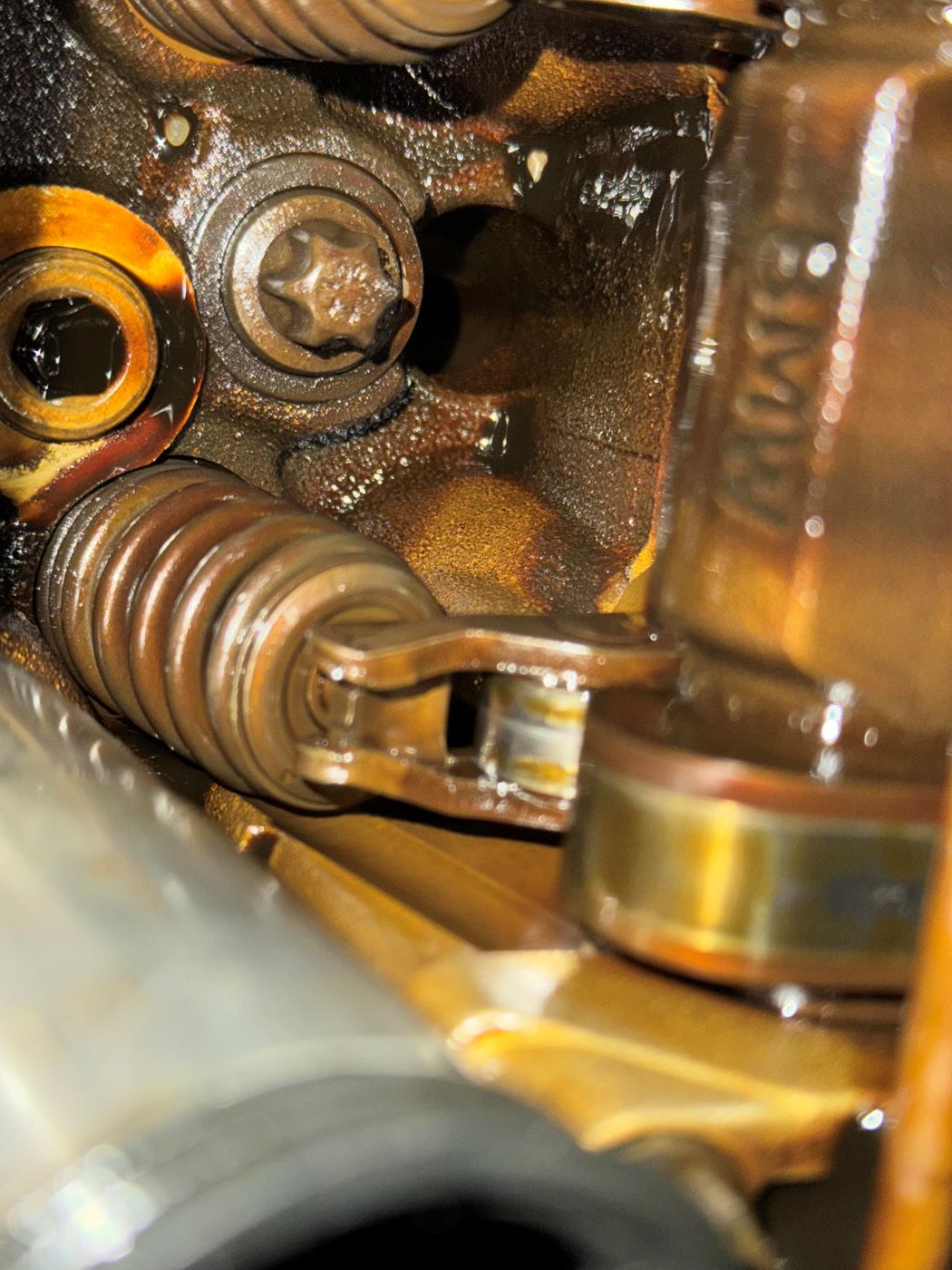

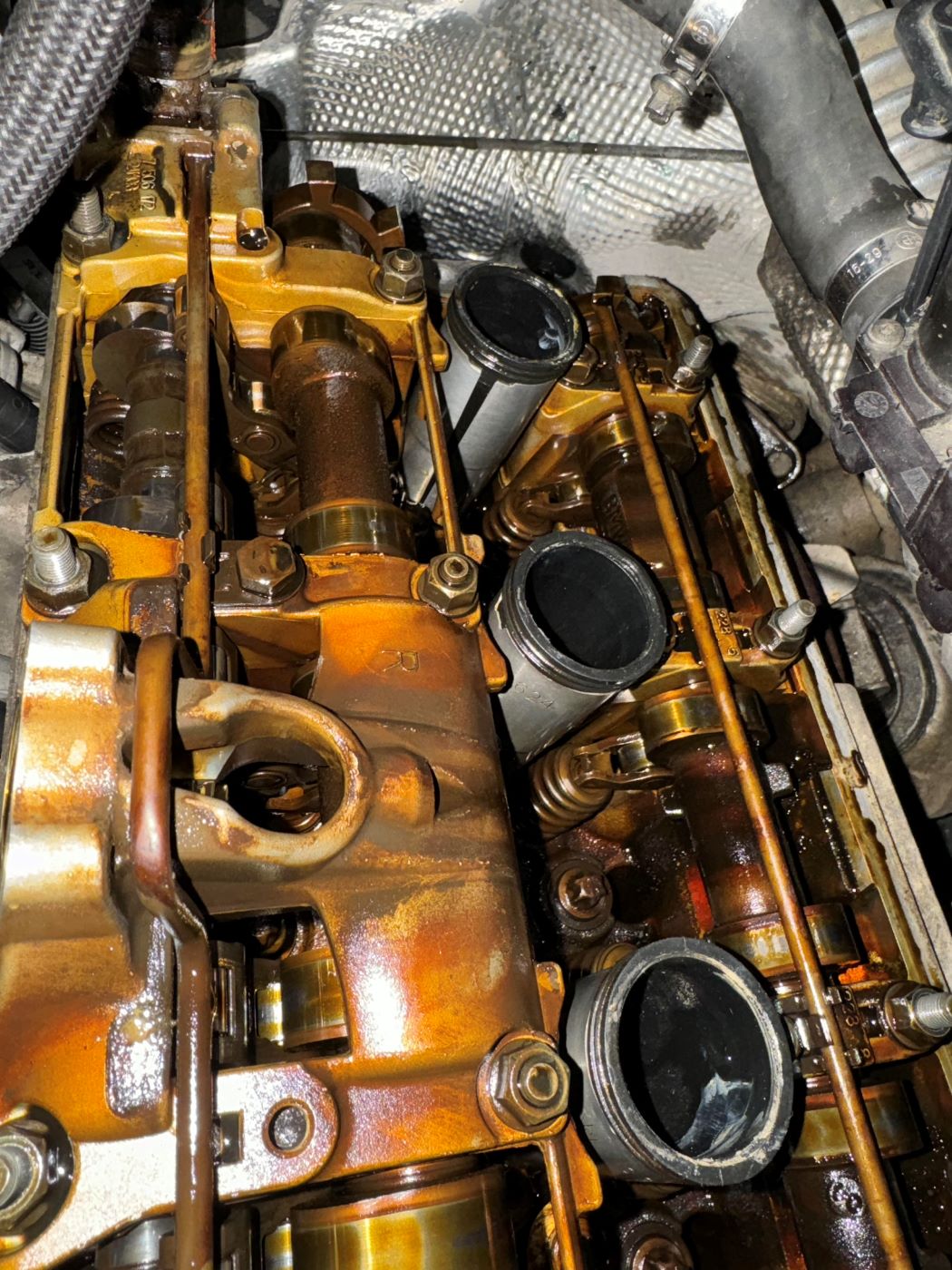

Hey Folks, quick update. I took the valve cover off and I cannot see anything wrong with the intake/exhaust valves or the cam shafts or the valvetronic shaft.. I have attached a ton of photos of the Cyl7 valves rockers.



I am still waiting for the borescope, no news on that front, it should be arriving on the 3rd of Jan.



I did manually crank the engine over and throughout the whole firing cycle, there was a hissing sound (kind of sounds from the exhaust.) I do not think this is normal since Bank1 did not have the same sound.
Attached Images

__________________
Current Garage:
BMW 2001 325i 5spd manual
BMW 2006 X5 4.4l N62
Reply With Quote
  #16
Old 12-23-2023, 09:07 PM
EODguy's Avatar
Member

Join Date: Jun 2018
Location: Saudi Arabia/Philippines/USA
Posts: 3,788
EODguy is on a distinguished road
Is it just the lighting or do you have a groove in your roller?

Sent from Embassy network using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
Reply With Quote
  #17
Old 12-23-2023, 09:08 PM
Member

Join Date: May 2021
Location: MB, Canada
Posts: 68
Aidzer0 is on a distinguished road
Quote:
Originally Posted by EODguy View Post
Is it just the lighting or do you have a groove in your roller?

Sent from Embassy network using Tapatalk
There is a slight grove, but my nail was not catching on it. Itís fully smooth.
__________________
Current Garage:
BMW 2001 325i 5spd manual
BMW 2006 X5 4.4l N62
Reply With Quote
  #18
Old 12-23-2023, 09:18 PM
EODguy's Avatar
Member

Join Date: Jun 2018
Location: Saudi Arabia/Philippines/USA
Posts: 3,788
EODguy is on a distinguished road
Quote:
Originally Posted by Aidzer0 View Post
There is a slight grove, but my nail was not catching on it. Itís fully smooth.
Thanks I just wanted to check.

Sent from Embassy network using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
Reply With Quote
  #19
Old 12-23-2023, 09:20 PM
Member

Join Date: May 2021
Location: MB, Canada
Posts: 68
Aidzer0 is on a distinguished road
Quote:
Originally Posted by EODguy View Post
Thanks I just wanted to check.

Sent from Embassy network using Tapatalk
Oh for sure! Best to check, I could miss something. Thank you!
__________________
Current Garage:
BMW 2001 325i 5spd manual
BMW 2006 X5 4.4l N62
Reply With Quote
  #20
Old 12-23-2023, 09:31 PM
Premier Member

Join Date: Jan 2016
Location: Michigan
Posts: 397
ahlem is on a distinguished road
Do you have the adapter for your compression tester that allows you to put some compressed air to it? At TDC with compressed air, you should hear something somewhere.
__________________
2001 x5 3.0 (sold with broken motor), 1990 e30 M3, 1991 318is, 2002 325i, 2008 335i Dinan stage 3 6 speed,
Reply With Quote
