Pics of the heater valve and clamps please

I've been using way too many zip ties for the heater hoses around the heater valve, and said hoses have been rubbing against my vanity project painted coil covers. So, I bought the two OE hose clamps that had gone missing over the years but cant recall how they tame the mess of hoses.

I'm hoping that someone can snap a few pics of the general area, and specifically how the hoses are routed around/thru the clamps. There are three clamps, a 4 hose clamp, a 3 hose clamp and a clamp that locks into the valve itself.

No hurry, I wore myself out putting a new regulator in the left rear door, and scrubbing all the non-leather door surfaces with a green pad and a Dawn solution.

Thanks in advance.
__________________
Current
Original owner 2002 E53 X5 4.4i to 4.6i swap
1993 Mopar 318 Jeep Grand Cherokee - original owner
2015 V6 Jeep Grand Cherokee - the nice car for my wife
Former
1972 Audi Fox
1986 Saab 900S
1996 BMW Z3
1998 BMW E36 M3 Sedan
2004 BMW E46 M3
2006 Audi A3 Quatro
Reply With Quote

Sponsored Links

  #2
Old 06-10-2024, 03:44 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 11,028
andrewwynn will become famous soon enough
Are you 3.0 or 4.4? I no longer have my e53 but I have lots of photos including with intake out that might be perfect. Mine were both m54.
__________________
2011 E70 ē N55 (me)
2012 E70 ē N63 (wife)
Reply With Quote
  #3
Old 06-10-2024, 04:00 PM
Member

Join Date: Jun 2021
Location: Covington, LA
Posts: 130
LA02MAX is on a distinguished road
I think you had brought this up a while back, and we found out that the pre-LCI V8's are different than the LCI, so this may not be a huge amount of help. My 4.8is doesn't have as many hoses as yours, but here are pics of the way mine is routed, and at least you can see how the three hose retainer is situated (mine doesn't use one of the spots since I have fewer hoses, but the retainer is the same).
Attached Images

__________________
__________________

2006 X5 4.8is
Reply With Quote
  #4
Old 06-10-2024, 04:10 PM
Henn28's Avatar
Member

Join Date: May 2021
Location: Louisiana
Posts: 768
Henn28 is on a distinguished road
Quote:
Originally Posted by andrewwynn View Post
Are you 3.0 or 4.4? I no longer have my e53 but I have lots of photos including with intake out that might be perfect. Mine were both m54.
Yep, that would be an important detail! 4.4.

Thanks for the pics LA02. I wasnít aware this plumbing was different on the 4.8s. The clamps do look similar.

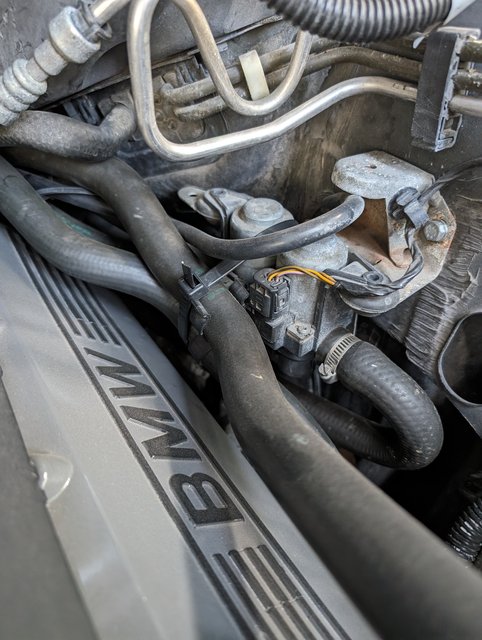

My mess:
