  #11
Old Today, 05:51 PM
Member

Join Date: Apr 2019
Location: Boston, MA
Posts: 956
Effduration is on a distinguished road
Quote:
Originally Posted by g300d View Post

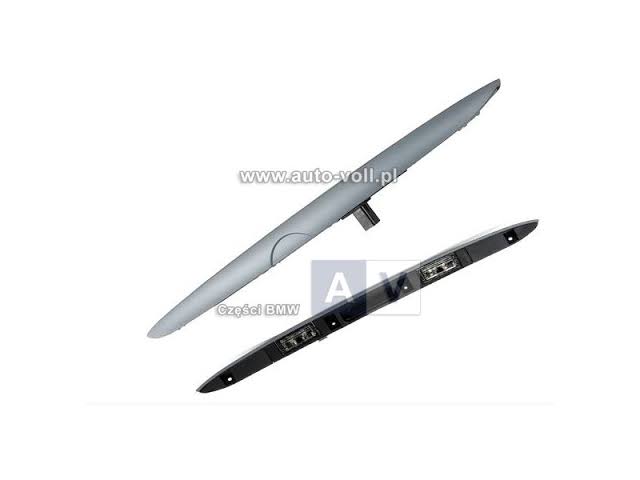

Yes this is what I need! But what is confusing is if you google the part number what comes up is that the OE part comes with the trim right above it that needs to be painted to match. And it looks like they are bonded together?



The Ebay part you linked is just the bottom part, doesnt come with the upper trim like the OE part



How is the Ebay part installed? I thought the painted upper trim piece was bonded to the unpainted bottom switch/plate light panel? How did you separate your existing painted upper trim from your old part and put it on to your new unpainted switch/plate light panel?
Yes, my recollection is that the upper chrome-colored plastic trim is attached to the black plastic part with 2-sided trim tape. So I carefully pried it apart and I was able to get them separated with breaking either. I bought some 3M branded 2-sided trim tape and reinstalled the chrome-colored trim onto the new part...No painting.

I looked online at 2005 and 2006 X5's and it seems to me you should be able to do the same thing with your existing color-matched outer trim.
__________________
'99 E39 528i 5-speed 130k
'06 325Cic auto 115k
'05 X5 3.0 auto 173k-SOLD
'03 530i - manual swapped - 430k miles - Parting
Reply With Quote

Sponsored Links

  #12
Old Today, 06:50 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 5,013
wpoll will become famous soon enough
Would dental floss be a good way to "cut" the 3M mounting tape, when removing the factory painted trim piece?
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #13
Old Today, 07:42 PM
Member

Join Date: Apr 2012
Location: SoCal
Posts: 1,834
g300d is on a distinguished road
Gents, thanks for confirming my understanding on how this part is built

Quote:
Originally Posted by wpoll View Post
Would dental floss be a good way to "cut" the 3M mounting tape, when removing the factory painted trim piece?
Thats one way to try.

Also thinking of just cutting up the old unpainted portion with the dremel to make it easier to strip off the painted part?
__________________
04 X5 3.0i auto
03 X5 4.6is
Reply With Quote
