ilink installation stuck

[DERRYNJOSH]

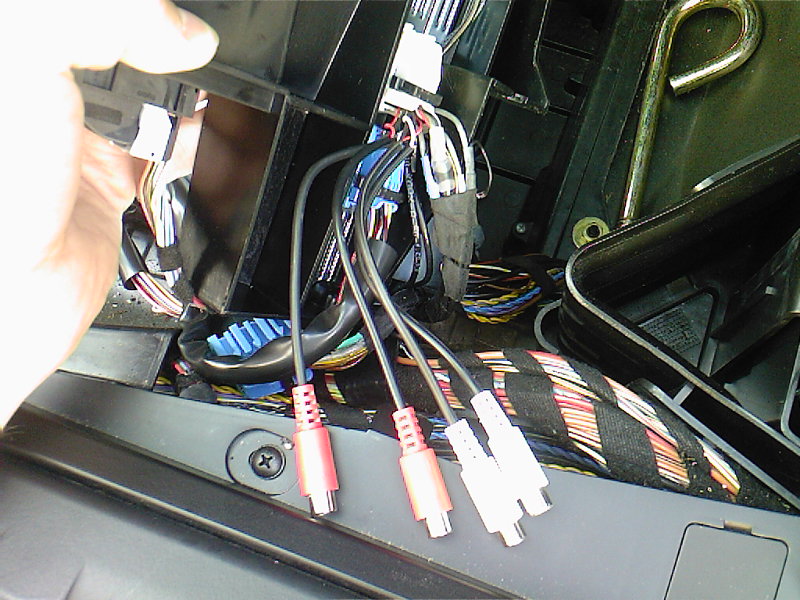

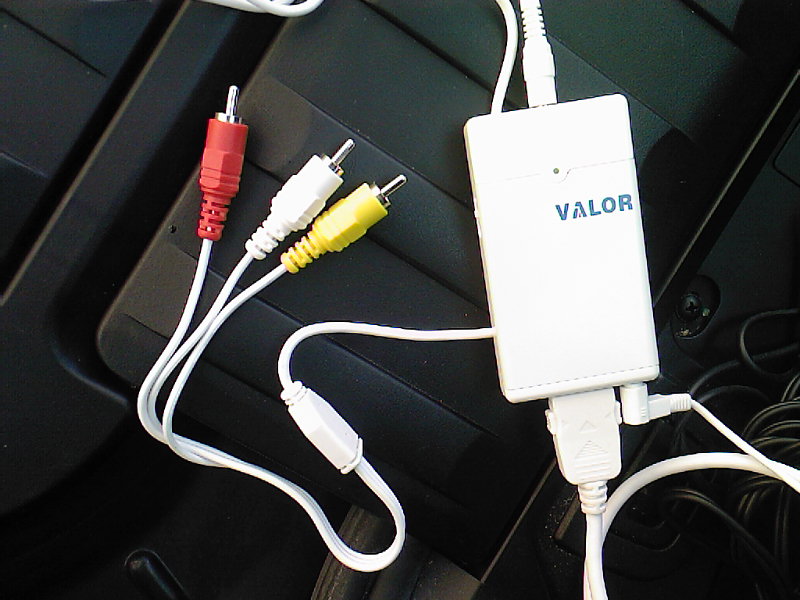

hi there received the ilink from tom at european source, i have a uk bmw x5 with original sat nav screen and tv function along with tv on the move,tom sent me the ilink and a multimedia adapter 1251 as this was all i required, i located the tv tuner in the trunk and followed the instructions fitted the adapter 1251 into the tuner which had 2 red and 2 white sort of rca leads now connected the ilink thru a y adapter which tom said i needed but no joy is there anyhting required to do behind the nacv screen can anyone help will attach pictures of the equipment and where its sitting at the moment many thanks

[Tom G.]

The TV tuner is Mono, you will only be using 2 of those RCA connectors as indicated in the instructions with the kit. Verify the pins are in their correct locations in the white connector to the TV module:

Pin 4: Signal from audio (+)
Pin 5: Signal from audio (-)

Pin 6: Signal from video (+)
Pin 15: Signal from video (-)

You can get audio in stereo, more info can be found in this link: http://www.xoutpost.com/articles/x5/s...vd-stereo.html
