Smile Pics of my Interior Lighting Mod

Inspired by mrbmwx5's DIY of the interior door handle LED mod (thanks for that by the way), I decided to try myself. With the help of the door panel removal instructions on the homepage, and some thinking, here's what turned out.

My favorite mod so far!









The pictures don't do it justice! They look great in person and at night.
The front lights don't travel too far; it travels about 1/3 of the wood trim.
The rear ones are great, they travel to the end and they dim as it does so. I can't keep my eyes off of them!
__________________

Reply With Quote

Sponsored Links

  #2
Old 03-12-2009, 07:09 PM
TQ2K's Avatar
Member

Join Date: Mar 2005
Location: West Chester, PA
Posts: 2,530
TQ2K is on a distinguished road
Would've been nice if the light traveled across the length of the wood trim...
__________________
TQ2K


'04 N62 - Alpine White/Truffle
'03 S62 - Petrol Mica/Champagne
'97 S52/4/5 - Alpine White/Dove
'91 M42/4/5 - Brilliantrot/Tan
Reply With Quote
  #3
Old 03-12-2009, 07:49 PM
skiboats's Avatar
Member

Join Date: Sep 2008
Location: Western NY
Posts: 339
skiboats is on a distinguished road
Looks cool. Wish I had the time and patience.
Reply With Quote
  #4
Old 03-12-2009, 07:51 PM
X Foomph's Avatar
Member

Join Date: Aug 2008
Location: Gold Coast, Australia
Posts: 1,351
X Foomph is on a distinguished road
I thought those LEDs were supposed to light up the door handle recess, in effect showing where the door handle is in the dark
Maybe Tom could take a few pics of his and show us what his look like. C'mon Tom you said you would.

Looks good anyway. Nothing like a twist to a mod.
__________________
2002 - 3.0i - Topaz Blue - Beige - Samana Beige
Go hard or go home or go hard going home
Reply With Quote
  #5
Old 03-12-2009, 07:58 PM
mrbmwx5's Avatar
Premier Member

Join Date: Jun 2006
Location: Brownstwn,Michigan.
Posts: 4,794
mrbmwx5 is on a distinguished road
Quote:
Originally Posted by xnsf
Inspired by mrbmwx5's DIY of the interior door handle LED mod (thanks for that by the way), I decided to try myself. With the help of the door panel removal instructions on the homepage, and some thinking, here's what turned out.

My favorite mod so far!









The pictures don't do it justice! They look great in person and at night.
The front lights don't travel too far; it travels about 1/3 of the wood trim.
The rear ones are great, they travel to the end and they dim as it does so. I can't keep my eyes off of them!
Nice work i glad that you insterested in my DIY.
Reply With Quote
  #6
Old 03-12-2009, 08:03 PM
mrbmwx5's Avatar
Premier Member

Join Date: Jun 2006
Location: Brownstwn,Michigan.
Posts: 4,794
mrbmwx5 is on a distinguished road
Quote:
Originally Posted by X Foomph
I thought those LEDs were supposed to light up the door handle recess, in effect showing where the door handle is in the dark
Maybe Tom could take a few pics of his and show us what his look like. C'mon Tom you said you would.

Looks good anyway. Nothing like a twist to a mod.
What Xnsf did is for the inside
same light taht you found yesterday while you was trying to fix your door handle ( that belong to my another mod by mrbmwx5 thread)
not same one like i just did led for the outside door handles
Reply With Quote
  #7
Old 03-12-2009, 08:32 PM
X5 Meister's Avatar
Member

Join Date: Mar 2006
Location: Nordschleife
Posts: 5,486
X5 Meister is on a distinguished road
Looks like an alien is inside about to come out. Maybe it's ET ?
Reply With Quote
  #8
Old 03-12-2009, 08:35 PM
X5 Meister's Avatar
Member

Join Date: Mar 2006
Location: Nordschleife
Posts: 5,486
X5 Meister is on a distinguished road

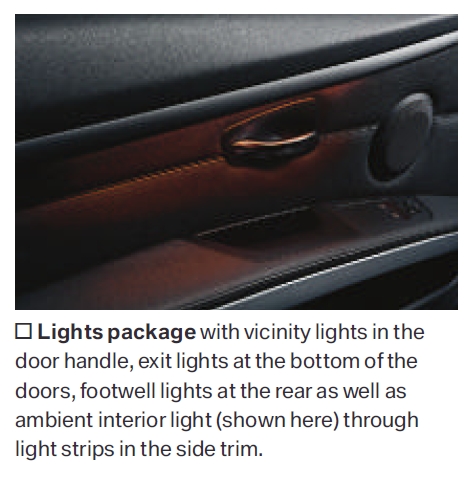

That's exactly how it is in the new 3 series coupe. Looks awesome. THAT would be a sweet retrofit IMHO. As done, I agree the door handle isn't illuminated and that should stand out more than anything else.

Quote:
Originally Posted by TQ2K
Would've been nice if the light traveled across the length of the wood trim...
Attached Images

Reply With Quote
  #9
Old 03-12-2009, 09:08 PM
jayjay_dee's Avatar
Member

Join Date: Aug 2007
Location: Pearland, TX
Posts: 1,357
jayjay_dee is on a distinguished road
tom can do that...
__________________
"Lapit mga kaibigan at makinig kayo, ako'y may dala-dalang balita galing sa bayan ko
Nais kong ipamahagi ang mga kwento at mga pangyayaring nagaganap sa lupang ipinangako..."
Reply With Quote
  #10
Old 03-12-2009, 10:08 PM
xnsf's Avatar
Member

Join Date: Dec 2006
Location: San Franciscold
Posts: 4,158
xnsf is on a distinguished road
thanks for the comments!

the E92 was definitely on my mind when I was coming up with a solution. If I had better tools (my drill was too weak, which was why I didn't/couldn't drill through the door handle). I wanted to have the light come out from behind the door grip, so it would have some soft lighting that looked like the E92's. I'll probably try that a little later.

The front door LEDs is too tied down, which is why the light is only showing in towards the front. THe LEDs on the rear doors are looser which allowed me to make the light travel the entire length of the wood, although I would like it to be more even.

If anyone has a solution like to improve the light travel or the BMW-amber colored LEDs, tell me how!
