Unhappy Windshield Problem...

It happens in Carwash drive inn...



Has anyone did DYI changing the top rubber on x5 windshield.

What part number is that?

appreciate guys....
Reply With Quote

Sponsored Links

  #2
Old 06-04-2009, 05:29 PM
Member

Join Date: Apr 2005
Location: CA
Posts: 406
flyingmachine is on a distinguished road
you need part # 51317182004. it's a common problem. bmw will tell you to replace the whole windshield in order to replace that rubber moulding. I replaced the moulding myself last year.

I uploaded some pictures showing following stages - original condition, removal in progress, post removal, and all cleaned and ready for install.
Attached Images

Reply With Quote
  #3
Old 06-04-2009, 10:21 PM
flmrustic's Avatar
Member

Join Date: Mar 2009
Location: Overland Park, KS
Posts: 19
flmrustic is on a distinguished road
what type of adhesive did you use on the new piece? I'm glad I read this. I was ready to take it to the dealer for an estimate..
__________________
I am never wrong. I thought I was once, but I was mistaken.
Reply With Quote
  #4
Old 06-04-2009, 10:48 PM
Weasel's Avatar
Almost never on here anymore :(

Join Date: Jul 2008
Location: New Orleans, La
Posts: 6,892
Weasel will become famous soon enough
If the windshield is OEM and has never been changed, it is decently easy to replace the seal, and no sealant is needed as it has a small strip of adhesive built into it. The only time I had trouble changing one is when the windshield had already been replaced and the seal was held by the urethane.
__________________
"When you do things right, people won't be sure you've done anything at all" (Bender, futurama)

You make something idiotproof, they'll make a better idiot


You think professional is expensive, just wait until you pay for amateur.

Never let your sense of morals prevent you from doing what is right.

Examine what is said, not who speaks.

X5 pics

RIP 4.6is.....

2003 4.6is
Reply With Quote
  #5
Old 06-04-2009, 11:11 PM
flmrustic's Avatar
Member

Join Date: Mar 2009
Location: Overland Park, KS
Posts: 19
flmrustic is on a distinguished road
Fantastic! Thanks for the info. I will order one tomorrow. OEM 51317182004 is that right?
__________________
I am never wrong. I thought I was once, but I was mistaken.
Reply With Quote
  #6
Old 06-06-2009, 02:11 AM
Member

Join Date: Dec 2006
Location: Texas
Posts: 836
lo_jack is on a distinguished road
Would this be why my windshield rattles in it's mount and water leaks into my cabin? I may have to give this a shot.

FLM you shouldn't have to worry much about fixing things, you are in engineer central over there in OP.
__________________
2001 E53 3.0 5pd
Reply With Quote
  #7
Old 06-06-2009, 11:57 AM
Weasel's Avatar
Almost never on here anymore :(

Join Date: Jul 2008
Location: New Orleans, La
Posts: 6,892
Weasel will become famous soon enough
Quote:
Originally Posted by lo_jack View Post
Would this be why my windshield rattles in it's mount and water leaks into my cabin? I may have to give this a shot.

FLM you shouldn't have to worry much about fixing things, you are in engineer central over there in OP.
No no no... the windshield should be solid mounted with a continuous bead of urethane which dries to be as solid as a motor mount or bushing, and it should be completely 100% sealed. If you had the windshield replaced recently you need to bring it back and have it re-done And if the carpets got wet you need to have that taken care of by the dealer and bring the windshield place a bill.
__________________
"When you do things right, people won't be sure you've done anything at all" (Bender, futurama)

You make something idiotproof, they'll make a better idiot


You think professional is expensive, just wait until you pay for amateur.

Never let your sense of morals prevent you from doing what is right.

Examine what is said, not who speaks.

X5 pics

RIP 4.6is.....

2003 4.6is
Reply With Quote
  #8
Old 03-21-2010, 12:18 PM
dkl's Avatar
dkl dkl is offline
Member

Join Date: Mar 2005
Location: Southern Cal
Posts: 2,784
dkl is on a distinguished road
Quote:
Originally Posted by Weasel View Post
No no no... the windshield should be solid mounted with a continuous bead of urethane which dries to be as solid as a motor mount or bushing, and it should be completely 100% sealed. If you had the windshield replaced recently you need to bring it back and have it re-done And if the carpets got wet you need to have that taken care of by the dealer and bring the windshield place a bill.

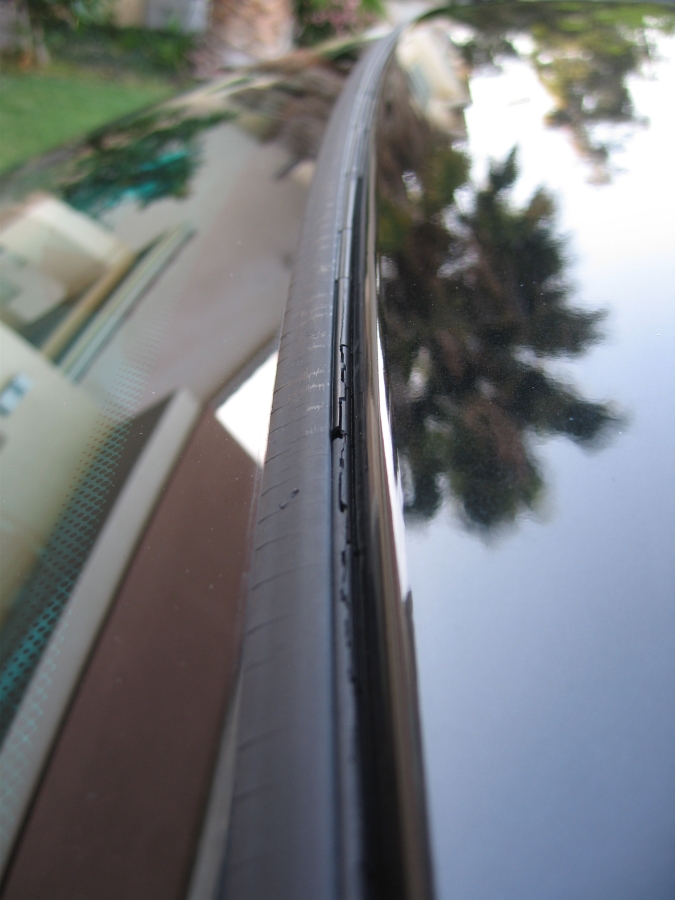

In that case, is this rubber seal mostly for cosmetic reason only? I just noticed some tears in mine while washing it yesterday (see attached picture).
It appears to be a 2-piece construction: One small piece folded over and a 2nd larger flat piece. I'm not so worried about the larger cracked flat piece as much as the smaller folder over piece that appears to have chunks missing.

Is this a common thing on BMWs?
Attached Images


Last edited by dkl; 03-21-2010 at 12:24 PM.
Reply With Quote
  #9
Old 03-22-2010, 01:30 AM
Weasel's Avatar
Almost never on here anymore :(

Join Date: Jul 2008
Location: New Orleans, La
Posts: 6,892
Weasel will become famous soon enough
It's a common thing on any car that uses rubber gaskets on the windshield edges. I've had good luck replacing that gasket on most BMW models including the X5 with the windshield intact and installed. But that should only be done by experienced windshield guys as you could easily break the windshield and/or mess up the new gasket.
__________________
"When you do things right, people won't be sure you've done anything at all" (Bender, futurama)

You make something idiotproof, they'll make a better idiot


You think professional is expensive, just wait until you pay for amateur.

Never let your sense of morals prevent you from doing what is right.

Examine what is said, not who speaks.

X5 pics

RIP 4.6is.....

2003 4.6is
Reply With Quote
  #10
Old 03-22-2010, 02:42 PM
dkl's Avatar
dkl dkl is offline
Member

Join Date: Mar 2005
Location: Southern Cal
Posts: 2,784
dkl is on a distinguished road
Thanks for the input. There's currently no leaks, so I might hold off in having it replaced (I might just buy the gasket and have a windshield shop install it).

It's weird that I've never had this issue in all of my previous cars and some of those cars were street parked 24/7. This is the first that I've seen on the X and it's been garage kept all of its life.
