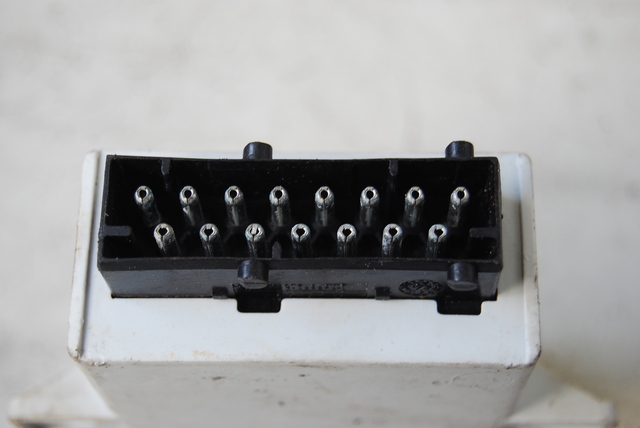

here is a better picture of the trailer module (15 pins indeed), and the connector shows some stamping on it - unfortunately, i can't make out what those stampings are... i was hoping to see if a part number is embossed on that connector...
|
|
#2
03-01-2013, 12:27 PM
|
||||
|
||||
|
Quote:
T, can you check your LCM connector for a part number? Look at this pic of the LCM it looks like one or two of the connectors may be the same part as the connector for the trailer module, 15 pin, I can't look at WDS at work either and RealOEM isn't much help. Looks like LCM X12 connector (15 pin) is the same connector we would need to connect to X609 in the rear.  NINJA EDIT: T, don't drive yourself crazy if you can't find this connector. Honestly to find the male pins for the X609 for each rear fog light was great work, and if that's the closest we get as far as a clean OE install, I think we can give ourselves a pat on the back. I'm heading out for a 5 day cruise tonight, so any research you do on that connector probably won't get read until I get back, but regardless if you find that connector or not, I am ordering 1 contact for S8, 1 contact for LCM, 2 contacts for tailgate harness, and 2 male pins for the X609 when I get home, and picking up a pair of 1156 bulbs with a spool of 18 gauge wire and will install as we have said so far.
__________________
2018 Ram 2500 6.7L Cummins 68RFE 19k miles -Bright White/Black - Big Horn Sport - Crew Cab Short Bed 2013 X5 35D (CEO's) - Born on 5/17/2013 - 82k miles - Alpine White/Cinnamon Brown/Premium Pkg, Sport Activity/Premium Pkg and Sound/20" Style 214/Running Boards Last edited by Ricky Bobby; 03-01-2013 at 03:11 PM.
|
|
#3
03-07-2013, 02:01 PM
|
||||
|
||||
|
I can try to get some photos of this module on the weekend if you still need them, let me know.
Quote:
|
|
#4
03-07-2013, 03:02 PM
|
||||
|
||||
|
Quote:
 I am going to source the 2-pin connector for the application and will let you guys know...
|
|
#5
03-08-2013, 11:16 AM
|
||||
|
||||
|
Quote:
Interesting so did you want me to wait until you source a 2 pin connector then we can have pins 10 and 12 of X609 in their own connection once removed? I was most likely going to do my own connection with scotchloks or something similar like you said above, a nice male/female connection and not solder it. And to all who are reading the back and forth, all that Terminator and I speak about is for OWNERS WHO DO NOT HAVE THE FACTORY TOW HITCH KIT INSTALLED AND WOULD LIKE REAR FOGS WITHOUT SPENDING $160 on the Trailer Control Module. If you do have factory tow hitch in your car, please follow the DIY on page 1 of this thread. When my switch comes in (it hasn't yet, I checked the mail yesterday) and I get my rear fogs working I will do a separate thread and put a reference in this one, since the install is for 2 different applications. Terminator just wondering, whats the best way to pop pins 10 and 12 out of the X609? small thin flat blade screwdriver? Been a while since I switched pins out of my tail lights when I installed the LED's.
__________________
2018 Ram 2500 6.7L Cummins 68RFE 19k miles -Bright White/Black - Big Horn Sport - Crew Cab Short Bed 2013 X5 35D (CEO's) - Born on 5/17/2013 - 82k miles - Alpine White/Cinnamon Brown/Premium Pkg, Sport Activity/Premium Pkg and Sound/20" Style 214/Running Boards
|
|
#6
04-17-2013, 12:58 PM
|
||||
|
||||
|
Looking at mine it says:
AMP 1-963557-2 BMW 1 383 565 You can see also here: Áëîê MPM BMW E60 MPM CONTROL MODULE ::: ÌÀÐÊÅÒ » Àâòî ìîòî ïðîäàæà / ôîòî 13016400 800 x 600 io.ua Áëîê MPM BMW E60 MPM CONTROL MODULE : ôîòîãðàôèè Àâòî ìîòî ïðîäàæà Quote:
|
|
