Exclamation Need your help installing a Bluetooth antenna in my X5.

Hello everyone,

I recently added the Bluetooth module to my 03 X5 4.4. I was able to connect with the existing wires in the trunk. My phone connects with no problems, but when connected, there is a lot of static and the connection frequently drops.

I realized that the car may not have a Bluetooth antenna installed, so I purchased one but I am unable to find where it plugs in. I've included some pictures of the trunk area and another one of underneath the center console where there is a purple wire that says Bluetooth antenna on it but I don't know where either end goes.

Also, does anyone know what the colors on the Bluetooth TCU stand for? When I connect the Purple cable to the Black colored connection, the system works. It does not connect to the purple connection because it physically won't fit the connection. There is also a white and blue connection that I don't know what they're for.

Any help is greatly appreciated!
Attached Images

__________________
Say what you will, nothing drives like a BMW.


2003 X5 E53 4.4
2001 740iL Sport
1990 325i E30 - Restored/Restoring
Reply With Quote

Sponsored Links

  #2
Old 10-20-2010, 09:58 AM
Member

Join Date: Oct 2010
Location: Romania
Posts: 299
chas3 is on a distinguished road
TCU stands for Telematics Control Unit.
The antenna is installed on top of the left hand side trunk shelf, the one holding the DSP, CDC, MK, ULF, and it plugs directly into the ULF unit.
Reply With Quote
  #3
Old 10-25-2010, 06:42 PM
ArNarX5's Avatar
Member

Join Date: Oct 2005
Location: Los Angeles, CA
Posts: 83
ArNarX5 is on a distinguished road
Thanks for the reply. I looked prior to the post but I have not seen the antenna. I'll look again this week and hopefully be able to find it.

So , the purple cable that is shown in the post was actually a male and female already connected. Since I did not see any other cables that seemed as though they would fit the ULF during the install, I disconnected the two and plugged the female end into the ULF to make it work. It was a gamble and with it connected, the system works. Just lots of static and lost calls. Without it I get getting "function is currently not possible".

I bought a used antenna and it's end also plugs into the female purple connector shown in the trunk but it leaves me with nothing else to connect to the ULF. Even with the way it is now, the purple female wire connects to the ULF leaving the male connector set aside and the system does not work.

Is there a wire that I am overlooking? The car seems to have all the buttons and wires that would enable the upgrade to be done, but something just isn't right.



Any pics would be great if you can advise.
Thanks!
__________________
Say what you will, nothing drives like a BMW.


2003 X5 E53 4.4
2001 740iL Sport
1990 325i E30 - Restored/Restoring
Reply With Quote
  #4
Old 10-25-2010, 08:33 PM
Member

Join Date: Feb 2009
Location: new jersey
Posts: 44
abwmma is on a distinguished road
Ok. I just took a qiuick look at my 2006 X5. On your picture #1. At the back of the ULF module. The very top White color connector was plug in and same as the last one at the bottom Black color with the purple connector. The 2 in the middle (blue and purple) are not use. You also need to insert the big plug in the front. Hope htis help.

Kin
Reply With Quote
  #5
Old 05-15-2017, 02:51 PM
mig25's Avatar
Member

Join Date: Nov 2015
Location: Missouri
Posts: 48
mig25 is on a distinguished road
Arnar,
Did you ever get this figured out? I am facing the same issue. However my phone does not find my car. I get message stating "Phone connected?"
__________________
2003 X5 3.0i AWD
Reply With Quote
  #6
Old 05-15-2017, 08:26 PM
ArNarX5's Avatar
Member

Join Date: Oct 2005
Location: Los Angeles, CA
Posts: 83
ArNarX5 is on a distinguished road
Mine ended up being the Bluetooth antenna cable... it was missing. I had to buy it from eBay. Connected it off eBay and once in place it worked like a charm.
__________________
Say what you will, nothing drives like a BMW.


2003 X5 E53 4.4
2001 740iL Sport
1990 325i E30 - Restored/Restoring
Reply With Quote
  #7
Old 05-15-2017, 09:30 PM
mig25's Avatar
Member

Join Date: Nov 2015
Location: Missouri
Posts: 48
mig25 is on a distinguished road
Bluetooth

Which one is the antenna? I have the purple cable connected to the black dot port.
I also have a lose wire fits nonwhere.
I will post a picture here tomorrow or so.
Thanks.
__________________
2003 X5 3.0i AWD
Reply With Quote
  #8
Old 05-16-2017, 10:51 PM
mig25's Avatar
Member

Join Date: Nov 2015
Location: Missouri
Posts: 48
mig25 is on a distinguished road
Question BLUETOOTH

Sorry to highjack this thread.
No matter what I do, I only see message "PHONE CONNECTED?"
I do not know where the antenna goes. I dont even know if I have one.

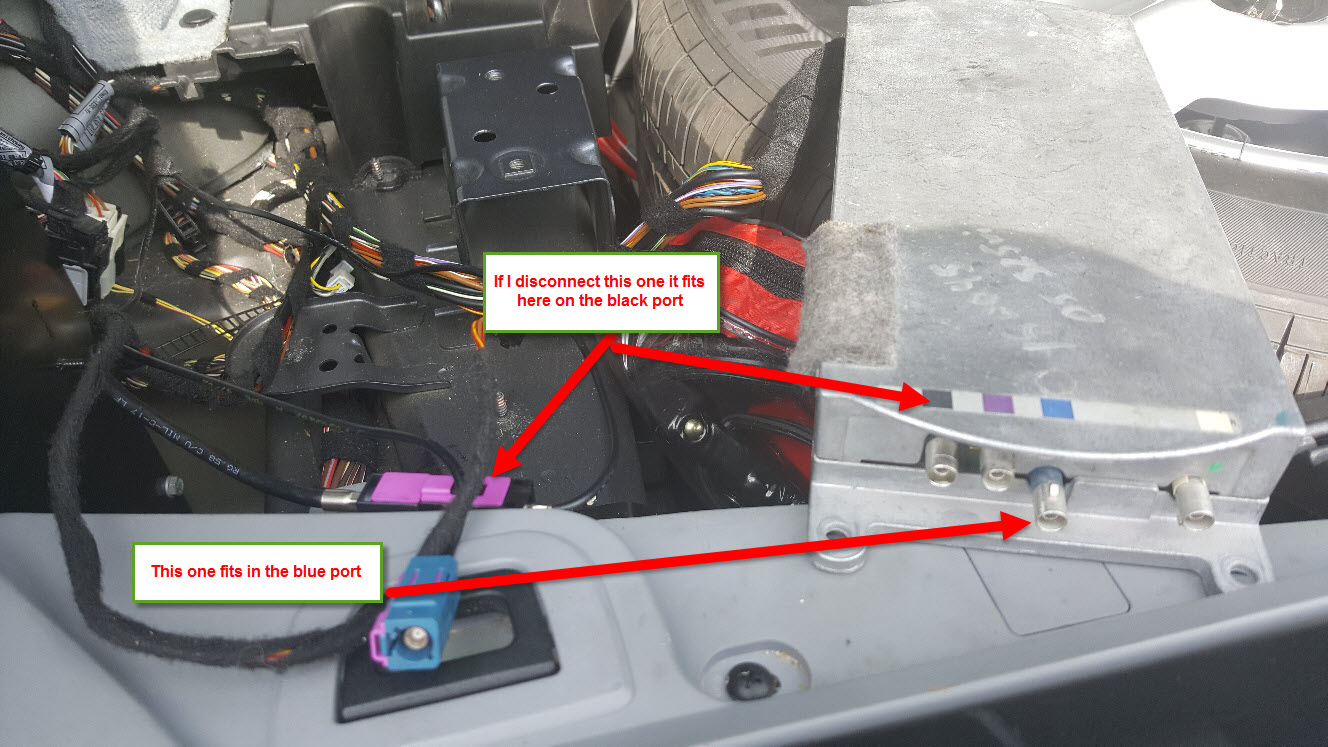

As you did I disconnected that purple female plug it plugs straight in to my black port.
I also found a black plug that fits in to the blue port. I am at loss, I cant get this thing figured out.
See my pictures below...




Also see the black connector. I am not sure what that is. I thought it was the antenna.


__________________
2003 X5 3.0i AWD
Reply With Quote
  #9
Old 05-17-2017, 01:34 AM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 2,363
wpoll will become famous soon enough
There's a few pictures of the OEM BT antenna and connections in this article - they may help you.

https://store.bimmernav.com/blogs/in...bluetooth-kits
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #10
Old 05-19-2017, 06:54 PM
mig25's Avatar
Member

Join Date: Nov 2015
Location: Missouri
Posts: 48
mig25 is on a distinguished road
Question Bluetooth

Thanks for the reply.
I checked the link above, no luck.
I am still not sure if I have an antenna at all, or if I dont't I would not know where to plug since the site mentioned above does not show my TCU.

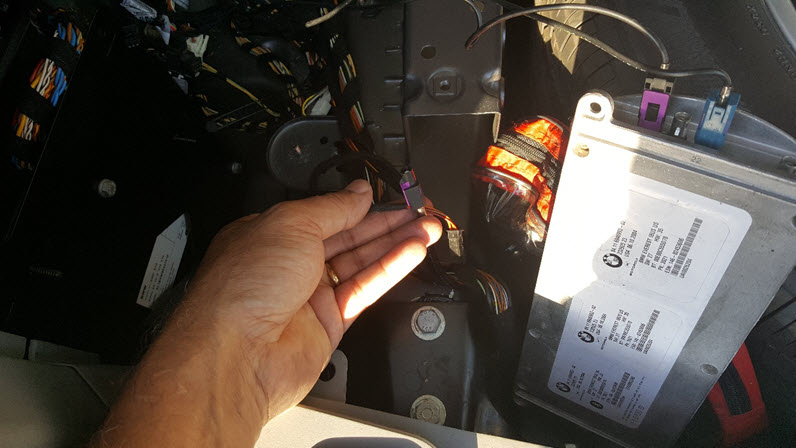

Below are more detailed pictures of what I am fancing.

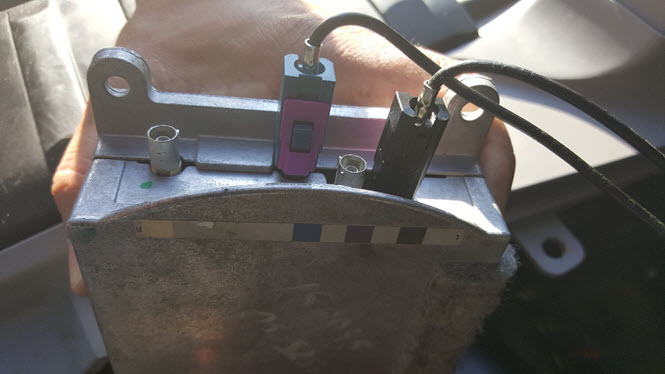

CLose up


__________________
2003 X5 3.0i AWD
