  #11
Old 05-31-2011, 01:00 PM
gitchies's Avatar
Member

Join Date: Apr 2010
Location: ontario, canada
Posts: 209
gitchies is on a distinguished road
i am contemplating this too, but just worried it might be too loud for my liking....hence why i was wondering if used a smaller resonator then our original one....

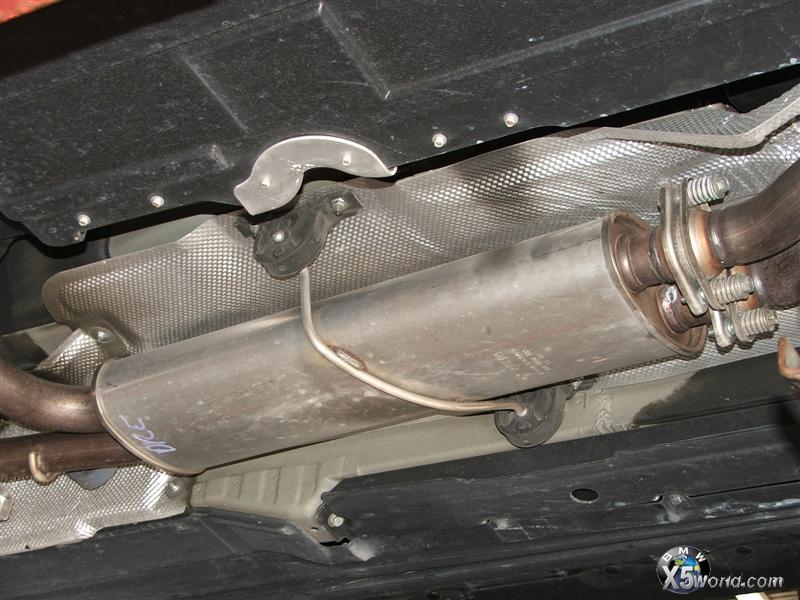

pic is courtesy of NCX....from an older thread...the resonator is massive!!!! if anyone has used different resonators, let me know!!!
Attached Images

Reply With Quote

Sponsored Links

  #12
Old 05-31-2011, 01:03 PM
Naz24's Avatar
Member

Join Date: Mar 2009
Location: New Jersey
Posts: 3,603
Naz24 is on a distinguished road
I just read a thread where someone mentioned that they lost power bc of the x pipe. Apparently it was installed in a bad spot. Does anyone have pictures of the best place to install? I'm scared to go thru with this and then lose power...
__________________
NAZARIO
2015 M3 / 2012 X5M
BMWCCA



Kiss French, Wear Italian, Drive German
Reply With Quote
  #13
Old 06-01-2011, 04:57 PM
gitchies's Avatar
Member

Join Date: Apr 2010
Location: ontario, canada
Posts: 209
gitchies is on a distinguished road

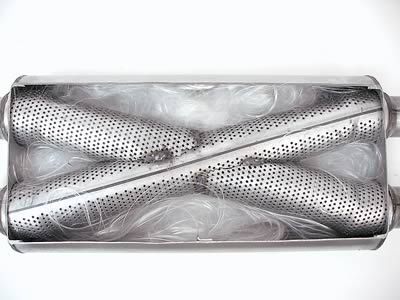

I wonder if this piece would work, good flow? but toned down a bit rather then just the bare x-pipe?
Part is Dynomax Ultra Flo X-Pipe Muffler 17552, i'm sure there are other ones available....or just use x-pipe and let the rear mufflers tone it down, or up........
Attached Images

Reply With Quote
  #14
Old 06-01-2011, 06:49 PM
mrbmwx5's Avatar
Premier Member

Join Date: Jun 2006
Location: Brownstwn,Michigan.
Posts: 4,794
mrbmwx5 is on a distinguished road
Quote:
Originally Posted by Naz24 View Post
I just read a thread where someone mentioned that they lost power bc of the x pipe. Apparently it was installed in a bad spot. Does anyone have pictures of the best place to install? I'm scared to go thru with this and then lose power...
Not with X-pipe...Power lost with straight pipe.
Reply With Quote
  #15
Old 10-15-2011, 07:33 PM
m5james's Avatar
Member

Join Date: Apr 2008
Location: Kirkland, WA to Alexandria, VA - Now in Marysville, WA
Posts: 4,001
m5james is on a distinguished road
So I bit the $150 bullet ($114 labor, $35 shipped for 2.25" x-pipe) and to be honest...I expected more sound. Outside on a quiet day I can slightly hear a difference at idle, blipping the throttle I can't really notice much of a difference other than the stock popping is now more pronounced, but thats irrelevant since the engine doesnt rev nearly as fast in gear as it can at idle. About the only time I can tell is when the radio is off/low and while decelerating or partial throttle input while driving because I can hear what I would call a slight drone/resonance but that actually sounds good.

I expected it to sound like my 740iL when I did the Magnaflow 14816's...went from quiet and dosile to sounding like an E39 M5. No popping, noticeable idle change and sounds very strong, not a bit of drone, etc.

I made sure the shop measured and installed the new xpipe in the exact same location where the xpipe portion inside the stock resonator sits front to rear to ensure the exhaust pulse paths didnt get messed up, causing power loss. At this point I imagine this mod sounds the best outside of the car for people on the street because it's only a slight difference inside. Oh well.
__________________

650hp 10 X5///M - Stage 2, Vibrant 1794's , gutted cats, custom intake, AC Forged 22's
325hp 98 BMW 740iL - ///M5 6spd, www.bavengine.com w/ Performance Option, electric fan, CF intake tube w/ heatshield, Mag 14816 w/ notched bumper, Bilstein/H&R Stage II/Powerflex

600+hp 02 Harley F150 - MHP900 Stage 3 engine, KB2.3, 8# lower, 60# inj, Walbro FP's

135hp 01 TL1000R - M4 full exhaust, K&N, Yosh box, -1/+2 gears, 2CT's

Last edited by m5james; 10-15-2011 at 07:39 PM.
Reply With Quote
  #16
Old 10-15-2011, 07:41 PM
Naz24's Avatar
Member

Join Date: Mar 2009
Location: New Jersey
Posts: 3,603
Naz24 is on a distinguished road
Quote:
Originally Posted by m5james View Post
So I bit the $150 bullet ($114 labor, $35 shipped for 2.25" x-pipe) and to be honest...I expected more sound. Outside on a quiet day I can slightly hear a difference at idle, blipping the throttle I can't really notice much of a difference other than the stock popping is now more pronounced, but thats irrelevant since the engine doesnt rev nearly as fast in gear as it can at idle. About the only time I can tell is when the radio is off/low and while decelerating or partial throttle input while driving because I can hear what I would call a slight drone/resonance but that actually sounds good.

I expected it to sound like my 740iL when I did the Magnaflow 14816's...went from quiet and dosile to sounding like an E39 M5. No popping, noticeable idle change and sounds very strong, not a bit of drone, etc.

I made sure the shop measured and installed the new xpipe in the exact same location where the xpipe portion inside the stock resonator sits front to rear to ensure the exhaust pulse paths didnt get messed up, causing power loss. At this point I imagine this mod sounds the best outside of the car for people on the street because it's only a slight difference inside. Oh well.
Well, was it worth it?

..where can i find the exact dimensions for the X-Pipe location?
__________________
NAZARIO
2015 M3 / 2012 X5M
BMWCCA



Kiss French, Wear Italian, Drive German
Reply With Quote
  #17
Old 10-15-2011, 08:02 PM
m5james's Avatar
Member

Join Date: Apr 2008
Location: Kirkland, WA to Alexandria, VA - Now in Marysville, WA
Posts: 4,001
m5james is on a distinguished road
Ehh, its debatable. I spent about 2x that to do the exhaust on the 7, but thats also two mufflers and custom bracketing for a huge, noticeable difference. As I said, its minor inside but I bet it sound much better outside. I've listened as the X drove away and it was definately muffled, so I'll have to find someone again to drive it away so i can hear it. Inside, it's only slightly noticeable in certain situations.

As for the location, I just told them to cut off the old resonator (which is essentially a muffled x-pipe internally anyways), measure how far back the stock x is and then to locate the new x in the same front-to-rear location. I haven't inspected their work, but I don't have any loss of power, so I can assume the guy was able to read a tape measure and located it properly.
__________________

650hp 10 X5///M - Stage 2, Vibrant 1794's , gutted cats, custom intake, AC Forged 22's
325hp 98 BMW 740iL - ///M5 6spd, www.bavengine.com w/ Performance Option, electric fan, CF intake tube w/ heatshield, Mag 14816 w/ notched bumper, Bilstein/H&R Stage II/Powerflex

600+hp 02 Harley F150 - MHP900 Stage 3 engine, KB2.3, 8# lower, 60# inj, Walbro FP's

135hp 01 TL1000R - M4 full exhaust, K&N, Yosh box, -1/+2 gears, 2CT's
Reply With Quote
  #18
Old 10-16-2011, 06:24 PM
m5james's Avatar
Member

Join Date: Apr 2008
Location: Kirkland, WA to Alexandria, VA - Now in Marysville, WA
Posts: 4,001
m5james is on a distinguished road
Quick update:

Just happen to look at the receipt today and noticed that it says they only used 2" piping vs 2.25" that the car has stock. I'm going to try and look under the truck tomorrow, but in the meantime I'm a bit pissed that they basically added a bottleneck by installing smaller pipe vs opening up the exhaust, hence the x-pipe installation in the first place. I'm wondering if this is the reason why I've not got these huge exhaust note gains that everyone is claiming to get.
__________________

650hp 10 X5///M - Stage 2, Vibrant 1794's , gutted cats, custom intake, AC Forged 22's
325hp 98 BMW 740iL - ///M5 6spd, www.bavengine.com w/ Performance Option, electric fan, CF intake tube w/ heatshield, Mag 14816 w/ notched bumper, Bilstein/H&R Stage II/Powerflex

600+hp 02 Harley F150 - MHP900 Stage 3 engine, KB2.3, 8# lower, 60# inj, Walbro FP's

135hp 01 TL1000R - M4 full exhaust, K&N, Yosh box, -1/+2 gears, 2CT's
Reply With Quote
  #19
Old 10-17-2011, 01:55 PM
Member

Join Date: Aug 2011
Location: Utah
Posts: 8
teknik_ranger is on a distinguished road
Magnaflow

I had the local exhaust shop put an X-pipe on in place of the resonator...wasn't impressed. It's been about 8 months and I took it back in...had them take the X-pipe off, put a magnaflow tru-x muffler (similar to the dynomax one on the previous post) on and ran new pipes out the back with oval resonator tips. Sounds GREAT now!!!
Reply With Quote
  #20
Old 10-17-2011, 04:06 PM
m5james's Avatar
Member

Join Date: Apr 2008
Location: Kirkland, WA to Alexandria, VA - Now in Marysville, WA
Posts: 4,001
m5james is on a distinguished road
At this point I just wanna take a look underneath and make sure they didn't basically install a bottleneck. I want it slightly louder, but not as loud as my 7 since the X is the daily driver and roadtrip car.
__________________

650hp 10 X5///M - Stage 2, Vibrant 1794's , gutted cats, custom intake, AC Forged 22's
325hp 98 BMW 740iL - ///M5 6spd, www.bavengine.com w/ Performance Option, electric fan, CF intake tube w/ heatshield, Mag 14816 w/ notched bumper, Bilstein/H&R Stage II/Powerflex

600+hp 02 Harley F150 - MHP900 Stage 3 engine, KB2.3, 8# lower, 60# inj, Walbro FP's

135hp 01 TL1000R - M4 full exhaust, K&N, Yosh box, -1/+2 gears, 2CT's
