  #81
Old 11-18-2016, 05:05 AM
davintosh's Avatar
Member

Join Date: Sep 2012
Location: Sioux Falls, SD
Posts: 395
davintosh is on a distinguished road
Wayne:

Those kits look very much like what I used when I did the bearing R&R on my old X5. I remember having to get a bit creative with the slide hammer on the front bearings, but don't recall exactly what I did, and didn't take photos. It's not rocket surgery though; you basically just need a firm attachment of the spider that gets the central shaft of the slide as close as possible to the center of the hub, then hammer away. It takes a quite a bit of hammering to get it out though.

All the best as you tackle this job; post up pics if you can to help those who come after!
--
Dave
__________________
2001 X5 Sport 3.0/5-speed
1998 318ti/5-speed
1988 735i/5-speed
1984 528e/5-speed (soon to be M20B25-powered 525i!)
Reply With Quote

Sponsored Links

  #82
Old 11-18-2016, 06:01 AM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 2,726
wpoll will become famous soon enough
Quote:
Originally Posted by davintosh View Post
Wayne:

Those kits look very much like what I used when I did the bearing R&R on my old X5. I remember having to get a bit creative with the slide hammer on the front bearings, but don't recall exactly what I did, and didn't take photos. It's not rocket surgery though; you basically just need a firm attachment of the spider that gets the central shaft of the slide as close as possible to the center of the hub, then hammer away. It takes a quite a bit of hammering to get it out though.

All the best as you tackle this job; post up pics if you can to help those who come after!
--
Dave
Thanks Dave. I'll be sure to take and post pics when I do this. Still haven't figured which bearing it the noisy one - it's only a faint noise but getting worse - so it may be a few weeks before I tackle it.

I guess my main worry with the bearing tools is are the sizes going to work? The bearing is 90 x 49 x 45 so a 91mm drift will be too large to fit the knuckle bore and the 86mm may be too small to seat on the bearing outer.

Just gonna have to try it and see.
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #83
Old 11-18-2016, 09:40 AM
Member

Join Date: Oct 2008
Location: Sunny San Diego
Posts: 237
MPDano is on a distinguished road
This is the tool set I bought to do my front bearings.

FWD Front Wheel Bearing Adapters

Bearing Splitter & Large Bearing Separator

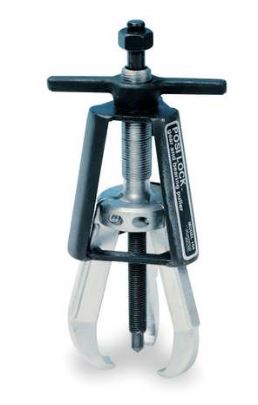

you'll also need this to pull the race out.
Attached Images

__________________
_____________________

2004 Gray/Gray 3.0 X5
Reply With Quote
  #84
Old 11-18-2016, 01:31 PM
JAXX5's Avatar
Member

Join Date: Oct 2010
Location: Northeast Florida
Posts: 118
JAXX5 is on a distinguished road
I didn't use a slide hammer. The bearing kit yes but someone had recommended threaded steel rods from hardware store and ditch the ones in the kit. That was sound advice.
Reply With Quote
  #85
Old 11-18-2016, 02:38 PM
Ricky Bobby's Avatar
Member

Join Date: Dec 2011
Location: Wake Forest, NC
Posts: 9,332
Ricky Bobby will become famous soon enough
^That was me and because I bought the Harbor Freight wheel bearing kit -

The slide hammer kit posted looks exactly like what I used, the shallow monkey paw looking flange fits on the front hubs and also works well to push the axle out of the hub - I did both of mine wpoll, even though only one was bad.

The wheel bearing kit posted on the last page also looks excellent if you are doing the job in situ, like myself and Dave did.
__________________
2003 X5 3.0i 5-Speed - Born on 9/18/2003
105k miles -Topaz Blue/Schwarz/Titan Int. Trim/EHCII/Sport
Proud 3-Pedal owner, UUC SS/AFE/4.8iS Exhaust/Sharked
2013 X5 35D (CEO's) - Born on 5/17/2013 -
68k miles - Alpine White/Cinnamon Brown/Premium Pkg, Sport Activity/Premium Pkg and Sound/20" Style 214/Running Boards

Reply With Quote
  #86
Old 02-10-2017, 12:49 AM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 2,726
wpoll will become famous soon enough
Quote:
Originally Posted by Ricky Bobby View Post
^That was me and because I bought the Harbor Freight wheel bearing kit -

The slide hammer kit posted looks exactly like what I used, the shallow monkey paw looking flange fits on the front hubs and also works well to push the axle out of the hub - I did both of mine wpoll, even though only one was bad.

The wheel bearing kit posted on the last page also looks excellent if you are doing the job in situ, like myself and Dave did.
Well, I finally tracked down the bad bearing; turned out to be the right rear.

I did buy the two tools I indicated in my earlier post, despite knowing that the bearing press set won't work for removing and installing the front bearing - the receiver cups are all too small. The set (Platinum or Heshi brand) works well on the rear and should also work for for driving in the hub on the front. Very well in fact; this was the easiest part of the whole task!

I used the slide hammer base to drive out the axle (slow and steady) and then whacked out the hub and inner of the bearing - took less than 20 whacks to totally remove the assembly.



I had to drop the exhaust system in order to pull the rear axle (half-shaft) and doing this gave me enough room to replace the bearing without undoing any suspension parts, so no wheel alignment!

All in all, I'm glad to have it done and have a quiet rolling chassis again.
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #87
Old 10-01-2017, 09:50 PM
Member

Join Date: Jun 2014
Location: Omaha, NE
Posts: 1,204
cn90 is on a distinguished road
Hi guys,

Just curious what Adapter Kit you need to press the OUTER bearing race from the Knuckle (once the Hub +INNER race is removed).

Can someone link with pics to ebay or amazon or whatever website regrading the proper Bearing Adapter Kit?

I wonder if the "Standard FWD Bearing Adapter Kit" sold on ebay for $55 works...
__________________
1998 E39 528i 5sp MT
2006 E53 X5 3.0 6sp MT

Last edited by cn90; 10-01-2017 at 09:56 PM.
Reply With Quote
  #88
Old 10-01-2017, 09:56 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 2,726
wpoll will become famous soon enough
Any kit with sizes like this will work...

23Pc FWD Front Wheel Drive Bearing Removal Adapter Puller Pulley Tool Kit /W Box | eBay

Some folk have replaced the threaded rod with something a bit stronger.

I tried to get one of these from AliExpress but got screwed around by the seller and gave up. Got a local set that isn't large enough for the front but worked well on the rear. Will get a local engineering firm to make me a 102mm receiver if I ever need to change a front bearing....
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #89
Old 10-03-2017, 03:16 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 4,510
andrewwynn is on a distinguished road
Front Wheel Bearing R&R

I own a similar bearing press tool. The problem with the kit is it uses a 3/4 inch bolt which is only good for about 11 tons of force. I stripped three of these bolts changing two bearings before I upgraded to a 1" bolt (31T force).

The 3/4 rod would probably work for the rear bearing as it felt like overkill when I used the 1" upgrade on the rear bearing.

Sent from my iPhone using Tapatalk Pro
__________________
E53 / M54 2001 3.0i gas LHD (pair of them: his & her)

Last edited by andrewwynn; 10-03-2017 at 03:22 PM.
Reply With Quote
  #90
Old 10-04-2017, 11:36 AM
Member

Join Date: Apr 2006
Location: PA
Posts: 462
Scott ZHP is on a distinguished road
Quote:
Originally Posted by andrewwynn View Post
I own a similar bearing press tool. The problem with the kit is it uses a 3/4 inch bolt which is only good for about 11 tons of force. I stripped three of these bolts changing two bearings before I upgraded to a 1" bolt (31T force).

The 3/4 rod would probably work for the rear bearing as it felt like overkill when I used the 1" upgrade on the rear bearing.

Sent from my iPhone using Tapatalk Pro
I've seen this quoted a number of times. Just curious where you're getting this figure.

Grade 8 3/4 SAE is good for a minimum of 50,000lb tensile strength. That's more than enough to yank a wheel bearing, IMO. In this application, I wouldn't use anything BUT a hardened grade 8 threaded rod/bolt (black oxide coated, not plated) from a reputable supplier (McMaster, Grainger, etc). Is your figure above for Gr5 or maybe Gr2?

I also grease the threads of the puller; helps tremendously.
__________________
12 E70 3.5i xDrive
03 E46 330i ZHP
01 E53 3.0i
98 E36 323is
12 Audi A4 Quattro
79 Triumph Spitfire
73 MGB
Reply With Quote
