Installing the Underride guard!

Hey, I got a question before I start installing the underride protection kit that I order.

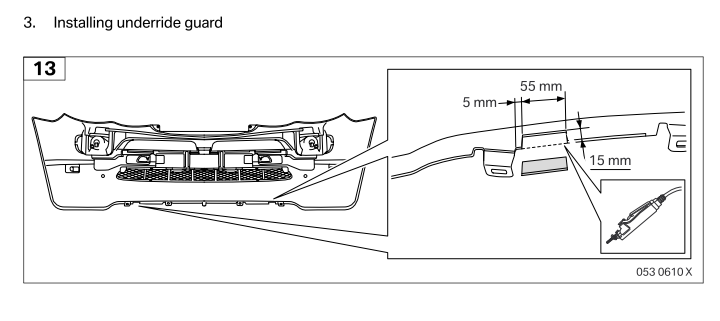

I found some pdf document on another forum and in the instruction under 13 it said that I have to make some cuts into the front bumper. The picture shows a standard bumper, I have the 4.8is front bumper.

Has anyone installed the underride guard with a 4.8is bumper. If so did you make the cuts like in the picture?
Attached Images

Reply With Quote

Sponsored Links

  #2
Old 11-18-2013, 04:42 PM
tmv's Avatar
tmv tmv is offline
Member

Join Date: Nov 2005
Location: Atlanta
Posts: 3,346
tmv is on a distinguished road
I don't have the underride guard. But if I put one in, I would loosely mounted, mark and trim as needed.
__________________

00 E39 DINAN S1 //M5 (82k miles)
06 E53 DINAN 4.8iS, born 2/18/2006 (126k miles) http://www.xoutpost.com/bmw-sav-foru...s-my-dslr.html
90 Straman Z32 TwinTurbo Convertible, (1 of 44 ever made) 5 speed, 444rwhp/451rwtq
01 360 Novitec Spider F1 (26k miles)
Reply With Quote
  #3
Old 11-18-2013, 04:59 PM
PropellerHead's Avatar
Member

Join Date: Dec 2006
Location: At the wheel of a Bimmer
Posts: 2,171
PropellerHead is on a distinguished road
Quote:
Originally Posted by PandaTrader View Post
Hey, I got a question before I start installing the underride protection kit that I order.
I found some pdf document on another forum and in the instruction under 13 it said that I have to make some cuts into the front bumper. The picture shows a standard bumper, I have the 4.8is front bumper.

Has anyone installed the underride guard with a 4.8is bumper. If so did you make the cuts like in the picture?
I installed it on a 4.8is bumper and did have to make notches on them. Not terrible. I used a Dremel.
__________________
Reply With Quote
  #4
Old 11-18-2013, 08:03 PM
Member

Join Date: Oct 2011
Location: California
Posts: 204
PandaTrader is on a distinguished road
Thank you!

Really excited in installing it.
Reply With Quote
  #5
Old 11-19-2013, 02:23 PM
PropellerHead's Avatar
Member

Join Date: Dec 2006
Location: At the wheel of a Bimmer
Posts: 2,171
PropellerHead is on a distinguished road
Quote:
Originally Posted by PandaTrader View Post
Thank you!

Really excited in installing it.
NP. I found a pic from the install.
Attached Images

__________________
Reply With Quote
  #6
Old 11-19-2013, 04:00 PM
Member

Join Date: Oct 2011
Location: California
Posts: 204
PandaTrader is on a distinguished road
Did you make the cuts where the blue tape is?

Also did you loosely mount the guard and then checked were to cut and how much?

Thanks for the picture
Reply With Quote
  #7
Old 11-19-2013, 05:33 PM
PropellerHead's Avatar
Member

Join Date: Dec 2006
Location: At the wheel of a Bimmer
Posts: 2,171
PropellerHead is on a distinguished road
Quote:
Originally Posted by PandaTrader View Post
Did you make the cuts where the blue tape is?

Also did you loosely mount the guard and then checked were to cut and how much?

Thanks for the picture
I made the cut in the small painted plastic rectangle that the tape outlines. I cut the size according to the instructions and did not have a problem with install.
__________________
Reply With Quote
  #8
Old 11-19-2013, 10:31 PM
Member

Join Date: Oct 2011
Location: California
Posts: 204
PandaTrader is on a distinguished road
Do you mean the rectangle that is not the blue tape circled in red?
Reply With Quote
  #9
Old 01-16-2021, 04:31 PM
Member

Join Date: Jan 2020
Location: devon uk
Posts: 63
dazzasgotav8 is on a distinguished road
i no this is an old thread but do you have a link to the pdf or able to email me the instructions as i am looking to fit one of these to mine.
Reply With Quote
  #10
Old 01-16-2021, 04:34 PM
crystalworks's Avatar
Member

Join Date: Jun 2014
Location: SA, TX
Posts: 6,414
crystalworks is on a distinguished road
Quote:
Originally Posted by dazzasgotav8 View Post
i no this is an old thread but do you have a link to the pdf or able to email me the instructions as i am looking to fit one of these to mine.
Here you go. PDF was too large to upload here so had to link.

Gdrive link to under ride install
