#1
12-18-2013, 03:59 PM
|
||||
|
||||
|
Oil leak: Dealer says it's the oil cooler seal??????
Not sure I have the correct term but thats pretty much what they said was leaking. Anyone know where this is located/diagram ?
Dealer is charging me 850$ ( parts 11$ + 5 hr labor). Does this sound fair?
__________________
His : 2005 X5 4.8is (SOLD) Hers: 2007 X5 3.0si (SOLD) _______________ Retired: 1999 518 2000 323i 2002 M3 (beautiful car) 2003 330Ci
|
|
#2
12-18-2013, 04:50 PM
|
|||
|
|||
|
Not sure which one of the X's you refer to, but here's the oil cooler. In front and below the radiator. The pipes have an O-ring where they fit in the cooler - diagram. Maybe these are bust.
__________________
Stable: e92is, e46 M54B25, e83 N52, e53 N62 - sold, e39 M54B30 R.I.P.
|
|
#3
12-18-2013, 05:40 PM
|
||||
|
||||
|
It's for the e53 (4.8).
Thanks for the diagram. 5hr labor time??? Wow that doesn't sound right.
__________________
His : 2005 X5 4.8is (SOLD) Hers: 2007 X5 3.0si (SOLD) _______________ Retired: 1999 518 2000 323i 2002 M3 (beautiful car) 2003 330Ci
|
|
#4
12-18-2013, 09:34 PM
|
|||
|
|||
|

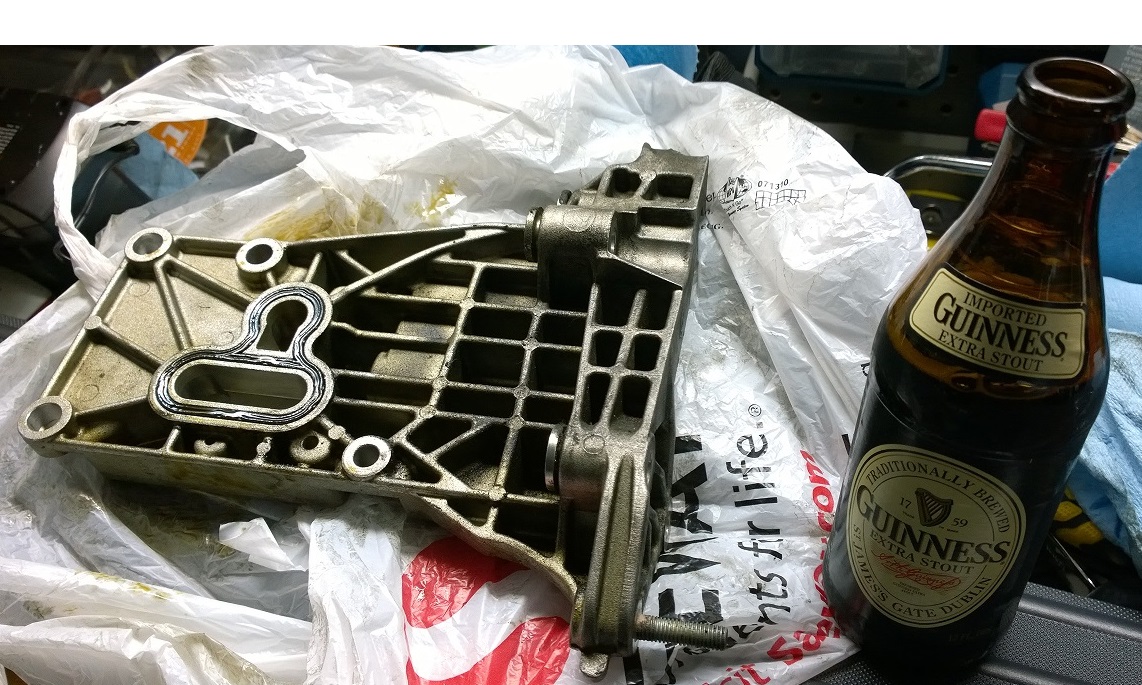

Hello , hope this helps. On that V8 engine on the L/S of the engine where the oil cooler supply and return lines connect. There is a plate which also holds the mount for the alternator. There is a gasket between the engine block and 2 "o" rings for the lines. The gasket between the engine block and mounting plate is a common spot for leakage. To see the gasket in question check on real oem and go to group 12 for engine electrical then click on alternator mounting. It will show the gasket that needs replacement. Its a fairly involved job thus the high labor low parts price. Good luck. Jeff
|
|
#5
12-19-2013, 12:05 PM
|
|||
|
|||
|
Quote:
So it's part # 2 (p/n 12317507808) in the diagram below. Realoem list the part 1.48$, but not cheap to replace......
__________________
Stable: e92is, e46 M54B25, e83 N52, e53 N62 - sold, e39 M54B30 R.I.P.
|
|
#8
02-09-2014, 07:19 PM
|
||||
|
||||
|

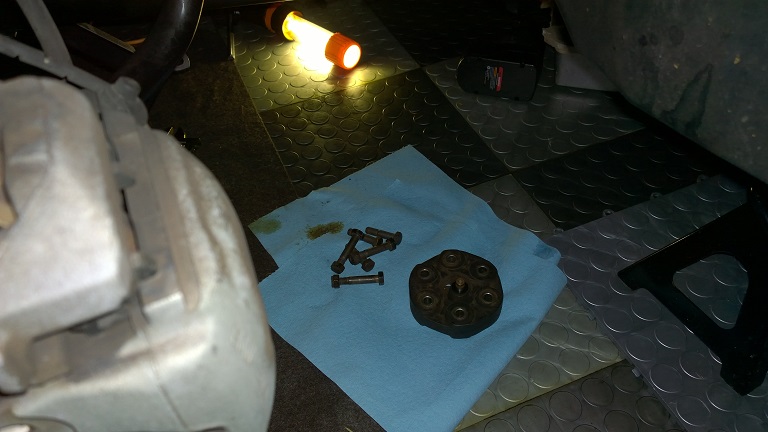

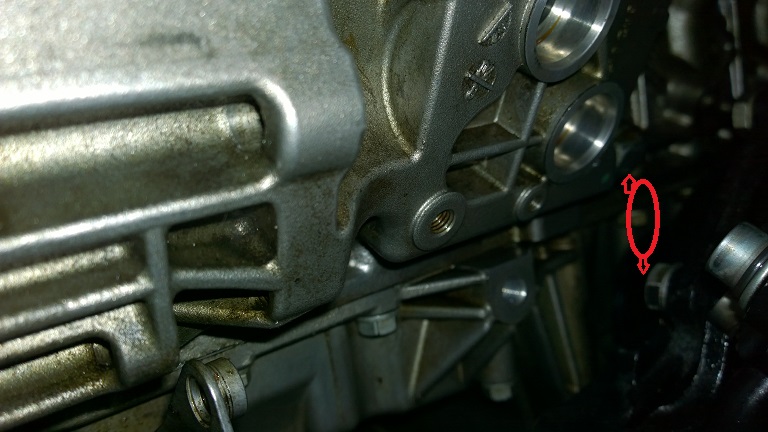

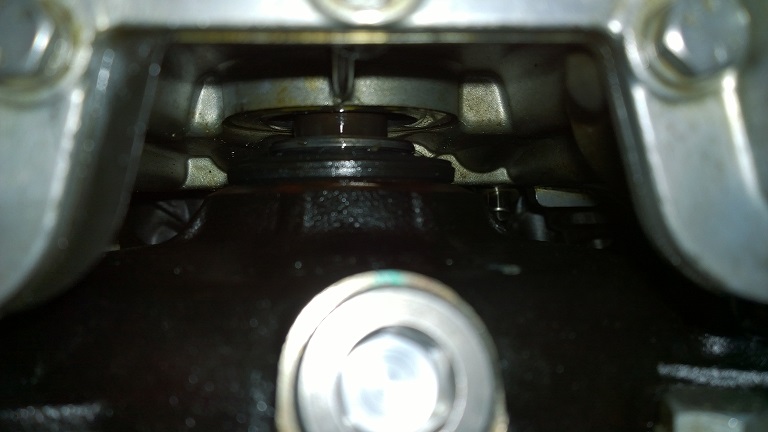

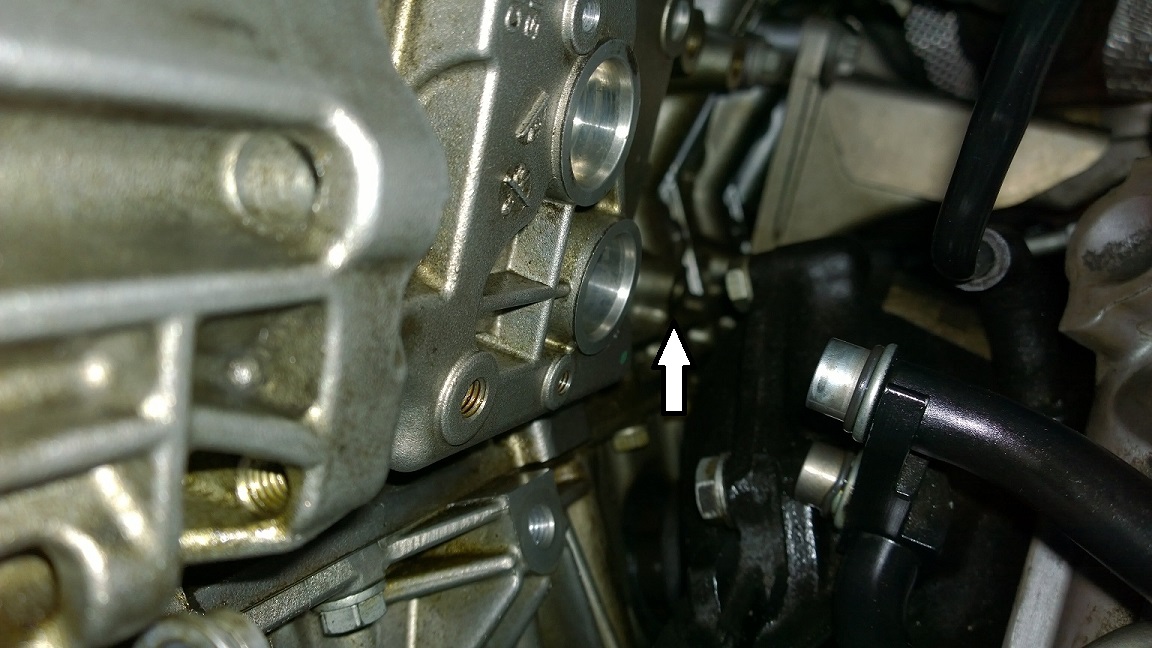

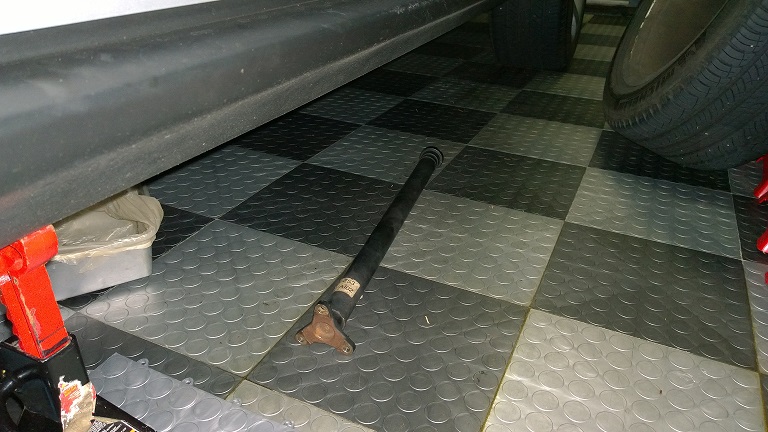

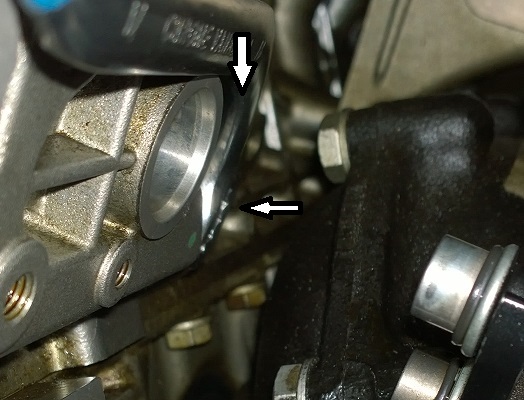

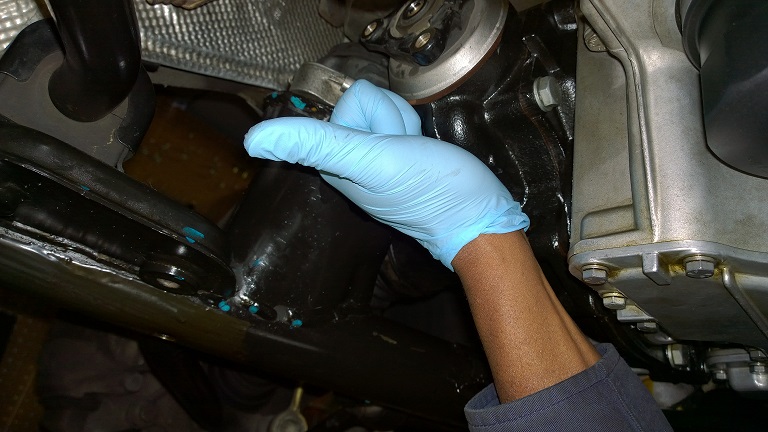

Yes. You need to remove front driveshaft and unbolt front differential. Than use two pry bars and slightly pry differential out. About 1/2 inch. You will be able to rotate diff clockwise and get that last bolt out. I just did this job 2 month ago. If you have any question please PM me.
Sent from my iPhone using Tapatalk
__________________
 2012 X5 x35i My new toy 2005 X5 4.4 Her's (Retrofitted Servotronic Steering Rack) 2003 X5 3.0 Mine (Retrofitted Servotronic Steering Rack and Heated Steering Wheel) 2001 M5 Son's car 2000 540i 6sp Sports pkg, supercharged. Son's car (Sold) 2001 530i (Sold) 1999 528i (Sold) 1975 2002 (Sold)
|
|
#9
02-09-2014, 08:33 PM
|
||||
|
||||
|
Quote:
BTW , Welcome to the forum....
__________________
His : 2005 X5 4.8is (SOLD) Hers: 2007 X5 3.0si (SOLD) _______________ Retired: 1999 518 2000 323i 2002 M3 (beautiful car) 2003 330Ci
|
|
#10
02-13-2014, 11:06 AM
|
||||
|
||||
|
Quote:
__________________
2006 Infiniti G35 2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD Lotus Europa 1970 Destroyed by fire Lotus Europa 1970 S2 Renault Powered Lotus Type 52 1970 Twincam Webers Powered PORSCHE 911 Targa 1982 The Garage Queen Audi Avant donated to Kars for Kids BMW 525IT Sold Audi 4000CS Quattro Sold Jensen Healey Lotus Powered Sold Opel 1900 Sold Triumph Spitfire 1971 Sold Triumph Spitfire 1968 Sold Plymouth "Cuda" 340 Six pack SOLD
|
|
