DIY - Steering wheel trim paint process w/pics

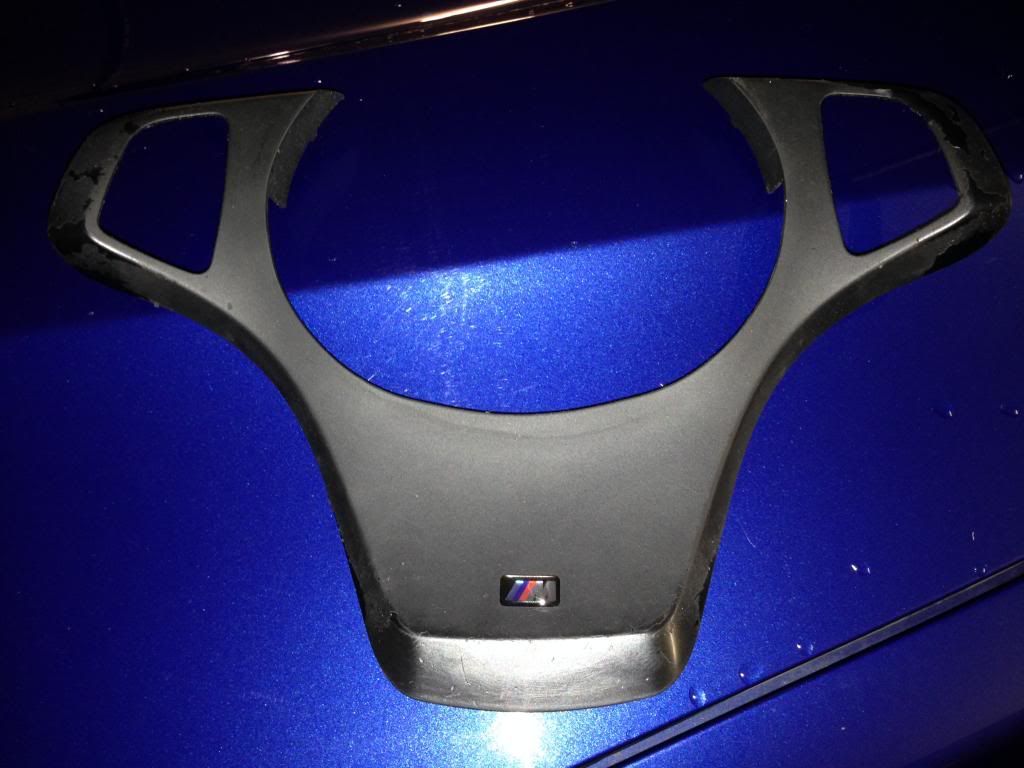

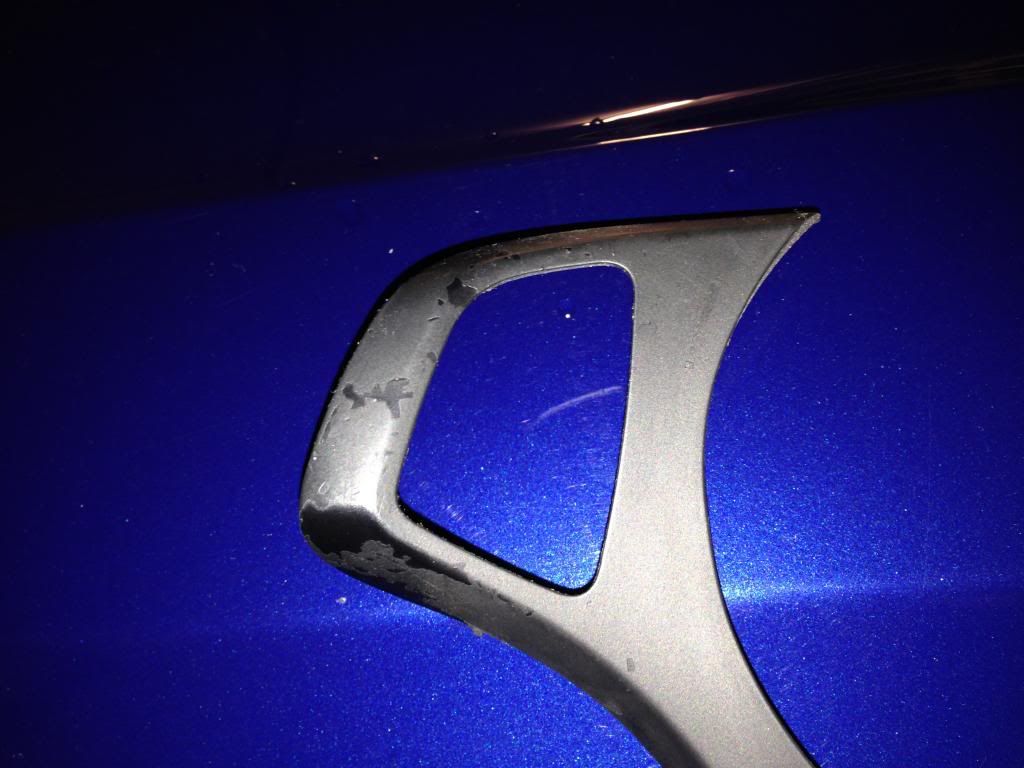

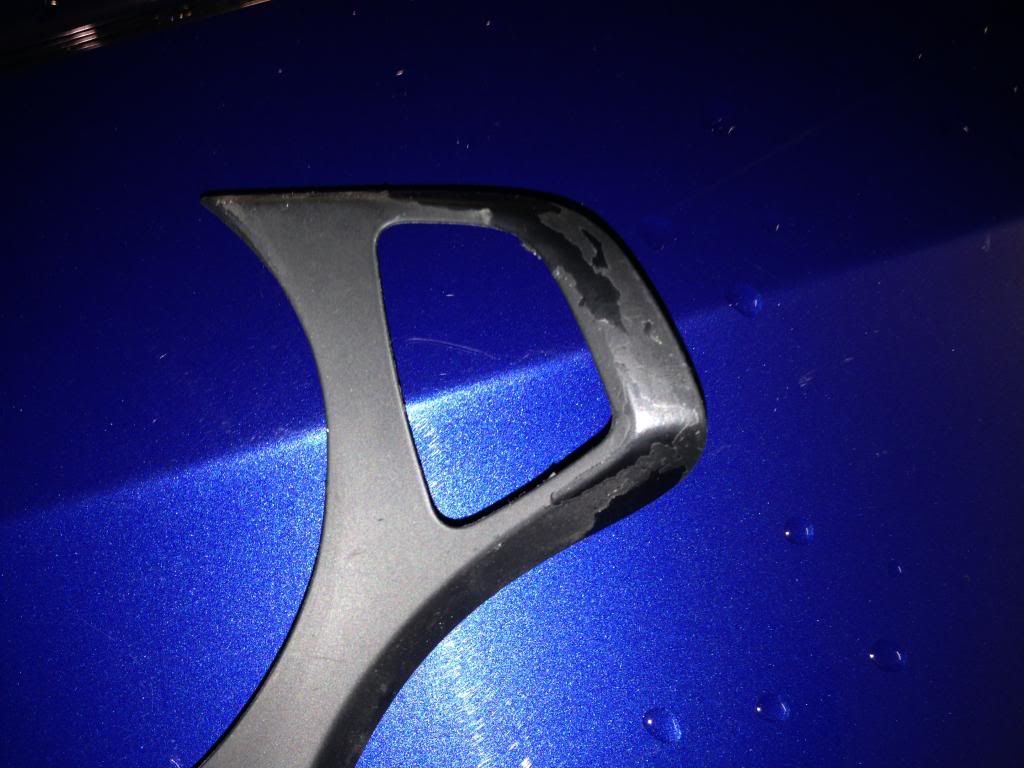

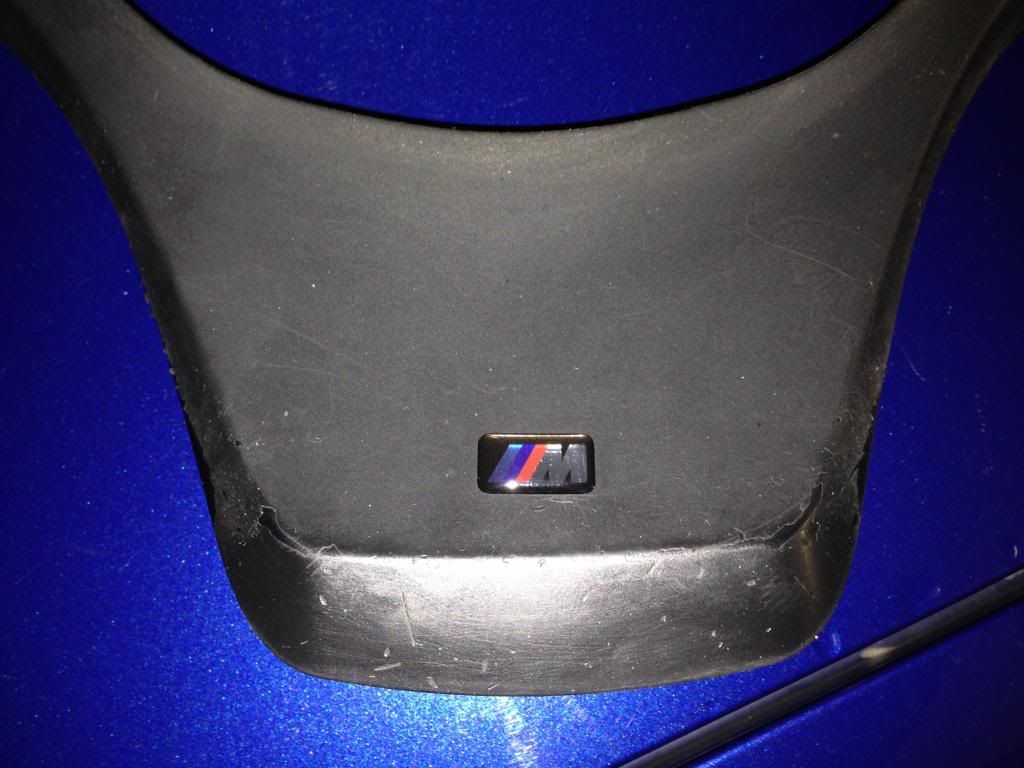

Tonight I decided im gonna start prepping and priming my ugly steering wheel trim, finishing up tomorrow with the painting process.
Ofcourse some folks think buying a new one for 60$ and not having to deal with the painting process is easier but eventually down the road you'll have to deal with the peeling rubber and then you have to replace it once again.
I've used this technique on my E39 steering wheel and I can tell you its a durable finish.
So here it goes...
Unhook your battery,take your airbag out and unscrew the 5 torx screws in the back of the steering wheel.You'll also have 2 torx same size in the back of the steering wheel controls...unscrew those too..now the trim is out.

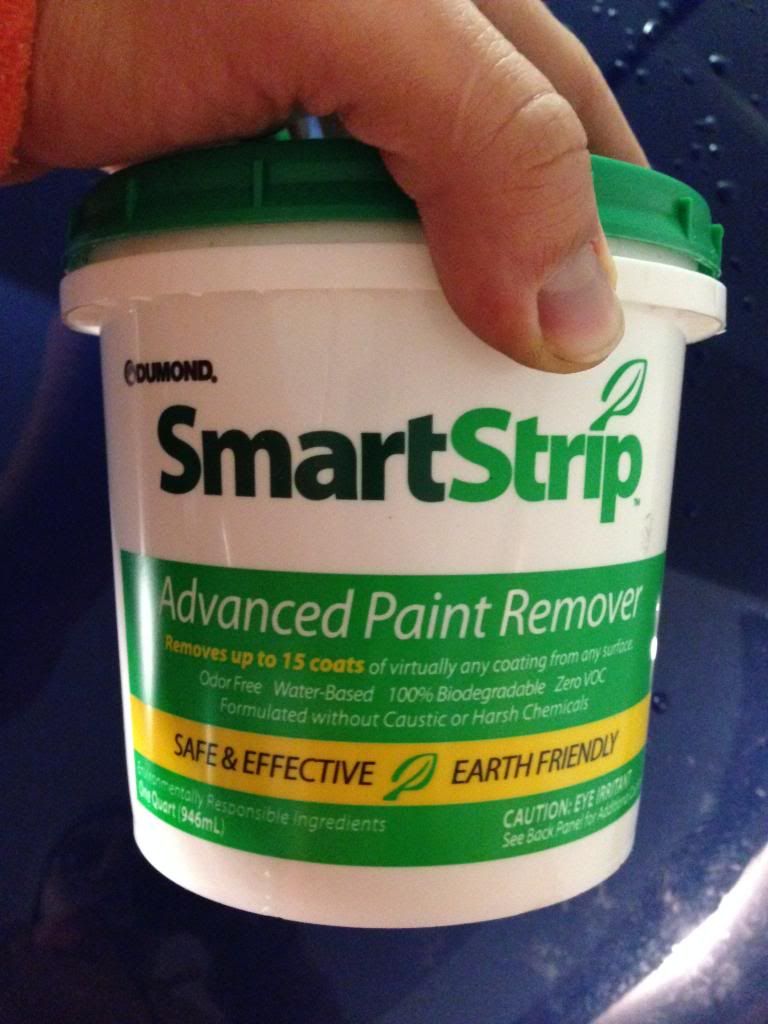

I've started by using a product called Smart Strip.Its about 20$ for a quart at Sherwin Williams...you can use it for other projects around the house and for this particular rubber covered trim was the best solution.(sanding would have been messy and time consuming)



Apply it with a brush and let it sit for 15 min.

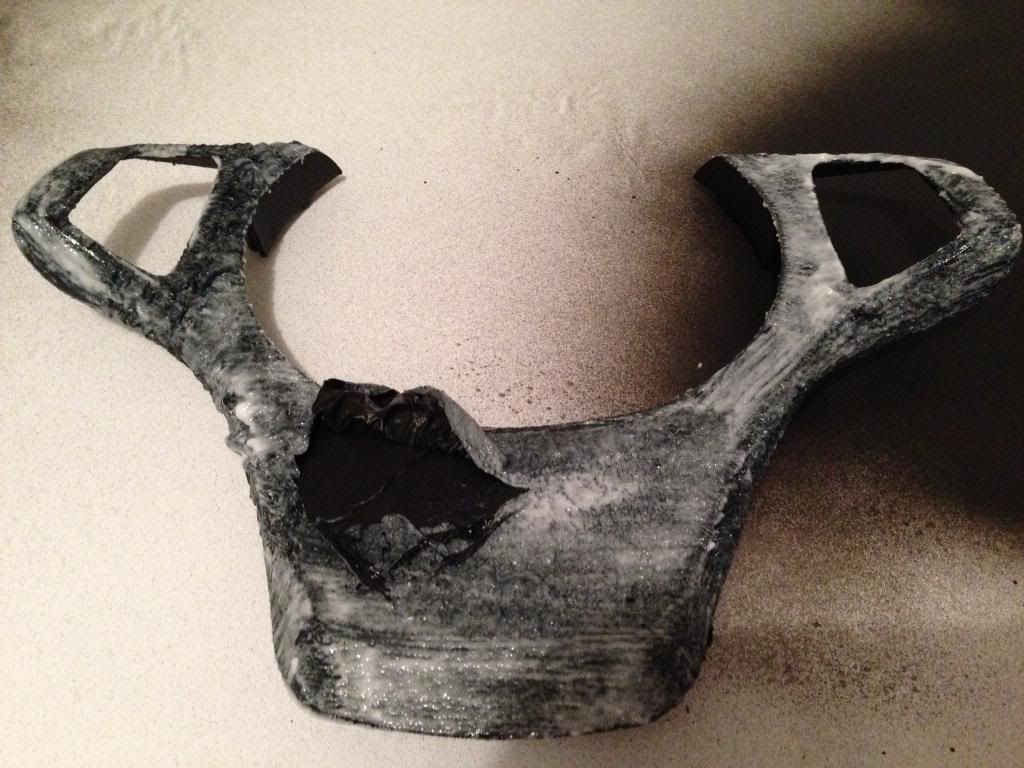

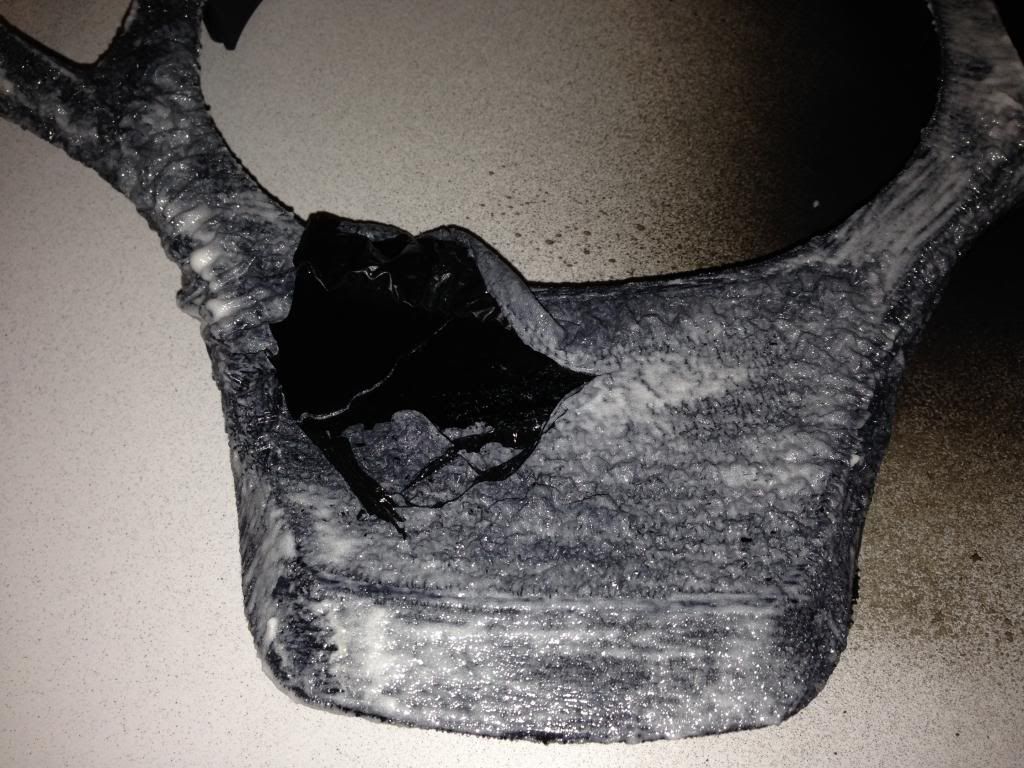

After that, youll notice how it starts to shrink.Wipe it off with a rag.Wash with water.





Make sure you dry it out completely after you wash it(i used a hair blower)

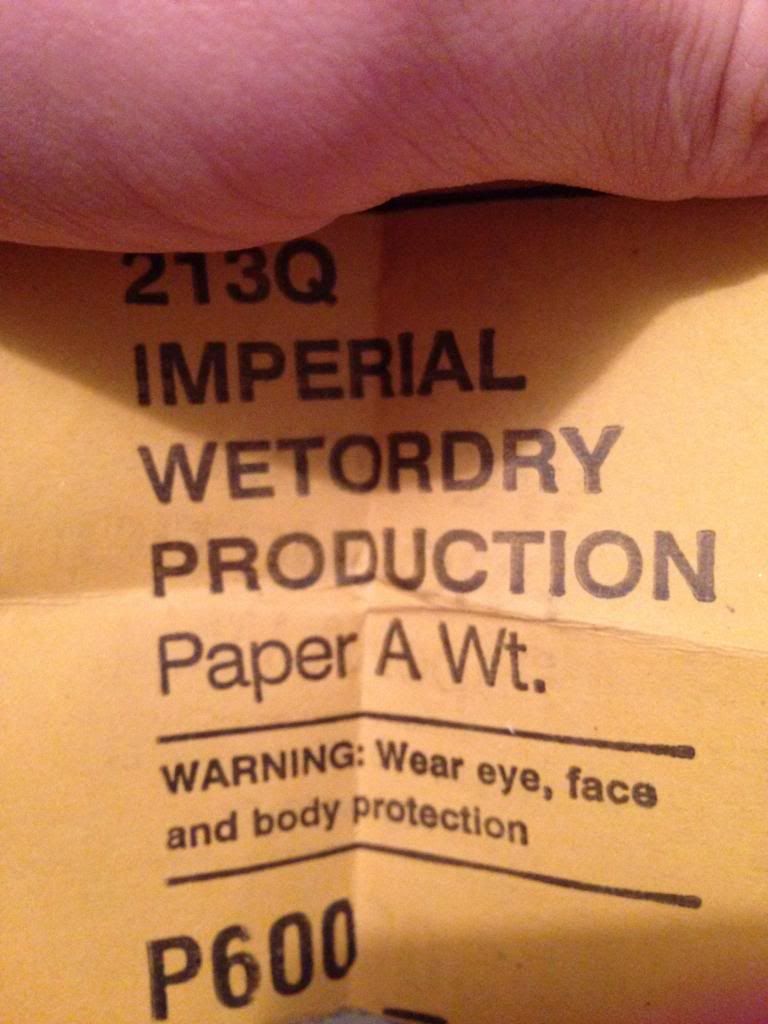

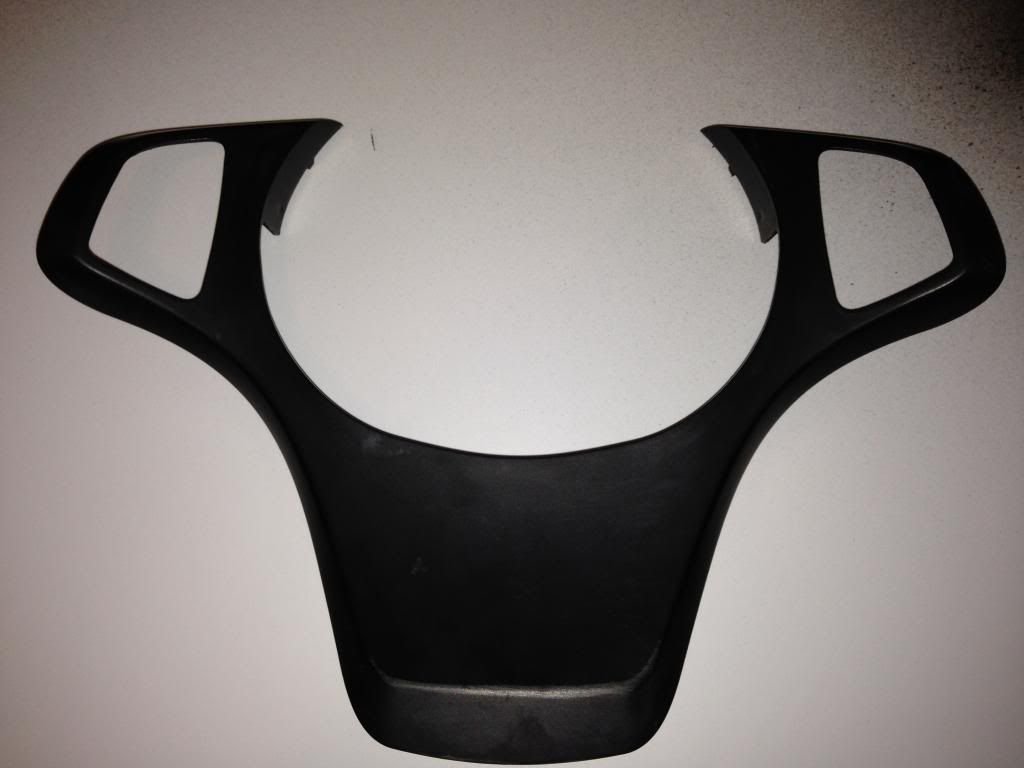

Light sand with a 600Grit sand paper.



Make sure you get all the edges too for a clean looking paint job.

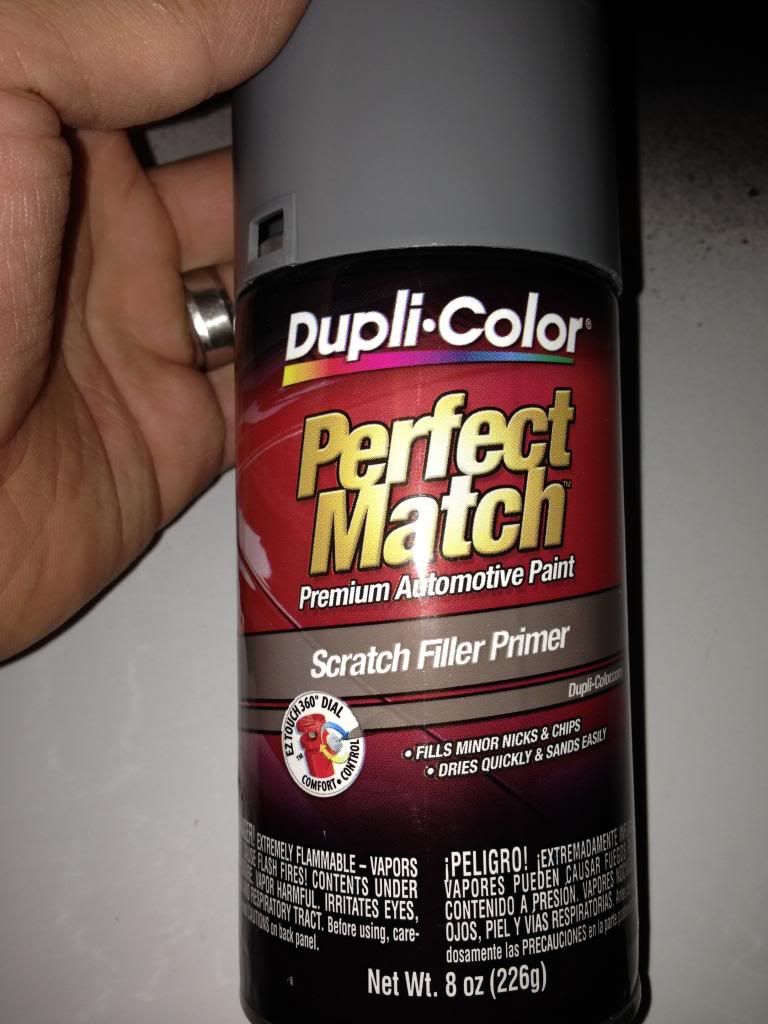

I used this primer to fill in the fine nicks/scratches and it is great at doing that.

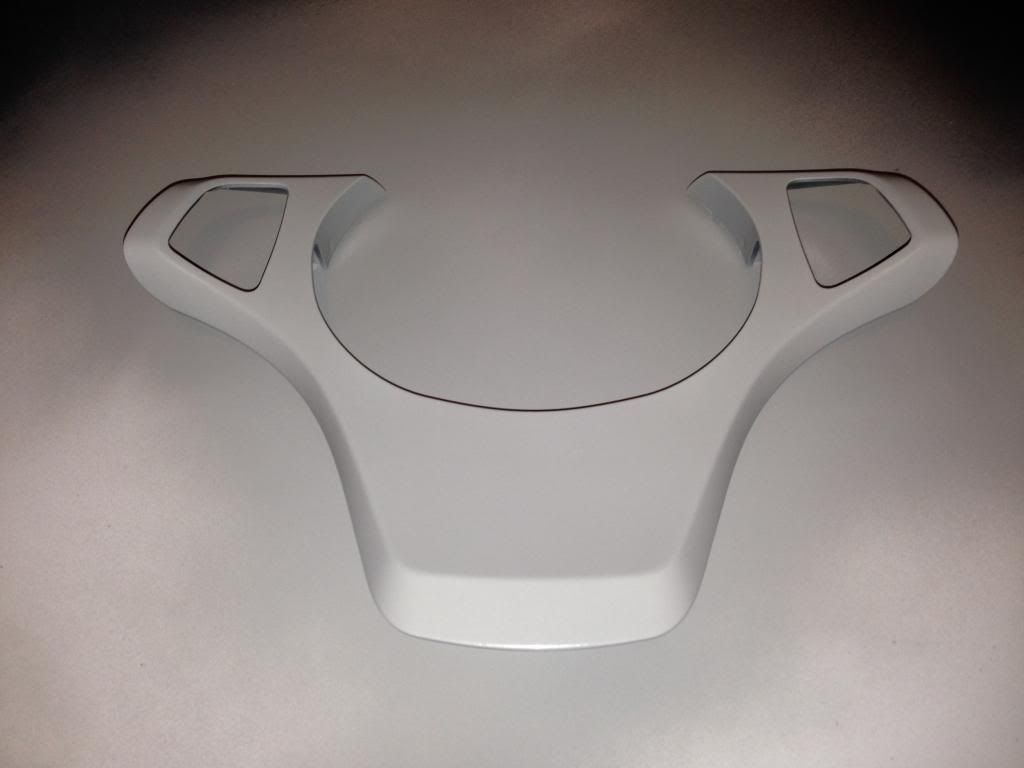

Spray 2-3 light coats of primer with 5 minutes dry time in between them.



The rest of the process coming tomorrow after the primer is completely cured.
__________________
2006 X5 4.8is LeMans Blue / creambeige interior
Prod.date: 2006-06-21
Reply With Quote

Sponsored Links

  #2
Old 02-25-2014, 12:00 AM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 7,280
upallnight is on a distinguished road
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #3
Old 02-25-2014, 07:26 AM
Ricky Bobby's Avatar
Member

Join Date: Dec 2011
Location: Wake Forest, NC
Posts: 9,344
Ricky Bobby will become famous soon enough
Subscribed. Many people do a rush paint job, I can tell you know what you're doing because of the prep!

Properly stripped old painted, sanded clean surface, and a couple coats of primer? Your finish when done will outlast the car!
__________________
2018 Ram 2500 6.7L Cummins 68RFE
19k miles -Bright White/Black - Big Horn Sport - Crew Cab Short Bed
2013 X5 35D (CEO's) - Born on 5/17/2013 -
82k miles - Alpine White/Cinnamon Brown/Premium Pkg, Sport Activity/Premium Pkg and Sound/20" Style 214/Running Boards

Reply With Quote
  #4
Old 02-25-2014, 10:07 AM
four.8is's Avatar
Member

Join Date: Feb 2014
Location: Seattle
Posts: 943
four.8is is on a distinguished road
Quote:
Originally Posted by Ricky Bobby View Post
Subscribed. Many people do a rush paint job, I can tell you know what you're doing because of the prep!

Properly stripped old painted, sanded clean surface, and a couple coats of primer? Your finish when done will outlast the car!
Thanks RB, mainly it has to do with the fact that I'm actually a painter.. and if the prep work isn't done properly, the rest can be art but will not last...
__________________
2006 X5 4.8is LeMans Blue / creambeige interior
Prod.date: 2006-06-21

Last edited by four.8is; 02-25-2014 at 10:13 AM.
Reply With Quote
  #5
Old 02-26-2014, 03:28 PM
Bimmer_Me_Up's Avatar
Member

Join Date: Jan 2012
Location: Houston, Texas, U.S.
Posts: 25
Bimmer_Me_Up is on a distinguished road
On my to-do-list. Thanks!
__________________
___________________________
2005 BMW X5 3.0i (Current)
2000 Toyota 4Runner (sold in 2011)
Formula 1000 - Van Diemen/Novak (sold in 2011)
1989 635csi (sold in 2008)
1985 BMW 325e (sold in 2006, but never forgotten)
Reply With Quote
  #6
Old 02-26-2014, 03:31 PM
four.8is's Avatar
Member

Join Date: Feb 2014
Location: Seattle
Posts: 943
four.8is is on a distinguished road
Sorry didn't post pics of the rest of the process I was really busy .The trim is all done waiting to be installed
Will be posting pics tonight or tomorrow morning the latest!
__________________
2006 X5 4.8is LeMans Blue / creambeige interior
Prod.date: 2006-06-21
Reply With Quote
  #7
Old 02-26-2014, 03:34 PM
Ricky Bobby's Avatar
Member

Join Date: Dec 2011
Location: Wake Forest, NC
Posts: 9,344
Ricky Bobby will become famous soon enough
Quote:
Originally Posted by four.8is View Post
Thanks RB, mainly it has to do with the fact that I'm actually a painter.. and if the prep work isn't done properly, the rest can be art but will not last...
Amen to that. Too many rush jobs I've seen over the years, I'm not a painter by trade, but everytime my wife wants to paint something, I tell her to give herself 3x as much time as she thinks it will take to complete, and not to even worry about painting itself, as that takes 10% of the actual time lol.
__________________
2018 Ram 2500 6.7L Cummins 68RFE
19k miles -Bright White/Black - Big Horn Sport - Crew Cab Short Bed
2013 X5 35D (CEO's) - Born on 5/17/2013 -
82k miles - Alpine White/Cinnamon Brown/Premium Pkg, Sport Activity/Premium Pkg and Sound/20" Style 214/Running Boards

Reply With Quote
  #8
Old 02-27-2014, 11:27 AM
Member

Join Date: Mar 2008
Location: CYPRUS
Posts: 1,946
omodos is on a distinguished road
okay, now I tried this too, and whilst i was able to sand down fine, i could not for the life of me get the spray on correctly, i went through.... wait for it 5 cans of spray paint!

each time i got imperfections, damn dust particles settling or tiny fibres, so i hosed down the area,no joy, did it indoors in the spare bedroom and the whole place was coated by 'soot' still no go, got so fed up i that i accepted defeat and bought a new piece of trim....spent a good 7-8 hours on the failed attempts....jeez
__________________
E53 X5 3.0d SUV prod.date 11/2004 eng.variant M57N Europe Right hand drive N
Reply With Quote
  #9
Old 02-27-2014, 11:44 AM
e30cabrio's Avatar
Member

Join Date: Jun 2013
Location: Phoenix Adjacent
Posts: 1,550
e30cabrio is on a distinguished road
Looks great. Will this work on the sport wheel also?

Mine is worse than this, I hate it.

__________________
BMWCCA # 480346

'72 e6Tii rip
'90 e30iC sold
Reply With Quote
  #10
Old 02-27-2014, 11:52 AM
Ricky Bobby's Avatar
Member

Join Date: Dec 2011
Location: Wake Forest, NC
Posts: 9,344
Ricky Bobby will become famous soon enough
Quote:
Originally Posted by e30cabrio View Post
Looks great. Will this work on the sport wheel also?

Mine is worse than this, I hate it.

That sport wheel has the OEM Cosmoschwarz Metallic lower trim section.
