Is the steering wheel trim piece around the buttons sold separately?

The trim piece surrounding my steering wheel buttons is peeling. I know this is a fairly common issue, so I'm trying to gauge how much it would cost to replace so I can decide if it's worth going to battle with the dealer to get them to replace it. I looked on Realoem.com and it appears to be part of the steering wheel itself and not a separate piece. Does anyone know if it can be purchased separately? Thanks!
__________________
Reply With Quote

Sponsored Links

  #2
Old 05-16-2011, 11:34 AM
wallyx5's Avatar
Member

Join Date: Oct 2007
Location: Central Coast, CA
Posts: 931
wallyx5 is on a distinguished road
Quote:
Originally Posted by Xtony View Post
The trim piece surrounding my steering wheel buttons is peeling. I know this is a fairly common issue, so I'm trying to gauge how much it would cost to replace so I can decide if it's worth going to battle with the dealer to get them to replace it. I looked on Realoem.com and it appears to be part of the steering wheel itself and not a separate piece. Does anyone know if it can be purchased separately? Thanks!
I believe it is a piece of the steering wheel. If you are trying to replace it you may want to look at wrapping it in 3M carbon fiber wrap or another type of wrap.
__________________
_________________________________________________
2010 X5M /// R63 AMG...Wifey's 540HP Family Hualer

2001 X5 3.0i Sport 335,448 miles & counting...

SMG M3 Steering wheel
E46 Stainless Racing Headers
4.6is Exhaust
Turner Pulleys
Afe Intake
Brembo drilled rotors
PowerFlex Bushings

Hualingan
30mm H&R Spacers rear
20mm H&R Spacers front

Bavarian Autosport High-Performance Coils
Active Autowerke's Performance Software
Reply With Quote
  #3
Old 05-16-2011, 02:51 PM
Member

Join Date: Oct 2010
Location: Park Ridge, IL
Posts: 54
sweetbabu1 is on a distinguished road
Ditto on the 3M Dinoc wrapping...

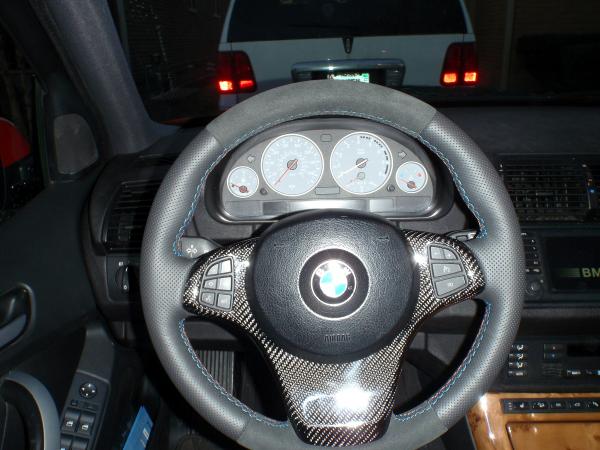

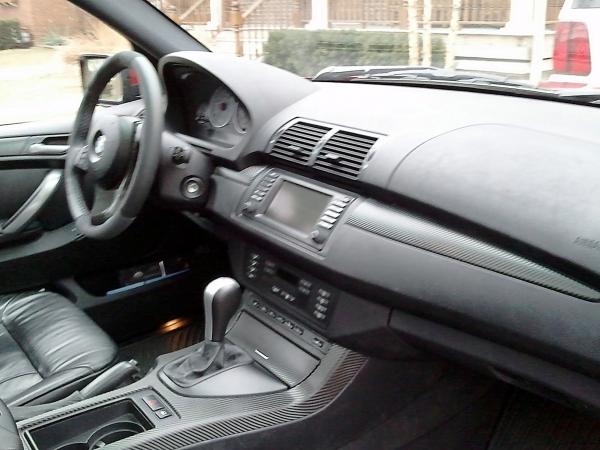

I bought a real Carbon Fiber wrapped piece and did my own Dinoc wrapped interior. It is easy to do. Since I was swappining my steering wheel, I did the interior as well. Do the piece yourself. I Bought the wrap on ebay for $45, the wheel from BMWsteeringwheels.com for $400. You will need to remove the Steering wheel, instructions are in another forum. An hour job start to finish to remove wheel, wrap piece, reinstall wheel. see pics.
Attached Images

__________________

2004 X5 4.8is
Imola Red
20" M111 wheels
Black CF DiNoc Interior
M Sport Steering Wheel
Reply With Quote
  #4
Old 05-16-2011, 04:47 PM
Member

Join Date: Dec 2009
Location: Atlanta, GA
Posts: 268
Xtony is on a distinguished road
Quote:
Originally Posted by sweetbabu1 View Post
I bought a real Carbon Fiber wrapped piece and did my own Dinoc wrapped interior. It is easy to do. Since I was swappining my steering wheel, I did the interior as well. Do the piece yourself. I Bought the wrap on ebay for $45, the wheel from BMWsteeringwheels.com for $400. You will need to remove the Steering wheel, instructions are in another forum. An hour job start to finish to remove wheel, wrap piece, reinstall wheel. see pics.
So the whole steering wheel needs to be removed to wrap the trim piece? Do you have a link to the DIY for the steering wheel removal? Thanks!
__________________
Reply With Quote
  #5
Old 05-16-2011, 09:26 PM
Member

Join Date: Feb 2011
Location: Orange County
Posts: 25
dasbaja is on a distinguished road
When I bought my used 08 the trim was peeling too. They had a guy
paint (?) it. It now has a textured finish, kind of like "spatter" paint.
Looks pretty good and a lot easier.
Reply With Quote
  #6
Old 05-18-2011, 04:22 PM
Member

Join Date: Oct 2010
Location: Park Ridge, IL
Posts: 54
sweetbabu1 is on a distinguished road
Trim Piece removal

If you are not switching the steering wheel you can remove the trim piece by first removing the airbag and then unscrewing 3 torex screws behind the wheel. You don't need take the full wheel off. find the airbag release holes on either side of the wheel, push in with a long flat head srew driver, lightly lift the airbag on the side you are pushing and the airbag will release on that side. do the the same for the other side. once the airbag is off, find the torex screws from the underside and remove them. the piece should come right off. Replace the trim in the opposite order. Remember not to disconnect the airbag or you could accidently deploy it. To be safe, disconnect your battery so you don't pop the airbag. I searched for some of the previous instructions but can't seem to find them.
__________________

2004 X5 4.8is
Imola Red
20" M111 wheels
Black CF DiNoc Interior
M Sport Steering Wheel
Reply With Quote
  #7
Old 05-18-2011, 05:59 PM
Member

Join Date: Jan 2009
Location: USA
Posts: 1
smartloom is on a distinguished road
Dealer repalced that for me under warranty.
Reply With Quote
  #8
Old 05-18-2011, 08:52 PM
Member

Join Date: Dec 2009
Location: Atlanta, GA
Posts: 268
Xtony is on a distinguished road
Quote:
Originally Posted by smartloom View Post
Dealer repalced that for me under warranty.
Just got word today that the pieces are going to be covered under warranty! I'll keep the instructions for when it's out of warranty. Thanks sweetbabu1!
__________________
Reply With Quote
  #9
Old 05-20-2011, 03:59 PM
Member

Join Date: Nov 2010
Location: Spain
Posts: 132
tmling76 is on a distinguished road
was it in the 3 year warranty ? My car is just over 3 years
Reply With Quote
  #10
Old 05-20-2011, 04:24 PM
Member

Join Date: Dec 2009
Location: Atlanta, GA
Posts: 268
Xtony is on a distinguished road
My warranty is 4 years, but I'm not sure if it was covered under warranty or if they goodwilled it.
