Replacing E70 jack mount points

Hi,

Does anyone know how to replace the plastic jack mounting points? I don't prefer to stick in a screw driver between the plastic part and metal body part and damage the paintwork. Anyone's got a smarter way of replacing these? Hi have alredy purchased the replacement parts ($22)

FYI, one of the plastic mounting points seems to have been damaged after they've used a wrong jack in a tire shop.
Reply With Quote

Sponsored Links

  #2
Old 10-06-2012, 08:45 AM
Member

Join Date: Dec 2009
Location: Atlanta, GA
Posts: 268
Xtony is on a distinguished road
I fit's like most other BMWs, there is a pin in the center of the square that needs to be pried out with a thin screwdriver. Once the pin is out you just pull or pry the mount out.
__________________
Reply With Quote
  #3
Old 10-14-2012, 12:52 AM
Member

Join Date: Oct 2008
Location: Australia
Posts: 162
grey is on a distinguished road
Hi guys,

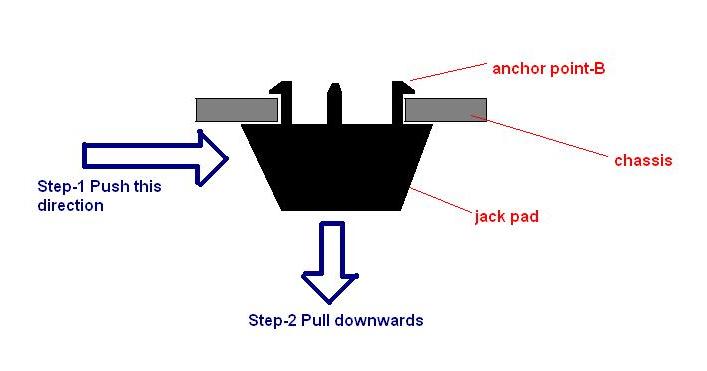

i have just replaced this. btw, no pins. im posting here the full detailed instructions
also no srew drivers were used, just push
back so anchor point 'B' slightly bends and pull down.
Attached Images


Last edited by grey; 10-14-2012 at 12:53 AM. Reason: adding more details
Reply With Quote
  #4
Old 10-18-2012, 10:52 AM
Member

Join Date: Dec 2010
Location: Houston
Posts: 265
lordshin808 is on a distinguished road
Thanks! Filing this for future reference.
Reply With Quote
  #5
Old 10-18-2012, 01:37 PM
kungpao's Avatar
Member

Join Date: Sep 2012
Location: North East USA
Posts: 109
kungpao is on a distinguished road
good to know thanks!
