  #11
Old 08-01-2014, 11:31 PM
TerminatorX5's Avatar
Member

Join Date: Jul 2006
Location: Stafford, VA & Harrisburg, PA - USA
Posts: 5,736
TerminatorX5 is on a distinguished road
the camera is for the highbeam assist, not for the line departure - there is brain module that analyzes the image coming from the camera, and if the brain is programmed to do line departure, it will, but in your case, it is only programmed to do the high beam - it looks for car lights, that are at a prescribed height from the ground, and prescribed distance from each other. the algorithm deciphers that the two lights are indeed headlights of the other car, and not just street lights (even though, it gets confused a lot of times) and shuts off the high beam... it also applies to motorcycle lights and cars with one light burned - i am not a programmer, i do not know the exact algorithm...

there are sensors that are just plain light/intensity sensors, that do not require identifying an object, just need to know if there is light, and how intensive it is... those are the dimming sensor, the light sensor, the rain sensor...

so, you got the highbeam assist...
__________________
E53 X5 4.6iS
147K mi - Sold May 2013
Tireprints left in:
USA, Nicaragua, Costa Rica, Panama, Russia

E53 X5 4.8iS built 2005-10-17
66200 mi - June 2012
96000 mi - June 2013
112000 mi - June 2014
OEM fire extinguisher
OE first aid kit
OE tow hitch
OE TV module
OE aspheric mirror
K&N air filter
black/white badges
rear camera
4-channel video recorder

Here is the list of things I have done to the X
Reply With Quote

Sponsored Links

  #12
Old 08-02-2014, 02:38 AM
Member

Join Date: Apr 2014
Location: Stockholm, Sweden
Posts: 10
Knubblo is on a distinguished road
yes I believe so. Ok. The camera is obviously for high beam assist but what about the sensor on the left hand side of the mirror in my picture?
__________________
BMW X5 E70 LCI 40d Space grey metallic M-Sport, black leather, comfort seats, panorama glass roof, 20" 333 rims, NAV Pro, HiFi, Auxiliary heating, camera with top view, Bluetooth, Internet, apps, USB, Foldable anti dazzle mirrors, skisack and more...
Reply With Quote
  #13
Old 08-02-2014, 08:18 AM
Member

Join Date: May 2010
Location: on the edge of existence
Posts: 1,384
blue dragon will become famous soon enough
Reread my previous post, I explained it to you already.
__________________


| '17 F15 X5 35D - Work horse | '17 F48 X1 MSport Daughter's daily | '22 Tesla MY LR Wife's Daily | '09 E70 X5 35D - Out to pasture |
Reply With Quote
  #14
Old 08-05-2014, 10:53 AM
TinyRK's Avatar
Member

Join Date: Aug 2013
Location: Chicagoland
Posts: 44
TinyRK is on a distinguished road

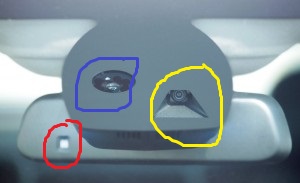

Red: Dimms mirror & light of dashboard
Blue: Rain Sensor
Yellow: High Beam Assist


What is lane departure warning, and how does it work? | ExtremeTech
Attached Images


Last edited by TinyRK; 08-05-2014 at 12:53 PM.
Reply With Quote
  #15
Old 08-19-2017, 10:21 AM
gatojurko's Avatar
Member

Join Date: Mar 2016
Location: Riga
Posts: 502
gatojurko is on a distinguished road
Dimming is at the front of mirror...black point! Red one is highbeam assist! That 'camera' I have on my 2008 one forum says it is ultrasonic parking sensor... I think it is acc distance sensor for automatic braking! On e53 there is no that white eye but nirrors are dimming from that black point on mirror!
Reply With Quote
  #16
Old 08-19-2017, 03:48 PM
Member

Join Date: May 2010
Location: on the edge of existence
Posts: 1,384
blue dragon will become famous soon enough
Quote:
Originally Posted by gatojurko View Post
Dimming is at the front of mirror...black point! Red one is highbeam assist! That 'camera' I have on my 2008 one forum says it is ultrasonic parking sensor... I think it is acc distance sensor for automatic braking! On e53 there is no that white eye but nirrors are dimming from that black point on mirror!
Sure it is. You have ACC on you 2008
I have done the HBA retrofit, the red is NOT the camera for HBA
__________________


| '17 F15 X5 35D - Work horse | '17 F48 X1 MSport Daughter's daily | '22 Tesla MY LR Wife's Daily | '09 E70 X5 35D - Out to pasture |
Reply With Quote
  #17
Old 08-19-2017, 04:00 PM
gatojurko's Avatar
Member

Join Date: Mar 2016
Location: Riga
Posts: 502
gatojurko is on a distinguished road
I need to do retrofit for my mirror, because I need homelink! All mirrors on ebay has no acc sensor and plastics are ordinary there not as mine... may be that is ok...may be acc sensor has separate wiring and I can get one of the home link mirror and just plug..if not, will be wasting of money!
So...what is red circle there? I have HBA as well in my car!

Sent from my SM-G900F using Tapatalk
Reply With Quote
  #18
Old 08-19-2017, 04:20 PM
Qsilver7's Avatar
Member

Join Date: Oct 2012
Location: Indiana, USA
Posts: 3,516
Qsilver7 is on a distinguished road
Quote:
Originally Posted by gatojurko View Post
So...what is red circle there? I have HBA as well in my car!

Sent from my SM-G900F using Tapatalk

LOL...why is the sensor circled in red confusing so many forum members? It is as been stated repeatedly when asked...it is one of the two EC (electro-chromatic) auto dimming sensors.

The original poster correctly identified the "black dot" on the face or the interior rear view mirror...but kept rejecting/ignoring the explanation of the EC's ambient light sensor on the back side of the mirror (faces the windshield and is the one circled in red).

The auto dimming of the interior rear view mirror (and the side mirrors if optioned) uses both the front and rear facing sensors to operate with in its prescribed parameters. The sensor (circled in red) which faces the windshield is an ambient light sensor...it regulates the intensity at which the auto-dimming will occur. The ambient light sensor will adjust the dimming parameters lighter or darker when headlights from a vehicle behind the car shine on the sensor embedded on the face of the mirror. The dimming affect is not as dark when in an urban/city environment with well lit streets versus a dark unlit road/highway.

You can see the ambient light sensor in the same location of an interior EC mirror used PRIOR to the additional technology of high beam assist and rain sensors, etc:

{EC mirror's ambient light sensor...same function as sensor circled in red on the newer EC mirror pictured by the OP in this thread}

{EC mirror's front sensor (black dot) that detects headlights from behind the vehicle}
__________________
Become a BMW CCA member! Click HERE to join and feel free to use my BMW CCA member #191509 as a referral.
  • 2015 f06 650ix GC (Moonstone exterior/Cohiba brown Merino Leather interior)
  • 2014 f15 X5 50i (Space Gray exterior/Mocha Nappa Leather interior)
Reply With Quote
  #19
Old 08-19-2017, 05:11 PM
gatojurko's Avatar
Member

Join Date: Mar 2016
Location: Riga
Posts: 502
gatojurko is on a distinguished road
Sorry my fault...did not read all explanations
But my question still remains! I am not at home right now for one month...and I am thonking to purchase home link mirror with compass! But I am not sure about wiring now! That sensor in plastic mirror holder...can I get home link mirror and I shall plug in sensor as well? I have not seen in my life those connections!

I have this mirror:



But on ebay all of them like this:


Can I retrofit sensor system on homelink mirror...

Last edited by gatojurko; 08-19-2017 at 05:27 PM.
Reply With Quote
  #20
Old 08-19-2017, 07:27 PM
Qsilver7's Avatar
Member

Join Date: Oct 2012
Location: Indiana, USA
Posts: 3,516
Qsilver7 is on a distinguished road
Is this for an e53 or e70 X5? If e53...some of the features like highbeam and lane departure probably won't work since the e70 uses a totally different communication bus.

But for an e53...you can add mirror with HOMELINK buttons or auto dimming because they only require 12volt power and are independently contained in the mirror. Those features don't communicate with a control module somewhere else in the com-bus.

If you have an e70...again the HOMELINK and auto dim is located in the mirror, so only 12 volts needed to operate...which should be already in wiring harness. The side mirrors though...will not dim if they aren't EC and connected to the interior mirror through the wiring harness running to the door (or however the e70 sends data over its com-bus).

If you have an e70...then some of the options mentioned in this thread like lane departure and highbeam assist may require more since it involves communication with other components outside the mirror or components located on the windshield (rain & light sensors).
__________________
Become a BMW CCA member! Click HERE to join and feel free to use my BMW CCA member #191509 as a referral.
  • 2015 f06 650ix GC (Moonstone exterior/Cohiba brown Merino Leather interior)
  • 2014 f15 X5 50i (Space Gray exterior/Mocha Nappa Leather interior)

Last edited by Qsilver7; 08-19-2017 at 07:34 PM.
Reply With Quote
