Eonon 5166 working with DSP 2005 X5 Solved :)
Parts needed

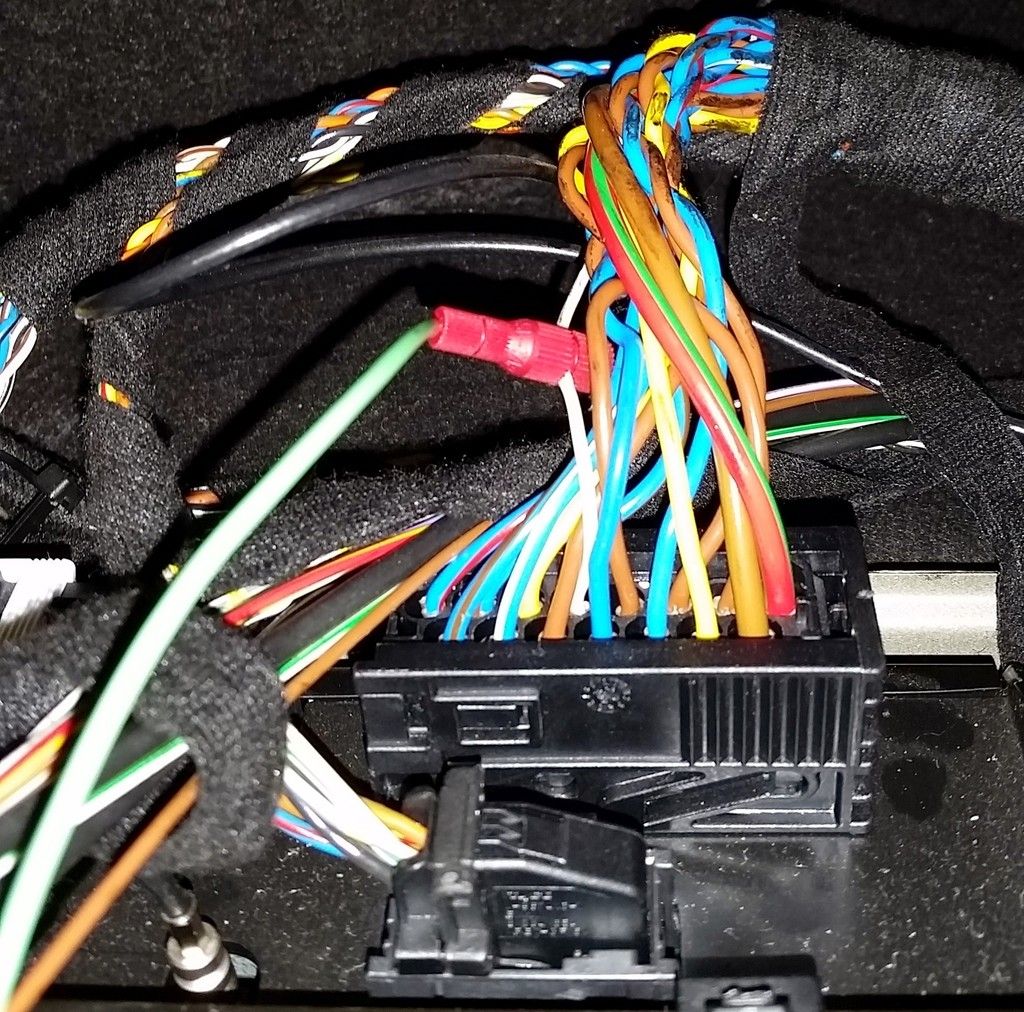

Eonon 5166 Eonon A0567 Extension (40p or 17p) (will have different connections with the 17p) Metra 40PIN Harness 71-9003 Connections At DSP AMP Large 15pin connector, to aftermarket Metra 40pin plugged into stock radio brain in the trunk floor DSP #4 to aftermarket metra #13 DSP #8 to #15 " DSP #15 to #12 " DSP small connector white wire with yellow marks to Metra 9 From OEM radio brain (trunk floor) where new Metra is plugged in connect #16 to Purple with white line on OEM Harness that was originally plugged into OEM radio(brain), but now plugged into Eonon extended harness (A0567) which is connected to the 5166 It works  NOTE: I have the 40pin connector Amp connections here: [IMG]  [/IMG]
Last edited by HPM; 06-02-2015 at 09:23 AM.
|
