lysilvany 06-15-2009 09:33 AM

I will, but that doesn't explain why I can't open the door from the inside even when the door is UNLOCKED...it also works to unlock the door (manually) from the inside...just doesn't open it...

LeiZ 06-15-2009 10:47 AM

Where do you live? Is it extremely cold outside?

LeiZ 06-15-2009 10:47 AM

Sorry, my bad, CA......

lysilvany 06-15-2009 11:52 AM

Yes, I live in SUNNY AND WARM California...so no chance that it is stuck due to the cold...

I have a feeling that the actuator actually shifted when I drive the car...perhaps I didn't tighten the bolts enough. And door handle carrier cable wants to push DOWN when it is secured in place. That would make sense as to why the inside handle works to the point of unlocking the door and the outside handle appears to be working properly AND everything else (electrical) works beautifully throughout the car yet the door won't open...

Any thoughts???

BrianX54.4is 07-13-2009 06:03 PM

1 Attachment(s)
This reply comes a bit late but check this post.
http://www.xoutpost.com/bmw-sav-foru...-fix-pics.html

When you refitted the new door lock perhaps you clipped the bowden cable too tight.

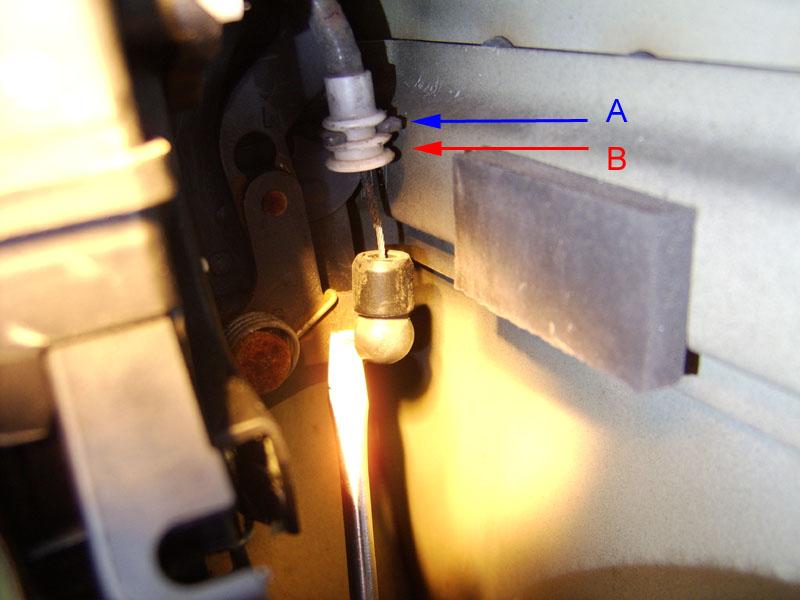

There are two fixing points A and B below. Position A will give the cable a bit more slack to allow the mechanism to spring home fully. If it does not spring home fully - the lock cannot reset and then cannot be opened by either of the handles.
Attachment 34804

lysilvany 07-13-2009 06:50 PM

Thank you for your post Brian...

Honestly I figured it out. I'M A BIG FAT DORK! When I originally replaced the handle carrier (unbeknownst to me at the time), it was a PASSENGER REAR carrier... When the door wouldn't lock after replacing it, I didn't really think it had anything to do with the carrier and everyone I spoke with kept telling me (based on my symptoms) that it was the door actuator because everything else in the car worked beatifully. So, I spent the money to get a new actuator, pulled that damn door panel off (WITH THE DOOR CLOSED!) for the 2nd time, I disconnected the carrier from the actuator and lifted up on the latch and the door miraculously opened! Still, not thinking it was the carrier, I put in a whole new actuator and hooked everything up, tested everything (including the locks) in every which way you can imagine and everything worked beatifully EXCEPT when I closed the door and locked it, low and behold the DAMN THING WOULDN'T OPEN AGAIN! I ripped that panel off AGAIN...I should work for BMW...(I'm getting to become an expert in removing the panels ~ without damage)...and after a little more fiddling and further investigation, I noticed that the cable on the carrier seemed to be crimping or appeared to be too long...so, I went back online to look at the differences in the handle carriers and VIOLA I discovered that that 1) the FRONT PASSENGER carrier is about 1/2 inch shorter than the PASSENGER REAR and 2) I HAD ORDERED THE WRONG PART! Well, needless to say, I put the ORIGINAL actuator back in, returned it (got my money back, to the tune of about $185), purchased the RIGHT part (for about $55), put it in and, CAN YOU BELIEVE IT ~ EVERYTHING WORKS LIKE A CHARM!!!

The moral to my story ~ make SURE you order the RIGHT part the first time around and DOUBLE CHECK when it arrives that you GOT the right part before you start ripping into your car! It will save you a LOT of time and money! Although, I am thankful that "I" was the one who screwed up and not the dealer ~ CHACHING!!!!

BrianX54.4is 07-13-2009 07:11 PM

A happy ending and a whole pile of experience in the process!!!

Well done on getting the door card off without damaging it. My wife had to clamber over the centre console to get in and out of her seat for a couple of weeks because I wouldn't risk trying that.

lysilvany 07-13-2009 07:20 PM

Thanks, Brian ~ my husband didn't want to climb over anything, so I just choffered him around in the back seat until it was fixed... All together it was about 6 months! What a P.I.A.

TwinsPoppa 07-13-2009 07:38 PM

Quote:

Originally Posted by lysilvany (Post 640158)
I'm getting to become an expert in removing the panels ~ without damage

Glad everything worked out eventually for you. When you have time, would you mind doing a DIY on how to remove the door panel when the door is stuck closed. I'm sure a lot of people would benefit. That's if its not too much trouble.

Right now, though, I can understand you not wanting to bother with anything! :rofl:

BrianX54.4is 07-13-2009 08:01 PM

Quote:

Originally Posted by TwinsPoppa (Post 640187)
....When you have time, would you mind doing a DIY on how to remove the door panel when the door is stuck closed. I'm sure a lot of people would benefit. That's if its not too much trouble...


No trouble at all.....
http://www.xoutpost.com/bmw-sav-foru...-fix-pics.html


EDIT... sorry TwinsPoppa, I should have read your request more carefully! I guess you remove the fixing screws and pry the door card away from the top sill area first....
