Faulty Glow plug error code - replaced all 6


DME - 4A2E
CIDF - A48D


Car drives normally, 4A2E seems to relate to glow plug in cylinder number 5, I could be wrong though, anyone know what A48D is?
(edit) NVM, CIDF is for the rear screen entertainment.


So, it looks like I will be changing all 6 glow plugs...

Ninja had a similar code and the issue was with the module, not the individual plug. Take a look here: http://www.xoutpost.com/bmw-sav-foru...diagnosis.html

Yes I had similar code for cylinder 3 but it turned out to be glow plug module.I was experiencing rough idle for first few seconds during low ambient temp.

Bmw says that there is no proper way of checking glow plugs by measuring resistance but i would still check and compare the resistances of all 6 glow plugs.Atleast it would tell you if cylinder 5 glow plug is totally dead or not.

How is your thermostat?Does engine temp stays above 80~85 deg C?

Regarding your A48D code, rheingold says A48D is for rear seat entertainment reset(no fault).Image attached...

Interesting

I'm going to change all 6 glowplugs since I have to take the damned intake manifold off.
Attachment 66400

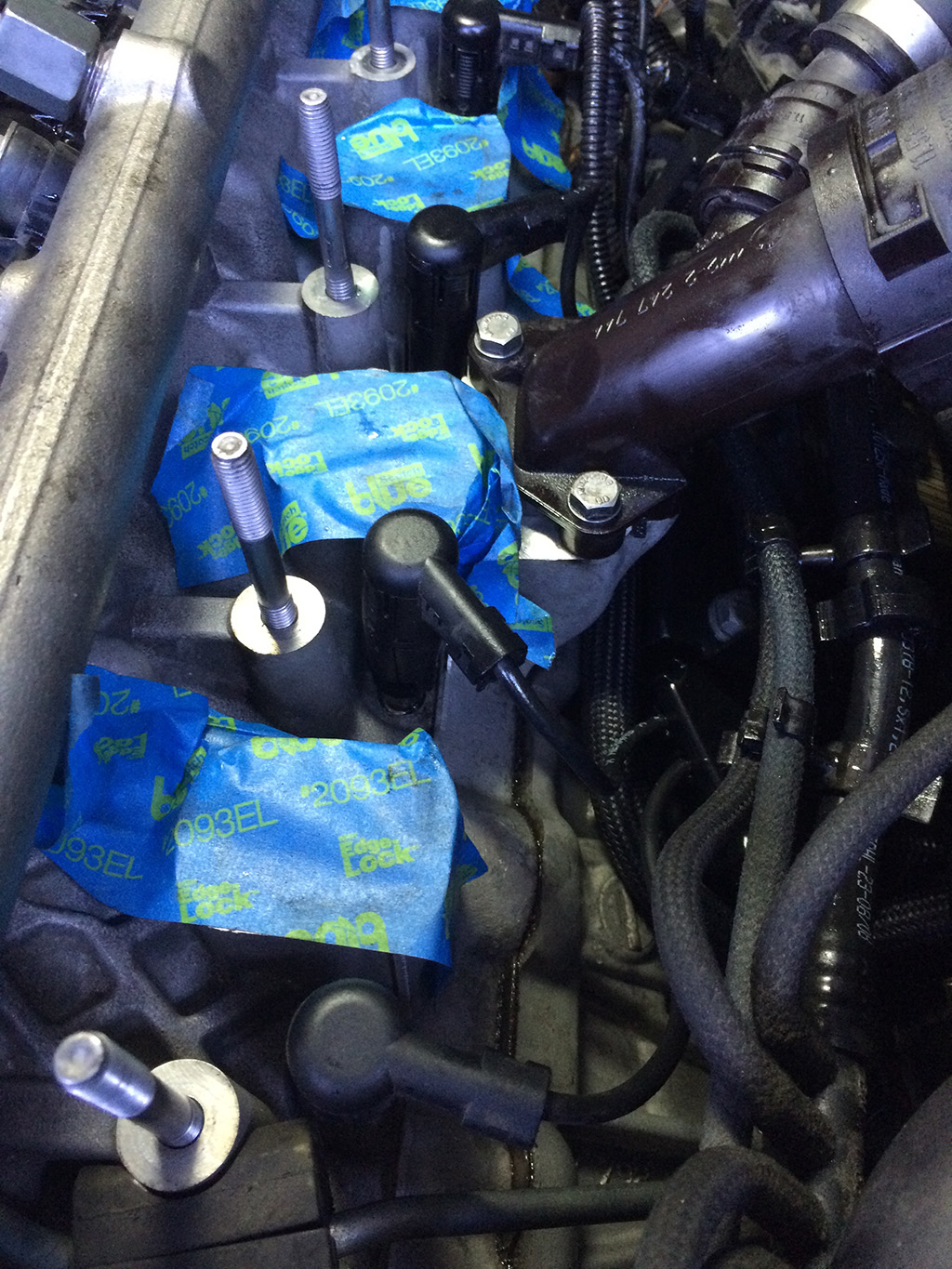

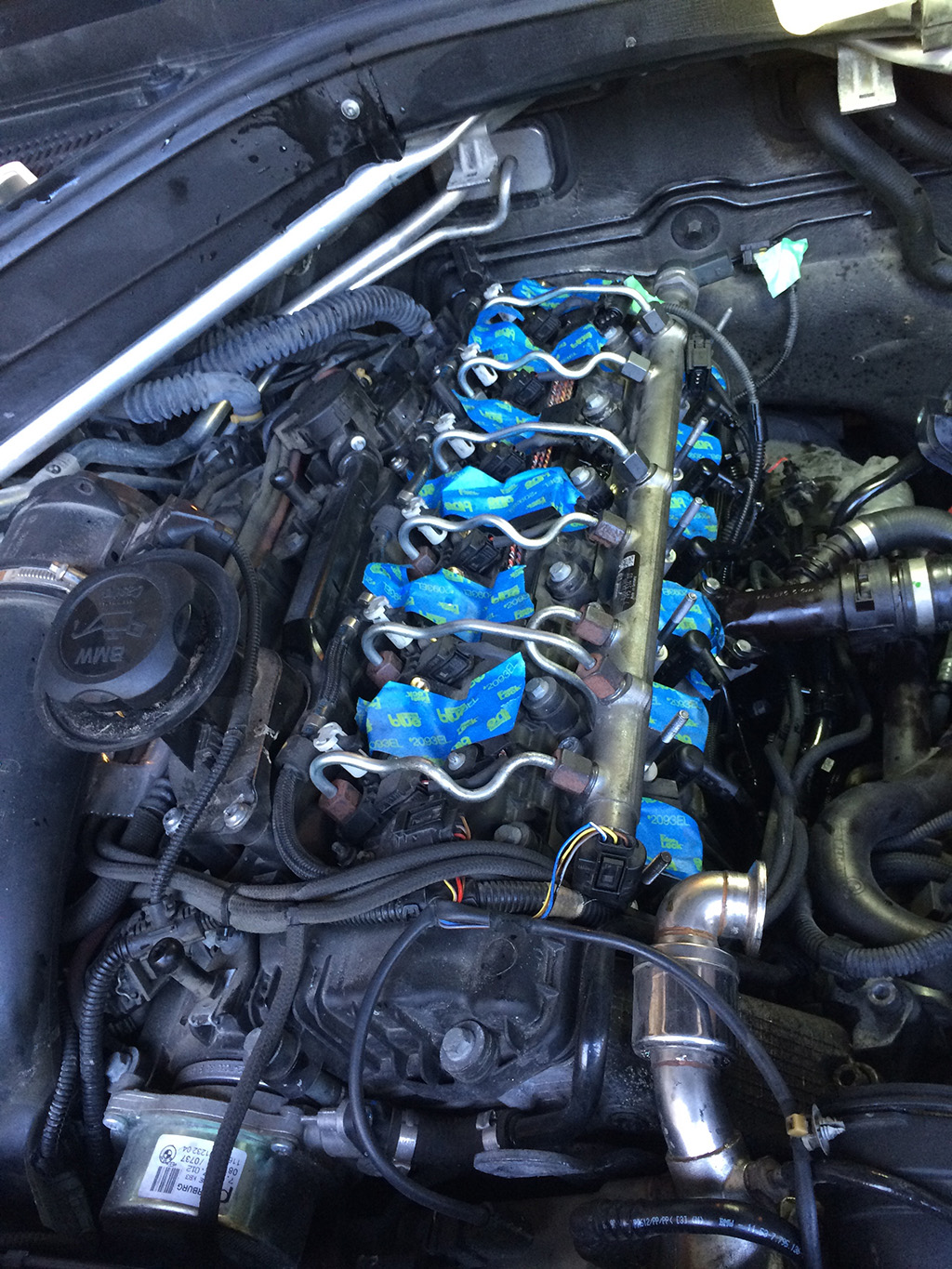

So I just pulled the manifold and replaced all 6 glow plugs. The fault is still present. I guess that means I have to order and replace the module.

Attachment 66430

Attachment 66431

Attachment 66432

Attachment 66433

I will have to pull the manifold again when I have the part in hand

Good job!!Your intake ports are looking really clean.Did you clean the carbon off?Did you remove the glow plugs while the engine was warm?

No, both sets of ports were really clean, I was actually suprised that I didn't have any carbon build up on the swirl valves. The engine was warm (not hot) when I did the glow plugs

:thumbup:Nice to see DIY'ers

+1

And to see pictures!

I never take the time to wash my hands all the time and get the camera....

Great pictures, thanks for posting. Mileage on your X5 and does it use any oil?

118k (73k) miles, no oil burning

So I got the module took the manifold off again. What a pain to get to the glow plug control module. Its sitting below one of the coolant lines which feeds the block. There are three 10mm bolts holding the pipe to the block and once you remove it, coolant gushes out, so be prepared to add coolant if you plan on replacing your module.

The module itself is held to the block by two 10mm nuts. There are two plugs which must be unclipped and removed and one of the wire leads is very short, so there isn't much room for maneuvering to unclip the leads.

I managed to change the control module (no more check engine light YAY!!), but now I have to wait till tomorrow morning to buy blue coolant from BMW. I believe that the bleeding system is different with the 35D since its a mechanical water pump.

Attachment 66531

Attachment 66532

Great!!! Here is the bleeding procedure.
http://www.xoutpost.com/1033974-post6.html

Good plan

As with oil and most fluids, never mix fluids. Chemistry in different brands can vary, leading to who knows what.
