sub amp and sub installed in a 323

To kill some time this last week-end I installed a sub amp and a 8" amp in my daughter's 323. It took me 3h all together which 45 mns where spent figuring out a problem with the factory amp which turned to be related to a low battery.
The amp is a 300w dual xpa2100. The sub is a 8" roadmaster. The amp was installed in the trunk under the CD changer and powered directly from the the battery + & - points. I got speaker high level inputs and remote turn on/off signals from the factory amp connector. To be able to turn on and off the amp from the driver seat I ran a wire into the cabin from the trunk to the central console and put a remote on/off switch there. Although I did not put the sub in an enclosure it does provide the missing bass "oumph" that the car audio was lacking and much improves the overall listening experience.
Pretty simple mod, nothing very fancy but a clean install and a good result.
I ran into one problem though. After everything was installed and worked fine initially for about 30mns or so the factory amp suddenly stopped working. The factory amp powers the front and rear woofers so I only had the tweeters working. I finally found out that this was due to a low battery and that the factory amp shuts itself off when the voltage is too low. Good to know. I charged the battery all night long and everything if fine. My daughter is happy and feels like I am a good dad ...... sometime :-)
Reply With Quote

Sponsored Links

  #2
Old 01-02-2007, 03:30 PM
ncx's Avatar
Admin, Prem, generally absent

Join Date: Mar 2005
Location: NC
Posts: 4,006
ncx is on a distinguished road
Great work! Lucky kid to have a dad who is into BMW's and mods
__________________
Custom X Page | Support Xoutpost!
Reply With Quote
  #3
Old 01-02-2007, 05:48 PM
alpac's Avatar
Premier Member

Join Date: Jul 2005
Location: Durham NC USA
Posts: 3,073
alpac is on a distinguished road
Some pics and info of the mod. As I said a pretty easy and pretty cheap mod for a much better sound. The pics show:

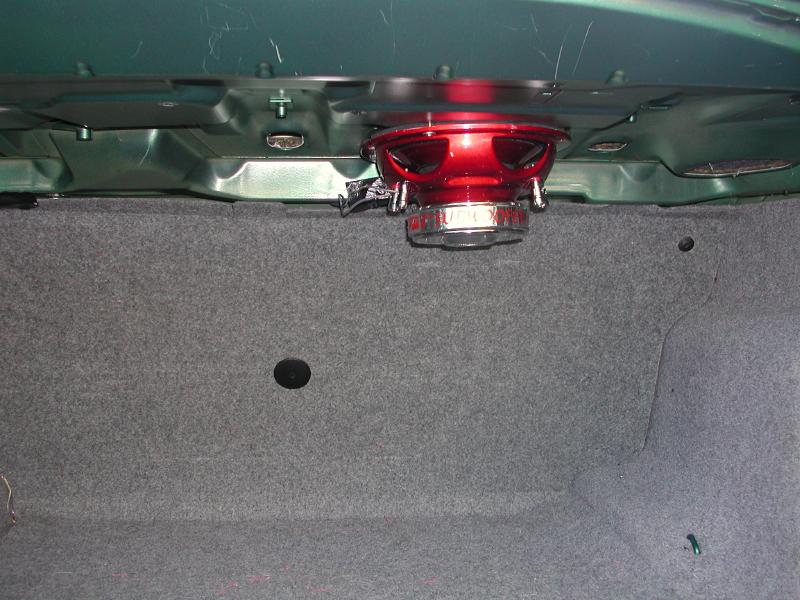

-The sub installed on the top part of the trunk.

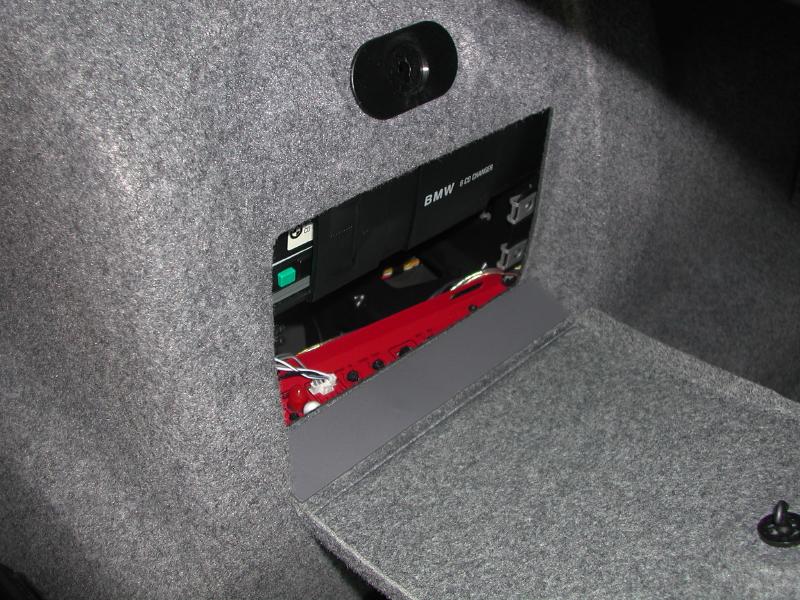

-The amplifier under the CD changer

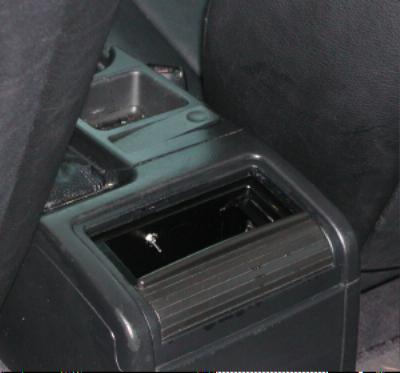

-The switch in the arm rest ashtray.

-A good use of the tape player for aux input via a tape adaptor. Almost no visible wire and a 3.5 jack available at the bottom of the central console to connect any mp3 player via the headphone output.
Attached Images

Reply With Quote
  #4
Old 01-03-2007, 06:01 PM
Member

Join Date: Nov 2006
Location: england
Posts: 1
mikehirst1 is on a distinguished road
Good Work!

I'am am new to this great site so firstly just a quick Hello from a very wet and windy English winter, hope you are all well.

I am looking to add a small activesub to my 2004 4.4 sport any tips on instalation etc?
Reply With Quote
  #5
Old 01-03-2007, 08:43 PM
alpac's Avatar
Premier Member

Join Date: Jul 2005
Location: Durham NC USA
Posts: 3,073
alpac is on a distinguished road
Quote:
Originally Posted by mikehirst1
I'am am new to this great site so firstly just a quick Hello from a very wet and windy English winter, hope you are all well.

I am looking to add a small activesub to my 2004 4.4 sport any tips on instalation etc?
That may be of some help to you http://www.xoutpost.com/articles/x5/s...ctory-amp.html
Reply With Quote
  #6
Old 01-03-2007, 09:42 PM
Curious Joel's Avatar
Member

Join Date: Mar 2005
Location: I-93
Posts: 2,715
Curious Joel is on a distinguished road
Good job, alpac! And way to go getting your daughter to drive a standard!
__________________
Curious Joel
2002 BMW X5 4.4i
retired
2003 BMW 330xi
retired

2007 BMW 335i Coupe
Montego Blue-Saddle Leather-Light Poplar Wood-Sport Package-Premium Package-Navigation w/iDrive-Comfort Access-Park Distance Control-Automatic w/Paddle Shifters-USB iPod link-Autobahnd clear bra
Reply With Quote
