Exclamation WTF is wrong here.

hello to quick recap ABS module sent out was refurbish 3 weeks ago put it on still have trifecta lights on did a steering angle sensor reset with dis no go still lights are on

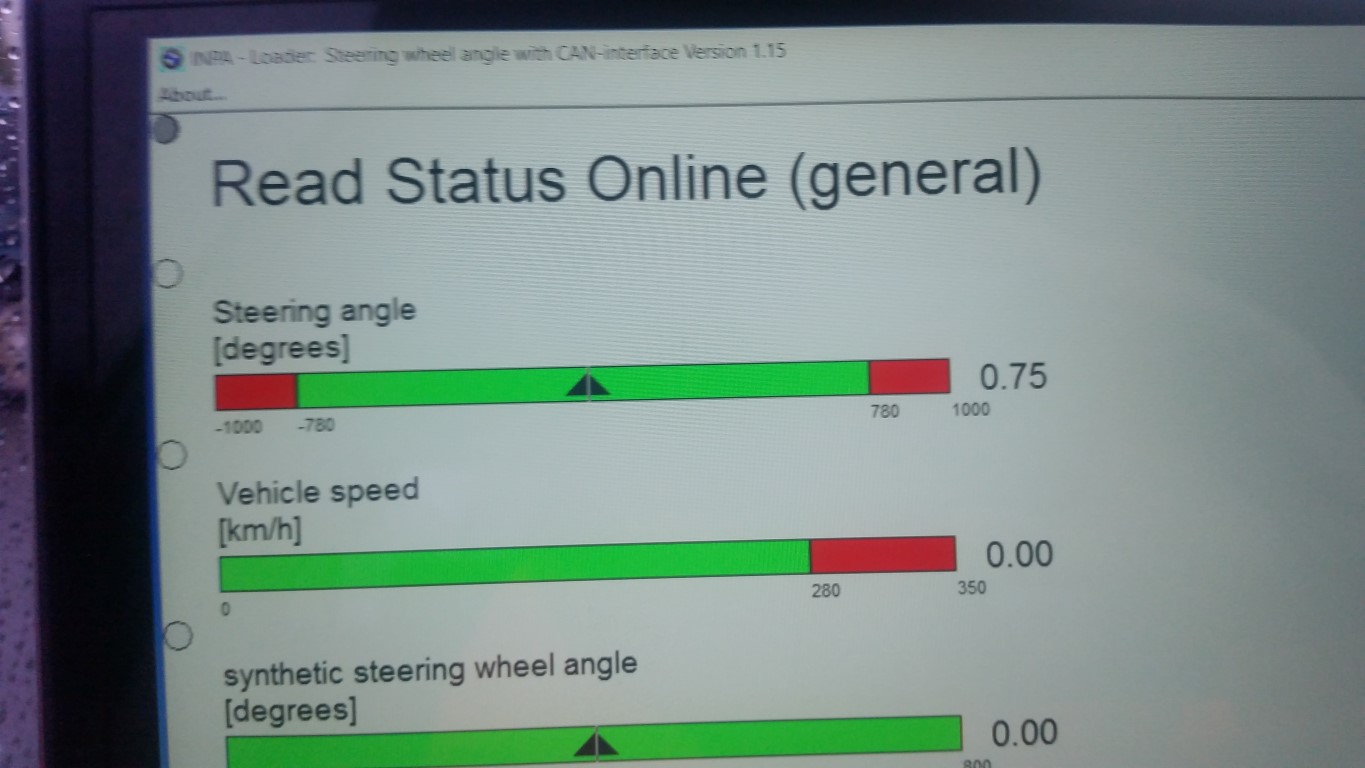

had front end alignment a few months back before ABS module was fix today i wanted to see where my steering setting were and if my SAS was working
WTF not even close could this bee why i can't reset the SAS look at pics way off

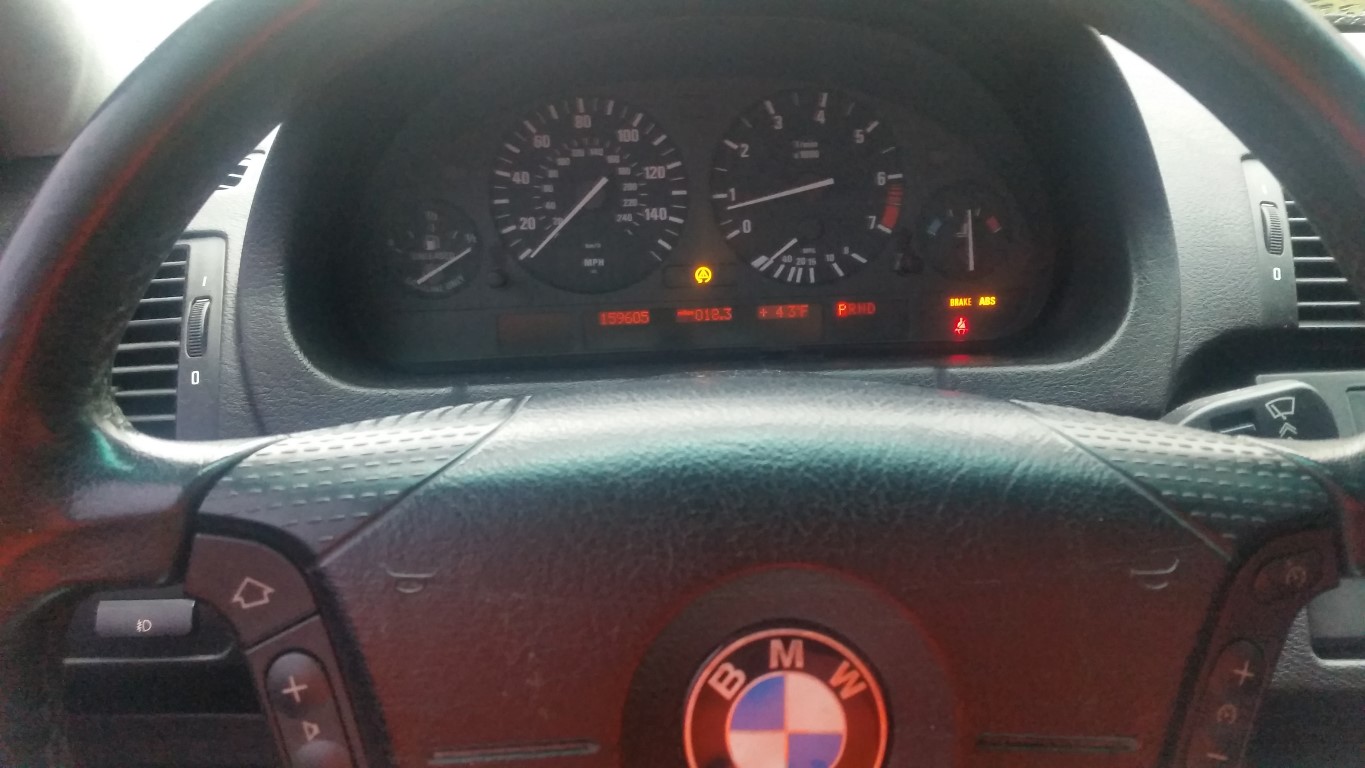

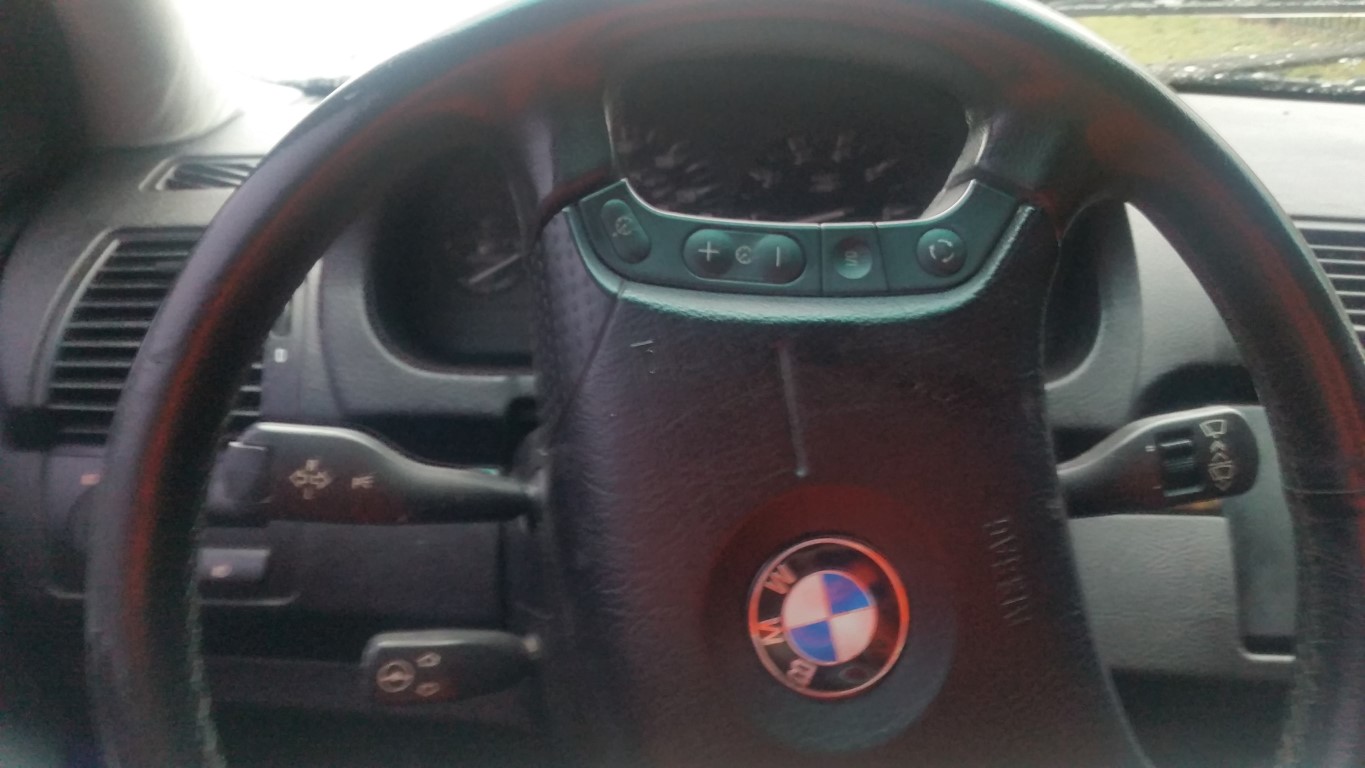

wheel straight angle is off wheel side ways angle is center
Attached Images

__________________
4/02 x5 3.0i AUTO BLACK
KISSIMMEE FL
Reply With Quote

Sponsored Links

  #2
Old 03-14-2016, 07:57 PM
Kristophe's Avatar
Member

Join Date: Apr 2013
Location: Oklahoma
Posts: 474
Kristophe is on a distinguished road
With a "trifecta " if its not your ABS Module it is almost always you have a wheel sensor out.
__________________
2001 3.0i Auto 248K DOP 11/17/2000
Titanium Silver with/ Premium Package OE Tow PKG
OE Retrofits:
front Skid Plate
DSP Professional Sound
PDC
Reply With Quote
  #3
Old 03-14-2016, 07:59 PM
Joshdub's Avatar
Member

Join Date: Jul 2014
Location: Seattle
Posts: 2,065
Joshdub is on a distinguished road
I'd guess steering sensor given the results.
__________________
03 3.0i mt
89 325is
Reply With Quote
  #4
Old 03-14-2016, 08:53 PM
BavarianE39's Avatar
Member

Join Date: Dec 2013
Location: Maple Grove, MN
Posts: 73
BavarianE39 is on a distinguished road
Definitely looks like a problem with steering angle sensor.
__________________
Reply With Quote
  #5
Old 03-14-2016, 09:03 PM
gatojurko's Avatar
Member

Join Date: Mar 2016
Location: Riga
Posts: 484
gatojurko is on a distinguished road
If lights doesn't go out when u turn right and left it could be the steering wheel angle gauge...but I guess it is wheel trajectory little bit gone wrong! I have these lights every time when I am doing something with my car in garage and battery goes out!
Once I had all these lights because my key was not programmed to the car!
Reply With Quote
  #6
Old 03-15-2016, 05:39 AM
Member

Join Date: Apr 2014
Location: kissimmee fl
Posts: 355
1iwilly is on a distinguished road
Thanks for the replies in inpa all 4 abs sensor are working
Same reading on all 4 I'm also leaning towards SAS been 1/2 way bad been on the age of the car 02 but I also read they rarely go bad cheapest one I found $150.00 on amazon
__________________
4/02 x5 3.0i AUTO BLACK
KISSIMMEE FL
Reply With Quote
  #7
Old 03-15-2016, 11:13 AM
Member

Join Date: Oct 2011
Location: NYC
Posts: 4,667
SlickGT1 is on a distinguished road
What codes are you getting. I had that same trifecta on my 06 4.8is and it was the xdrive actuator. Yours is 02, so you don't have that. But what codes do you get?
__________________
2006 4.8is, Black on White.

"The older we grow the greater becomes our wonder at how much ignorance one can contain without bursting one's clothes." - Mark Twain

Unlock OBC post 5
Reply With Quote
  #8
Old 03-15-2016, 12:51 PM
Member

Join Date: Apr 2014
Location: kissimmee fl
Posts: 355
1iwilly is on a distinguished road
i get these codes and i'm trying to find the one for the SAS=
Job status: --- - API job FsLesen: job status error - API job FsLesen: job status error
================================================== ===========
Variant: DSC57 2 Error in error memory Error registration 1: 0x0068: error steering angle Steuergeraet <<<< !!!
Error accurances: 255 vehicle speed 2.75 km / h ASC not passively switched ABS control passive BLS not operated ASC control passive ACB passive HBA passive ECD passive HDC passive
-------------------------------------------------- ---------------------------------- Error registration 2: 0x005A: time-limited passive circuit <<<< !!!
Error accurances: 255 vehicle speed 2.75 km / h ASC not passively switched ABS control passive BLS not operated ASC control passive ACB passive HBA passive ECD passive HDC passive
__________________
__________________
4/02 x5 3.0i AUTO BLACK
KISSIMMEE FL
Reply With Quote
  #9
Old 03-15-2016, 06:07 PM
Member

Join Date: Sep 2015
Location: Northeast
Posts: 253
CapeX5 is on a distinguished road
Just passing on my experience. A couple of months ago I had my trifecta come back on after having the module rebuilt/repaired. I ran a test on the 4 wheel sensors. They all were sending signals to the ABS module/computer. AFter sending the ABS module back in for a check, it came back fine. So, started replacing the wheel sensors I hadn't done yet, and bang, front right solved it. Just telling you this because mine appeared to be working fine, but weren't'. Take it for what you will.
__________________
Dave S.
Northeast
2002 E39 Touring
2001 E53 4.4
1959 Fiat 600
Reply With Quote
  #10
Old 03-15-2016, 07:50 PM
Member

Join Date: Apr 2014
Location: kissimmee fl
Posts: 355
1iwilly is on a distinguished road
Exclamation

thanks well i eliminated the 2 rear ones are working fine i believe the dr side rear is for speedo.so i swap the right rear and left rear speedo still work.trying to fine a good source with good price for the 2 front one.

Quote:
Originally Posted by CapeX5 View Post
Just passing on my experience. A couple of months ago I had my trifecta come back on after having the module rebuilt/repaired. I ran a test on the 4 wheel sensors. They all were sending signals to the ABS module/computer. AFter sending the ABS module back in for a check, it came back fine. So, started replacing the wheel sensors I hadn't done yet, and bang, front right solved it. Just telling you this because mine appeared to be working fine, but weren't'. Take it for what you will.
