#1
03-16-2016, 04:03 PM
|
|||
|
|||
|
Installation instructions for installing LeMans Style Fender Flares
Hello All,

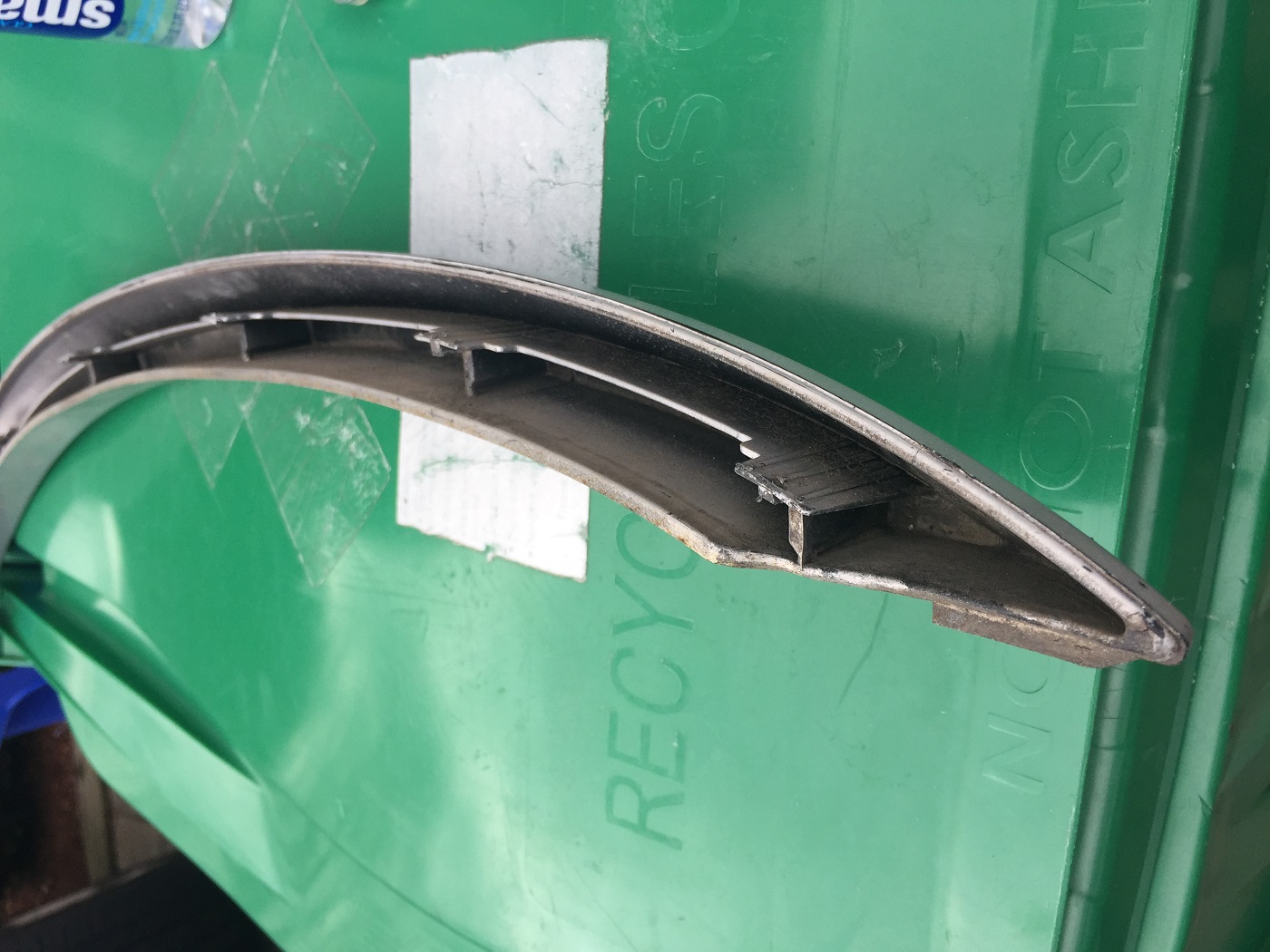

Tried google and also searching this forum and could not find installation instructions for installing the LeMans Style fender flares. My right rear fender flare fell off and I am not sure if there are plastic tabs that hold it in or are there metal clips that may have fell into the inner fender wall. My body shop thinks that there were plastic tabs that were broken off.. I think there are tabs that get attached on the other side of the fender wall that fell off.. Any help would be appreciated
|
|
#2
03-16-2016, 04:19 PM
|
||||
|
||||
|
It's the "one-time" plastic tabs you need. The ones you push in with your thumb when installing and push through when removing.
BMW X5 4.8iS 2005
__________________
BMW X5 E53, 4.8iS - 2005 Professional Stereo/Nav with DSP (modified BM54 module) - Converted to Eonon GA5166X with Reverse cam 4-Corner Air Suspension - Converted to BC Coilovers
|
|
#4
03-16-2016, 04:26 PM
|
|||
|
|||
|
The plastic parts are broken off. I would try and find a way to attach it via screws. I had a similar issue on my old X and it was either pay 200 for a new piece or put a screw in.
__________________
Current 2006 BMW X5 4.8is Dinan S2 Black on Black  Retired 2004 BMW X5 4.8is Black on Cream 2001 Bmw X5 3.0 2006 Bmw 530i 1996 Bmw 328is 1994 Toyota Landcruiser 1989 Bmw 535i
|
|
#6
03-16-2016, 09:51 PM
|
||||
|
||||
|
Unfortunately, sold the pair I have on eBay last week for $50.
Those metal locks are known to come off. I used small screws when installing them on my old 3.0
__________________
 00 E39 DINAN S1 //M5 (82k miles) 06 E53 DINAN 4.8iS, born 2/18/2006 (126k miles) http://www.xoutpost.com/bmw-sav-foru...s-my-dslr.html 90 Straman Z32 TwinTurbo Convertible, (1 of 44 ever made) 5 speed, 444rwhp/451rwtq 01 360 Novitec Spider F1 (26k miles)
|
|
#7
03-17-2016, 01:59 AM
|
||||
|
||||
|
I still have some left from when i bought them from bmw, will check if there is a part number printed on the bag and get back to you. I bought 10 for approx. 8$.
BMW X5 4.8iS 2005
__________________
BMW X5 E53, 4.8iS - 2005 Professional Stereo/Nav with DSP (modified BM54 module) - Converted to Eonon GA5166X with Reverse cam 4-Corner Air Suspension - Converted to BC Coilovers
|
|
#8
03-17-2016, 02:43 AM
|
||||
|
||||
|
Expanding rivet, black
51111944537 - I used these for the arches as they don't require a rivet tool. They are really for the door sill cover but work just as well for the the arches. Expanding rivet 51717002953 - BMW said these are the ones to be used for the arches but you'd need a rivet tool. BMW X5 4.8iS 2005
__________________
BMW X5 E53, 4.8iS - 2005 Professional Stereo/Nav with DSP (modified BM54 module) - Converted to Eonon GA5166X with Reverse cam 4-Corner Air Suspension - Converted to BC Coilovers
|
|
#9
03-17-2016, 10:58 AM
|
||||
|
||||
|
Did you have your plastics painted? Or did the truck come that way?
__________________
2005 X5 4.4i Build 04/05 Maintenance/Build Log Nav, Pano, Sport (Purchased 06/14 w/ 109,000 miles) (Sold 8/15 w/121,000 miles) 2006 X5 4.8is Build 11/05 Maintenance/Build Log Nav, DSP, Pano, Running Boards, OEM Tow Hitch, Cold Weather Pckg (Purchased 08/15 w/ 90,500 miles) 2010 X5 35d Build 02/10 Nav, HiFi, 6 DVD, Sports Pckg, Cold Weather Pckg, HUD, CAS, Running Boards, Leather Dash, PDC, Pano (Purchased 03/17 w/ 136,120 miles)
|
|
#10
03-17-2016, 12:45 PM
|
||||
|
||||
|
Quote:
BMW X5 4.8iS 2005
__________________
BMW X5 E53, 4.8iS - 2005 Professional Stereo/Nav with DSP (modified BM54 module) - Converted to Eonon GA5166X with Reverse cam 4-Corner Air Suspension - Converted to BC Coilovers
|
|
